C2G USB C Triple 4K Monitor Docking Station - HDMI, DisplayPort, Ethernet

Name: C2G USB C Triple 4K Monitor Docking Station - HDMI, DisplayPort, Ethernet
Brand: LEGRAND AV - C2G
SKU: 11PN42
Price: 507.23 USD
Availability: InStock

LEGRAND AV - C2G

PCN#

11PN42

MFG#

C2G54538

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$507.23

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Hard Drive, Keyboard, Notebook, Mouse
USB Type C
3 Displays Supported
4K
3840 x 2160
6 x USB Ports
3 x USB Type
A Ports
USB Type
A
3 x USB Type
C Ports
USB Type
C
Network (RJ
45)
3 x HDMI Ports
HDMI
2 x DisplayPorts
DisplayPort
Black
Wired
Gigabit Ethernet
Windows, macOS, ChromeOS

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 3 lbs.

C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	C2G54538
Manufacturer Website Address	http://www.legrand.us
Brand Name	C2G
Product Name	C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station
Marketing Information	The USB-C Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection - allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go. This docking station supports crisp, high definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled "DP Alt Mode" , be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. The included 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds. The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS. PORTS 2x HDMI (DisplayLink) Ports:Connect to HDMI port 1 or port 2 for a single 4K display or dual 4K displays, supporting audio and video. 2x DisplayPort (DisplayLink) Ports:Connect to DisplayPort port 1 or port 2 for a single 4K display or dual 4K displays, supporting audio and video. 1x HDMI (DP Alt Mode) Port:Connect to the HDMI port labeled "DP Alt Mode" when using a triple display setup with a connected laptop that supports DP alt mode. 3x USB-C:The left side USB-C port delivers up to 100W of power to the connected laptop, the front battery labeled USB-C Gen 2 port supports 10Gbps and BC 1.2 for quick mobile device charging, and the front USB-C Gen 1 port supports data transferring up to 5Gbps. 3x USB-A:Connect storage devices and transfer data up to 5Gbps through the two rear USB-A Gen 1 ports, with the front USB-A Gen 2 port supporting 10Gbps and BC 1.2 for quick mobile device charging. Gigabit Ethernet:Connect to a local network for network and internet access. Audio Combo Jack:Connect a headset microphone or speakers for audio output.
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Device Supported	Hard Drive Keyboard Notebook Mouse
Number of Displays Supported	3
Screen Mode Supported	4K
Supported Resolutions	3840 x 2160

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	6
USB Type-A	Yes
Number of USB Type-A Ports	3
USB Type-C	Yes
Number of USB Type-C Ports	3
Network (RJ-45)	Yes
DisplayPort	Yes
Number of DisplayPorts	2
Headphone/Microphone Combo Port	Yes
HDMI	Yes
Number of HDMI Ports	3

Software

Operating System Supported

Windows
macOS
ChromeOS

Power Description

Power Source Type

Power Adapter

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.25"
Depth	3.35"
Length	7.5"

Miscellaneous

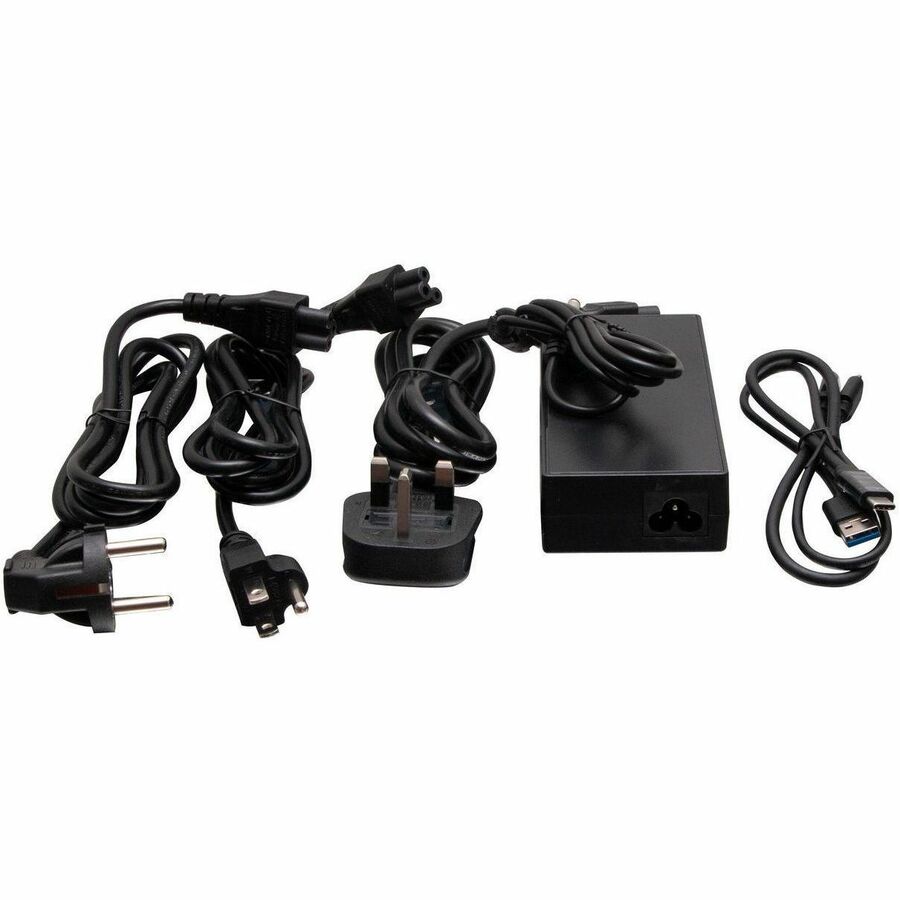

Package Contents	Docking Station 1 x 1.5ft (0.5m) Male USB-C to Male USB-C Cable 1 x 1.5ft (0.5m) Male USB-C to Male USB-A Cable 1 x 130W Power Supply with US, EU, & UK Plugs 1 x Manual
Additional Information	Material: Housing: Plastic (ABS+PC), black, covered by soft silicone sheet
Compatibility	Mac OS Devices (including M1 and M1X)
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	China

Warranty

Limited Warranty

5 Year
