Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block

Name: Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Brand: BLACK BOX
SKU: 9U9192
Price: 260.53 USD
Availability: InStock

BLACK BOX

PCN#

9U9192

MFG#

ME890A-R2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$260.53

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
4000 ft Extended Range

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	ME890A-R2
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block

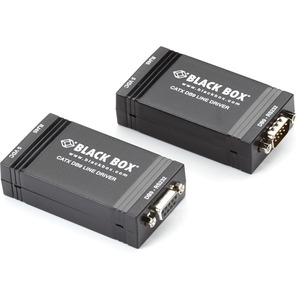

Marketing Information	Use long-distance CATx links to communicate with serial devices. Control presentations remotely. Transfer data between computers. Ideal for a wide variety of applications. Optical isolated. Maximum speed of 250 K. Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration. These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.
Product Type	Serial Extender

Technical Information

Maximum Extended Range	4000 ft
Maximum Data Transfer Rate	31.25 kB/s

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Height	0.8"
Width	1.7"
Depth	3.2"

Miscellaneous

Package Contents	1 x Local Unit 1 x Remote Unit 2 x 120 V Power Supplies
Additional Information	Cable Requirement CATx Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack; Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack Distance 4000 ft. (1219.2 m) maximum Interface RS-232 Operation Asynchronous, full-duplex Power Input: 100-240 VAC; Output: 12-VDC power adapter Speed 250 kbps maximum
Certifications & Standards	CE UL
Environmentally Friendly	Yes
Environmental Certification	WEEE RoHS
Country of Origin	United States
TAA Compliant	Yes
