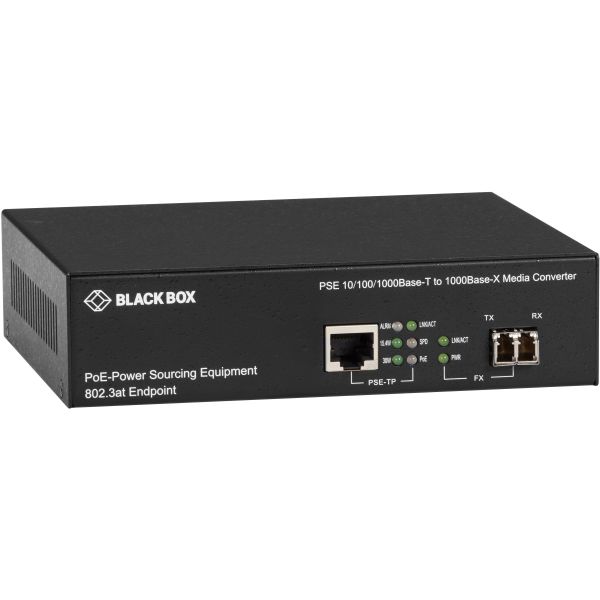

Black Box 10/100/1000B-T PoE PSE To 1000B-X Media Converter

Name: Black Box 10/100/1000B-T PoE PSE To 1000B-X Media Converter
Brand: BLACK BOX
SKU: 8UG872
Price: 332.6 USD
Availability: InStock

BLACK BOX

PCN#

8UG872

MFG#

LPS500A-MM-LC-R3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$332.60

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1x PoE (RJ
45) Ports
1 x LC Ports
DuplexLC Port
Multi
mode
850 nm Fiber
Gigabit Ethernet
10/100/1000Base
T, 1000Base
SX
1804.46 ft
AC
Wall Mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 29 lbs.

Black Box 10/100/1000B-T PoE PSE To 1000B-X Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	LPS500A-MM-LC-R3
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	10/100/1000B-T PoE PSE To 1000B-X Media Converter
Marketing Information	Copper port auto negotiates for network speed and features Auto MDI-X for easy cabling. LEDs indicate when it is feeding PoE power as well as when power is interrupted. RoHS compliant. Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to multimode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. Along with matching copper to interference-free fiber at Gigabit speeds, the converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side. Using existing UTP cabling for both data communications and 48-VDC power simplifies a network application in terms of provisioning power and maintaining equipment. It's particularly ideal for locating equipment where electrical access is inconvenient or just too expensive to locate. Install PoE-compatible security cameras and wireless access points in areas without any nearby power outlets while reducing your overall power consumption, too. Plus, the PoE PSE Gigabit Media Converter has extensive power management features, including overcurrent protection, undercurrent detection, minimum load sensing, and PSE MDI power enable/disable. For reliable data communications, the media converter boasts link fault pass-through (LFP) capabilities, monitoring receive ports on both the fiber and copper sides for loss of signal. If signaling is lost on one media port, it automatically disables the transmit (TX) signal to the other media port. Additionally, a far-end fault (FEF) function enables the converter to cease sending a link pulse to a link partner if signaling on the fiber receive (RX) port is lost. The link partner will also synchronously stop sending data. This way, you don't lose valuable data transmitted over an invalid link. This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of LC Ports	1
LC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Maximum Distance Supported	1804.46 ft

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-SX

Power Description

Power Source	AC
Power Consumption	65 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Wall Mountable
Height	1.6"
Width	6.2"
Depth	5.2"
Weight (Approximate)	1.30 lb

Miscellaneous

Application/Usage	Network
Environmentally Friendly	Yes
Country of Origin	Taiwan

Warranty

Limited Warranty

2 Year
