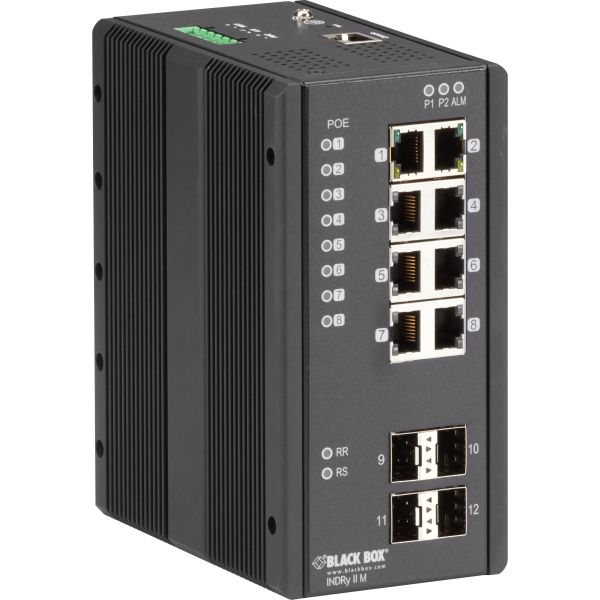

Black Box Hardened Managed Ethernet Switch

Name: Black Box Hardened Managed Ethernet Switch
Brand: BLACK BOX
SKU: 9U4978
Price: 939.3 USD
Availability: InStock

BLACK BOX

PCN#

9U4978

MFG#

LIE1014A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$939.30

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
1000Base
X, 10/100/1000Base
T
2 Layer Supported
4 SFP Slots
14 W Power Consumption
265 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Wall Mountable, DIN Rail Mountable
1 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 5 lbs.

Black Box Hardened Managed Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	LIE1014A
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Series	LIE1000
Product Name	Hardened Managed Ethernet Switch
Marketing Information	OVERVIEW INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET INTRODUCTION The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots. Power over Ethernet The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling. Multi-rate SFP slots The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment. Power The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at. Extended temperature range All models are tested and released for operating temperatures from -40° up to +75° Celsius. Management The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes

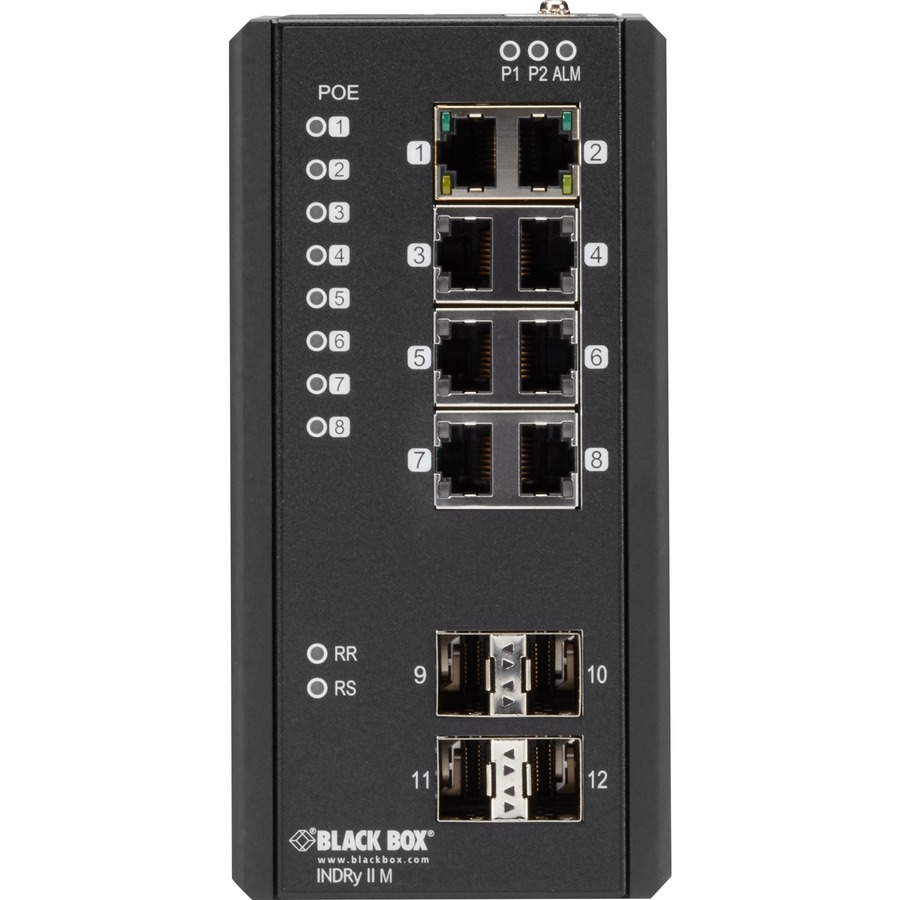

Port/Expansion Slot Details	8 x RJ45 Gigabit Ethernet PoE+ 4 x SFP Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3af IEEE 802.3at

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	265 W
Input Voltage	12 V DC 58 V DC
Power Source	DC
Power Consumption	14 W

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable
Height	6.1"
Width	3"
Depth	5"
Weight (Approximate)	3.10 lb

Miscellaneous

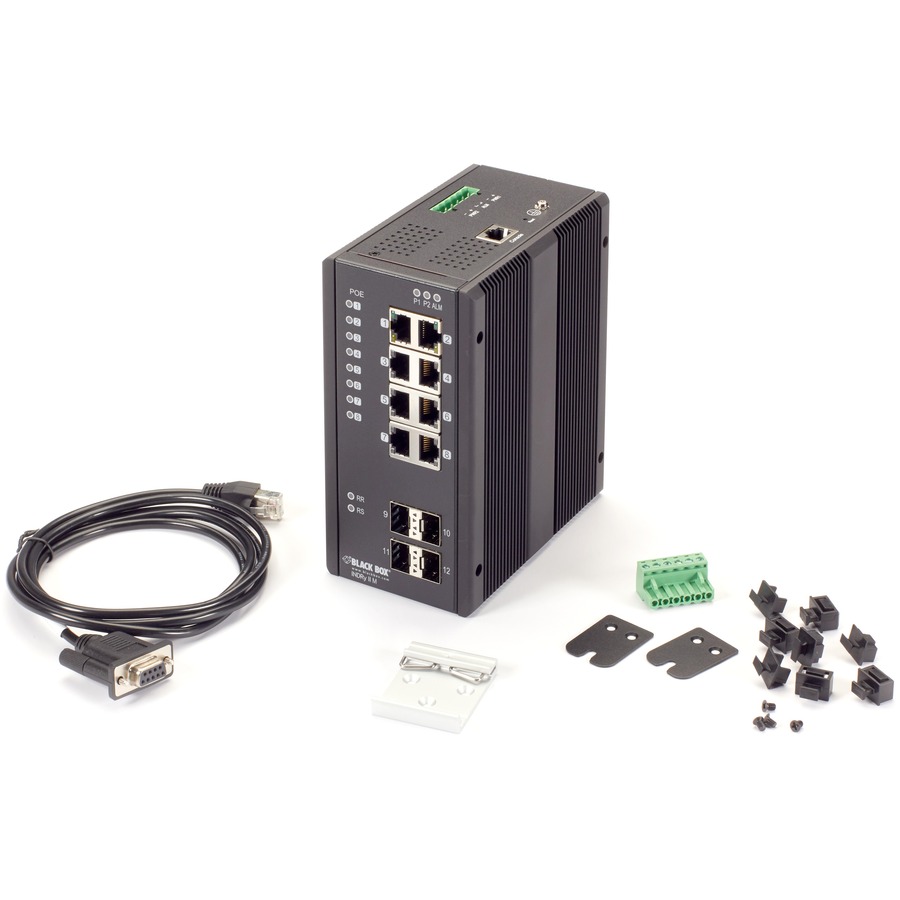

Package Contents	Hardened Managed Ethernet Switch 4 x M3 Screws 2 x Panel Mount Brackets 1 x DIN Rail Clip 1 x 6 position Phoenix Connector 4 x RJ45 Ethernet-Port Dust Covers 4 x SFP Ethernet-Port Dust Covers
Application/Usage	Industrial
Additional Information	This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
Country of Origin	Taiwan
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
