Black Box LGC5600 Transceiver/Media Converter

Name: Black Box LGC5600 Transceiver/Media Converter
Brand: BLACK BOX
SKU: 9CB707
Price: 925.14 USD
Availability: InStock

BLACK BOX

PCN#

9CB707

MFG#

LGC5600A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$925.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
Multi
mode
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
1 x Expansion Slots
SFP (mini
GBIC)
1 x SFP Slots
AC Adapter
Standalone, Tabletop, Wall Mountable, DIN Rail Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 5 lbs.

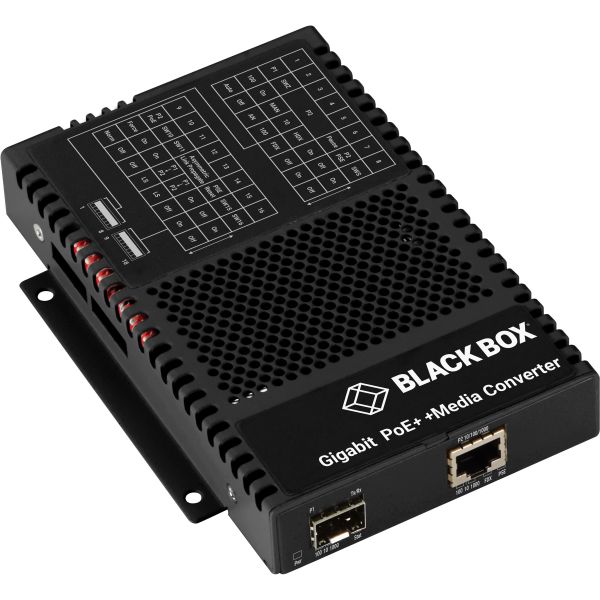

Black Box LGC5600 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	LGC5600A
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	LGC5600 Transceiver/Media Converter
Marketing Information	Convert 10/100/1000BASE-T to 1000BASE-X SFP with Ease If you need to extend your copper network with fiber, look no further. PoE++ Media Converter easily converts 10/100/1000BASE-T to 1000BASE-X or 100BASE-X SFP. Power-over-Ethernet Support With full Power-over-Ethernet (PoE) support, this media converter can function as a PoE injector. It's classified as Power Sourcing Equipment (PSE) and can provide power to one or two powered devices (PDs) using standard UTP cables. The converter provides up to 60 watts of power per RJ-45 port, allowing it to power cameras, wireless access points, and more. Configurable Features Changeable features include link modes and a PoE power reset function that enables a PD device to be reinitialized remotely, eliminating the need for costly trips to PD sites. Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages. Works with a Variety of Fiber PoE++ Media Converter supports fixed-fiber connectors and 100-Mbps or 1000-Mbps SFP transceiver receptacles. It also supports SFPs for multimode and single-mode dual fiber as well as single-mode single fiber in standard and CWDM wavelengths. Plenty of Mounting Options This compact standalone media converter can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. It can also be mounted on a 1U 19-inch rackmount shelf.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
PoE Port Type	PSE
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode

I/O Expansions

Number of Total Expansion Slots	1
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

Power Description

Power Source

AC Adapter

Physical Characteristics

Form Factor	Standalone Tabletop Wall Mountable DIN Rail Mountable
Height	1"
Width	4.5"
Depth	6"
Weight (Approximate)	1.10 lb

Miscellaneous

Package Contents	LGC5600 Transceiver/Media Converter 1 x 100-240 VAC Power Adapter
Environmentally Friendly	Yes
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
