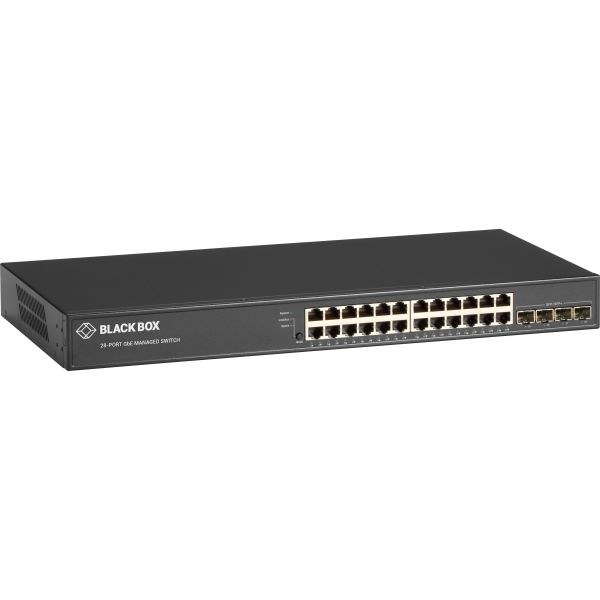

Black Box LGB5000 Ethernet Switch

Fully manageable

The switch is fully managed, supporting SNMP version 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). The integral Web server enables Web-based management via a Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow, UPnP, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security.

Support for VLAN and QoS

Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.

Secure

You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.

Green

The Gigabit Ethernet Managed Switch features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.

• 24 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 10GBase-X

• SFP+
• SFP (mini-GBIC)

• IEEE 802.1x
• IEEE 802.3az
• IEEE 802.1Q
• IEEE 802.1p

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• LGB5000 Ethernet Switch
• 4 x Adhesive Rubber Feet
• 1 x RS-232 to RJ-45 Console Cable
• 1 x AC Power Cord
• 1 x Installation Guide
• User Manual in PDF Format on CD-ROM

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
