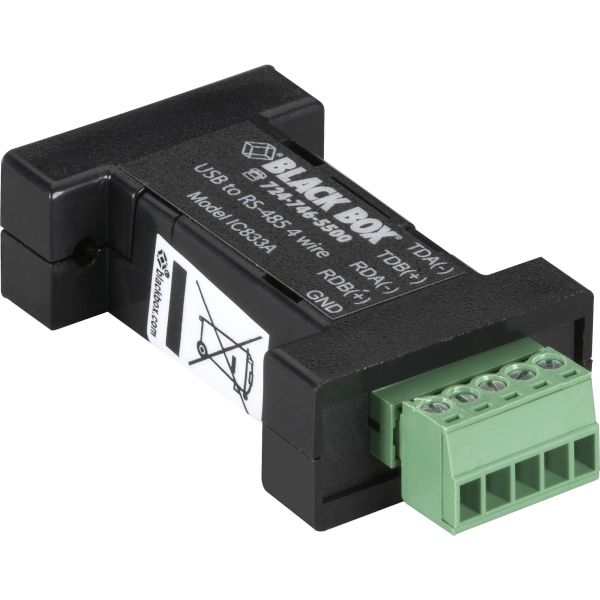

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)

Name: Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)
Brand: BLACK BOX
SKU: UP7693
Price: 113.55 USD
Availability: InStock

BLACK BOX

PCN#

UP7693

MFG#

IC833A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$113.55

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Type B USB 2.0 USB Female
1 x 9
pin DB
9 RS
485 Serial
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	IC833A
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)
Marketing Information	Automatic configuration on Windows 98, ME, 2000, XP, and Vista systems. Powered from the USB interface. Includes 3-ft. (0.9 m) USB cable. USB is the connectivity standard for today's PCs, replacing familiar serial ports. However, many commercial and industrial devices still use RS-232, RS-422, or RS-485 interfaces. To connect these devices to modern PCs, you need simple and reliable converters. The Black Box Mini USB-to-Serial Converter offer USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager. RS-485 (two- and four-wire) Support TDA, TDB, RDA, RDB, and GND. Baud rates up to 921 Kbps. Use on RS-485 2-wire or RS-422/485 4-wire networks. Support Send Data Control (SDC). RS-232 Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND). Baud rates up to 460 Kbps.
Product Type	Data Transfer Adapter

Technical Information

Adapter Type	Serial/USB
Connector Type on First End	USB 2.0 Type B - Female
Connector on First End Details	1 x Type B USB 2.0 USB Female
Connector Type on Second End	DB-9 RS-485 Serial
Connector on Second End Details	1 x 9-pin DB-9 RS-485 Serial

Physical Characteristics

Height	0.6"
Width	2.3"
Depth	1.3"

Miscellaneous

Package Contents	DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block) 1m USB Cable
Certifications & Standards	CE
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
