Black Box Emerald SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio

Name: Black Box Emerald SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio
Brand: BLACK BOX
SKU: 3DU061
Price: 871.31 USD
Availability: InStock

BLACK BOX

PCN#

3DU061

MFG#

EMD2000SE-R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$871.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Computer(s)
1 Remote User(s)
328.08 ft Range
WUXGA
1920 x 1200 Maximum Video Resolution
1 x Network (RJ
45)
4 x USB
1 x DVI
120 V AC, 240 V AC Input Voltage
Desktop
For PC, Linux, Mac
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

Black Box Emerald™ SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	EMD2000SE-R
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Emerald®
Product Line	Emerald SE
Product Model	EMD2000SE-R
Product Name	SE KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45

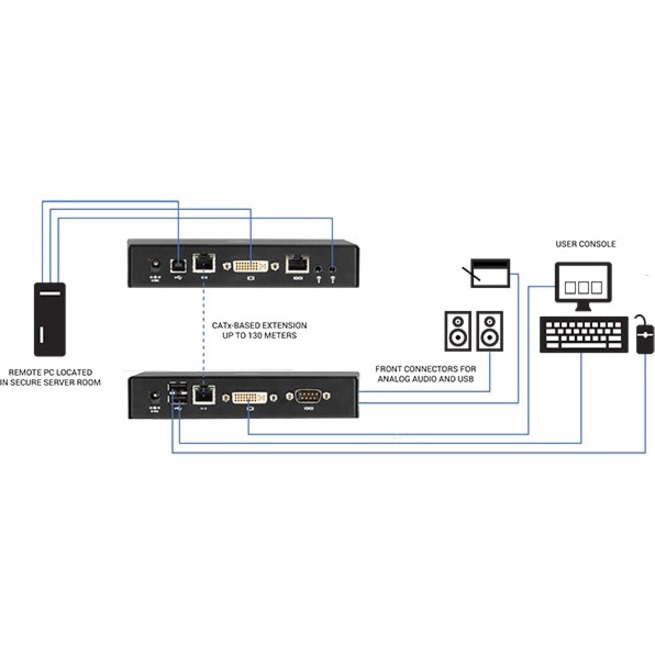

Marketing Information	High-performance KVM Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing. Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB 2.0, and bi-directional analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup. Virtualization support Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft® HyperV®, and Citrix®, using RDP 8.1/RemoteFX. Limitless scaling Your Emerald KVM network may start small, but scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla KVM management solution. A welcome addition to the Emerald product family Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families: DKM proprietary, direct-connect KVM system Freedom II Multi-Monitor Switch with Glide-and-Switch technology ControlBridge our system for one-touch, multisystem control Boxilla KVM manager
Packaged Quantity	1
Product Type	KVM Extender Receiver

Technical Information

Connectivity Technology	Wired
KVM Technology	Digital
Number of Computers Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	328.08 ft
Device Type	KVM Extender

Video

Graphic Mode	WUXGA
Maximum Video Resolution	1920 x 1200

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
DVI	Yes
Headphone	Yes
Microphone	Yes
Number of Network (RJ-45) Ports	1
Number of USB Ports	4
Number of DVI Ports	1

Power Description

Input Voltage	120 V AC 240 V AC
Input Voltage Range	100V AC to 240V AC
Power Consumption	6.50 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Desktop
Receiver Height	1.15"
Receiver Width	6.20"
Receiver Depth	4.20"
Receiver Weight (Approximate)	1.18 lb

Miscellaneous

Package Contents	Emerald Se Receiver, Single-head 1 x 5 Vdc Power Supply 1 x Us Power Cord
Certifications & Standards	FCC CE
Platform Supported	PC Linux Mac
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	Ireland
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
