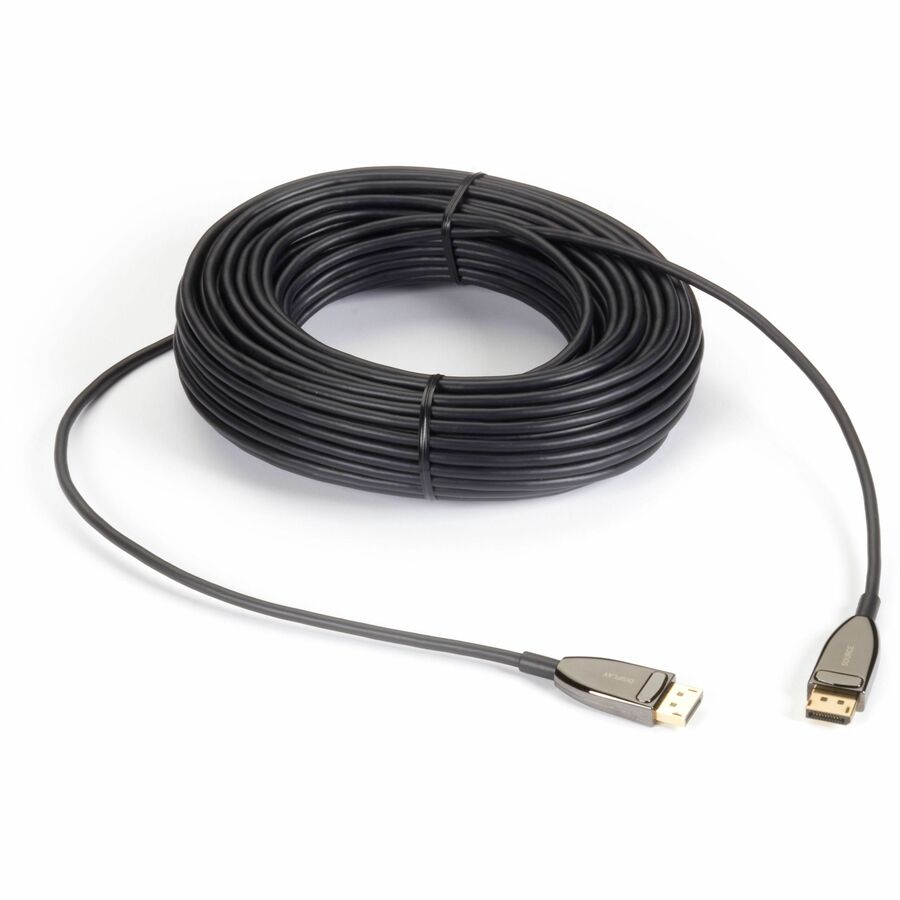

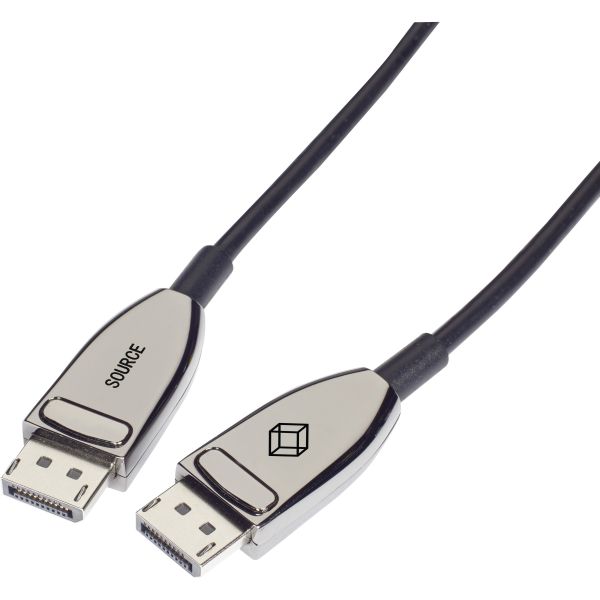

Black Box DisplayPort 1.4 Active Optical Cable

Name: Black Box DisplayPort 1.4 Active Optical Cable
Brand: BLACK BOX
SKU: 6NA912
Price: 689.21 USD
Availability: InStock

BLACK BOX

PCN#

6NA912

MFG#

AOC-HL-DP4-100M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$689.21

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

328.08 ft Fiber Optic A/V Cable for Audio/Video Device, Video Extender, Transmitter, Receiver
First End: 1 x DisplayPort 1.4 Digital Audio/Video
Male
Second End: 1 x DisplayPort 1.4 Digital Audio/Video
Male
32.4 Gbit/s
Supports up to 7680 x 4320
Nickel Plated Connector
LSZH
Multi
mode
Black
1 Each

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 8 lbs.

Black Box DisplayPort 1.4 Active Optical Cable (AOC) - 8K60, 32.4 Gbps

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	AOC-HL-DP4-100M
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	DisplayPort 1.4 Active Optical Cable (AOC) - 8K60, 32.4 Gbps
Marketing Information	Superior UHD Transmission with Active Optical Cables (AOC) Active Optical Cables (AOCs) offer a decisive advantage over copper, solving the biggest challenge in high-end AV: reliably transmitting ultra-high-bandwidth signals over long distances. While bulky copper cables struggle to carry 4K60 beyond five meters, AOCs effortlessly support DisplayPort 1.4 bandwidths of 32.4 Gbps over hundreds of meters in a single, flexible cable. Unmatched Quality and Simplicity AOCs deliver truly outstanding video, providing 8K60 resolution and supporting the full DisplayPort 1.4 feature set. This includes HDR video for superb contrast, BT.2020 colorimetry, 21:9 cinema aspect ratio, and essential content protection like DPCP. For audio, the cables provide an immersive experience, supporting PCM 8-Channel, DTS-HD, and Dolby Digital True HD Surround Sound, with the capacity to transmit up to 32 audio channels. Installation is simple: AOCs are a plug-and-play solution requiring no software, external power, or additional hardware - just connect them to your source and display. This all-in-one design ensures premium reliability compared to complex extender setups with multiple potential points of failure. Installation Flexibility AOCs enhance installation by being significantly thinner, lighter, and more flexible than copper. Their superior bend radius makes routing them through tight spaces easy, which is a major advantage for managing clutter in complex setups like video walls. For technicians, they are lightweight - a 10-meter AOC weighs less than 300 grams, compared to a kilogram for five meters of copper, which makes pulling cables through ceilings and walls much safer and easier.
Packaged Quantity	1 Each
Product Type	A/V Cable

Technical Information

Cable Type	Fiber Optic
Fiber Optic Mode	Multi-mode
Fiber Category	OM3
Cable Length	328.08 ft
Outer Diameter	0.19"
Connector Type on First End	DisplayPort 1.4 Digital Audio/Video - Male
Connector on First End Details	1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End	DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details	1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Plating	Nickel
Jacket Type	LSZH
Device Supported	Audio/Video Device Video Extender Transmitter Receiver
Data Transfer Rate	32.4 Gbit/s
Supported Resolution	7680 x 4320
Features	Active Extended Display Identification Data (EDID) Consumer Electronics Control (CEC) Halogen Free EMI/RF Protection Active Optical Technology (AOT) Display Data Channel (DDC) Compatible DPCP Plug & Play Flexible Damage Resistant Ultra-thin

Physical Characteristics

Color Family	Black
Product Color	Black
Weight (Approximate)	11 lb
Shipping Height	11"
Shipping Width	8.07"
Shipping Weight (Approximate)	11 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
Country of Origin	Vietnam

Warranty

Limited Warranty

3 Year
