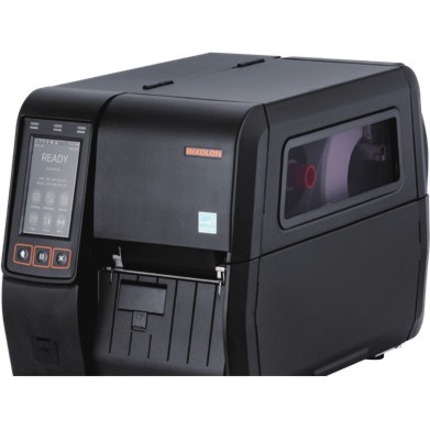

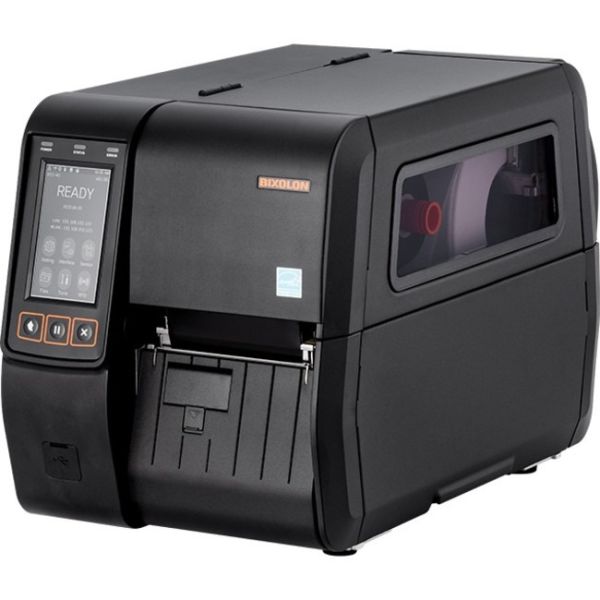

Bixolon XT5-40NR Desktop Thermal Transfer Printer - Monochrome - Label Print - Gigabit Ethernet - USB - USB Host - Serial - RFID - US - Black

Name: Bixolon XT5-40NR Desktop Thermal Transfer Printer - Monochrome - Label Print - Gigabit Ethernet - USB - USB Host - Serial - RFID - US - Black
Brand: BIXOLON
SKU: 9FP839
Price: 2212.6 USD
Availability: InStock

BIXOLON

PCN#

9FP839

MFG#

XT5-40NRS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,212.60

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

4.3" LCD Display Screen
Real Time Clock
13.12 ft Print Length
4.09" Print Width
14 in/s Mono
203 dpi
4.49" Label Width
SLCS, BPL
Z, BPL
E, BPL
D Emulation
For Android, PC, iOS

Product Condition: New and Factory Fresh

Shipping Weight: 31 lbs.

Bixolon XT5-40NR Desktop Thermal Transfer Printer - Monochrome - Label Print - Gigabit Ethernet - USB - USB Host - Serial - RFID - US - Black

Overview

Tech Specs

Specifications

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XT5-40NRS
Manufacturer Website Address	http://www.bixolon.com
Brand Name	Bixolon
Product Series	XT5-40
Product Model	XT5-40NR
Product Name	4-inch Thermal Transfer Industrial RFID Label Printer

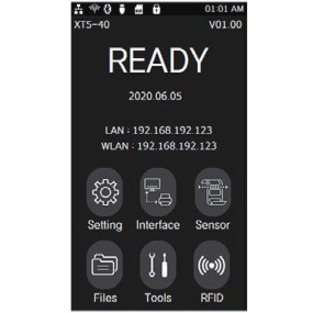

Marketing Information	The XT5-40NR supports UHF RFID print and encode capability with a 4.3-inch full-colour touch display which enhances visibility and tracking performance. An intuitive menu and simple calibration functions to reduce setup and operational time. By minimising spacing RFID inlay, it reduces media waste and prolongs the media replacement cycle.
Product Type	Thermal Transfer Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	14 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	13.12 ft
Maximum Print Width	4.09"
Barcode Symbology Supported	Codabar Code 11 Code 39 Code 93 Code 128 EAN-13 EAN-8 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Plessey POSTNET Standard 2 of 5 UPC/EAN UPC-A UPC-E IMB Aztec Code Codablock Code 49 Data Matrix Maxi Code PDF417 QR Code TLC 39 Micro PDF-417 GS1 DataBar (RSS-14)
Real Time Clock	Yes
Application/Usage	Desktop
Features	LCD Display RFID Encoder Auto-calibration
Optional Connectivity	Parallel Wireless LAN Bluetooth
Fonts Included	10 SLCS One SLCS 16 BPL-Z One BPL-Z 9 BPL-D Two BPL-D 5 BPL-E 23 Code Page Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Memory

Standard Memory

512 MB

Interfaces/Ports

Serial Port	Yes
USB Host	Yes
USB	Yes

Network & Communication

Ethernet	Yes
Ethernet Technology	Gigabit Ethernet
RFID	Yes

Display & Graphics

Display Screen	Yes
Screen Size	4.3"
Display Screen Type	LCD

Media Types & Handling

Media Type	Label Gap Black Mark Notch Continuous Label Fanfold
Media Sensor	Transmissive Media Sensor Reflective Media Sensor
Maximum Roll Diameter	7.99"
Maximum Label Width	4.49"

Fonts & Emulation

Language Emulation

SLCS
BPL-Z
BPL-E
BPL-D

Power Description

Power Source	AC Supply
Input Voltage	120 V AC 230 V AC

Environmental Conditions

Operating Temperature	41°F (5°C) - 104°F (40°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	68°F (20°C) - 140°F (60°C)
Storage Relative Humidity	10% - 90%

Physical Characteristics

Product Color	Black
Height	12.8"
Width	10.6"
Depth	19.3"
Weight (Approximate)	30.82 lb

Miscellaneous

Power Cable Localization	US
Platform Supported	Android PC iOS
Energy Star	Yes
