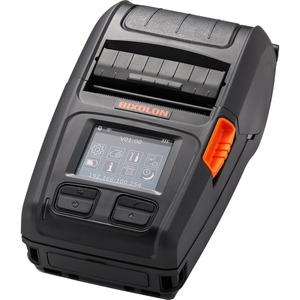

Bixolon XM7-20 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included - Black

Name: Bixolon XM7-20 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included - Black
Brand: BIXOLON
SKU: 10TC97
Price: 516.73 USD
Availability: InStock

BIXOLON

PCN#

10TC97

MFG#

XM7-20IK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$516.73

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

LCD Display Screen
1.89" Print Width
5.98 in/s Mono
203 dpi
2.28" Label Width
SLCS, BPL
Z, BXL/POS, BPL
C Emulation
For iOS, Android, PC

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

Bixolon XM7-20 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included - Black

Overview

Tech Specs

Specifications

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XM7-20IK
Manufacturer Website Address	http://www.bixolon.com
Brand Name	Bixolon
Product Series	XM7
Product Model	XM7-20
Product Name	XM7-20 Direct Thermal Printer
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	5.98 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Width	1.89"
Barcode Symbology Supported	1D Codabar Code 11 Code 39 Code 93 Code 128 EAN-13 EAN-8 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Plessey POSTNET GS1 DataBar Standard 2 of 5 UPC/EAN UPC-E IMB 2D AZTEC Codablock Code 49 Data Matrix Maxi Code Micro PDF-417 PDF-417 QR Code TLC 39
Application/Usage	Mobile
Features	Tear Bar LCD Display Compact Rugged Water Proof Dust Resistant Drop Resistant
Ingress Protection (IP) Rating	IP54
Optional Connectivity	Wireless LAN
Fonts Included	10 SLCS One SLCS 16 BPL-Z One BPL-Z 7 BPL-C 23 Code Page Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology	Direct Thermal

Interfaces/Ports

Serial Port	Yes
USB	Yes

Network & Communication

Bluetooth	Yes
Near Field Communication (NFC)	Yes

Display & Graphics

Display Screen	Yes
Display Screen Type	LCD

Media Types & Handling

Media Type	Label Notch Receipt
Media Sensor	Transmissive Media Sensor Paper End Sensor Gap Sensor Black Mark Sensor
Media Thickness	7.48 mil
Maximum Roll Diameter	2.24"
Maximum Label Width	2.28"

Fonts & Emulation

Language Emulation

SLCS
BPL-Z
BXL/POS
BPL-C

Software

Operating System Supported

Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB Driver, Utility Program, LabelArtist-II™, Bartender UL, OPOS / JPOS Driver, SAP® Device Driver

Power Description

Power Source

Battery

Battery Information

Battery Included

Yes

Environmental Conditions

Operating Temperature	5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	-22°F (-30°C) - 158°F (70°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Height	2.7"
Width	6.6"
Depth	3.7"
Weight (Approximate)	1.32 lb

Miscellaneous

Platform Supported	iOS Android PC
Energy Star	Yes
