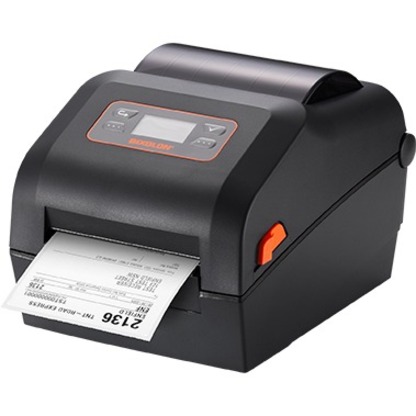

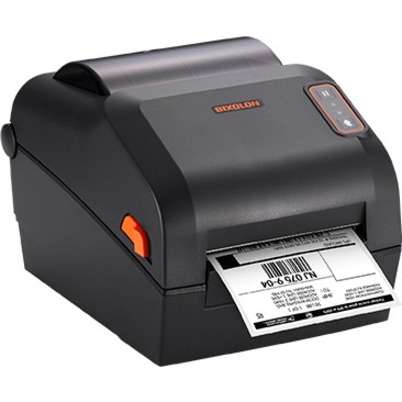

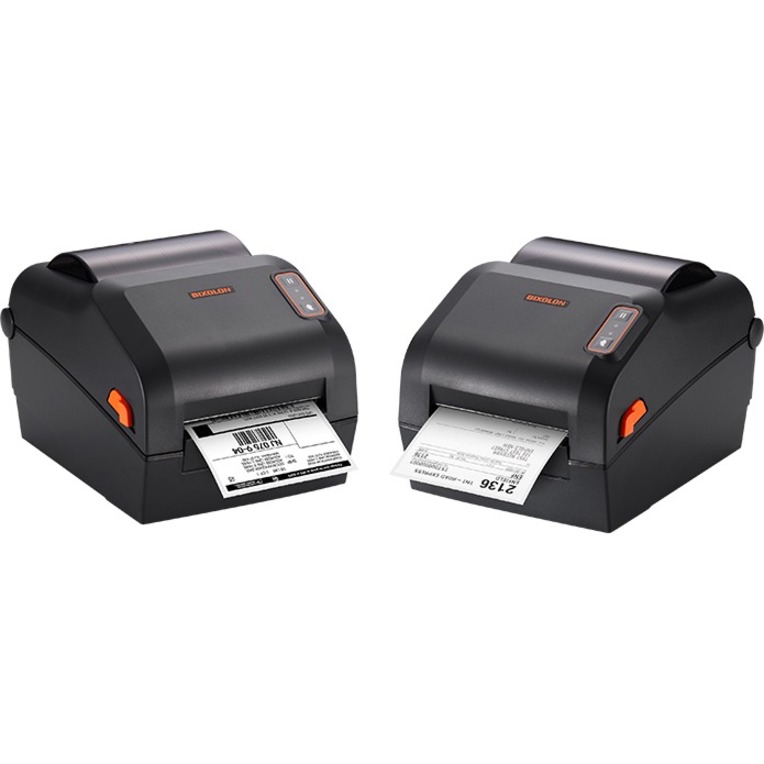

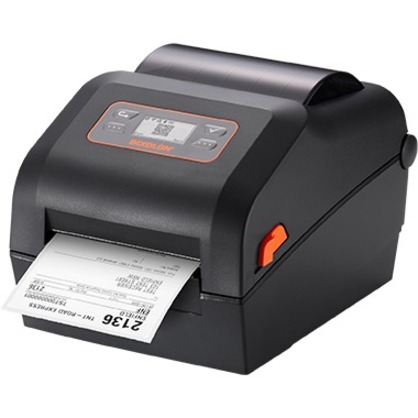

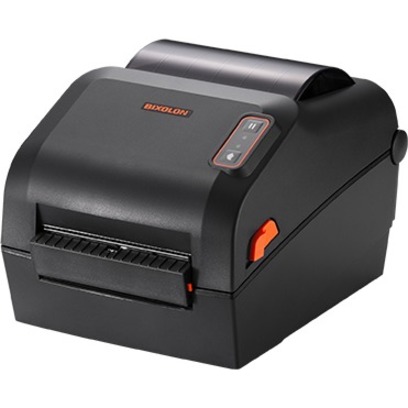

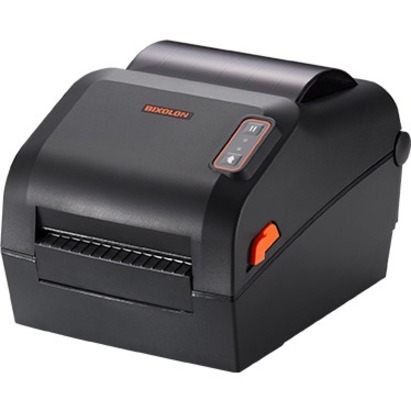

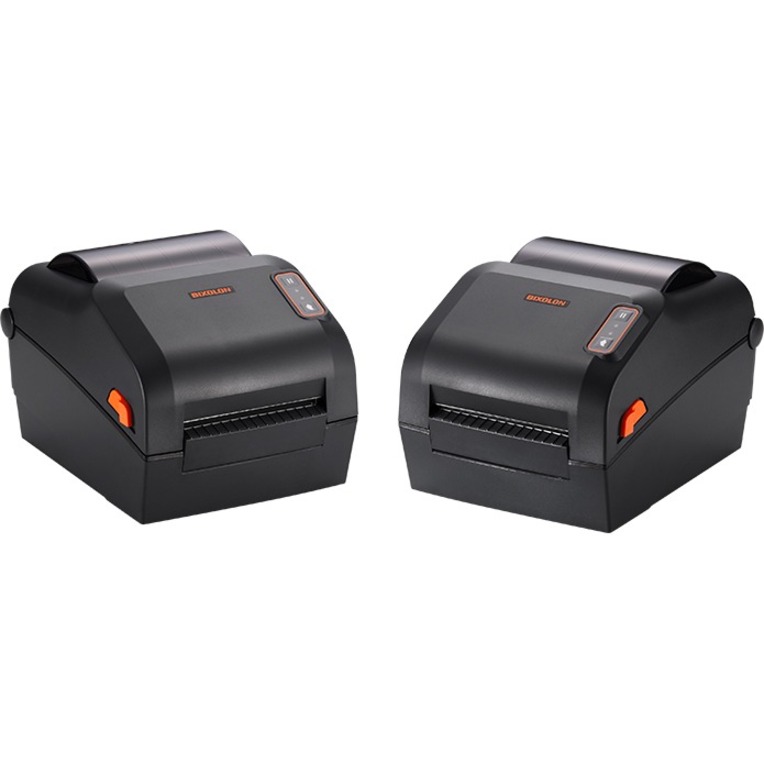

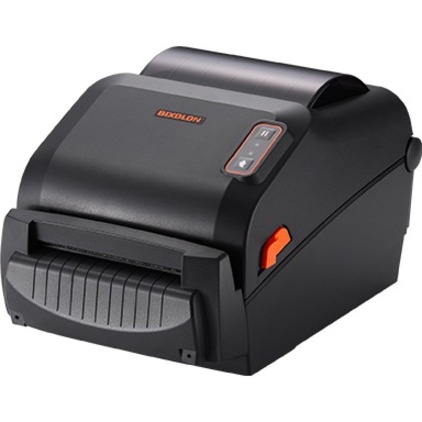

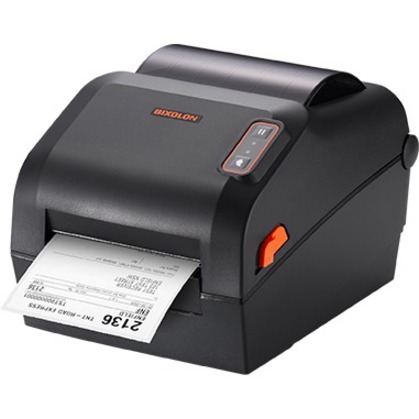

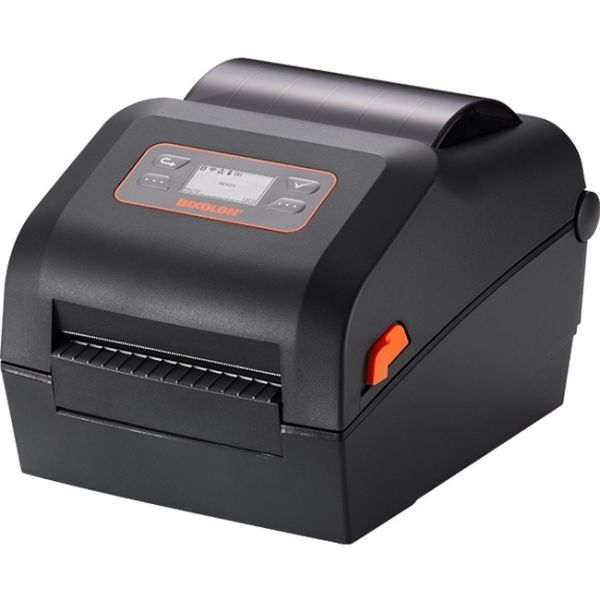

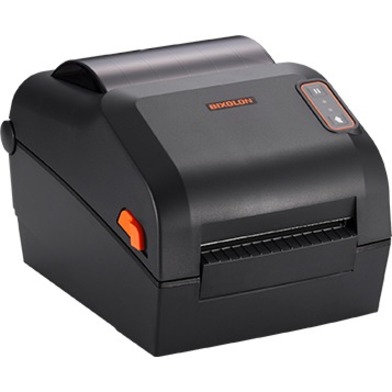

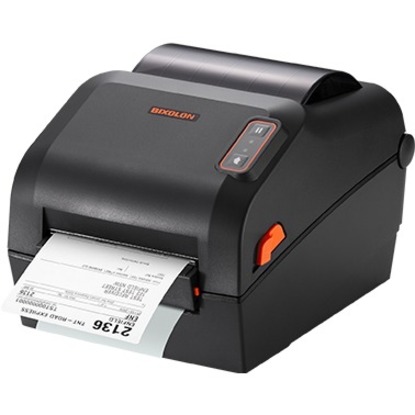

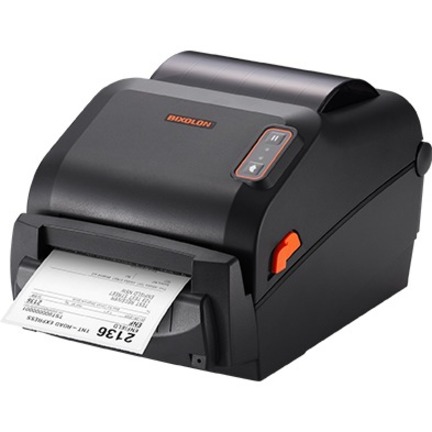

Bixolon Xd5-40d Desktop Direct Thermal Printer - Monochrome - Label Print - Ethernet - USB - USB Host - Serial - Wireless LAN - Black

Name: Bixolon Xd5-40d Desktop Direct Thermal Printer - Monochrome - Label Print - Ethernet - USB - USB Host - Serial - Wireless LAN - Black
Brand: BIXOLON
SKU: 9FP176
Price: 325.07 USD
Availability: InStock

BIXOLON

PCN#

9FP176

MFG#

XD5-40DEWK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$325.07

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

LCD Display Screen
Peel Facility
39.37" Print Length
7 in/s Mono
203 dpi
4.65" Label Width
SLCS, BPL
Z, ZPL II, BPL
E, EPL Emulation
For PC, iOS, Android

Product Condition: New and Factory Fresh

Shipping Weight: 5 lbs.

Bixolon Xd5-40d Desktop Direct Thermal Printer - Monochrome - Label Print - Ethernet - USB - USB Host - Serial - Wireless LAN - Black

Overview

Tech Specs

Specifications

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XD5-40DEWK
Manufacturer Website Address	http://www.bixolon.com
Brand Name	Bixolon
Product Series	XD5-40
Product Model	Xd5-40d
Product Name	4-inch Direct Thermal Desktop Label Printer
Marketing Information	The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	7 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	39.37"
Barcode Symbology Supported	Codabar Code 11 Code 39 Code 93 Code 128 EAN-13 EAN-8 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Plessey POSTNET GS1 DataBar Standard 2 of 5 UPC/EAN UPC-A UPC-E IMB Aztec Code Codablock Code 49 Data Matrix Maxi Code Micro PDF-417 PDF417 QR Code TLC 39
Peel Facility	Yes
Application/Usage	Desktop
Features	Compact LCD Display
Connectivity Technology	Wired
Optional Connectivity	Bluetooth
Fonts Included	10 SLCS One SLCS 16 BPL-Z One BPL-Z 5 BPL-E 23 Code Page Unicode supported UTF-8 UTF-16LE UTF-16BE
Print Technology	Direct Thermal

Memory

Standard Memory

64 MB

Interfaces/Ports

Serial Port	Yes
USB Host	Yes
USB	Yes

Network & Communication

Ethernet	Yes
Ethernet Technology	Ethernet
Wireless LAN	Yes

Display & Graphics

Display Screen	Yes
Display Screen Type	LCD

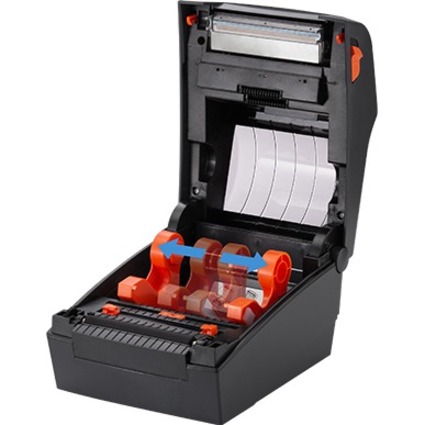

Media Types & Handling

Media Type	Label Gap Black Mark Notch Fanfold Continuous Label
Media Sensor	Transmissive Media Sensor Reflective Media Sensor
Maximum Roll Diameter	5"
Maximum Label Width	4.65"

Fonts & Emulation

Language Emulation

SLCS
BPL-Z
ZPL II
BPL-E
EPL

Power Description

Power Source	AC Supply Power Adapter
Input Voltage	120 V AC 230 V AC

Environmental Conditions

Operating Temperature	32°F (0°C) - 104°F (40°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity	10% - 90%

Physical Characteristics

Color Family	Black
Product Color	Black
Height	6.7"
Width	7.6"
Depth	9.8"
Weight (Approximate)	4.17 lb

Miscellaneous

Cables Included	USB
Platform Supported	PC iOS Android
Energy Star	Yes
