BLK USB I/F 5IPS PRINT SPEED DIRECT THERMAL 203DPI 118MM

Name: BLK USB I/F 5IPS PRINT SPEED DIRECT THERMAL 203DPI 118MM
Brand: BIXOLON
SKU: 8TN907
Price: 219.95 USD
Availability: InStock

BIXOLON

PCN#

8TN907

MFG#

XD3-40DK

$219.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

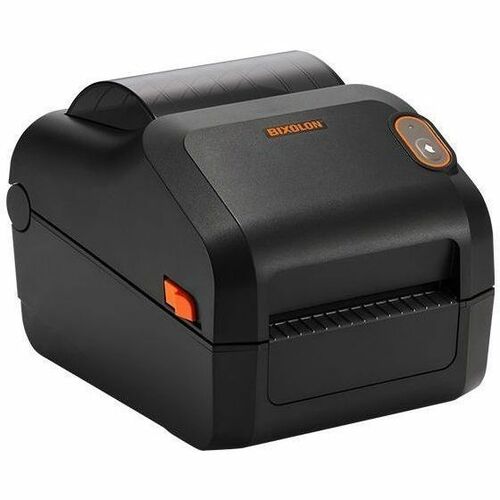

Bixolon XD3-40d Warehouse, Logistic, Manufacturing, Retail Direct Thermal Printer - Monochrome - Label Print - Ethernet - USB - Serial - Black

Tech Specs

Specifications

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XD3-40dK
Manufacturer Website Address	http://www.bixolon.com
Brand Name	Bixolon
Product Model	XD3-40d
Product Name	XD3-40d 4 inch Direct Thermal Label Printer
Marketing Information	Basic Functions - Printing speed up to 5 ips (127 mm/sec) - Fully compatible with market-leading programming languages - Supporting stand-alone configuration mode by visual LED - Smart switch programming languages without setting the mode User-Friendly Design - Easy paper loading with adjustable paper guide and holder - Simply set up media sensor - Optional peeler - Compatible with label design software; BIXOLON's Label Artist™, Seagull's BarTender® and BarTender® UltraLite for BIXOLON All in one Plus™ Interface - Standard: USB - Optional: USB + Serial + Ethernet
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	5 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	39.37"
Maximum Print Width	4.09"
Barcode Symbology Supported	TLC 39 QR Code Maxi Code Micro PDF-417 PDF417 Data Matrix Code 49 AZTEC Codablock IMB POSTNET Plessey Code 11 Code 39 Code 93 Codabar Code 128 EAN-13 EAN-8 Interleaved 2 of 5 LOGMARS MSI UPC/EAN GS1 DataBar (RSS-14) UPC-A UPC-E Industrial 2 of 5 Standard 2 of 5 1D 2D
Real Time Clock	No
Application/Usage	Warehouse Logistic Manufacturing Retail
Features	Compact
Connectivity Technology	Wired
Fonts Included	10 SLCS Resident Bitmap Fonts 5 BPL-E Resident Bitmap Fonts One BPL-Z Resident Scalable Font One SLCS Resident Scalable Font 16 BPL-Z Resident Bitmap Fonts UTF-8 UTF-16LE UTF-16BE
Print Technology	Direct Thermal

Memory

Standard Memory	64 MB
Flash Memory	128 MB

Interfaces/Ports

Serial Port	Yes
USB	Yes

Network & Communication

Ethernet	Yes
Ethernet Technology	Ethernet

Display & Graphics

Screen Size

Media Types & Handling

Media Type	Label Black Mark Notch Continuous Label Fanfold
Media Sensor	Transmissive Media Sensor Reflective Media Sensor Head Open Sensor Low Ribbon Sensor
Media Thickness	7.87 mil
Maximum Roll Diameter	5"
Maximum Label Width	4.65"

Fonts & Emulation

Language Emulation

Power Description

Power Source	AC Supply
Frequency	50 Hz 60 Hz

Environmental Conditions

Operating Temperature	32°F (0°C) - 104°F (40°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity	10% - 90%

Physical Characteristics

Miscellaneous

Platform Supported	PC Mac
Energy Star	Yes
