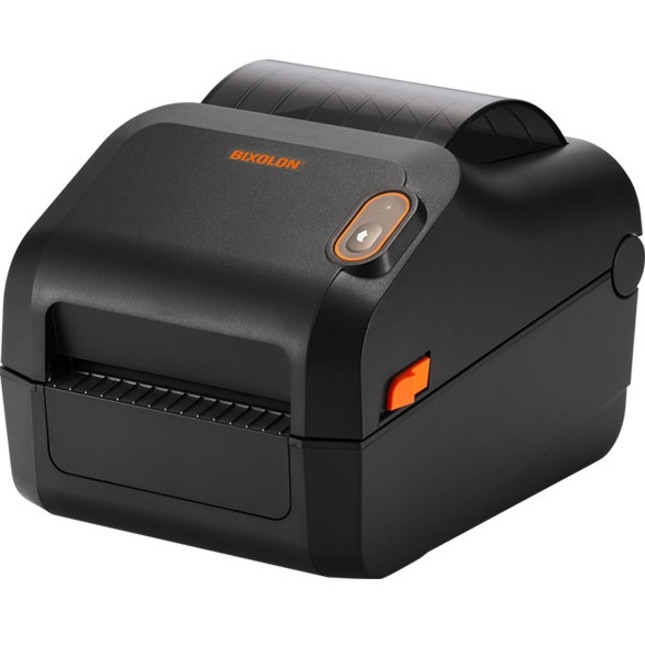

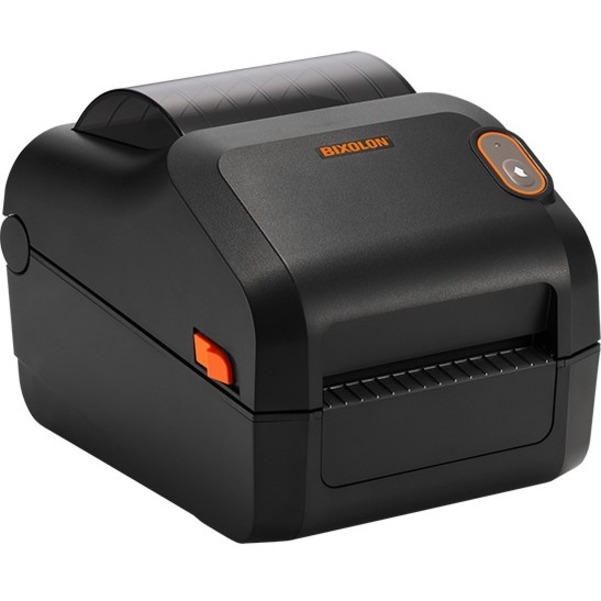

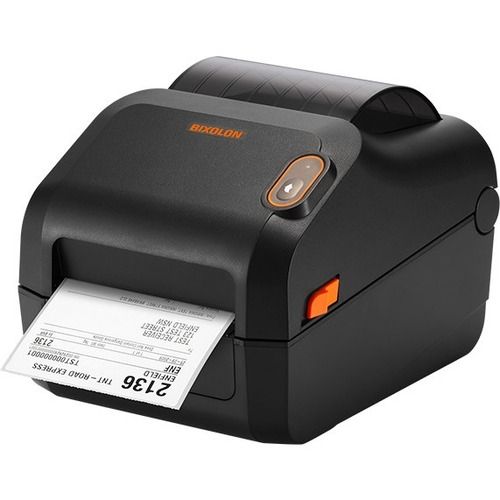

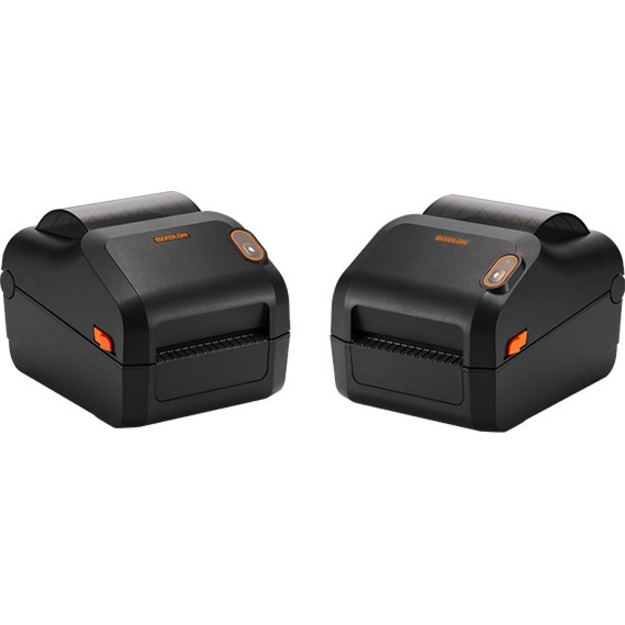

Bixolon XD3-40d Desktop Direct Thermal Printer - Monochrome - Label Print - USB - USB Host - US - Black, Orange

Name: Bixolon XD3-40d Desktop Direct Thermal Printer - Monochrome - Label Print - USB - USB Host - US - Black, Orange
Brand: BIXOLON
SKU: 8TN908
Price: 202.98 USD
Availability: InStock

BIXOLON

PCN#

8TN908

MFG#

XD3-40DDK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$202.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Peel Facility
39.37" Print Length
4.09" Print Width
5 in/s Mono
203 dpi
4.65" Label Width
SLCS, BPL
Z, BPL
D, BPL
E Emulation
For PC, Mac

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

Bixolon XD3-40d Desktop Direct Thermal Printer - Monochrome - Label Print - USB - USB Host - US - Black, Orange

Overview

Tech Specs

Specifications

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XD3-40DDK
Manufacturer Website Address	http://www.bixolon.com
Brand Name	Bixolon
Product Series	XD3-40
Product Model	XD3-40d
Product Name	4 inch Direct Thermal Label Printer
Marketing Information	Following in the footsteps of the industry recognised SRP-E770 series, the entry-level XD3-40d is a new Direct Thermal 4-inch (118mm) Desktop workhorse offering day-to-day quality 203 dpi output across your logistics, warehousing and manufacturing installations. Simple to setup and use, the XD3-40d also benefits from tool-less printhead and platen replacement to ensure uptime is maximised. Product or asset labelling, Document management, patient and quest identification, Shipping and logistics printing, the XD3-series offers a balance of cost and performance, including print speed, tear and peel media handling, plus networked options.
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	5 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	39.37"
Maximum Print Width	4.09"
Barcode Symbology Supported	Codabar Code 11 Code 39 Code 93 Code 128 EAN-13 EAN-8 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Plessey POSTNET GS1 DataBar Standard 2 of 5 UPC/EAN UPC-A UPC-E IMB Aztec Code Codablock Code 49 Data Matrix Maxi Code Micro PDF-417 PDF417 QR Code TLC 39
Peel Facility	Yes
Application/Usage	Desktop
Optional Connectivity	Ethernet Serial (RS-232)
Fonts Included	10 SLCS One SLCS 16 BPL-Z One BPL-Z 5 BPL-E 23 Code Page Unicode supported UTF-8 UTF-16LE UTF-16BE
Print Technology	Direct Thermal

Memory

Standard Memory

64 MB

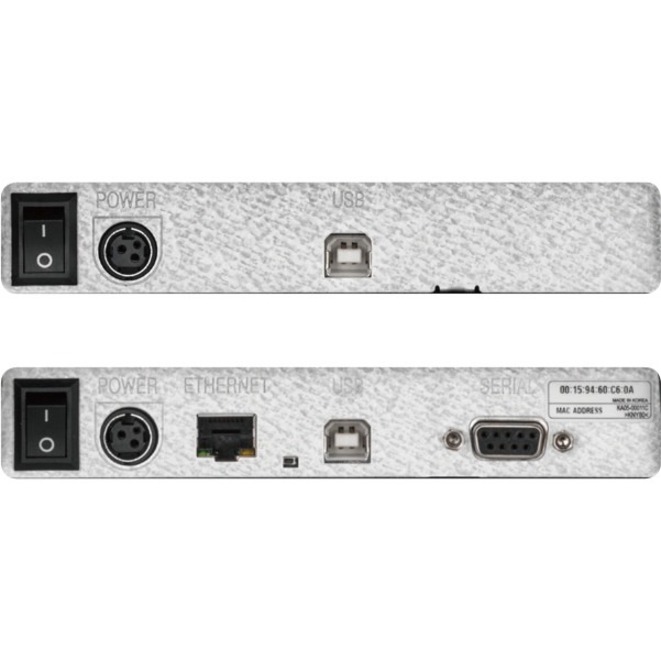

Interfaces/Ports

USB Host	Yes
USB	Yes

Media Types & Handling

Media Type	Label Gap Black Mark Notch Fanfold Continuous Label
Media Sensor	Transmissive Media Sensor Reflective Media Sensor Head Open Sensor
Media Thickness	7.87 mil
Maximum Roll Diameter	5"
Maximum Label Width	4.65"

Fonts & Emulation

Language Emulation

SLCS
BPL-Z
BPL-D
BPL-E

Software

Operating System Supported

Driver / Utility Windows Driver (Europlus / Seagull) Linux / Mac CUPS Driver Virtual COM USB / Ethernet Driver, Utility Program, OPOS Driver Bartender Ultralite for BIXOLON Label Artist-II™ SDK / Plugin Windows SDK, Linux SDK

Power Description

Power Source	Power Adapter AC Supply
Input Voltage	120 V AC 230 V AC

Environmental Conditions

Operating Temperature	32°F (0°C) - 104°F (40°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity	10% - 90%

Physical Characteristics

Color Family	Dual Color
Product Color	Black Orange
Height	6.6"
Width	7.1"
Depth	8.7"
Weight (Approximate)	3.75 lb

Miscellaneous

Power Cable Localization	US
Platform Supported	PC Mac
Energy Star	Yes
