4-CH RELAY OUTPUT MODULE

Name: 4-CH RELAY OUTPUT MODULE
Brand: B+B SMARTWORX
SKU: 0419AH
Price: 142.62 USD
Availability: InStock

B+B SMARTWORX

PCN#

0419AH

MFG#

ADAM-4060-DE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$142.62

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights: No Description Found

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

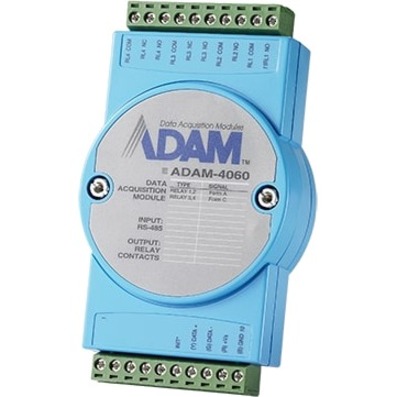

Advantech 4-ch Relay Output Module

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	ADAM-4060-DE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Name	4-ch Relay Output Module
Marketing Information	The ADAM Relay Output Module is a low-cost alternative to SSR modules. The ADAM Relay Output Module provides four relay channels, two of Form A and two of Form C. This module is excellent for ON/OFF control or low-power switching applications.
Product Type	Relay

Miscellaneous

Package Contents

4-ch Relay Output Module
Mounting Kit (din-rail)
Mounting Kit (wall)
User Guide

Additional Information

Display:

LED Indicators: Power

Power Supply:

Power Requirement: 10~30 VDC

General:

Watchdog Timer: System (1.6 second)
Connectors: 2 x plug-in terminal block (#14~22 AWG)
Temperature (Operating): -10~70 °C (14~158 °F)
Humidity: 5~95 %RH
Temperature (Storage): -25~85 °C (-13~185 °F)
Interface: RS-485
Isolation Protection: Breakdown voltage: 500 VAC (50/60 Hz)
Communication Protocol: ASCII command
Communication Speed: Serial: From 1,200 to 115.2 k
Comm. Distance: Serial: 1.2 km
Data Flow Control: Yes

Digital Output:

Channels: 4-ch relay
