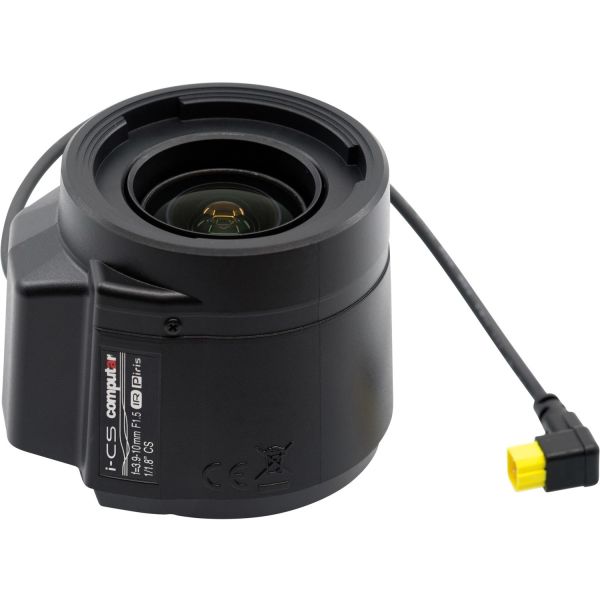

AXIS - 3.90 mm to 10 mmf/1.5 - Varifocal Lens

by
AXIS
PCN#
9DP991
MFG#
02367-001
$298.70
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Designed for Surveillance Camera
  • 2.6x Optical Zoom
  • 2.7" Length

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
AXIS - 3.90 mm to 10 mm - f/1.5 - Varifocal Lens
Tech Specs
Specifications

Manufacturer

Axis Communications

Manufacturer Part Number

02367001

Manufacturer Website Address

http://www.axis.com

Brand Name

AXIS

Product Name

Lens i-CS 1/1.8" 3.9-10 mm F1.5

Marketing Information

This i-CS lens features the most recent industry standard in intelligent CS-mount optics. It includes three motors, which enable automatic and remote zoom, focus, and iris opening. Lens i-CS 1/1.8" 3.9-10 mm F1.5 offers great flexibility to your installation thanks to its open protocol and the ability for the camera to interface with multiple features.

The lens is IR-corrected. This means that you don't need to adjust the camera's focus when you shift between day and night mode using the IR-cut filter.

Product Type

Lens
Technical Information

Lens Type

Varifocal

Iris Type

P Iris

Minimum Focal Length

3.90 mm

Maximum Focal Length

10 mm

Optical Zoom

2.6x

Maximum Aperture

f/1.5

Autofocus

Yes

Field of View

Horizontal: 120 to 47, Horizontal: 109 to 42
Physical Characteristics

Length

2.7"

Diameter

2.3"
Miscellaneous

Application/Usage

Surveillance Camera

Compatibility

Axis Cameras:
  • Q1645
  • Q1645-LE
  • Q1656
  • Q1656-LE

Sensor Size Compatibility

  • 1/1.8"
  • 1/2"

Environmentally Friendly

Yes

Environmental Certification

WEEE
Warranty

Limited Warranty

3 Year
