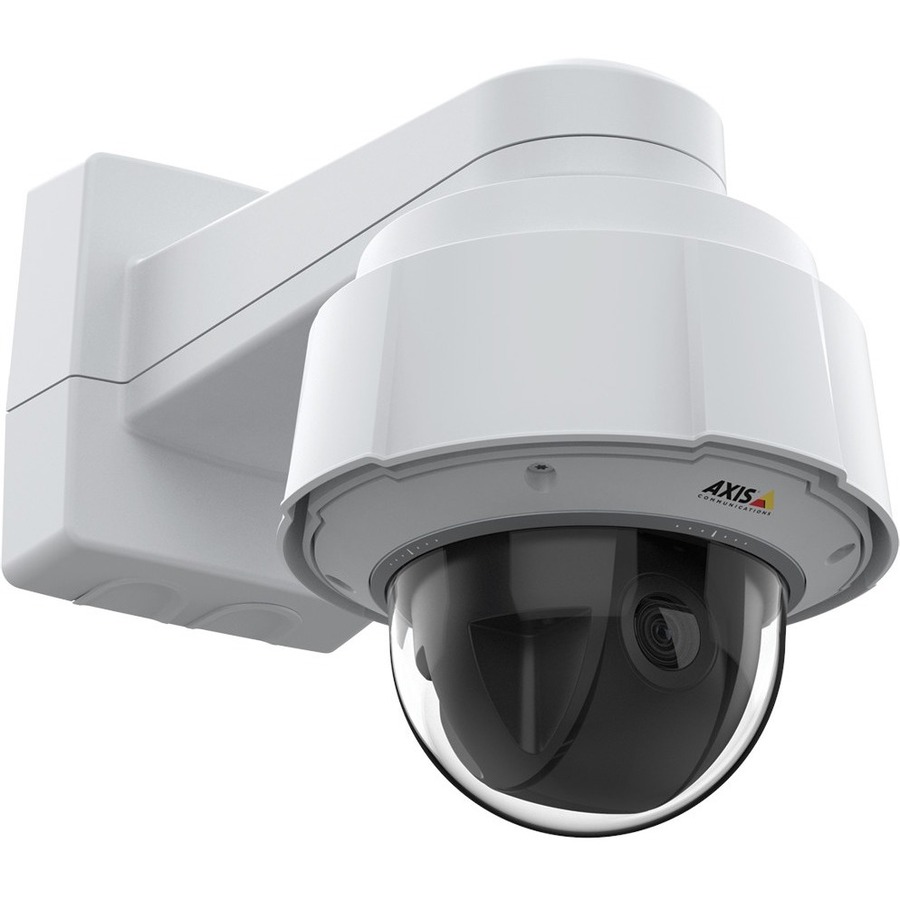

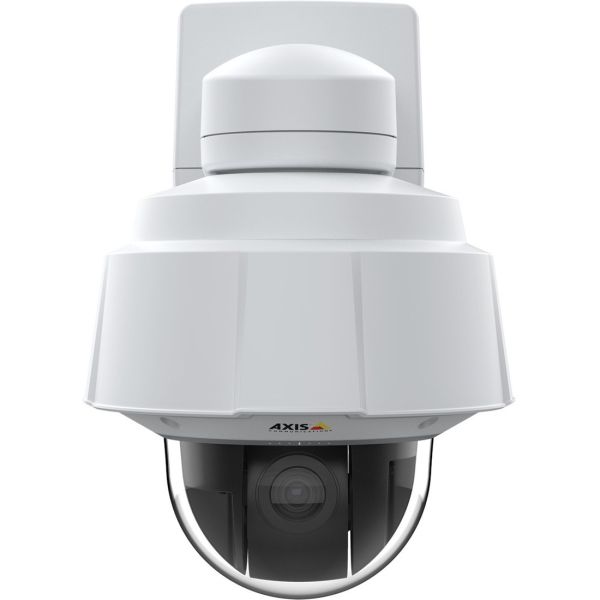

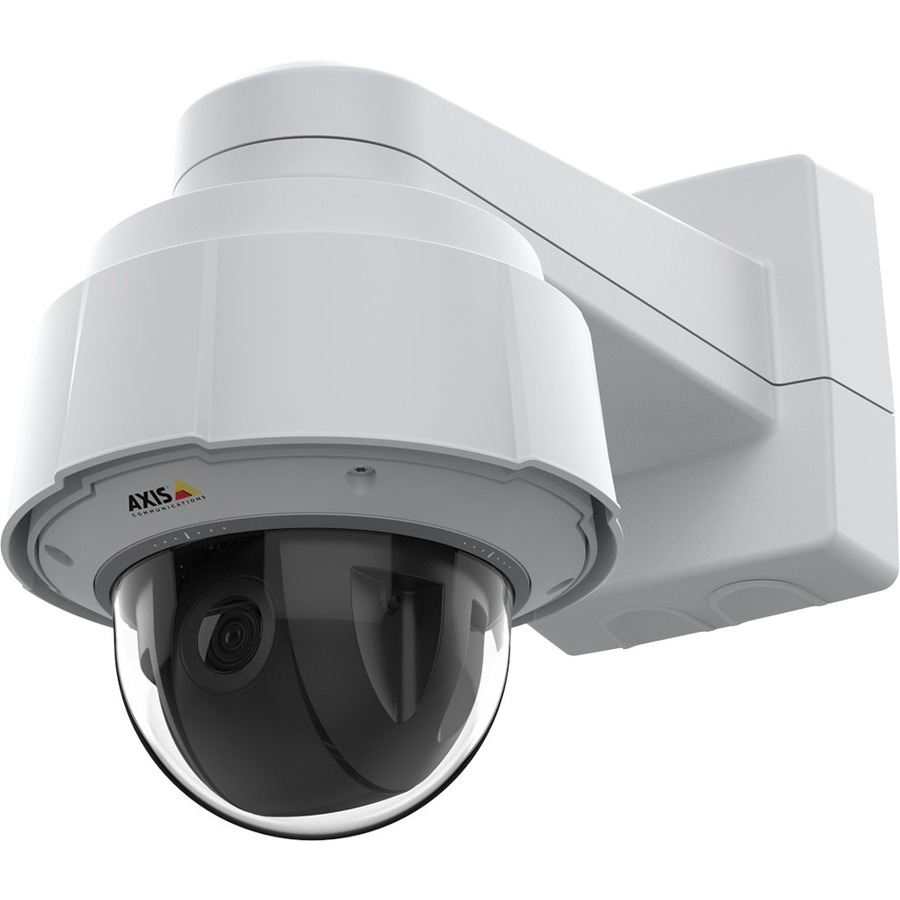

AXIS Q6078-E 8 Megapixel Outdoor 4K Network Camera - Color - Dome - TAA Compliant

by
AXIS
PCN#
9FP851
MFG#
02148-004
$3,348.45
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • H.264 (MPEG
  • 4 Part 10/AVC), H.265 (MPEG
  • H Part 2/HEVC), Motion JPEG, H.264, H.265, H.264 BP, H.264 (MP), H.264 HP, H.265 (MP), Zipstream, H.264B, ...

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 12 lbs.
AXIS Q6078-E 8 Megapixel Outdoor 4K Network Camera - Color - Dome - TAA Compliant
Tech Specs
Specifications

Manufacturer

Axis Communications

Manufacturer Part Number

02148-004

Manufacturer Website Address

http://www.axis.com

Brand Name

AXIS

Product Series

Q60

Product Model

Q6078-E

Product Name

Q6078-E PTZ Camera

Marketing Information

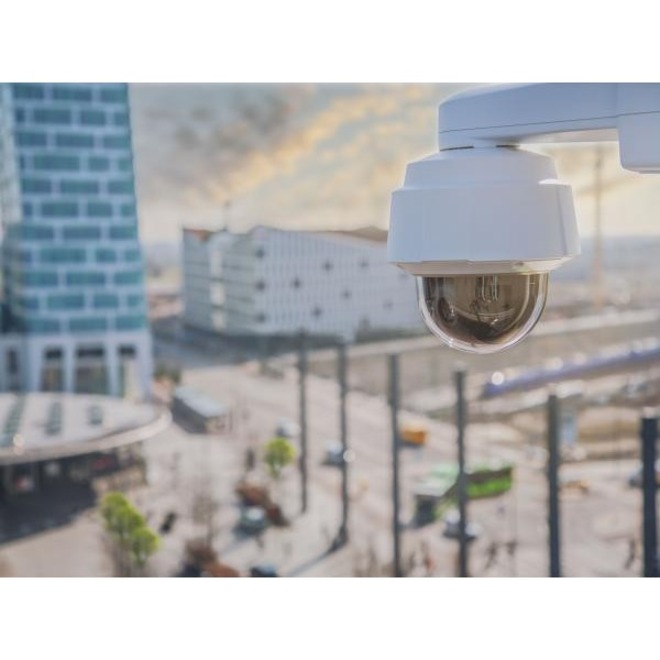

This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It's ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.

Great overviews and superior detail

Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.

Whenever, wherever it's needed

This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.

Designed with cybersecurity in mind

AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Product Type

Network Camera
Technical Information

Recording Formats

4K

HD Recording

Yes
Display & Graphics

Image Sensor Type

RGB CMOS

Color Supported

Color

Field of View

68.3°-4.2° - 42.1°-2.34°

Effective Camera Resolution

8 Megapixel
Video

Video Formats

  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • H.264
  • H.265
  • H.264 BP
  • H.264 (MP)
  • H.264 HP
  • H.265 (MP)
  • Zipstream
  • H.264B
  • H.264H
  • H.264M

Maximum Video Resolution

3840 x 2160

Maximum Frame Rate

60 fps
Lens

Lens Type

Varifocal

Minimum Focal Length

4.40 mm

Maximum Focal Length

88.40 mm

Lens Included

Yes

Minimum Aperture

f/3.8

Maximum Aperture

f/2

Optical Zoom

20x
Exposure

Shortest Shutter Speed

1/10000 Second

Longest Shutter Speed

1 Second
Network & Communication

Connectivity Technology

Wired

Remote Management

Yes
Storage

Storage Type

Memory Card
Interfaces/Ports

Network (RJ-45)

Yes
Power Description

Input Voltage

240 V AC

Power Source Type

PoE
Physical Characteristics

Mount Type

  • Corner Mount
  • Bracket Mount
  • Ceiling Mount
  • Pole Mount
  • Parapet Mount
  • Wall Mount
  • Pendant Mount
  • Recessed Mount

Form Factor

Dome

Durability

  • Vandal Resistant
  • Dust Resistant
  • Rain Resistant
  • Snow Resistant
  • Impact Resistant

Color Family

White

Product Color

White

Height

10.6"

Width

9.1"

Diameter

9.1"

Weight (Approximate)

8.27 lb
Environmental Conditions

Minimum Operating Temperature

-58°F (-50°C)

Maximum Operating Temperature

122°F (50°C)

Maximum Operating Humidity

100%
Miscellaneous

Features

  • PTZ
  • Day/Night
  • Wide Dynamic Range
  • White Balance
  • Privacy Masking
  • Electronic Image Stabilization
  • Defog
  • Back Light Compensation (BLC)
  • Password Protection
  • HTTPS Encryption
  • Cross Line Detection
  • Motion Detection

Indoor/Outdoor

Outdoor

Package Contents

  • Q6078-E PTZ Camera
  • Axis High PoE 60 W SFP Midspan 1-Port
  • RJ45 Push - Pull Connector (IP66)
  • Sunshield
  • Installation Guide
  • Windows Decoder 1-User License

Impact Protection Rating

IK10

Ingress Protection Rating

  • IP66
  • IP67

Country of Origin

Mexico

TAA Compliant

Yes

NDAA Compliant

Yes
Warranty

Limited Warranty

5 Year
