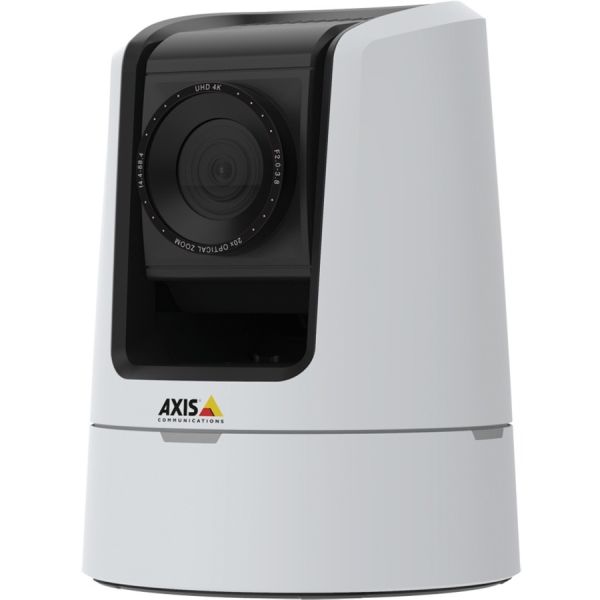

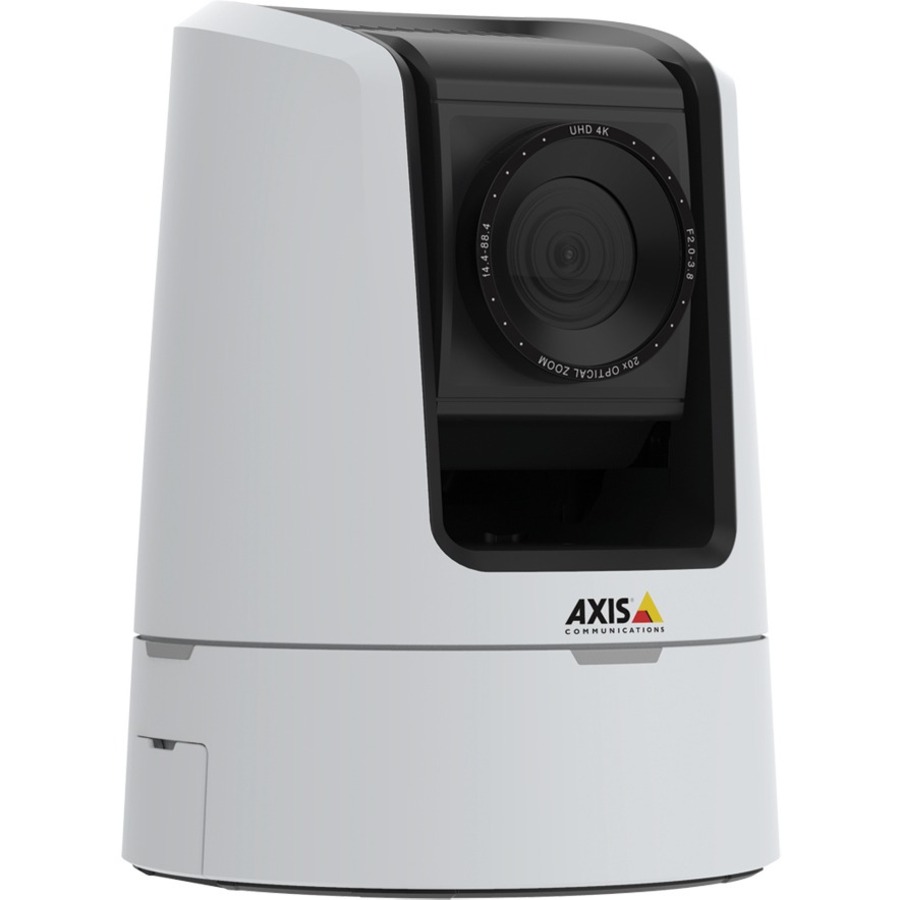

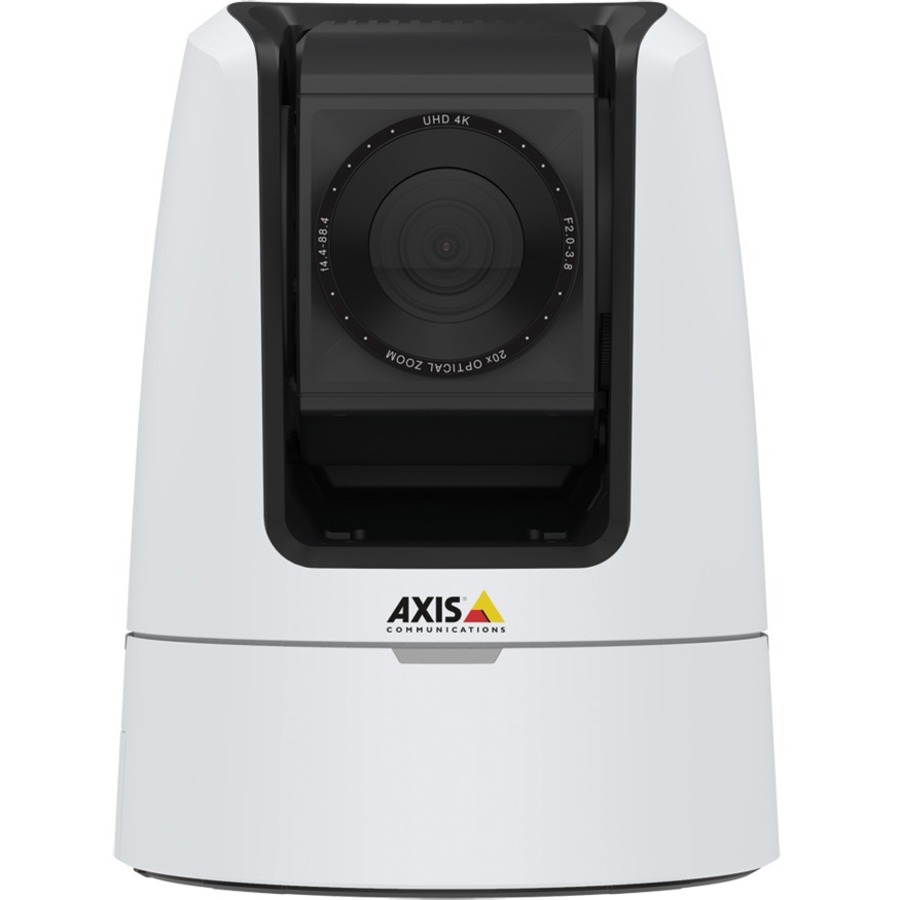

AXIS V5938 Indoor 4K Network Camera - Color - Turret - White - TAA Compliant

by
AXIS
PCN#
9AT338
MFG#
02023-004
$3,280.73
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • H.265, H.264, Motion JPEG, H.264 (MPEG
  • 4 Part 10/AVC), H.265 (MPEG
  • H Part 2/HEVC), H.264 BP, H.264 (MP), H.265 (MP), H.264 HP

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 6 lbs.
AXIS V5938 Indoor 4K Network Camera - Color - Turret - White - TAA Compliant
Tech Specs
Specifications

Manufacturer

Axis Communications

Manufacturer Part Number

02023-004

Manufacturer Website Address

http://www.axis.com

Brand Name

AXIS

Product Series

V59

Product Model

V5938

Product Name

V5938 PTZ Network Camera

Marketing Information

Professional results made simple

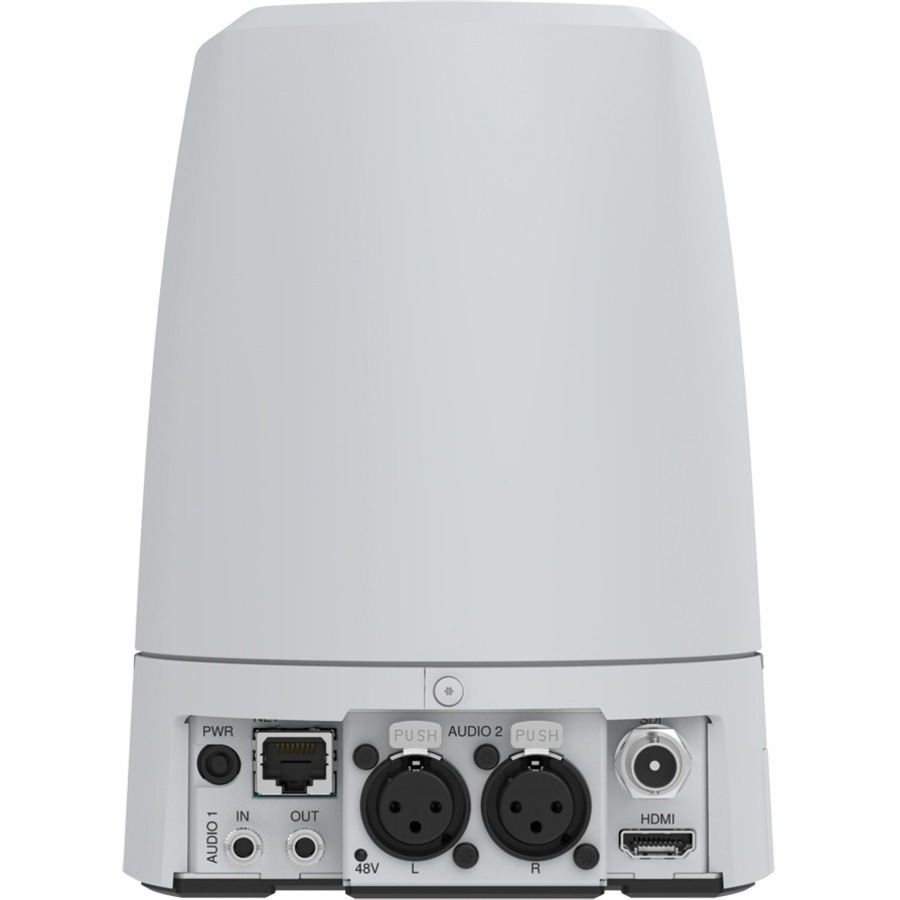

AXIS V5938 provides excellent image quality in outstanding 4K resolution at 30 fps and 20x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera.

Great compatibility

This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, with VISCA over IP it allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser.

Lower bandwidth and enhanced security

AXIS V5938 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It's packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.

Product Type

Network Camera
Technical Information

Recording Formats

4K

HD Recording

Yes
Display & Graphics

Image Sensor Type

RGB CMOS

Color Supported

Color

Field of View

Horizontal field of view: 70.2°-4.1° Vertical field of view: 39.5°-2.3°
Video

Video Formats

  • H.265
  • H.264
  • Motion JPEG
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • H.264 BP
  • H.264 (MP)
  • H.265 (MP)
  • H.264 HP

Maximum Video Resolution

3840 x 2160

Maximum Frame Rate

60 fps

Analog Video Signal Format

  • SDI
  • 3G/HD-SDI
Lens

Lens Type

Varifocal

Minimum Focal Length

4.40 mm

Maximum Focal Length

88 mm

Lens Included

Yes

Minimum Aperture

f/3.8

Maximum Aperture

f/2

Optical Zoom

20x
Exposure

Shortest Shutter Speed

1/10000 Second

Longest Shutter Speed

1 Second
Network & Communication

Connectivity Technology

Wired

Remote Management

Yes
Storage

Storage Type

Memory Card
Interfaces/Ports

HDMI

Yes

Network (RJ-45)

Yes
Power Description

Input Voltage

12 V DC
Physical Characteristics

Mount Type

  • Wall Mount
  • Ceiling Mount

Form Factor

Turret

Color Family

White

Product Color

White

Height

7.1"

Diameter

5.4"

Weight (Approximate)

3.31 lb
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Maximum Operating Humidity

85%
Miscellaneous

Features

  • PTZ
  • Day/Night
  • Removable IR Cut-off Filter
  • Noise Reduction
  • Wide Dynamic Range
  • White Balance
  • Back Light Compensation (BLC)
  • Defog
  • Highlight Compensation (HLC)
  • Electronic Image Stabilization
  • Password Protection
  • HTTPS Encryption
  • Audio Detection
  • Motion Detection
  • Auto Tracking
  • SD Card Local Storage

Indoor/Outdoor

Indoor

Package Contents

  • V5938 PTZ Network Camera
  • Power Supply
  • Wall/Ceiling Mount
  • Terminal Connector for I/O
  • Installation Guide
  • Windows Decoder user License

TAA Compliant

Yes
Warranty

Limited Warranty

5 Year
