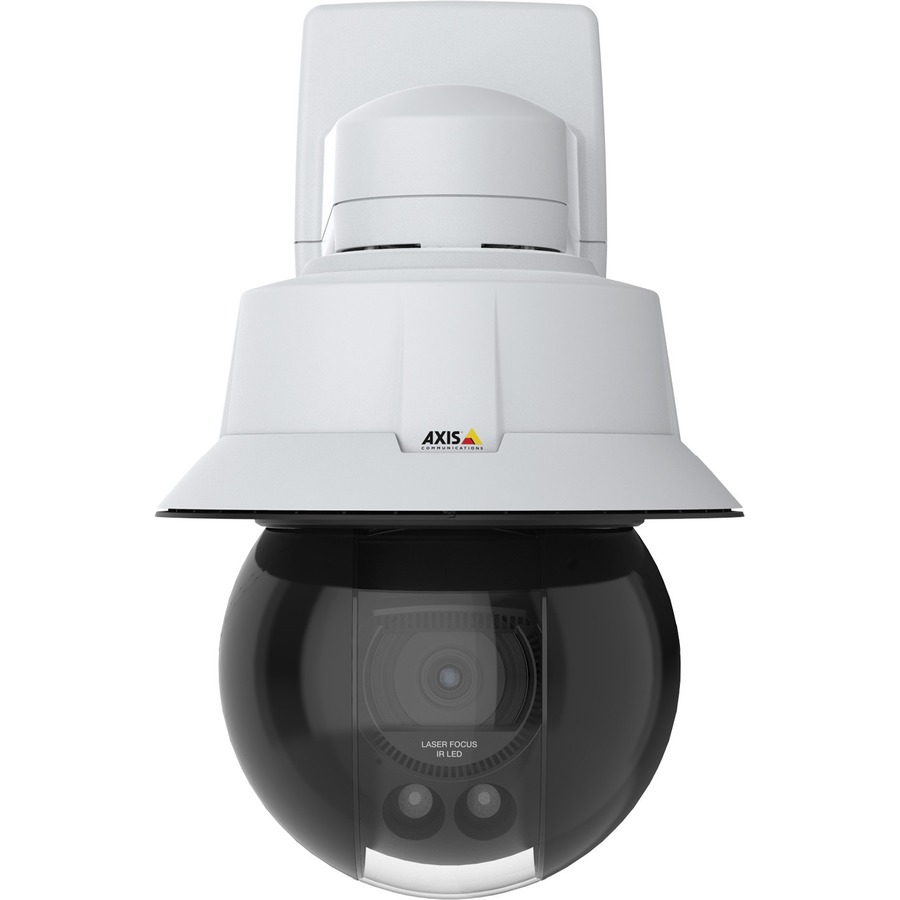

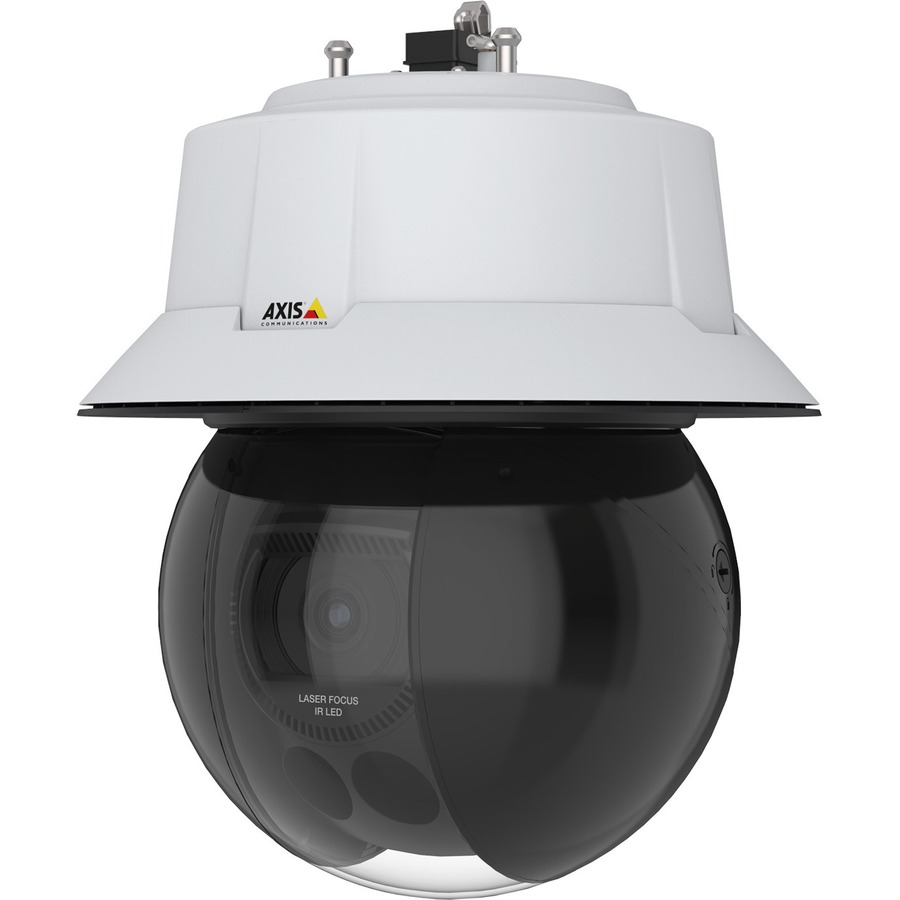

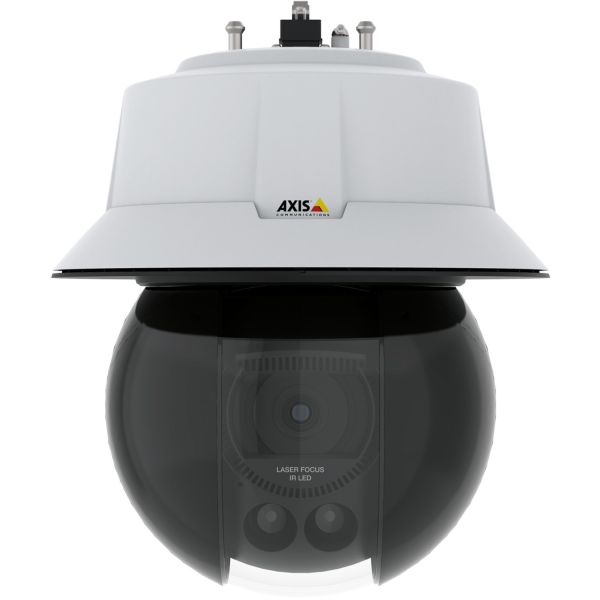

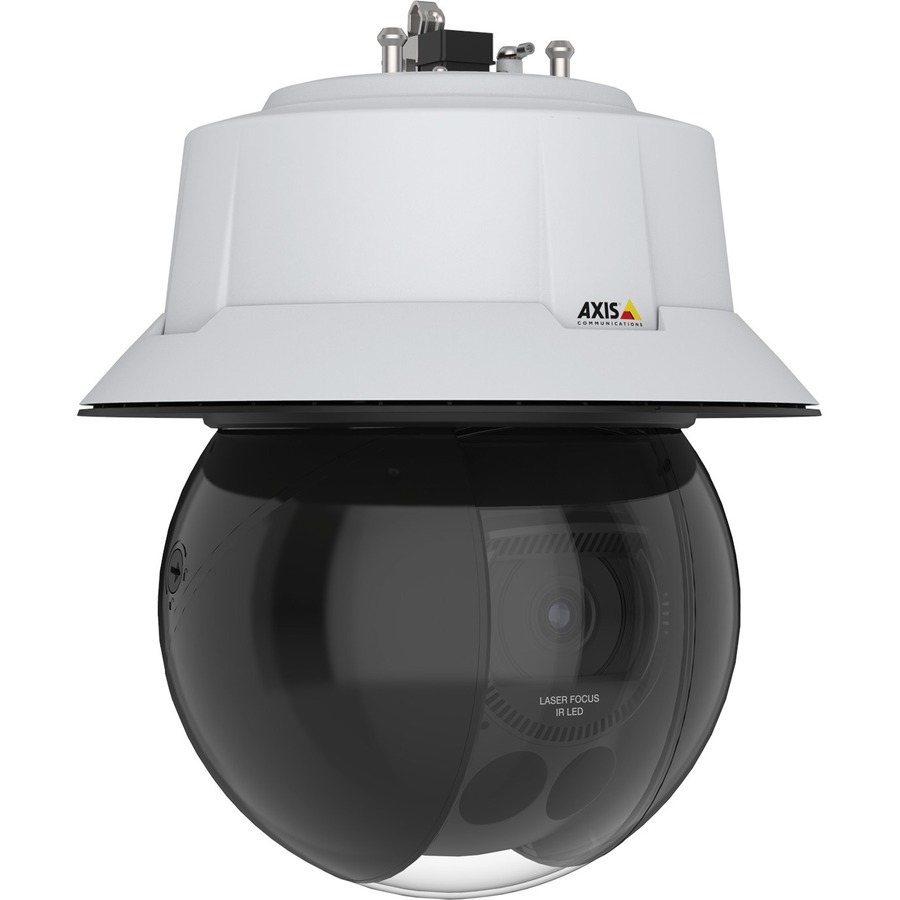

AXIS Q6315-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White - TAA Compliant

by
AXIS
PCN#
9AT342
MFG#
01925-004
$3,128.62
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 984.25 ft Infrared Night Vision
  • H.264 (MPEG
  • 4 Part 10/AVC), H.265 (MPEG

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 15 lbs.
AXIS Q6315-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White - TAA Compliant
Tech Specs
Specifications

Manufacturer

Axis Communications

Manufacturer Part Number

01925-004

Manufacturer Website Address

http://www.axis.com

Brand Name

AXIS

Product Model

Q6315-LE

Product Name

Q6315-LE PTZ Network Camera

Marketing Information

Ideal for city surveillance, AXIS Q6315-LE offers a ½" sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.

Super surveillance- day and night

AXIS Q6315-LE features very light-sensitive ½" inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it's perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus- every time. It's possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Built-in advanced analytics

This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.

Keeping you secure

AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.

Product Type

Network Camera
Technical Information

Recording Formats

Full HD

HD Recording

Yes

Night Vision

Yes

Night Vision Distance

984.25 ft

Night Vision Type

Infrared
Display & Graphics

Image Sensor Type

CMOS

Color Supported

Color

Field of View

Horizontal field of view: 60.6°- 2.0° - Vertical field of view: 36.5°- 1.1°

Effective Camera Resolution

2 Megapixel
Video

Video Formats

  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • H.265
  • H.264
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • H.265 (MP)

Maximum Video Resolution

1920 x 1080

Maximum Frame Rate

60 fps
Lens

Lens Type

Varifocal

Minimum Focal Length

6.91 mm

Maximum Focal Length

214.64 mm

Lens Included

Yes

Minimum Aperture

f/4.6

Maximum Aperture

f/1.36

Optical Zoom

31x
Exposure

Shortest Shutter Speed

1/111000 Second

Longest Shutter Speed

1/2 Second
Network & Communication

Connectivity Technology

Wired

Remote Management

Yes
Storage

Storage Type

Memory Card
Interfaces/Ports

Network (RJ-45)

Yes
Power Description

Input Voltage

  • 240 V AC
  • 100 V AC

Power Source Type

  • AC
  • PoE
Physical Characteristics

Mount Type

  • Bracket Mount
  • Corner Mount
  • Ceiling Mount
  • Pole Mount
  • Parapet Mount
  • Wall Mount
  • Pendant Mount
  • Recessed Mount

Form Factor

Dome

Durability

  • Vandal Resistant
  • Dust Resistant
  • Water Resistant

Color Family

White

Product Color

White

Height

10.3"

Diameter

7.6"

Weight (Approximate)

10.60 lb
Environmental Conditions

Minimum Operating Temperature

-58°F (-50°C)

Maximum Operating Temperature

122°F (50°C)

Maximum Operating Humidity

100%
Miscellaneous

Features

  • PTZ
  • Built-in IR LED
  • Day/Night
  • Auto Tracking
  • Privacy Masking
  • Removable IR Cut-off Filter
  • Automatic White Balance
  • Electronic Image Stabilization
  • Automatic Defog
  • Wide Dynamic Range
  • Password Protection
  • HTTPS Encryption
  • SD Card Local Storage
  • Human Detection
  • Cross Line Detection

Indoor/Outdoor

Outdoor

Package Contents

  • AXIS Q6315-LE PTZ Network Camera
  • Installation Guide
  • Windows Decoder 1-user License
  • 60 W Midspan (Including Power Cable)
  • IP66 Rated Network Connector
  • Repaint Template
  • Paint Paper

Impact Protection Rating

IK10

Ingress Protection Rating

  • IP66
  • IP67

TAA Compliant

Yes

NDAA Compliant

Yes
Warranty

Limited Warranty

5 Year
