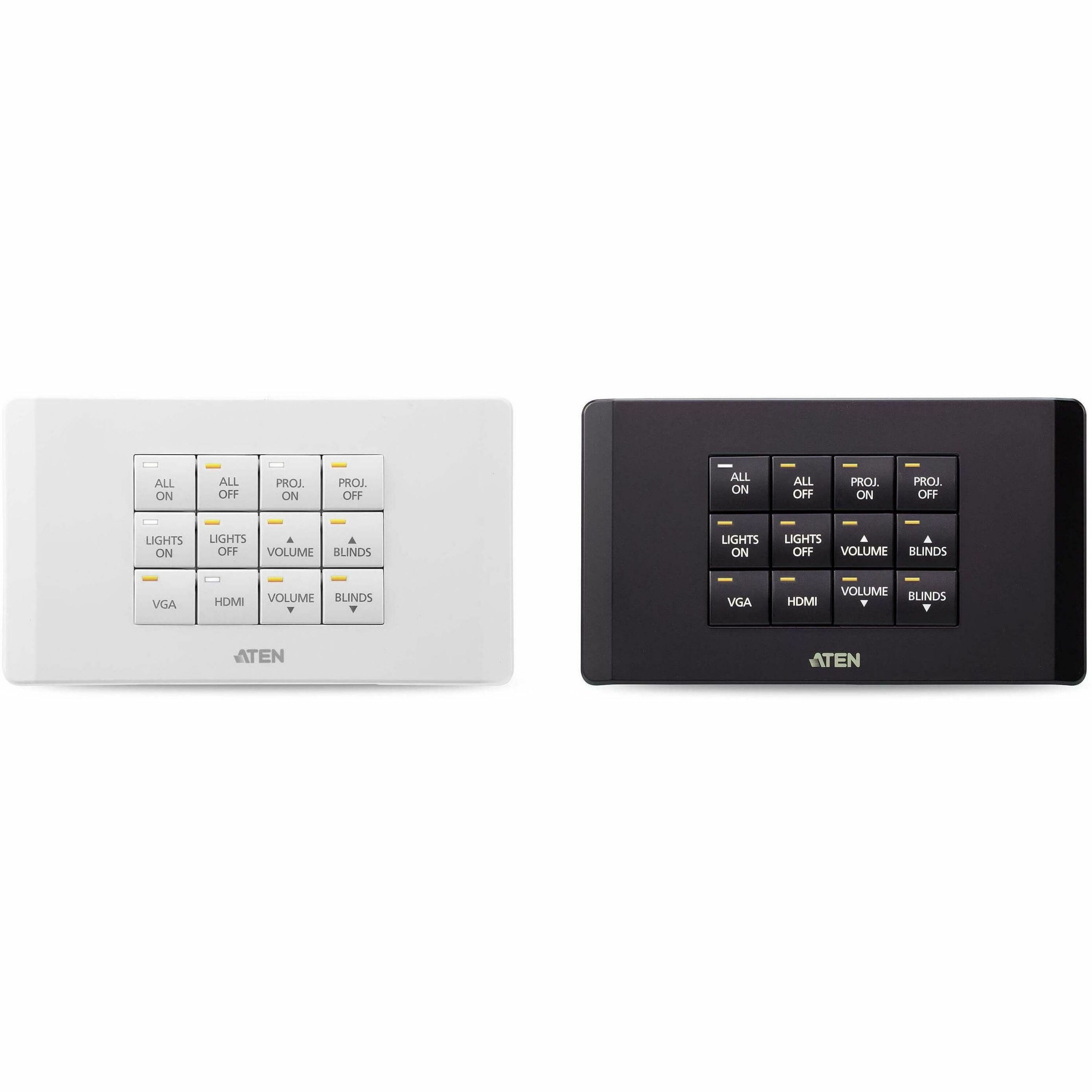

ATEN 12-button Keypad (EU, 2 Gang)

The VK112EU is a fully-customizable 12-button keypad designed for use with theATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego's. By connecting to the VK2200 / VK1200 / VK2100A / VK1100A Control Box or VK0100 / VK0200 Control Pad over a LAN, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, users have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.

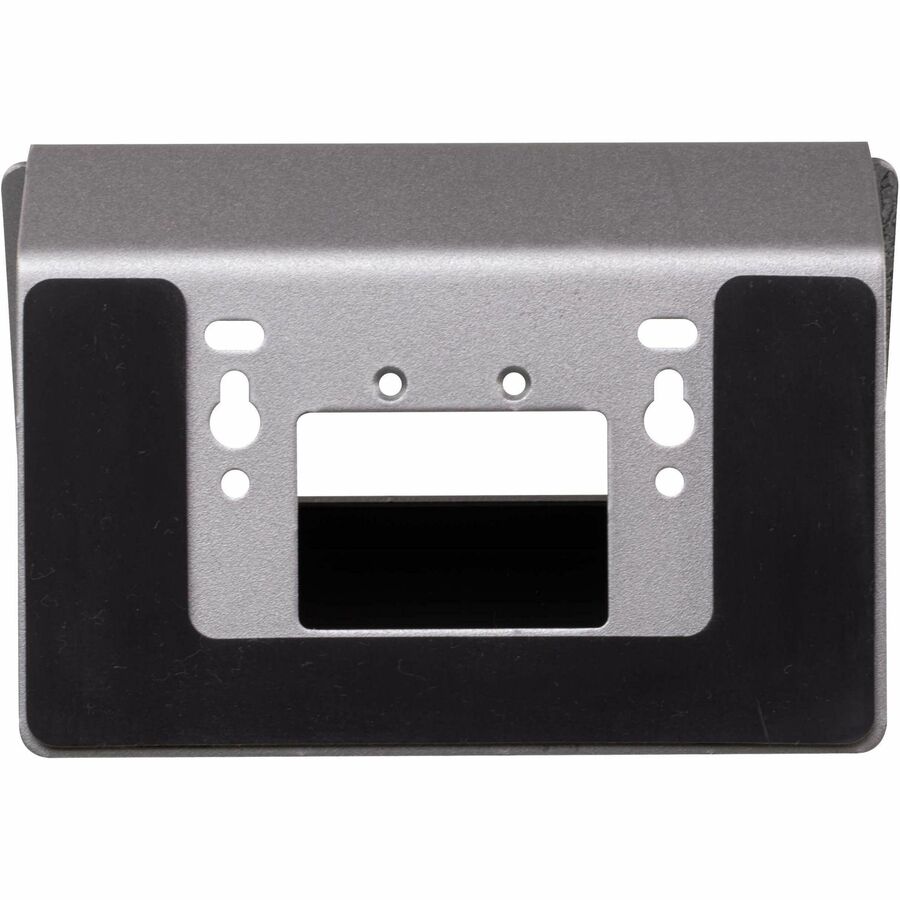

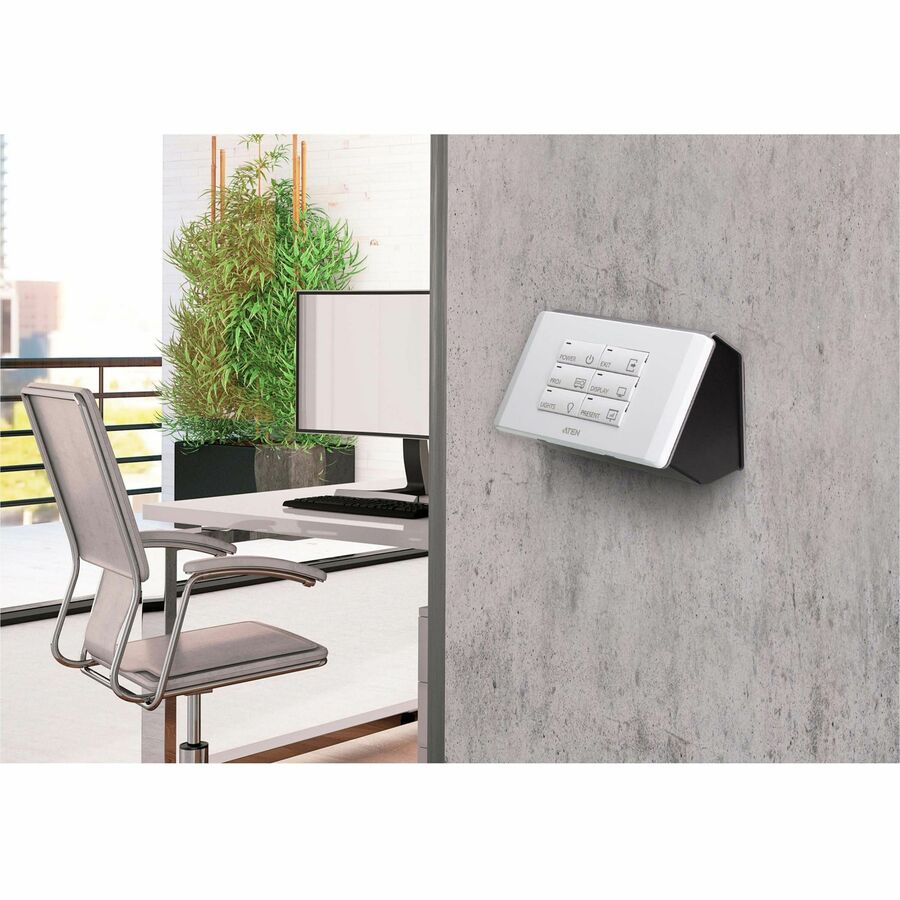

• Wall Mountable

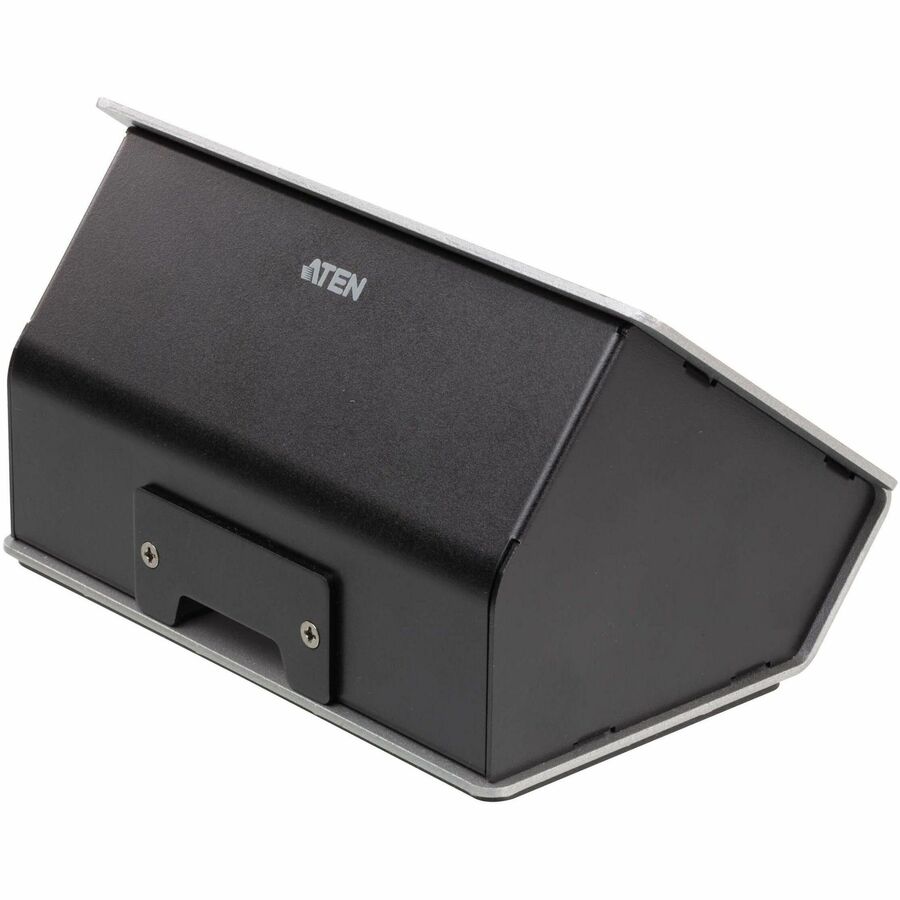

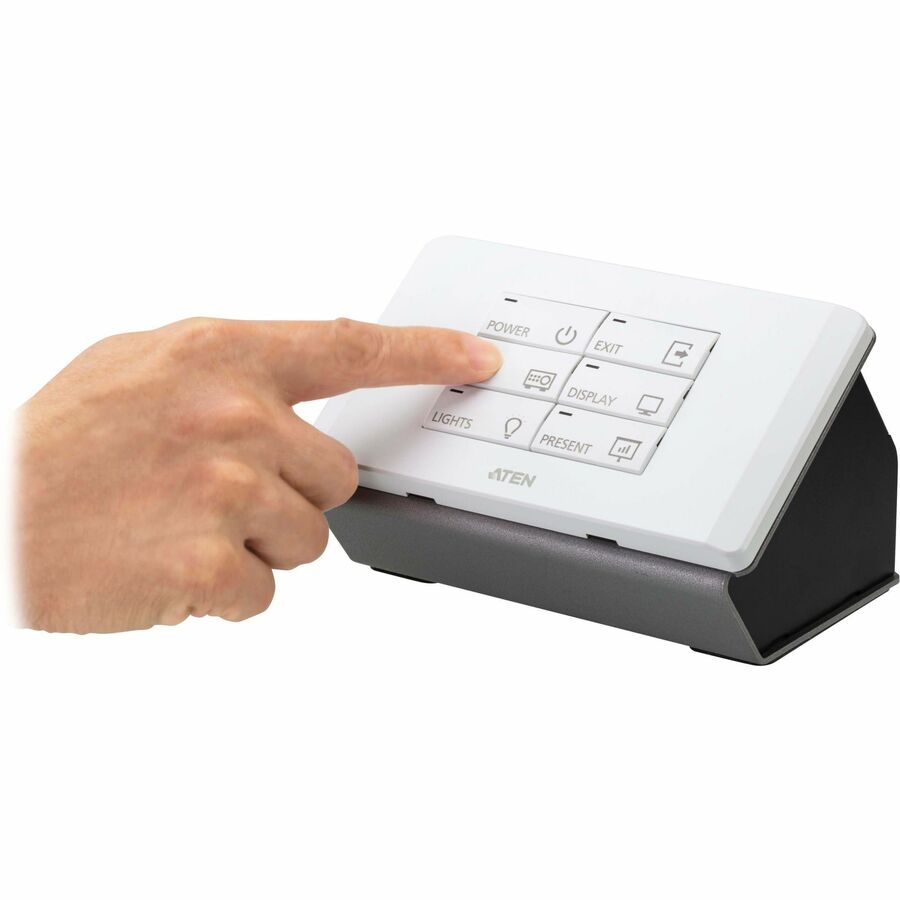

• Tabletop

• 1x VK112EU 12-Button Keypad (EU, 2 Gang)
• 1x Button Pack
• 1x Terminal Block
• 1x Faceplate
• 1x User Instructions

Ethernet

• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
• IP: 192.168.0.60
• Subnet Mask: 255.255.255.0

Keypad Layout

• 6~12 buttons customizable in 125 keypad layouts

• Meeting Room
• Classroom
• Conference Room

• VE44PB
• VK1100A
• VK2100A
• VK1200
• VK2200
• VK2100
• VK0100
• VK0200
