16-PORT 17.3 LCD INTEGRATED USB PS2 COMBO KVM W/ EXTRA CONSOLE PORT

Name: 16-PORT 17.3 LCD INTEGRATED USB PS2 COMBO KVM W/ EXTRA CONSOLE PORT
Brand: ATEN
SKU: JM6496
Price: 1285.39 USD
Availability: InStock

ATEN

PCN#

JM6496

MFG#

CL5716MW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,285.39

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Computer(s)
17.3" LED
Full HD
1920 x 1080
16:9PS/2 Port
1 x USBVGA
Daisy Chain
Keyboard
Mouse
120 V AC, 230 V AC Input Voltage
1U High
PC, Linux, Mac, Sun
Metal, Plastic

Product Condition: New and Factory Fresh

Shipping Weight: 30 lbs.

ATEN 16-Port PS/2-USB VGA Single Rail LCD KVM Switch

Overview

Tech Specs

Specifications

Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	CL5716MW
Manufacturer Website Address	http://www.aten.com/us/en/
Brand Name	ATEN
Product Model	CL5716MW
Product Name	16-Port PS/2-USB VGA Single Rail LCD KVM Switch

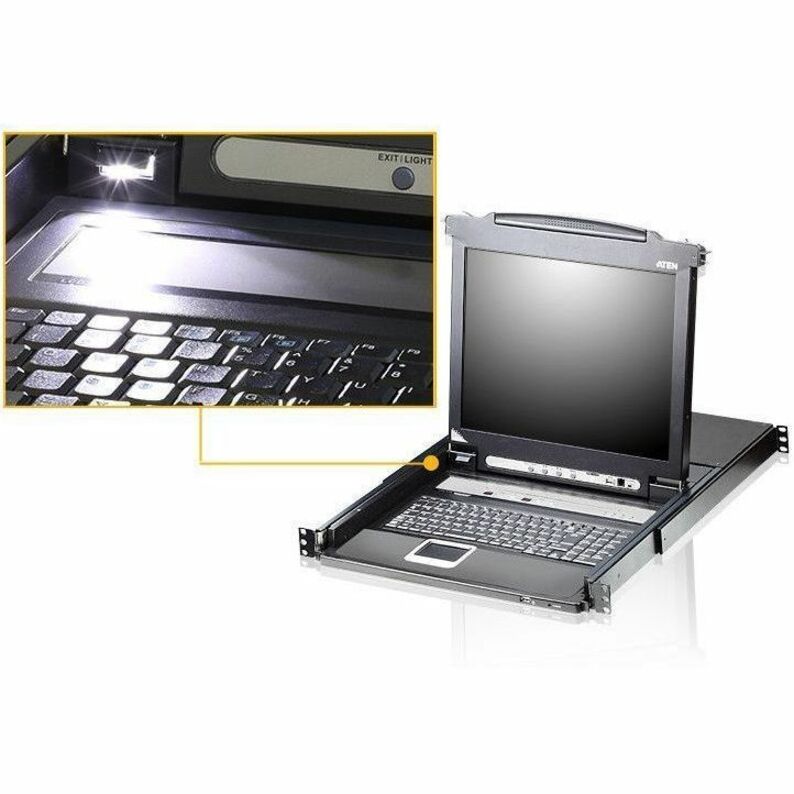

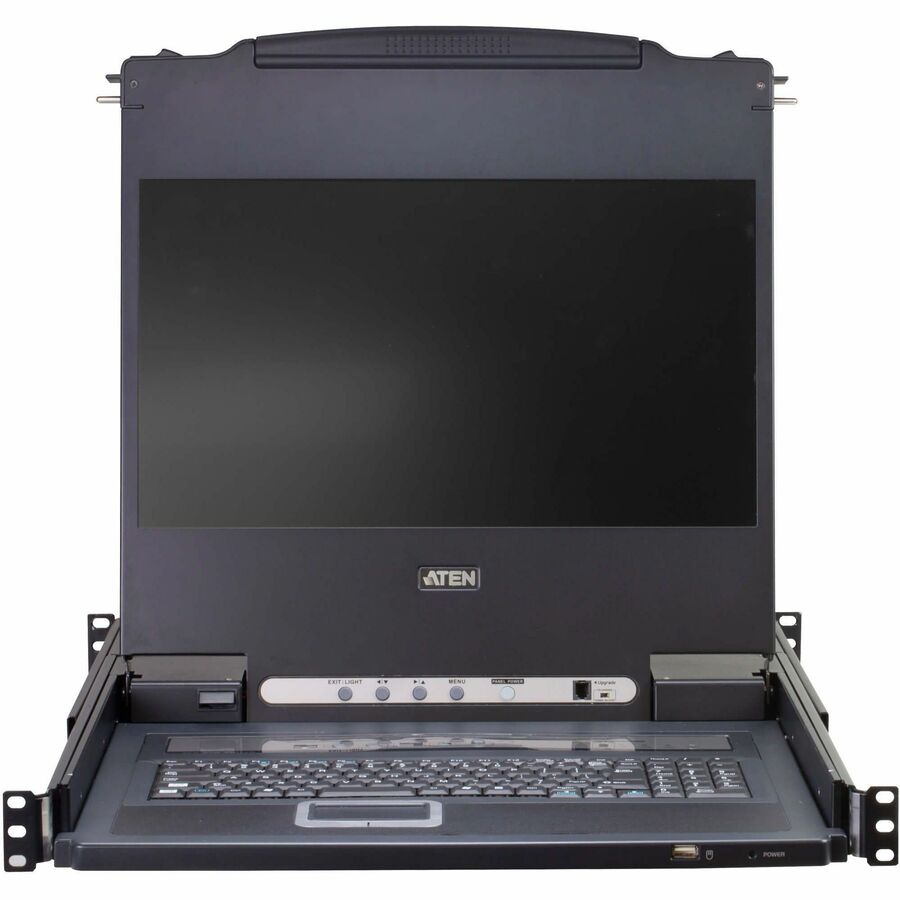

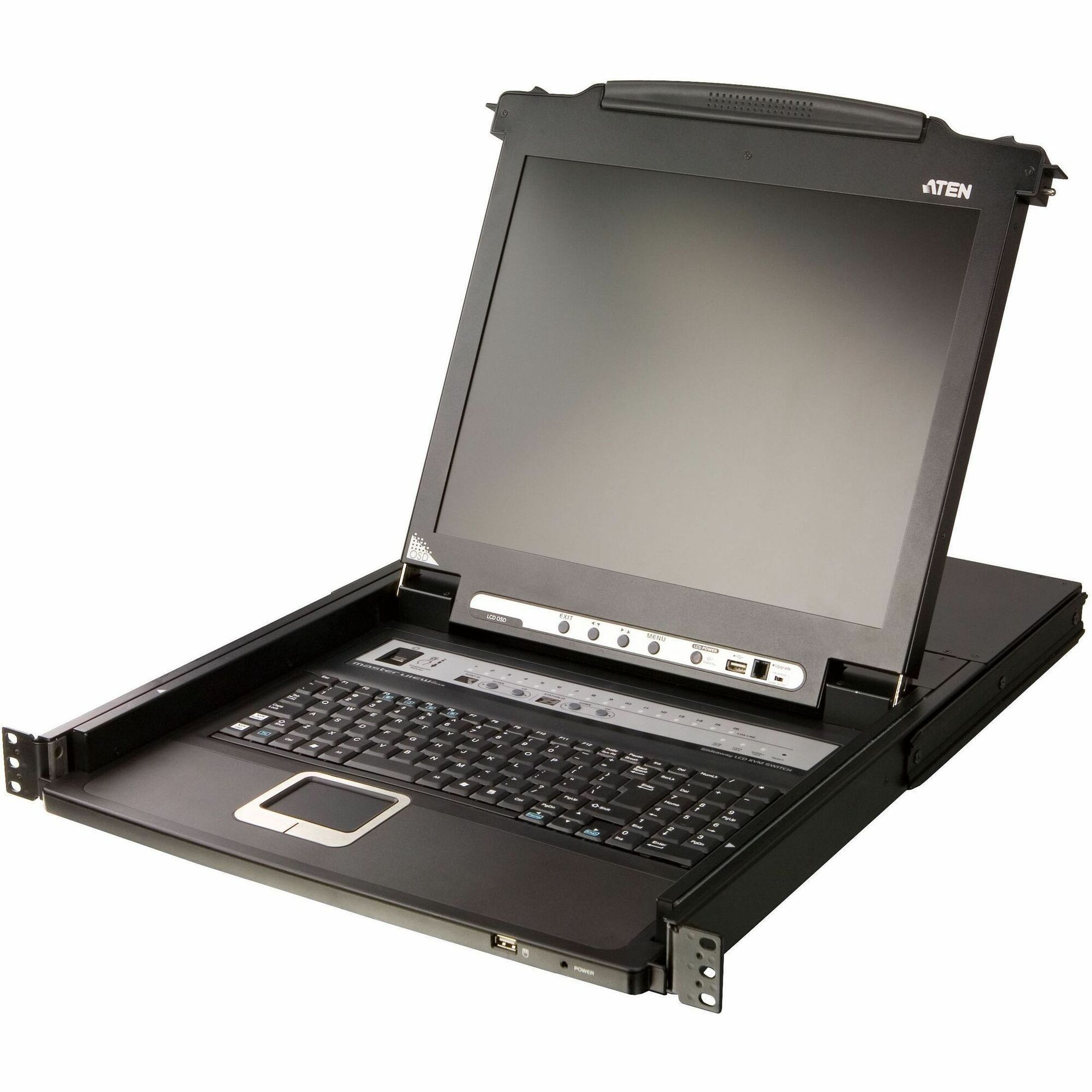

Marketing Information	The CL5716 Slideaway -LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console. The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" , 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3" LCD monitor offers Full HD superior video quality for enhanced visibility and clarity.To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands. The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
Packaged Quantity	1
Product Type	LCD Rack Console

Technical Information

KVM Switch	Yes
Number of Computers Supported	16
Daisy Chain	Yes
Device Type	LCD Rack Console

Display & Graphics

Screen Size	17.3"
Display Screen Type	LED
Screen Mode	Full HD
Screen Resolution	1920 x 1080
Aspect Ratio	16:9

Input Devices

Keyboard	Yes
Pointing Device Type	Mouse

Interfaces/Ports

PS/2 Port	Yes
USB	Yes
VGA	Yes
Number of USB Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100-240V AC

Physical Characteristics

Product Material	Metal Plastic
Rack Height	1U
Height	1.7"
Width	27.1"
Weight (Approximate)	30.09 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Miscellaneous

Package Contents	16-Port PS/2-USB VGA Single Rail LCD KVM Switch 2 x Custom KVM Cable (VGA, USB; 1.8m/6ft) 1 x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft) 1 x Firmware Upgrade Cable 1 x Power Cord (AC Power Models) 1 x User Instructions
Platform Supported	PC Linux Mac Sun
