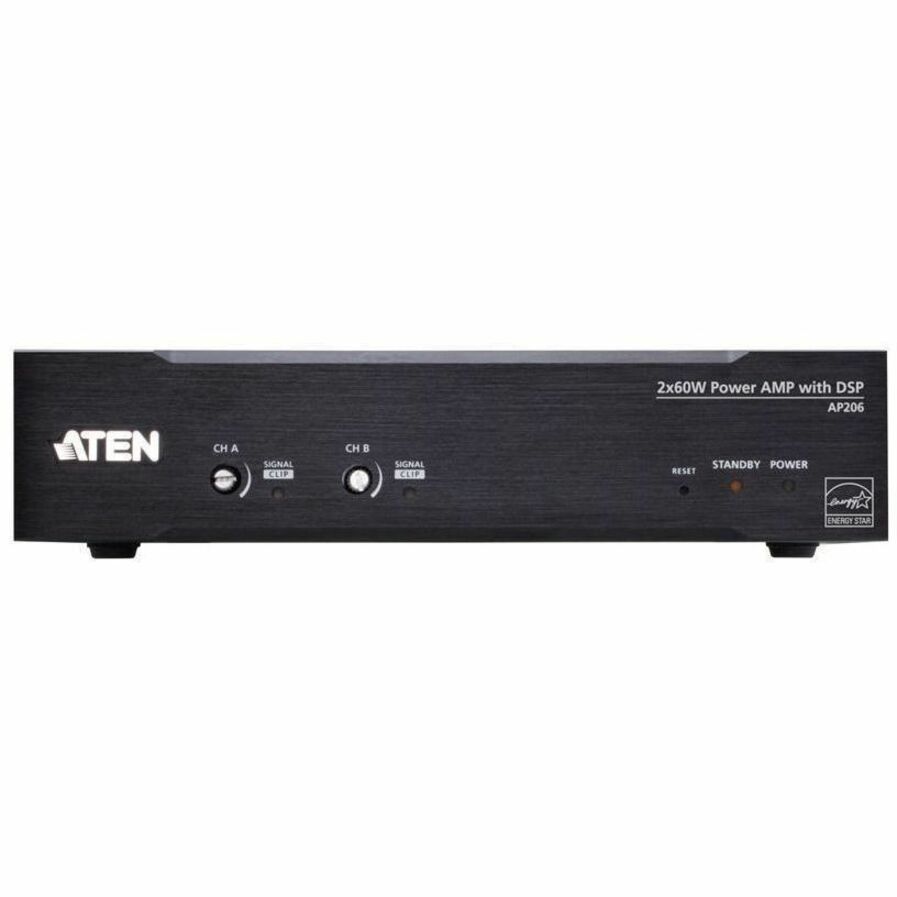

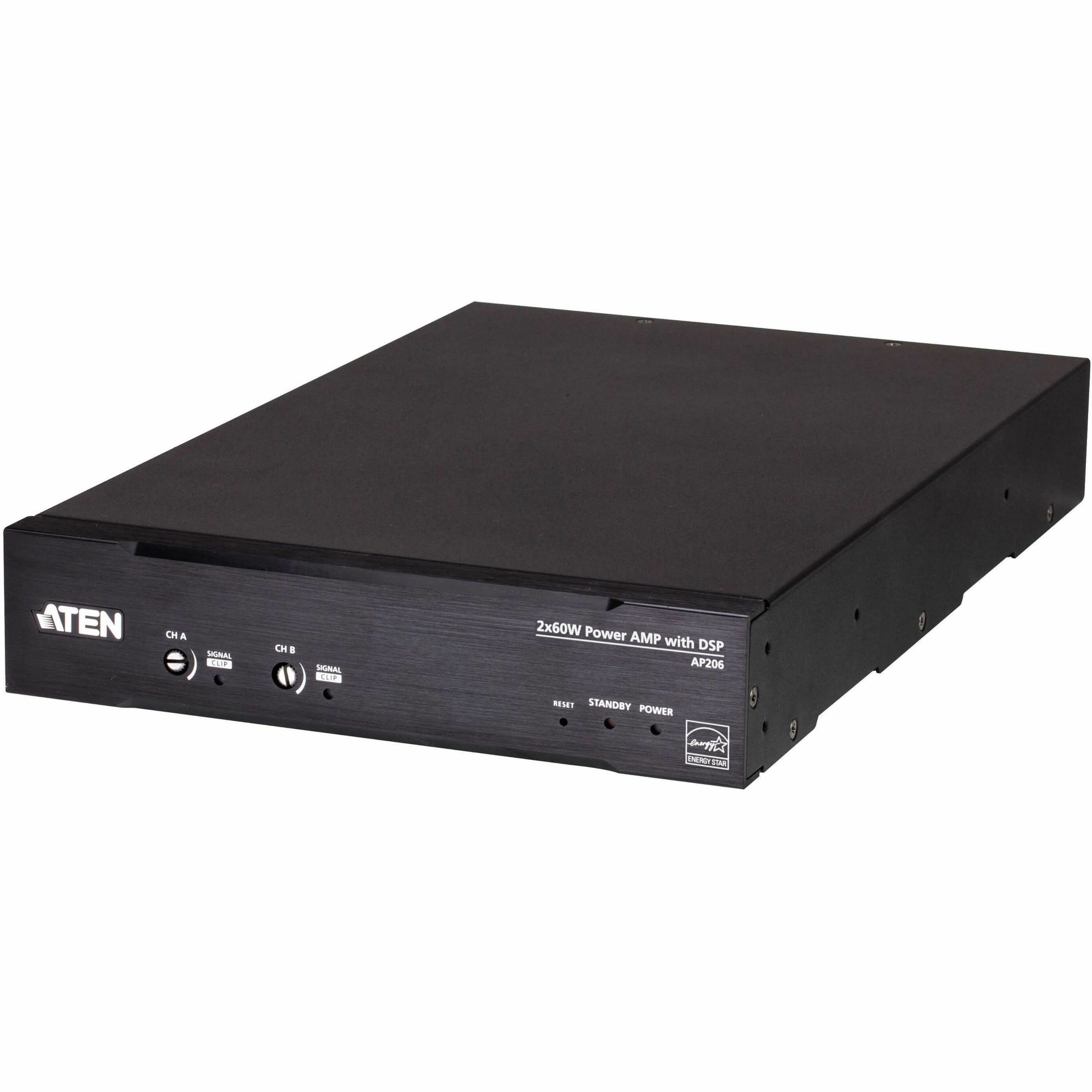

2 X 60W POWER AMPLIFIER WITH DSP

ATEN AP206 is a dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP206 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier's Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP206 to automatically switch to "sleep" when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes.

Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.

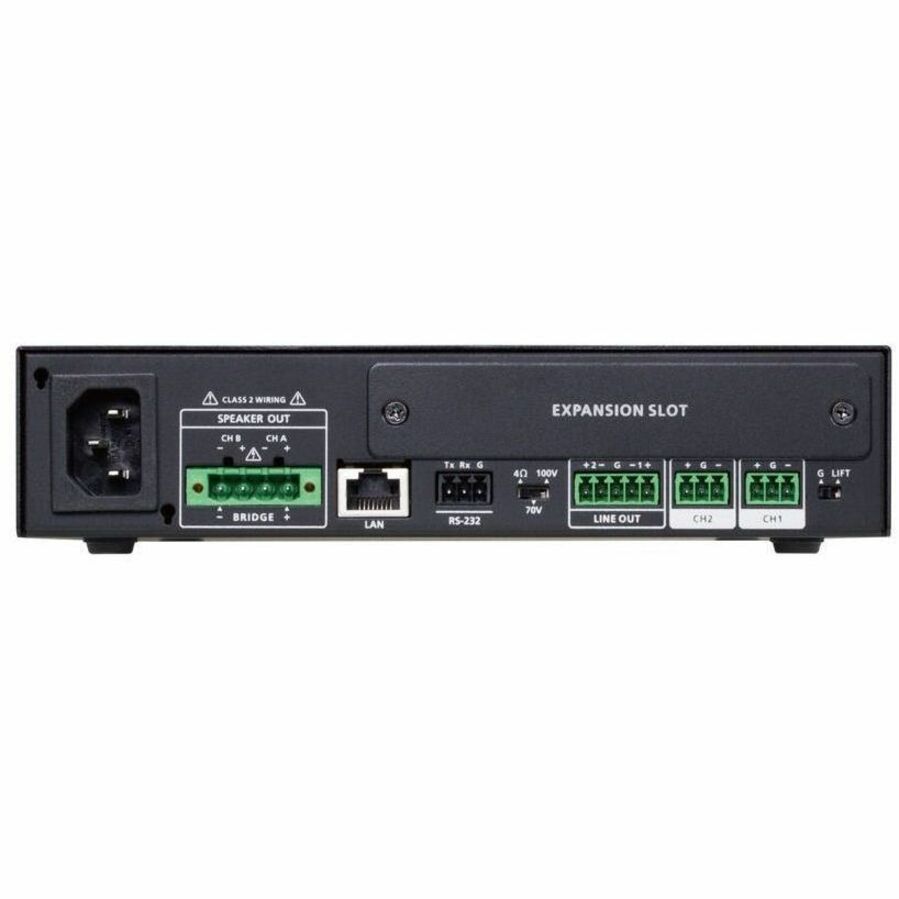

Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP9012-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.

• Digital Signal Processing
• Thermal Protection
• Overload Protection

• 120 V AC
• 230 V AC

• 2 x 60W Power Amplifier with DSP
• 1 x Rack mount / surface mount kit
• 1 x foot pad set (4 pcs)
• 2 x 3-pin Euroblock connectors with strain relief (3.5mm)
• 1 x 5-pin Euroblock connector with strain relief (3.5mm)
• 1 x 4-pin Euroblock connector with screw lock (5.08mm)
• 1 x 3-pin Euroblock connector (3.5mm)
• 1 x Power cord
• 1 x User instructions

• Rack Mount
• Surface Mount
