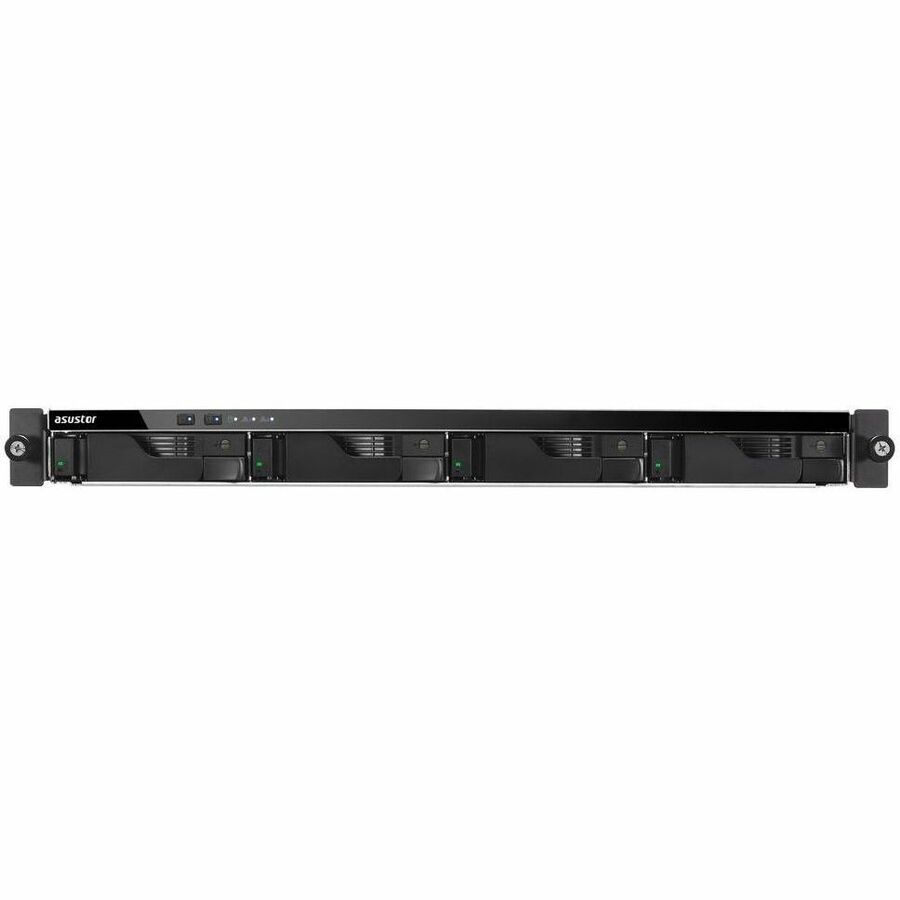

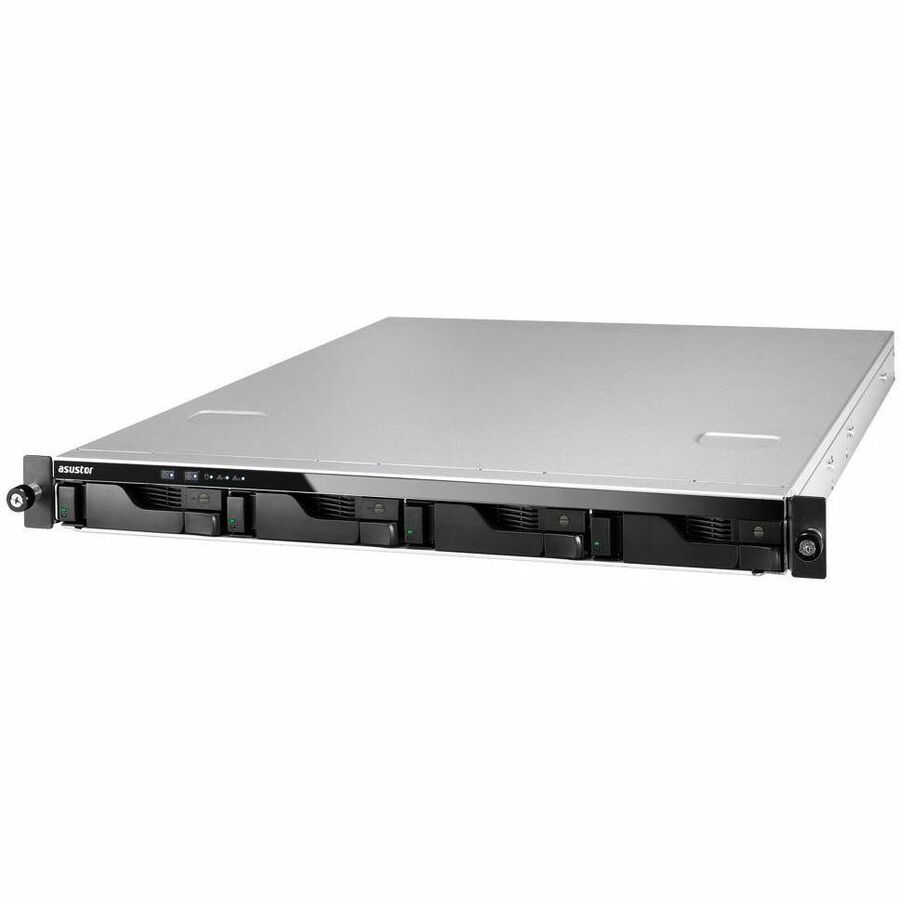

ASUSTOR Lockerstor AS6504RS SAN/NAS Storage System

Name: ASUSTOR Lockerstor AS6504RS SAN/NAS Storage System
Brand: ASUSTOR
SKU: 9BL942
Price: 1038.48 USD
Availability: InStock

ASUSTOR

PCN#

9BL942

MFG#

AS6504RS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,038.48

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Atom C3538 Quad
core (4 Core) 2.10 GHz
4 x HDD Supported
72 TB Supported HDD Capacity
0 x HDD Installed
4 x SSD Supported
0 x SSD Installed
8 GB RAM DDR4 SDRAM
Serial ATA/600 Controller
RAID Supported
0, 1, 5, 6, 10, JBOD RAID Levels
4 x Total Bays
4 x 2.5"/3.5" Bay
1 x Total Slot(s)
Gigabit Ethernet, 2.5 Gigabit Ethernet
4 USB Port(s)
Network (RJ
45)
ADM 3.5
IMAP, IPSec, TCP/IP, SMTP, HTTPS, LDAP, L2TP, SFTP, UDP, SSH, CHAP, ...
8 GB1U

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

ASUSTOR Lockerstor AS6504RS SAN/NAS Storage System

Overview

Tech Specs

Specifications

Manufacturer	ASUSTOR
Manufacturer Part Number	AS6504RS
Manufacturer Website Address	http://www.asustor.com
Brand Name	ASUSTOR
Product Model	AS6504RS
Product Name	Lockerstor AS6504RS SAN/NAS Storage System

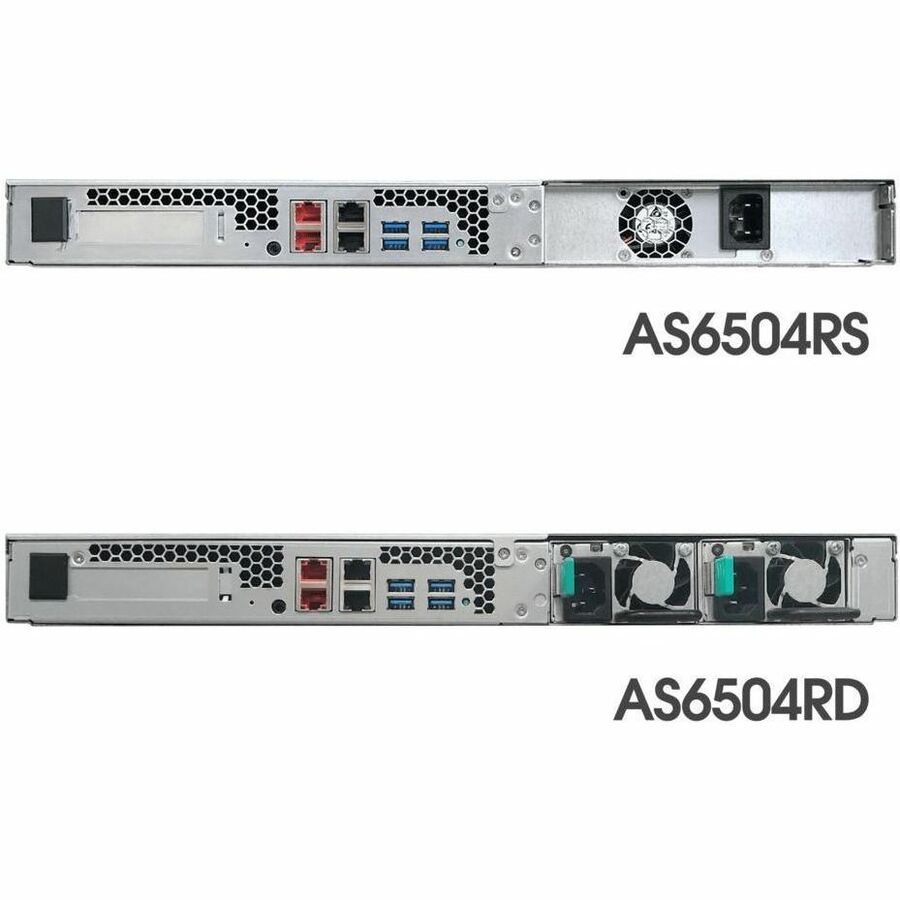

Marketing Information	Cost-effective 2.5GbE 1U Rackmount Server A thin 1U rack 2.5GbE server providing stable performance and four bays for expandable and easy SATA storage. The Lockerstor 4RS and 4RD bring expandability by bringing PCI Express capabilities, creating one of the most flexible and lightweight solutions for small businesses. Enterprise Grade Quad-Core Intel Atom CPU and DDR4 RAM Equipped with the new Quad-Core Intel Atom C3538 that is clocked at 2.1GHz and combined with more than 8GB of DDR4 RAM makes for an ultra-fast, ultra-smooth file sharing experience for your office. Enterprise Backup The Lockerstor RD has complete backup and safety mechanisms by including dual backup power supplies for safety while including four Ethernet ports for additional performance and redundancy. Two Gigabit and two 2.5-Gigabit Ethernet ports adorn the rear of the NAS, ensuring that everyone can access their files quickly and efficiently. The Lockerstor RD makes no sacrifices by ensuring zero downtime if a port or power supply is offline. "Find Me" Function and Service Light for Server Rooms In enterprise environments, storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 4RS/RD(1U) provides a dedicated button on front panel. When this button is pressed, the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app, AiMaster which provides the exclusive Find Me function. When Find Me is activated, the system status light on the front of the NAS will flash and the system buzzer will sound, helping users to quickly find the NAS. Agile Expandability The ASUSTOR Lockerstor 4RD rackmount series prepares you for the needs of tomorrow. PCIe expansion enables 10-Gigabit Ethernet can be installed to increase performance and expandability. Combine the Ethernet ports and connect to a 2.5-Gigabit Ethernet switch to take advantage of extreme speeds. Break free from restrictions with the Lockerstor 4RD. Efficient, Redundant and Powerful The Lockerstor 4RD contains four Ethernet ports. Two are Gigabit and two are 2.5-Gigabit Ethernet. Combine the two 2.5-Gigabit Ethernet ports to increase performance and redundancy. Link aggregation increases performance to up to 5 gbps while also ensuring zero downtime in the event of one port going offline. Expand your storage space A professional grade NAS needs to be equipped with a diverse array of expansion functionality. In addition to the 4 drive bays, we have also included 4 USB 3.2 ports, allowing you to create a tailored storage space for both your work and entertainment needs.
Packaged Quantity	1
Product Type	SAN/NAS Storage System

Storage

Number of Hard Drives Supported	4
Number of Hard Drives Installed	0
Total Hard Drive Capacity Supported	72 TB
Number of Solid State Drive Supported	4
Number of Solid State Drive Installed	0
Flash Memory Capacity	8 GB

Processor & Chipset

Processor Manufacturer	Intel
Processor Type	Atom
Processor Model	C3538
Processor Core	Quad-core (4 Core)
Processor Speed	2.10 GHz

Memory

Standard Memory	8 GB
Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

Gigabit Ethernet
2.5 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	4
Number of 2.5"/3.5" Bays	4
Total Number of Expansion Slots	1.0
Expansion Slot Type	PCI Express 3.0 x8

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, JBOD

Interfaces/Ports

HDMI	No
Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	4
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4

Software

Operating System

ADM 3.5

Management & Protocols

Protocols

IMAP
IPSec
TCP/IP
SMTP
HTTPS
LDAP
L2TP
SFTP
UDP
SSH
CHAP
FTPS
AFP
RTSP
FTP
SMB 2.0
IPv4
PAP
WEBDAV
SSL
iSCSI
SNMP
TLS
HTTP
TFTP
NFS
UPnP
RSync
POP3
DDNS
CIFS/SMB
IPv6
PPTP

Power Description

Number of Power Supplies Installed	1
Maximum Power Supply Wattage	250 W
Redundant Power Supply	No

Physical Characteristics

Height	1.7"
Width	17.3"
Depth	20.3"
Form Factor	Rack-mountable
Rack Height	1U
Weight (Approximate)	17.31 lb

Miscellaneous

Package Contents

Lockerstor AS6504RS SAN/NAS Storage System
Quick Installation Guide
1 x AC Power Cord
2 x RJ-45 LAN Cable(Cat 5e)
16 x Flat Head Screw (for 3.5" HDD)
16 x Flat Head Screw (for 2.5" HDD)

Warranty

Limited Warranty

3 Year
