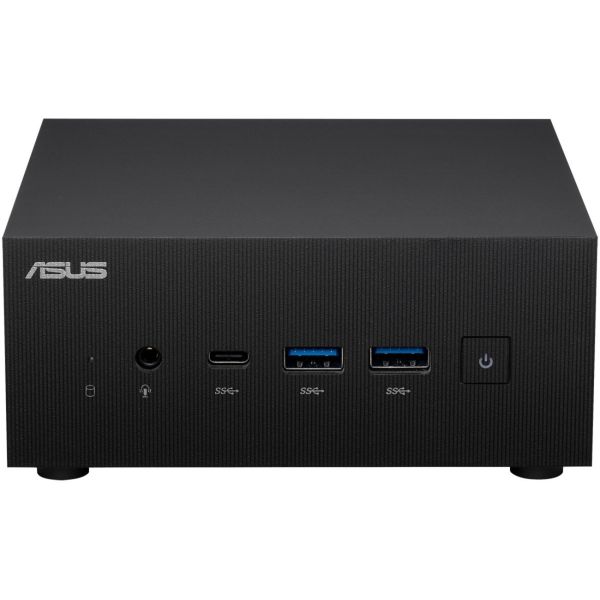

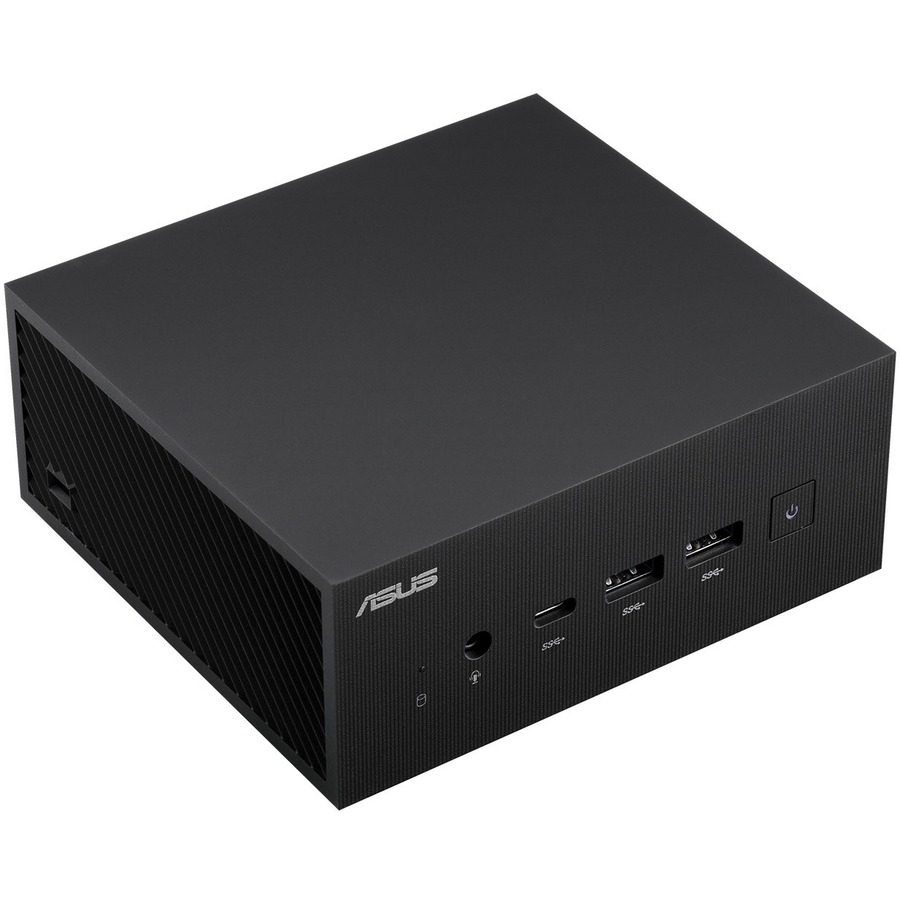

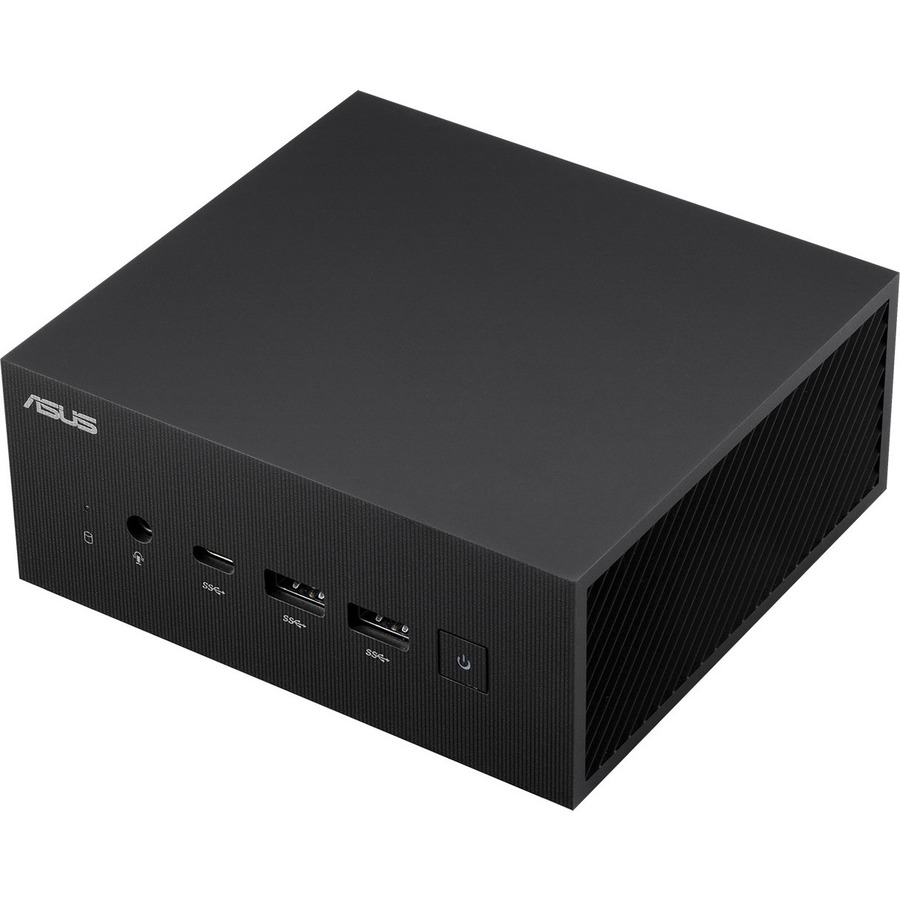

Asus ExpertCenter PN52-SYS715PX1TD Desktop Computer - AMD Ryzen 7 5800H 3.20 GHz - 16 GB RAM DDR4 SDRAM - 512 GB M.2 PCI Express NVMe 3.0 SSD - Mini PC - Eco Black

by
ASUS
PCN#
04BN69
MFG#
PN52-SYS715PX1TD
$673.50
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • AMD Chip
  • Windows 11 Pro
  • AMD Radeon Graphics DDR4 SDRAM

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 YearAdditional Warranty Information1 year manufacturer's limited warranty
Shipping Weight: 7 lbs.
Asus ExpertCenter PN52 PN52-SYS715PX1TD Desktop Computer - AMD Ryzen 7 5800H - 16 GB - 512 GB SSD - Mini PC - Eco Black
Tech Specs
Specifications

Manufacturer

ASUS Computer International

Manufacturer Part Number

PN52-SYS715PX1TD

Manufacturer Website Address

http://usa.asus.com

Brand Name

Asus

Product Line

ExpertCenter

Product Series

PN52

Product Model

PN52-SYS715PX1TD

Product Name

ExpertCenter PN52-SYS715PX1TD Desktop Computer

Marketing Information

Ultra-compact mini PC with AMD Ryzen™ 5000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen3 x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
  • Powered by the latest AMD Ryzen™ 5000H Series Processor with Radeon™ graphics
  • Quad-4K displays support and 8K UHD support**

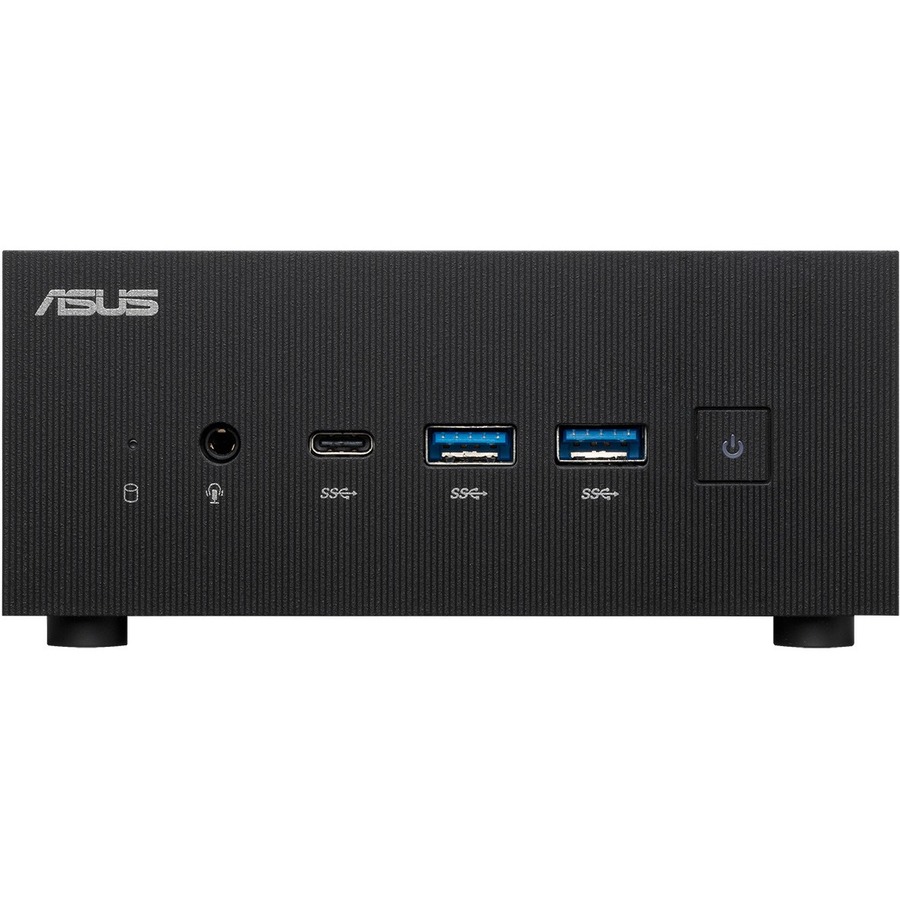

  • Support 7 USB ports, including 2 x Type C ports, and on-board dual HDMI ports
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Military-grade durability: Adheres to the MIL-810H military standards for outstanding quality and reliability
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity
  • Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD
  • Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
  • Configurable Port supports DP1.4/VGA/2.5G LAN/COM/HDMI options
  • 24/7 reliability - Extensively tested to ensure long-term dependability
System & CPU Performance

ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.

Graphics Performance

ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 14.4% in 3DMark11 to 23.6% in the 3DMark Night Raid performance benchmarks.

4K Resolution & Quad Display Support

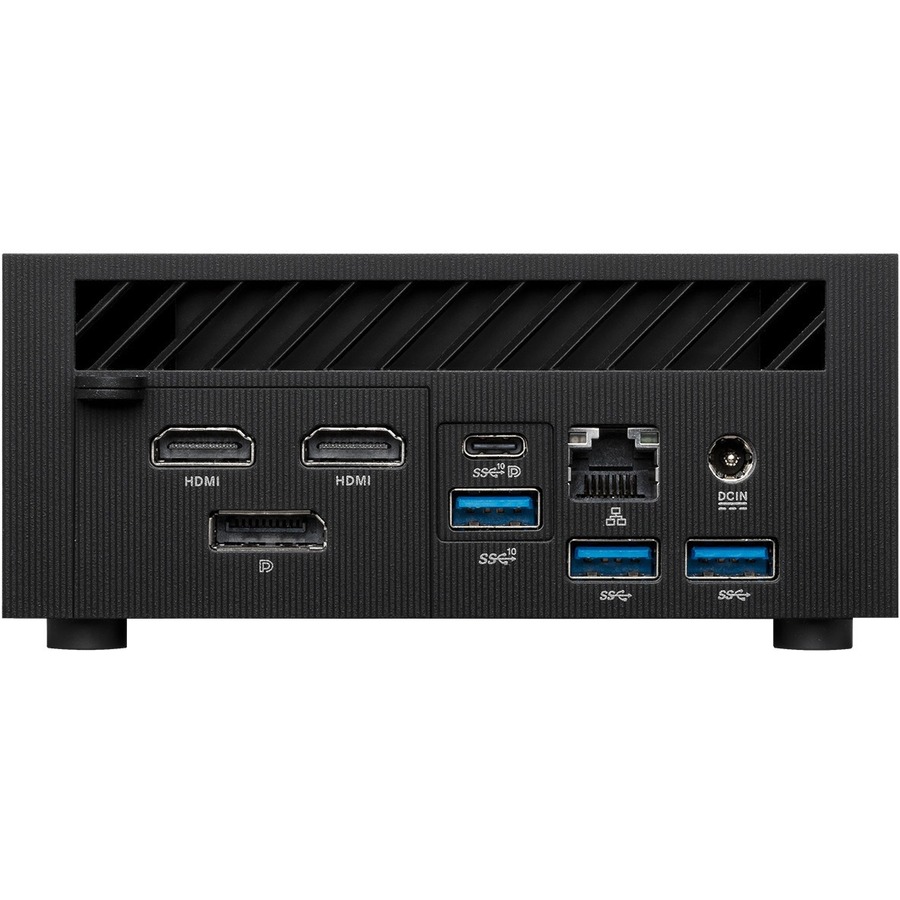

ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Ultra-realistic 8K Visuals

ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input

ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

Easy Upgrades

An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that's required is a screwdriver.

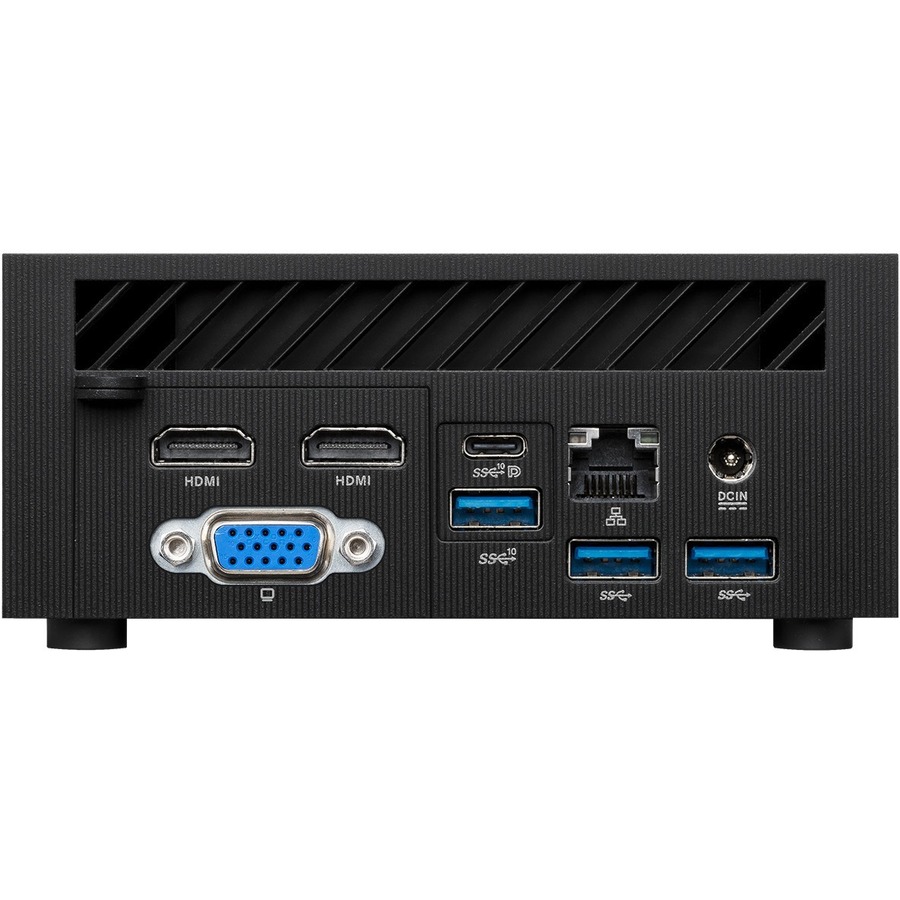

Configurable Port

ASUS ExpertCenter PN52 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners or receipt printers.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Multi-storage Design

ASUS ExpertCenter PN52 is able to accommodate two M.2 SSDs and a 2.5-inch HDD, allowing users to specify custom storage solutions for a balance of speed and capacity that best suits their needs.

Product Type

Desktop Computer
Processor

Processor Manufacturer

AMD

Processor Type

Ryzen 7

Processor Model

5800H

Processor Speed

3.20 GHz
Chipset

Chipset Manufacturer

AMD
Memory

Standard Memory

16 GB

Maximum Memory Supported

64 GB

Memory Technology

DDR4 SDRAM

Total Number of Memory Slots

2.0
Storage

Total Solid State Drive Capacity

512 GB

Solid State Drive Interface

PCI Express NVMe 3.0

SSD Form Factor

M.2
Display & Graphics

Graphics Controller Manufacturer

AMD

Graphics Controller Model

Radeon Graphics

Graphics Memory Technology

DDR4 SDRAM

Graphics Memory Accessibility

Shared
Network & Communication

LAN Manufacturer

Realtek

Ethernet Technology

2.5 Gigabit Ethernet

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11ax

Bluetooth

Yes
Interfaces/Ports

HDMI (Rear)

Yes

Total Number of USB Ports

7

Number of USB 3.2 Gen 1 Ports

4

Number of USB 3.2 Gen 2 Ports

1

USB Type-C (Front)

Yes

USB Type-C (Rear)

Yes

USB Type-C Detail

1 x USB 3.2 Gen2 TypeC (w/ DP output & PowerDelivery input), 1 x USB 3.2 Gen1 Type C

Number Of Ethernet Ports

1

Number of DisplayPort Outputs (Rear)

1

DisplayPort (Rear)

Yes
Operating System

Operating System Platform

Windows

Operating System

Windows 11 Pro
Power Description

Maximum Power Supply Wattage

120 W
Physical Characteristics

Color Family

Black

Product Color

Eco Black

Form Factor

Mini PC

Height

2.3"

Width

4.7"

Depth

5.1"

Weight (Approximate)

2.20 lb
Miscellaneous

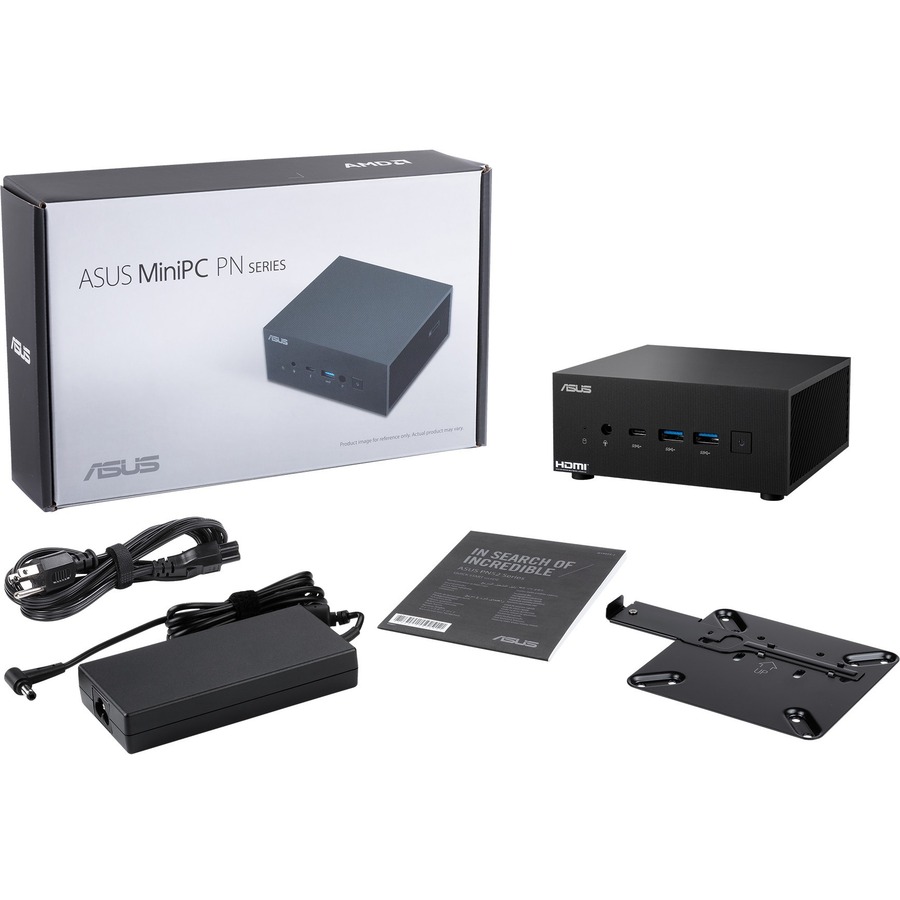

Package Contents

  • PN52-SYS715PX1TD Desktop Computer
  • Power Adapter

Features

Security Slot

Energy Star

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

1 Year

Additional Warranty Information

1 year manufacturer's limited warranty
