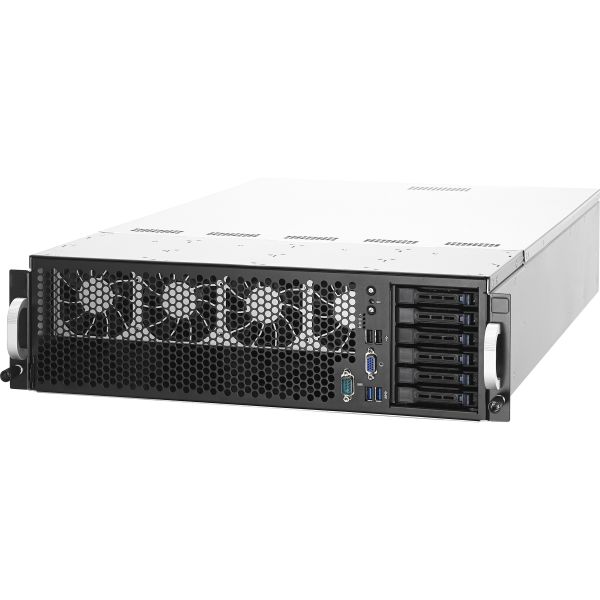

Asus ESC8000 G3 Barebone System - 3U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Name: Asus ESC8000 G3 Barebone System - 3U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support
Brand: ASUS
SKU: 7564AG
Price: 1930.47 USD
Availability: InStock

ASUS

PCN#

7564AG

MFG#

ESC8000 G3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,930.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Estimated Shipment:

Product Highlights:

Intel C612 Chip
1.50 TB DDR4 SDRAM DDR4
2133/PC4
17000 Maximum RAM Support
24 Total Memory Slots
Serial ATA/600 RAID Supported Controller
ASPEED AST2400 32 MB Graphic(s)
6 2.5" Bay(s)
6 SATA Interface(s)
Processor Support (Xeon)
Gigabit Ethernet
2 USB 3.0 Port(s)
3 x 1600 W

Product Condition: New and Factory Fresh

Shipping Weight: 79 lbs.

Asus ESC8000 G3 Barebone System - 3U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	ASUS Computer International
Manufacturer Part Number	ESC8000 G3
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Model	ESC8000 G3
Product Name	ESC8000 G3 Barebone System
Marketing Information	Complete remote server management The ASMB8-iKVM (IPMI 2.0-compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, user could save time and effort on server management and trouble-shooting.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA 2011-v3
Processor Supported	Xeon
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C612

Memory

Maximum Memory Supported	1.50 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-17000
Number of Total Memory Slots	24

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400
Graphics Memory Capacity	32 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	6
Number of Internal 2.5" Bays	6
Number of Total Expansion Slots	10
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	9

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	2
Number of SATA Interfaces	6

Operating System

Operating System Supported

Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2 Enterprise
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu Linux

Power Description

Number of Power Supplies Installed	3
Maximum Power Supply Wattage	1600 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	3U
Height	5.1"
Width	17.6"
Depth	29.9"
Weight (Approximate)	64.37 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Certification	RoHS
