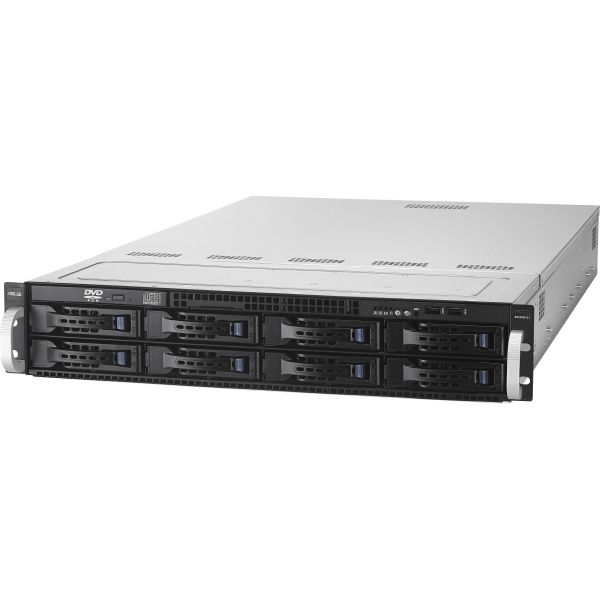

Asus Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Name: Asus Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support
Brand: ASUS
SKU: 7563AG
Price: 1810.14 USD
Availability: InStock

ASUS

PCN#

7563AG

MFG#

ESC4000 G3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,810.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Estimated Shipment:

Product Highlights:

Intel C612 Chip
1 TB DDR4 SDRAM DDR4
2133/PC4
17000 Maximum RAM Support
16.0 Total Memory Slots
Serial ATA/600 RAID Supported Controller
ASPEED AST2400 32 MB Graphic(s)
8 3.5" Bay(s)
8 SATA Interface(s)
Processor Support (Xeon)
Ethernet
2 USB 3.0 Port(s)
2 x 2000 W

Product Condition: New and Factory Fresh

Shipping Weight: 72 lbs.

Asus Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	ASUS Computer International
Manufacturer Part Number	ESC4000 G3
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Series	ESC4000 G3
Product Name	ESC4000 G3 Barebone System
Marketing Information	Design for the user ESC4000 G3 has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS, users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The rear power, button, location/HDD Active LED let the users check the server's status easily which saves time and effort. Also, the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA 2011-v3
Processor Supported	Xeon
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C612

Memory

Maximum Memory Supported	1 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-17000
Total Number of Memory Slots	16.0

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400
Graphics Memory Capacity	32 MB

Network & Communication

Ethernet Technology

Ethernet

I/O Expansions

Number of Total Expansion Bays	8
Number of 3.5" Bays	8
Total Number of Expansion Slots	10.0
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	9

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	2
Number of SATA Interfaces	8

Operating System

Operating System Supported

Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2 Enterprise
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu Server

Power Description

Number of Power Supplies Installed	2
Maximum Power Supply Wattage	2000 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.5"
Depth	29.5"

Miscellaneous

Package Contents	ESC4000 G3 Barebone System 1 x MB Support DVD 1 X ASWM Enterprise DVD 1 x ASMB8 SDVD 1 x Bag of Screws 1 x AC Power Cable 8 x GPU Air Ducts
Environmentally Friendly	Yes
