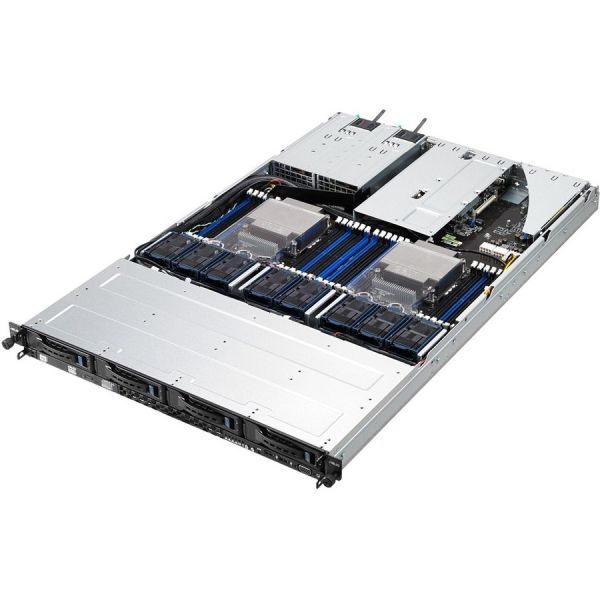

Asus RS700-E8-RS4 Barebone System - 1U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Name: Asus RS700-E8-RS4 Barebone System - 1U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support
Brand: ASUS
SKU: 7559AG
Price: 1532.37 USD
Availability: InStock

ASUS

PCN#

7559AG

MFG#

90SV021A-M01LE0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,532.37

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C612 Chip
1.50 TB DDR4 SDRAM DDR4
2133/PC4
17000 Maximum RAM Support
24 Total Memory Slots
Serial ATA RAID Supported, Serial Attached SCSI (SAS) Controller
ASPEED AST2400 32 MB Graphic(s)
4 3.5" Bay(s)
2 SATA Interface(s)
Processor Support (Xeon)
Gigabit Ethernet
2 USB 3.0 Port(s)
2 x 800 W

Product Condition: New and Factory Fresh

Shipping Weight: 42 lbs.

Asus RS700-E8-RS4 Barebone System - 1U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	ASUS Computer International
Manufacturer Part Number	90SV021A-M01LE0
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Model	RS700-E8-RS4
Product Name	RS700-E8-RS4 Barebone System
Marketing Information	Optimized for rack-mounting RS700-E8-RS4's internal layout is optimized for rack-mounted configurations, with both the CPU and memory placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for increased efficiency- and that makes it perfect for datacenters.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA 2011-v3
Processor Supported	Xeon
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C612

Memory

Maximum Memory Supported	1.50 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-17000
Number of Total Memory Slots	24

Controllers

Controller Type	Serial ATA Serial Attached SCSI (SAS)
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400
Graphics Memory Capacity	32 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	5
Number of External 5.25" Bays	1
Number of 3.5" Bays	4
Total Number of Expansion Slots	4.0
Number of PCI Express x8 Slots	3
Number of PCI Express x16 Slots	1

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of SATA Interfaces	2
Number of SAS Interfaces	2

Operating System

Operating System Supported

Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu Server

Power Description

Number of Power Supplies Installed	2
Maximum Power Supply Wattage	800 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.5"
Depth	27"
Weight (Approximate)	39.68 lb

Miscellaneous

Environmentally Friendly

Yes
