P8 VALUE PACK

by
ARCTIC COOLING INC.
PCN#
6890AG
MFG#
ACFAN00153A
$31.12
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 3.15" Maximum Fan Diameter
  • 1 x Fan(s)
  • 175 gal/min Maximum Airflow

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 2 lbs.

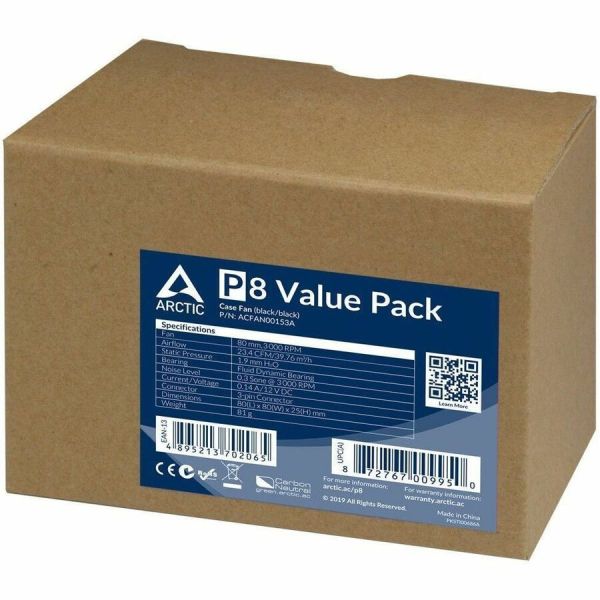

Arctic P8 Cooling Fan - 5 Pack
Tech Specs
Specifications

Manufacturer

Arctic Cooling

Manufacturer Part Number

ACFAN00153A

Manufacturer Website Address

http://www.arctic-cooling.com

Brand Name

Arctic

Product Model

P8

Product Name

P8 Cooling Fan

Marketing Information

Optimised for Static Pressure

During the development of the new P8, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 is particularly suitable for use on heatsinks and radiators.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P8.

Packaged Quantity

5

Product Type

Cooling Fan
Fan Information

Number of Fans

1

Fan Bearing Type

Fluid Dynamic Bearing

Fan Speed (Max)

3000 rpm

Maximum Airflow

175 gal/min

Maximum Air Pressure

1.9mmH2O
Interfaces/Ports

Connectors

3-Pin
Power Description

Rated Current

140 mA
Physical Characteristics

Maximum Fan Diameter

3.15"

Fan Height

0.98"

Fan Width

3.15"

Weight (Approximate)

2.86 oz
Miscellaneous

Application/Usage

  • Heatsink
  • Radiator
  • Case

Country of Origin

China
