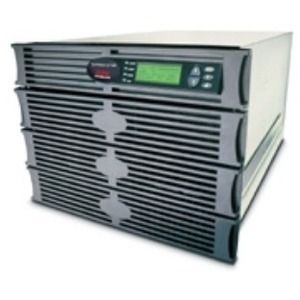

APC Symmetra RM 2kVA Scalable to 6kVA N+1 Rack-mountable UPS

by
APC
PCN#
9CB141
MFG#
SYH2K6RMI
$4,937.64
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 12.6 Minute Full Load
  • 2kVA
  • SNMP Manageable
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 186 lbs.
APC Symmetra RM 2kVA Scalable to 6kVA N+1 Rack-mountable UPS
Tech Specs
Specifications

Manufacturer

Schneider Electric SA

Manufacturer Part Number

SYH2K6RMI

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC by Schneider Electric

Product Line

Symmetra

Product Series

RM

Product Name

Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS

Marketing Information

The first UPS with redundancy and scalability within a single chassis!
Engineered to deliver the highest level of business continuity possible, Symmetra RM 2kVA uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. Symmetra's integrated manageability, and hot-swappable, user replaceable power, battery, and intelligence modules enable easy, fast maintenance and serviceability. Its 2-6kVA N+1 redundant rack-optimized form factor makes Symmetra ideal for protecting critical server racks and network rooms. Typical applications include Web and other key application servers, IP based and traditional PBX voice solutions, and enterprise type network switches.

Product Type

Double Conversion Online UPS
Technical Information

Plug/Connector Type

Hard Wire 3-wire

Receptacle Type

  • IEC 320-C13
  • IEC 320-C19

Receptacle Detail

  • 8 x IEC 320-C13
  • 2 x IEC 320-C19

Number of Battery & Surge Outlets

10

Dataline Protection

RJ-45

Overload Protection

Yes
Power Description

Load Capacity (VA)

2000 VA

Input Voltage

220 V AC

Output Voltage

230 V AC

Input Frequency

60 Hz

Output Frequency

60 Hz

Waveform Type

Sine Wave
Management

Network Management

SNMP Manageable

Alarm

  • On Battery
  • Low Battery
  • Configurable Delay

Bypass Switch

Internal

Emergency Power OFF

Yes
Interfaces/Ports

Modular Slots

1 x SmartSlot
Battery Information

Battery Characteristics

Spill-proof/Maintenance-free

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

12.60 Minute

Backup/Run Time (Half Load)

29.80 Minute

Typical Battery Recharge Time

4 Hour
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Sound Emission (A-Weighted)

60 dB(A)

Thermal Dissipation

172.91 W
Physical Characteristics

Product Color

Black

Form Factor

Rack-mountable

Rack Height

8U

Height

14"

Width

19"

Depth

28.7"

Weight (Approximate)

164.35 lb
Miscellaneous

Package Contents

  • Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
  • Additional Information

    • Automatic restart of loads after UPS shutdown
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Configurable for 220, 230 or 240 nominal output voltage

    Certifications & Standards

    • C-tick
    • EN 50091-2
    • VDE
    Warranty

    Limited Warranty

    2 Year
