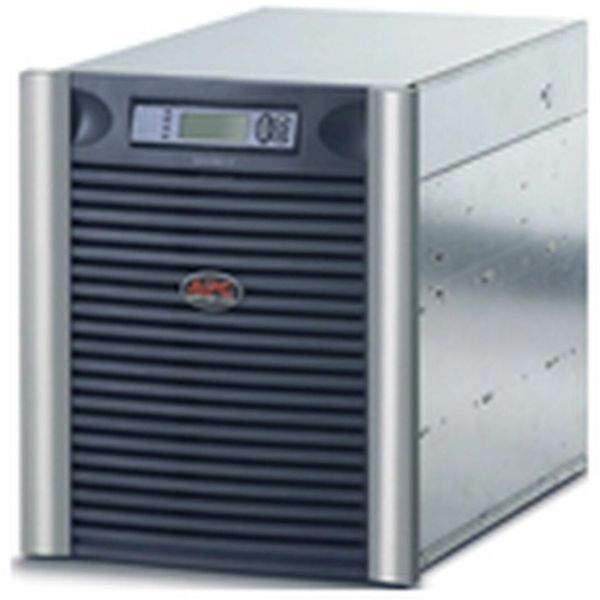

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS

Name: APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
Brand: APC
SKU: VR9245
Price: 19237.07 USD
Availability: InStock

APC

PCN#

VR9245

MFG#

SYA8K8RMI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$19,237.07

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,784.99

3-Year $2,341.99

Estimated Shipment:

Product Highlights:

13U Rack
mountable
3 Hour Recharge
7.50 Minute Stand
by
220 V AC, 400 V AC, 230 V AC, 240 V AC, 380 V AC, 415 V AC Input
220 V AC, 230 V AC, 240 V AC Output
1 x Hard Wire 3
wire (H N + E), 8 x IEC 60320 C13, 6 x IEC 60320 C19
Sine Wave

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 477 lbs.

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA8K8RMI
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
Marketing Information	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Product Type	Online UPS

Technical Information

Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	Hard Wire 3-wire (H N + E) IEC 60320 C13 IEC 60320 C19
Receptacle Detail	1 x Hard Wire 3-wire (H N + E) 8 x IEC 60320 C13 6 x IEC 60320 C19
Number of Battery & Surge Outlets	15
Overload Protection	Yes
Phase	Single Phase/Three Phase

Power Description

Load Capacity (VA)	8000 VA
Input Voltage	220 V AC 400 V AC 230 V AC 240 V AC 380 V AC 415 V AC
Output Voltage	220 V AC 230 V AC 240 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	36 A
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Bypass Switch	Automatic Manual
Emergency Power OFF	Yes

Interfaces/Ports

Modular Slots

1 x SmartSlot

Battery Information

Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7.50 Minute
Backup/Run Time (Half Load)	20.20 Minute
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	809.46 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Form Factor	Rack-mountable
Rack Height	13U
Mounting Location	Front
Mounting Preference	Lower
Height	22.5"
Width	18.6"
Depth	27.1"
Weight (Approximate)	392.82 lb

Miscellaneous

For Country/Region	United States
Package Contents	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown InfraStruXure Manager Compatible Plug-and-Play external batteries Audible and visible alarms prioritized by severity Configurable for 220, 230 or 240 nominal output voltage
Certifications & Standards	C-tick\|CE\|GOST\|VDE
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K8RMI_ROHS_DECLARATION&p_FileName=SYA8K8RMIKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SYA8K8RMI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SYA8K8RMI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712017_V1&p_File_name=EoLI_ENVEOLI1712017_V1.pdf
REACH free of SVHC	No
SCIP Number	2d54512b-134b-4bf3-ab6e-849ecf1e3919
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Sustainable Packaging	No
Reach Compliance Date	12/10/2025
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty

2 Year
