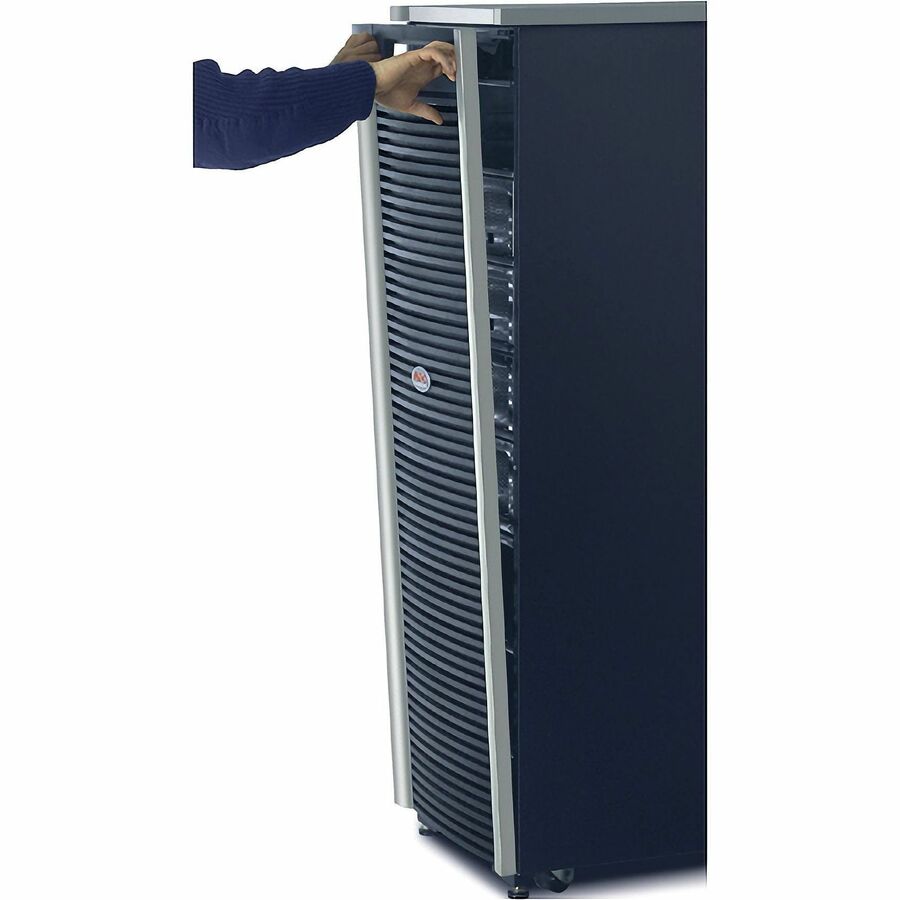

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS

Name: APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS
Brand: APC
SKU: D60153
Price: 22914.25 USD
Availability: InStock

APC

PCN#

D60153

MFG#

SYA8K16PXR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$22,914.25

Extended & Accidental Damage Protection Plans Available Details

2-Year $2,118.99

3-Year $2,787.99

Estimated Shipment:

Product Highlights:

49.3 Minute Full Load
8kVA
SNMP Manageable

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information2 years repair or replace

Shipping Weight: 112 lbs.

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA8K16PXR
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS
Marketing Information	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hard Wire 4-wire
Receptacle Type	Hard Wire 4-wire
Receptacle Detail	1 x Hard Wire 4-wire
Number of Battery & Surge Outlets	1
Overload Protection	Yes

Power Description

Load Capacity (VA)	8000 VA
Input Voltage	208 V AC
Output Voltage	120 V AC 208 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	37 A
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Bypass Switch	Automatic & Manual External (Optional)
Emergency Power OFF	Yes

Interfaces/Ports

Modular Slots

1 x SmartSlot

Battery Information

Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	49.30 Minute
Backup/Run Time (Half Load)	1.77 Hour
Typical Battery Recharge Time	7.50 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1463.89 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Form Factor	Tower
Mounting Location	Front
Height	59.7"
Width	19"
Depth	28.6"
Weight (Approximate)	1044.20 lb

Miscellaneous

Package Contents	Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown Audible and visible alarms prioritized by severity InfraStruXure Manager Compatible Plug-and-Play external batteries Configurable for 120/208 or 120/240 output voltage
Certifications & Standards	CSA
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16PXR_ROHS_DECLARATION&p_FileName=SYA8K16PXRKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766170&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766170&lang=en-us
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
REACH free of SVHC	No
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
