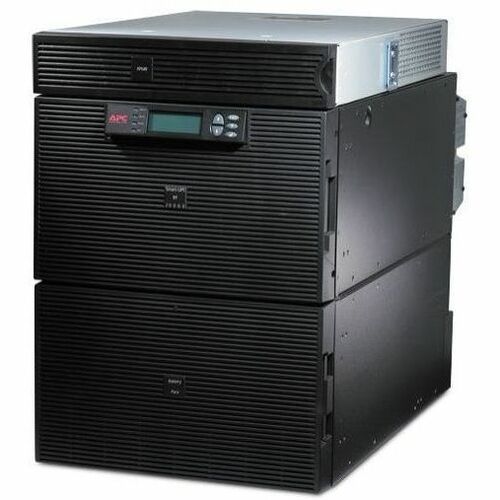

APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS

Name: APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS
Brand: APC
SKU: BC3340
Price: 22734.62 USD
Availability: InStock

APC

PCN#

BC3340

MFG#

SURT20KRMXLT-TF5

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$22,734.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $2,118.99

3-Year $2,787.99

Estimated Shipment:

Product Highlights:

14U Rack
mountable
2.50 Hour Recharge
4.90 Minute Stand
by
208 V AC, 240 V AC Input
120 V AC, 208 V AC, 240 V AC Output
1 x Hard Wire 3
wire (2PH + G), 12 x NEMA 5
20R, 4 x NEMA L6
20R, 1 x NEMA L6
30R
Sine Wave
Serial Port

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 802 lbs.

APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SURT20KRMXLTTF5
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Series	RT
Product Name	Smart-UPS RT 20kVA Tower/Rack Mountable UPS
Marketing Information	The APC Smart-UPS RT is an online UPS with transformer and a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Product Type	Online UPS

Technical Information

Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	Hard Wire 3-wire (2PH + G) NEMA 5-20R NEMA L6-20R NEMA L6-30R
Receptacle Detail	1 x Hard Wire 3-wire (2PH + G) 12 x NEMA 5-20R 4 x NEMA L6-20R 1 x NEMA L6-30R
Number of Battery & Surge Outlets	17
Overload Protection	Yes
Phase	Single Phase

Power Description

Load Capacity (VA)	20 kVA
Input Voltage	208 V AC 240 V AC
Output Voltage	120 V AC 208 V AC 240 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Input Current	105 A
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Bypass Switch	Static Internal Automatic & Manual External (Optional)
Emergency Power OFF	Yes

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes

Battery Information

Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	4.90 Minute
Backup/Run Time (Half Load)	15.30 Minute
Typical Battery Recharge Time	2.50 Hour

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	14U
Mounting Location	Front
Mounting Preference	Lower
Height	24.5"
Width	17"
Depth	30.4"
Weight (Approximate)	641.35 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS RT 20kVA Tower/Rack Mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card
Certifications & Standards	UL 1778
Software Included	PowerChute Management Software
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT-TF5_ROHS_DECLARATION&p_FileName=SURT20KRMXLT-TF5KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT-TF5_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT-TF5_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Sustainable Packaging	No
Reach Compliance Date	12/10/2025
Product Contributes Saved Avoided Emissions	No
Packaging Contains Recycled Cardboard	Yes
Minimum Percentage of Recycled Metal Content	0

Warranty

Limited Warranty

2 Year
