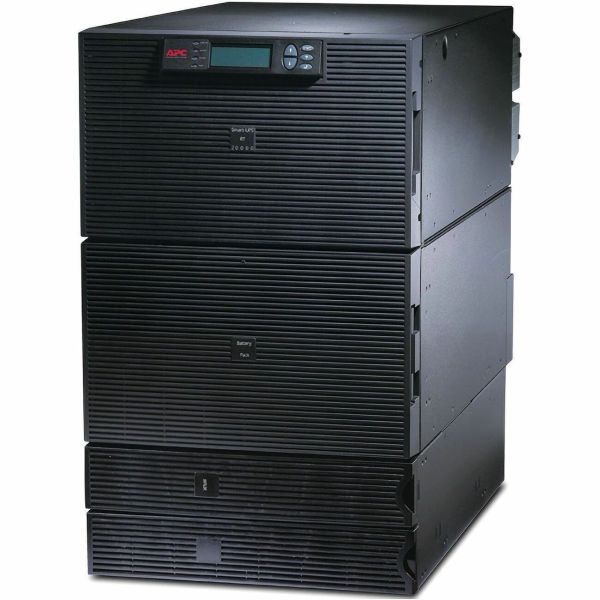

APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS

by
APC
PCN#
BC3339
MFG#
SURT20KRMXLT-1TF10K
main product photo
fotorama-image
fotorama-image
APC Authorized Dealer
$23,577.73
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 16U Rack
  • mountable
  • 2.50 Hour Recharge

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 966 lbs.
APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 16U, 2x L5-20R & 4x L6-20R & 2x L6-30R & 2x L14-30R NEMA outlets, w/transfo 208V to 120V
Overview
Tech Specs
Specifications

Manufacturer

Schneider Electric SA

Manufacturer Part Number

SURT20KRMXLT-1TF10K

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC

Product Line

Smart-UPS

Product Series

RT

Product Name

Smart-UPS RT 20kVA Tower/Rack Mountable UPS

Marketing Information

High density, double-conversion on-line power protection with scalable runtime

Product Type

Online UPS
Technical Information

Plug/Connector Type

Hard Wire 3-wire

Receptacle Type

  • Hard Wire 4-wire (2PH+N+G)
  • NEMA L5-20R
  • NEMA L6-20R
  • NEMA L6-30R
  • NEMA L14-30R

Receptacle Detail

  • 1 x Hard Wire 4-wire (2PH+N+G)
  • 2 x NEMA L5-20R
  • 4 x NEMA L6-20R
  • 2 x NEMA L6-30R
  • 2 x NEMA L14-30R

Number of Battery & Surge Outlets

11

Overload Protection

Yes

Phase

Single Phase
Power Description

Load Capacity (VA)

20 kVA

Input Voltage

208 V AC

Output Voltage

  • 120 V AC
  • 208 V AC

Input Frequency

70 Hz

Output Frequency

60 Hz

Input Current

105 A

Waveform Type

Sine Wave
Management

Network Management

SNMP Manageable

Bypass Switch

  • Static
  • Internal
  • Automatic & Manual
  • External (Optional)

Emergency Power OFF

Yes
Interfaces/Ports

Serial Port

Yes

Network (RJ-45)

Yes
Battery Information

Battery Characteristics

Spill-proof/Maintenance-free

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

4.90 Minute

Backup/Run Time (Half Load)

15.30 Minute

Typical Battery Recharge Time

2.50 Hour
Physical Characteristics

Color Family

Black

Product Color

Black

Form Factor

Rack-mountable

Rack Height

16U

Mounting Location

Front

Mounting Preference

Lower

Height

27.9"

Width

17"

Depth

30.4"

Weight (Approximate)

766.61 lb
Miscellaneous

For Country/Region

United States

Package Contents

  • Smart-UPS RT 20kVA Tower/Rack Mountable UPS
  • CD with software
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • User manual
  • Web/SNMP management card

    • Certifications & Standards

    		Reference contains Substances of Very High Concern above the threshold

    Software Included

    		PowerChute Management Software

    Product Take Back Program

    		Yes

    RoHS Exemption Information

    		https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT20KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf

    REACH Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT1TF10K_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    EU RoHS Declaration URL

    		https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT1TF10K_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)

    Environmental Profile Availability

    		https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP2304008EN&p_File_name=Internal PEP ENVPEP2304008_V1_2.pdf

    End of Life Manual Availability

    		https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI2304008_V1&p_File_name=EoLI_ENVEOLI2304008_V1_2.pdf

    REACH free of SVHC

    		No

    Country of Origin

    		Philippines

    Environmentally Friendly

    		Yes

    Environmental Compliance

    		Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    		2 Year
