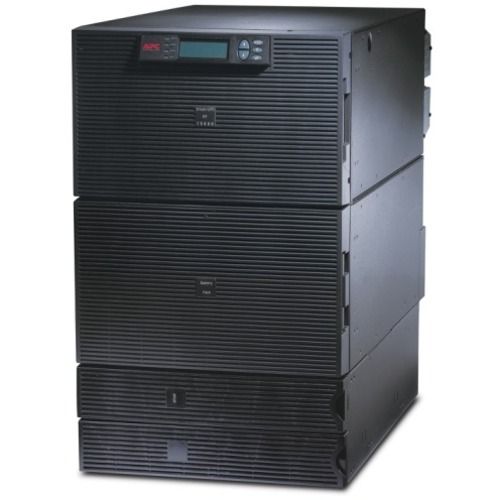

APC by Schneider Electric Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS

Name: APC by Schneider Electric Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
Brand: APC
SKU: BC3336
Price: 20586.61 USD
Availability: InStock

APC

PCN#

BC3336

MFG#

SURT15KRMXLT-1TF10K

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$20,586.61

Extended & Accidental Damage Protection Plans Available Details

2-Year $2,118.99

3-Year $2,787.99

Estimated Shipment:

Product Highlights:

16U Rack
mountable
2.50 Hour Recharge
8 Minute Stand
by
208 V AC, 240 V AC Input
120 V AC, 208 V AC, 240 V AC Output
1 x Hard Wire 4
wire (2PH+N+G), 2 x NEMA L5
20R, 4 x NEMA L6
20R, 2 x NEMA L6
30R, 2 x NEMA L14
30R
Sine Wave
Serial Port

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 966 lbs.

APC Smart-UPS RT 15kVA, 208V, LCD, rackmount, 16U, 2x L5-20R & 4x L6-20R & 2x L6-30R & 2x L14-30R NEMA outlets, w/transfo 208V to 120V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SURT15KRMXLT-1TF10K
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Model	SURT15KRMXLT-1TF10K
Product Name	Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
Marketing Information	High density, double-conversion on-line power protection with scalable runtime
Product Type	Online UPS

Technical Information

Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	Hard Wire 4-wire (2PH+N+G) NEMA L5-20R NEMA L6-20R NEMA L6-30R NEMA L14-30R

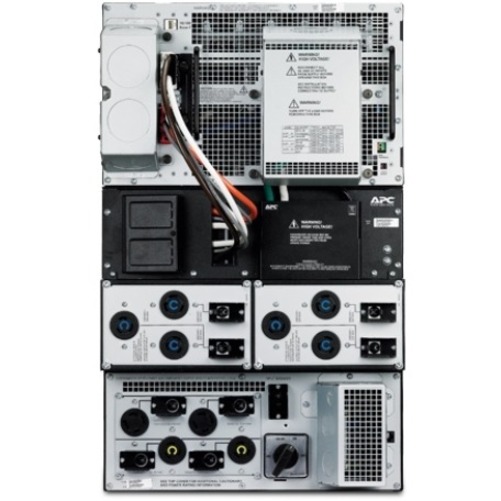

Receptacle Detail	1 x Hard Wire 4-wire (2PH+N+G) 2 x NEMA L5-20R 4 x NEMA L6-20R 2 x NEMA L6-30R 2 x NEMA L14-30R
Number of Battery & Surge Outlets	11
Overload Protection	Yes
Phase	Single Phase

Power Description

Load Capacity (VA)	15 kVA
Input Voltage	208 V AC 240 V AC
Output Voltage	120 V AC 208 V AC 240 V AC
Input Frequency	50 Hz
Output Frequency	60 Hz
Input Current	83 A
Waveform Type	Sine Wave

Management

Network Management	SNMP Manageable
Bypass Switch	Automatic External Internal Manual Optional Static
Emergency Power OFF	Yes

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
Modular Slots	SmartSlot

Battery Information

Number of Batteries	4
Battery Characteristics	Maintenance-free/Sealed/Spill Proof
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	8 Minute
Typical Battery Recharge Time	2.50 Hour

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	16U
Mounting Location	Front
Mounting Preference	Lower
Height	27.9"
Width	17"
Depth	30.4"
Weight (Approximate)	766.61 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card
Certifications & Standards	UL 1778\|
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT15KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT15KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SURT15KRMXLT-1TF10K_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SURT15KRMXLT-1TF10K_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1511005EN&p_File_name=ENVPEP1511005_V2.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1511005_EN&p_File_name=ENVEOLI1511005_V1.pdf
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
