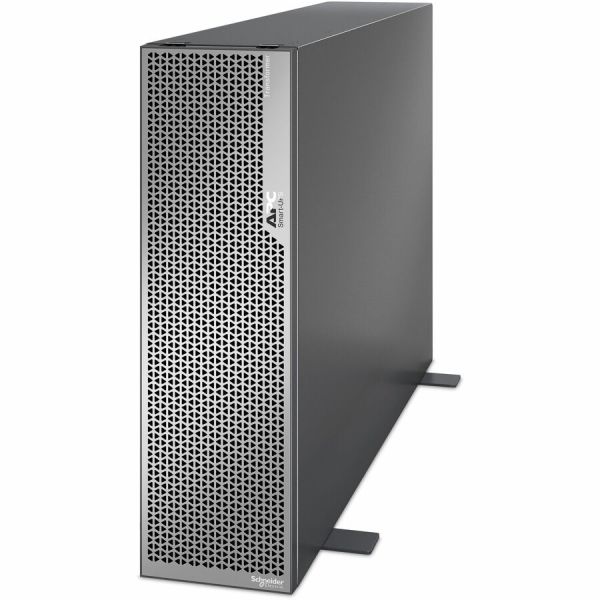

APC Smart-UPS Ultra Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

Name: APC Smart-UPS Ultra Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets
Brand: APC
SKU: 12CH11
Price: 1166.49 USD
Availability: InStock

APC

PCN#

12CH11

MFG#

SRTL5KTF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,166.49

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

Tower
208 V Input
120 V AC Output
8 x NEMA 5
20R, 2 x NEMA L6
20R, 1 x NEMA L6
30R, 1 x NEMA L14
30R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 years repair or replace

Shipping Weight: 140 lbs.

APC Smart-UPS Ultra Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL5KTF
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS Ultra
Product Name	Smart-UPS Ultra 5kVA Tower UPS
Marketing Information	The Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. User Selectable: 110V/ 120V/ 208V/ 240V, depending on the UPS output voltage and the Switch position. Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Ships as tower Configuration. Install the step-down transformer to the left/above the compatible STLR 5kW UPS. Rackmount configuration is available with SRTRK2 rail kit accessory, sold separately. Standard warranty, 5 years repair or replace.
Packaged Quantity	1
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-30P
Receptacle Detail	8 x NEMA 5-20R 2 x NEMA L6-20R 1 x NEMA L6-30R 1 x NEMA L14-30R
Cord Length	3 ft

Power Description

Load Capacity (VA)	5000 VA
Input Voltage	208 V
Output Voltage	120 V AC
Input Frequency	60 Hz

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	95%

Physical Characteristics

Color Family	Black
Product Color	Black
Height	17"
Width	5.1"
Depth	26"
Form Factor	Tower
Weight (Approximate)	125 lb

Miscellaneous

Package Contents	Smart-UPS Ultra 5kVA Tower UPS User Manual
Certifications & Standards	CSA
Mercury Free	Yes
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559852796&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559852796&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 years repair or replace
