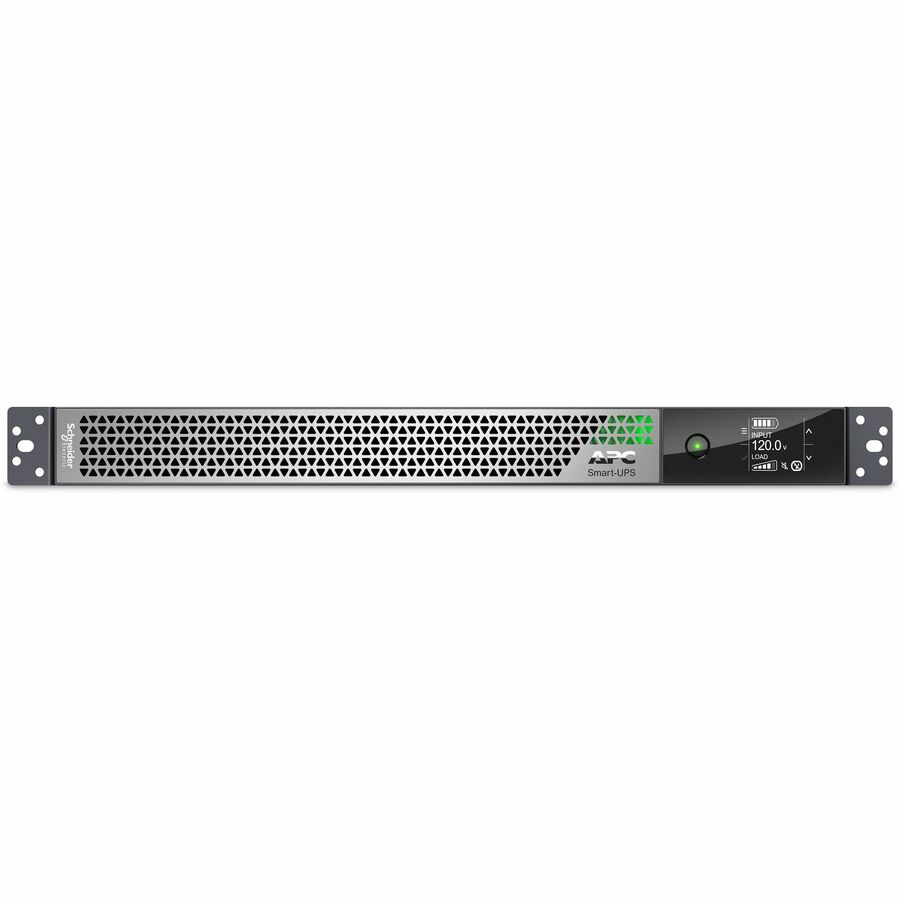

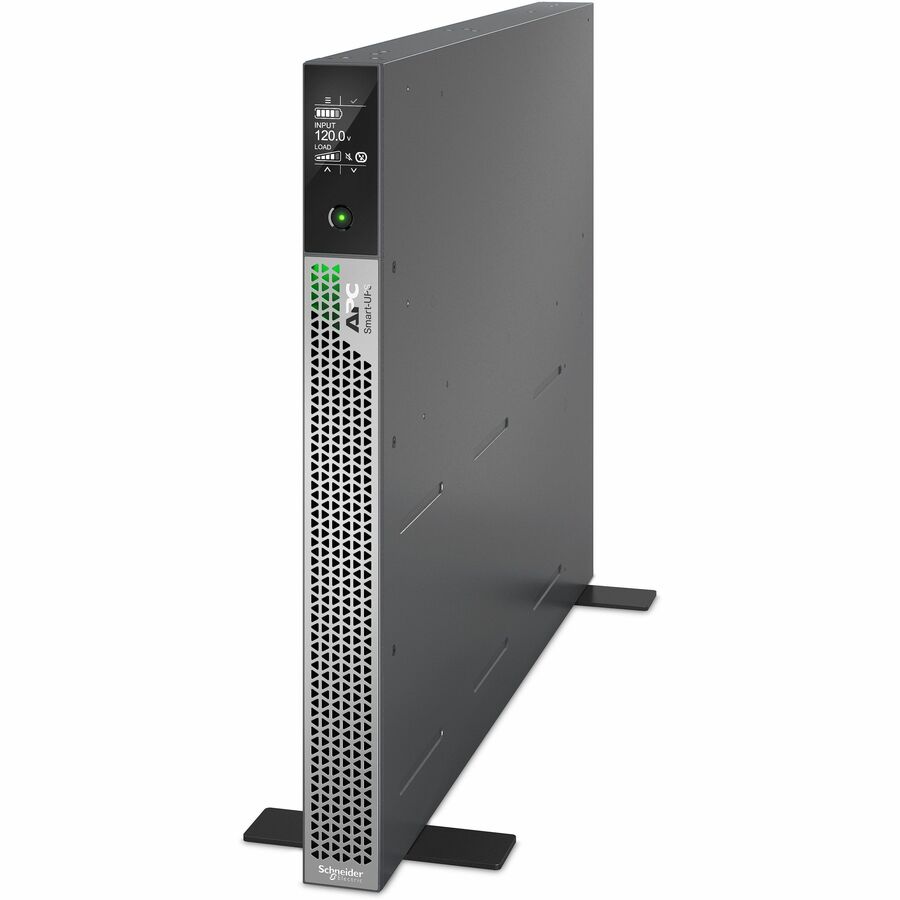

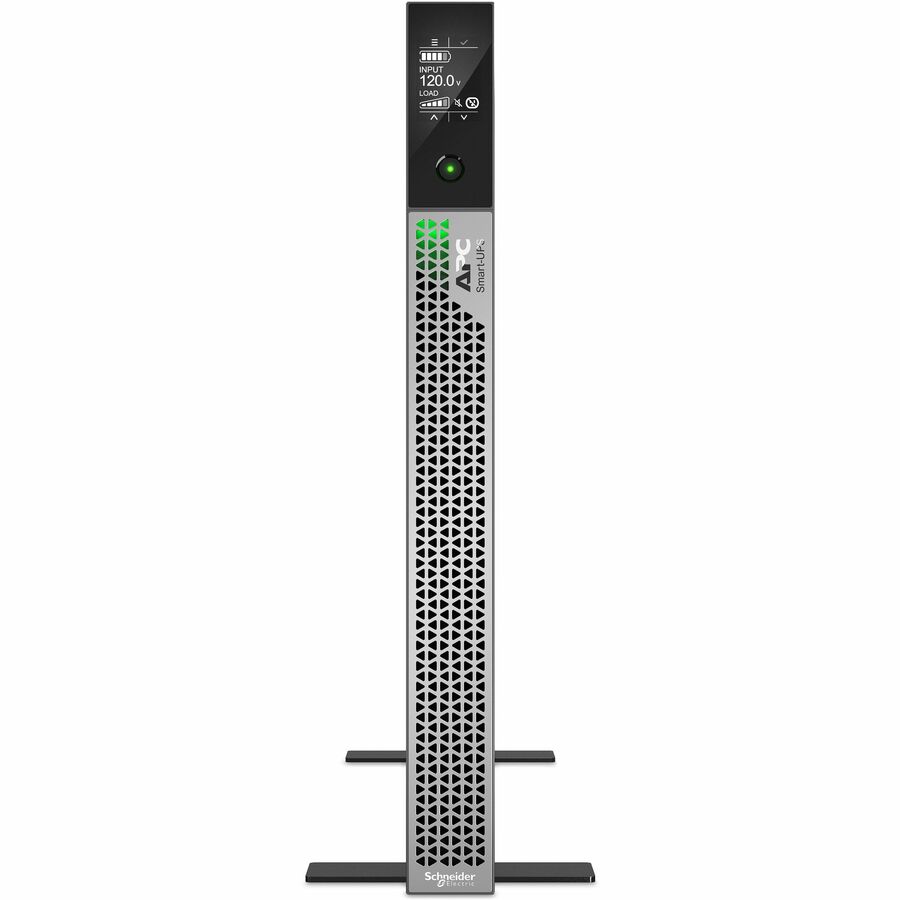

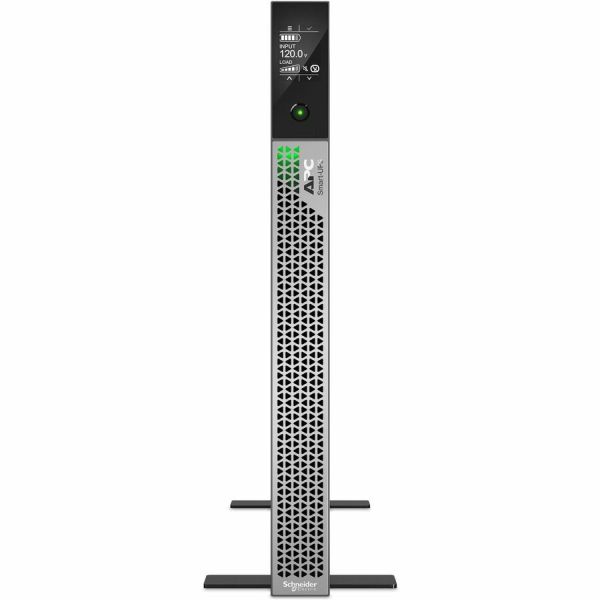

APC by Schneider Electric Smart-UPS Ultra 3000VA Rack/Tower UPS

Name: APC by Schneider Electric Smart-UPS Ultra 3000VA Rack/Tower UPS
Brand: APC
SKU: 9RC514
Price: 7244.96 USD
Availability: InStock

APC

PCN#

9RC514

MFG#

SRTL3KRM1UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,244.96

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Estimated Shipment:

Product Highlights:

1U Rack/Tower
1.50 Hour Recharge
120 V AC, 125 V AC Input
120 V AC, 125 V AC Output
Single Phase
Sine Wave
1 x NEMA L5
30R, 5 x NEMA 5
20R Receptacle(s)
6 x Battery/Surge Outlet
Network
MS Card

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 53 lbs.

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R + 1x L5-30R NEMA outlets, Network Card, Extended runtime, W/rail kit

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL3KRM1UNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS Ultra
Product Name	Smart-UPS Ultra 3000VA Rack/Tower UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Product Type	Standby UPS

Technical Information

Plug/Connector Type	NEMA L5-30P

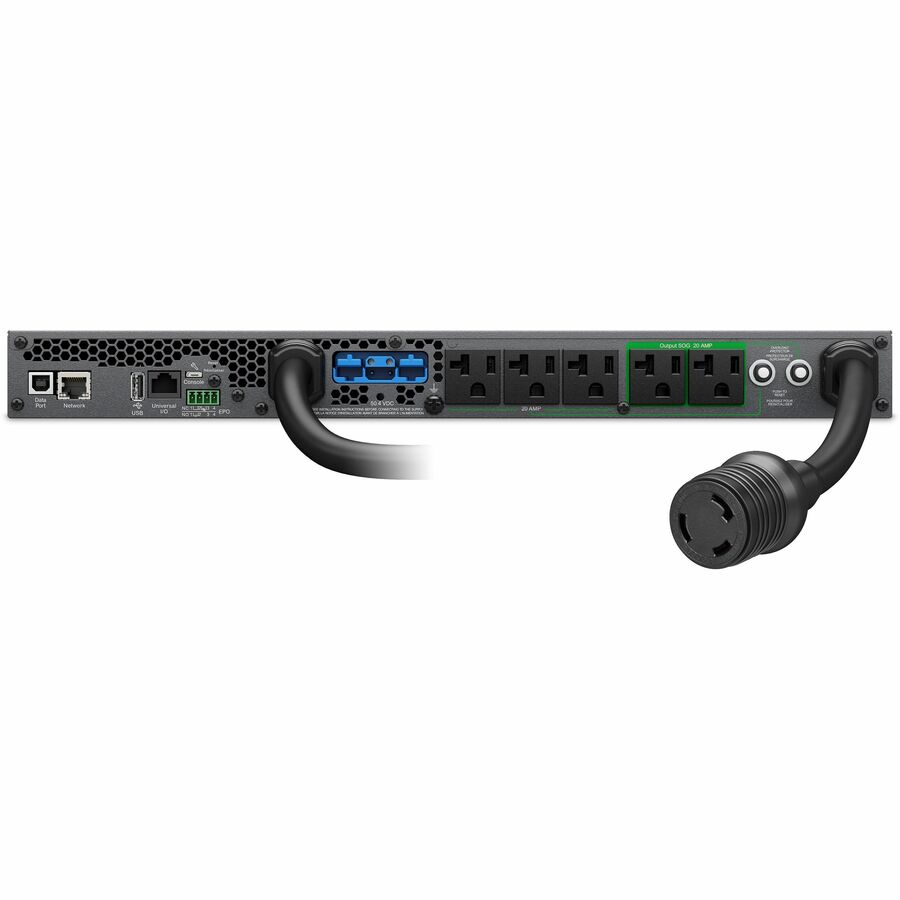

Receptacle Type	NEMA L5-30R NEMA 5-20R
Receptacle Detail	1 x NEMA L5-30R 5 x NEMA 5-20R
Number of Battery & Surge Outlets	6
Cord Length	7.87 ft
Phase	Single Phase
Application/Usage	Server Voice/Data Network Retail and Wholesale Medical Light Industrial Application

Power Description

Load Capacity (VA)	2880 VA
Load Capacity (Watt)	2880 W
Input Voltage	120 V AC 125 V AC
Output Voltage	120 V AC 125 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave

Management

Network Management

Network-MS Card

Controls/Indicators

Status Indicators

Multifunction LCD

Interfaces/Ports

Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	50 V DC
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	1123.2 kJ
Typical Battery Recharge Time	1.50 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity	0% - 95%
Sound Emission	55 dB

Physical Characteristics

Color Family	Silver
Product Color	Silver Gray
Height	1.69"
Width	17.01"
Depth	22.05"

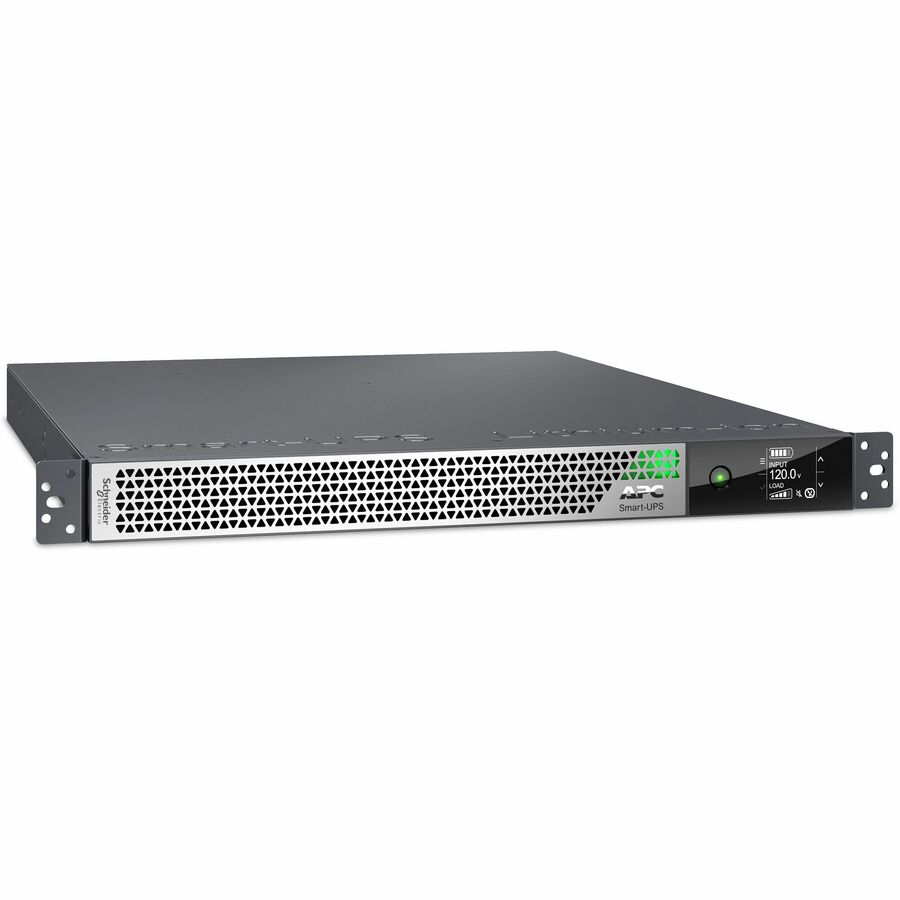

Rack Height	1U

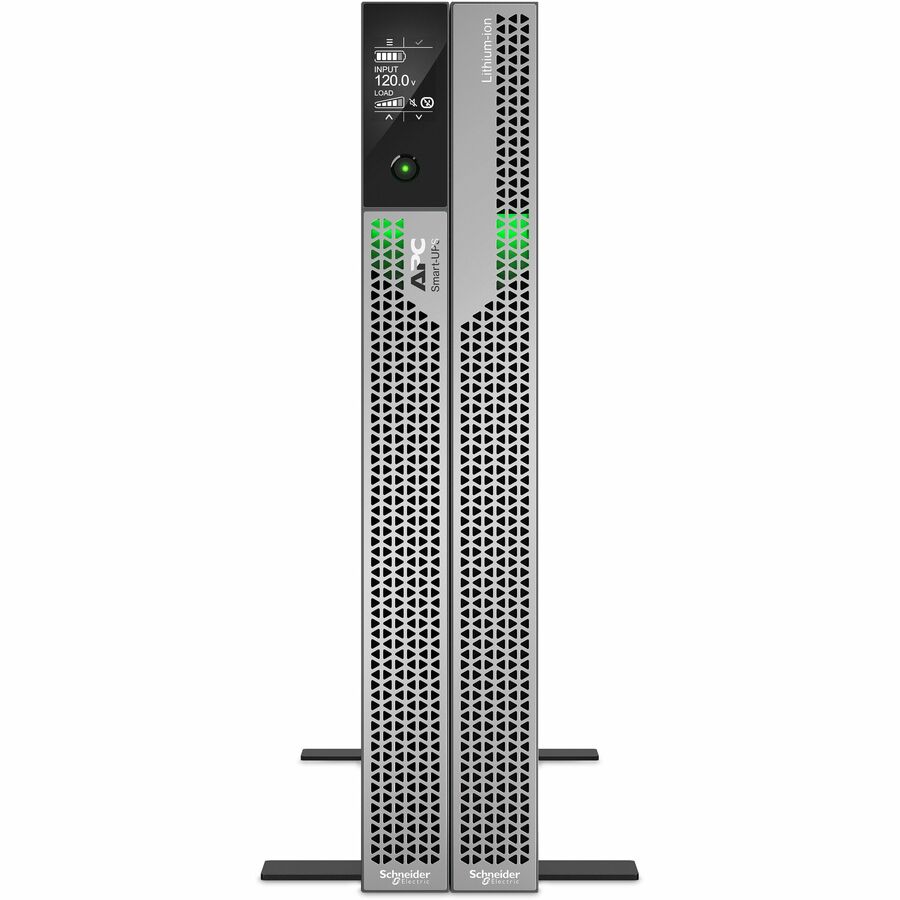

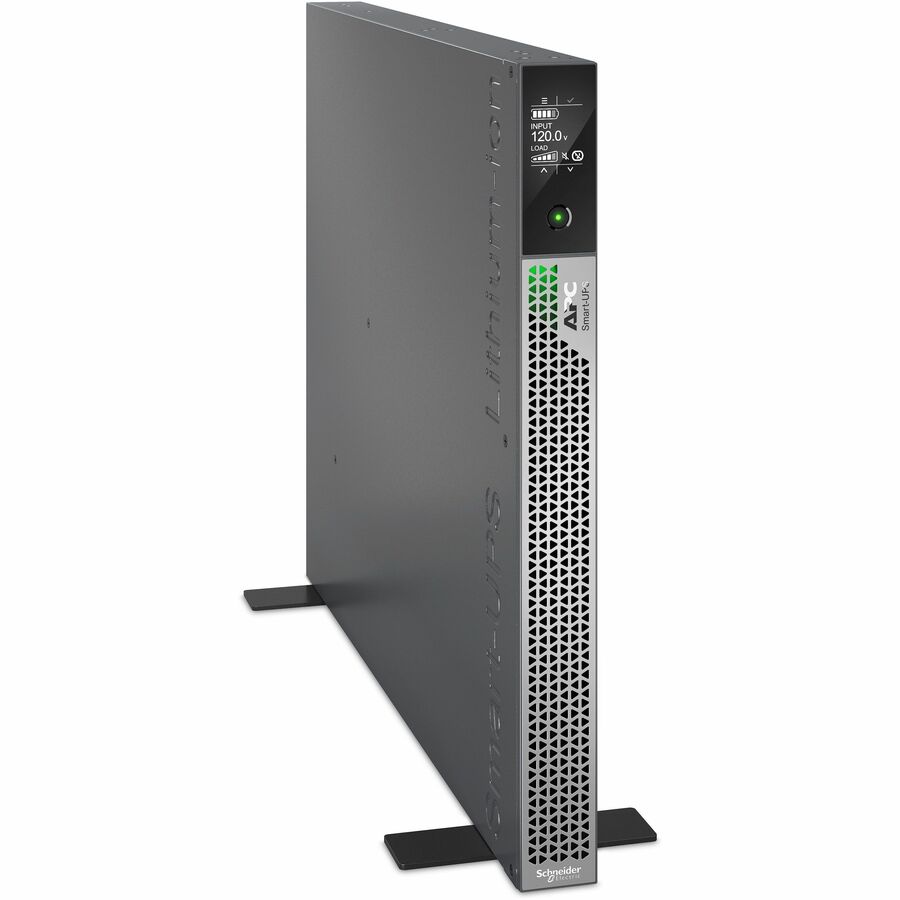

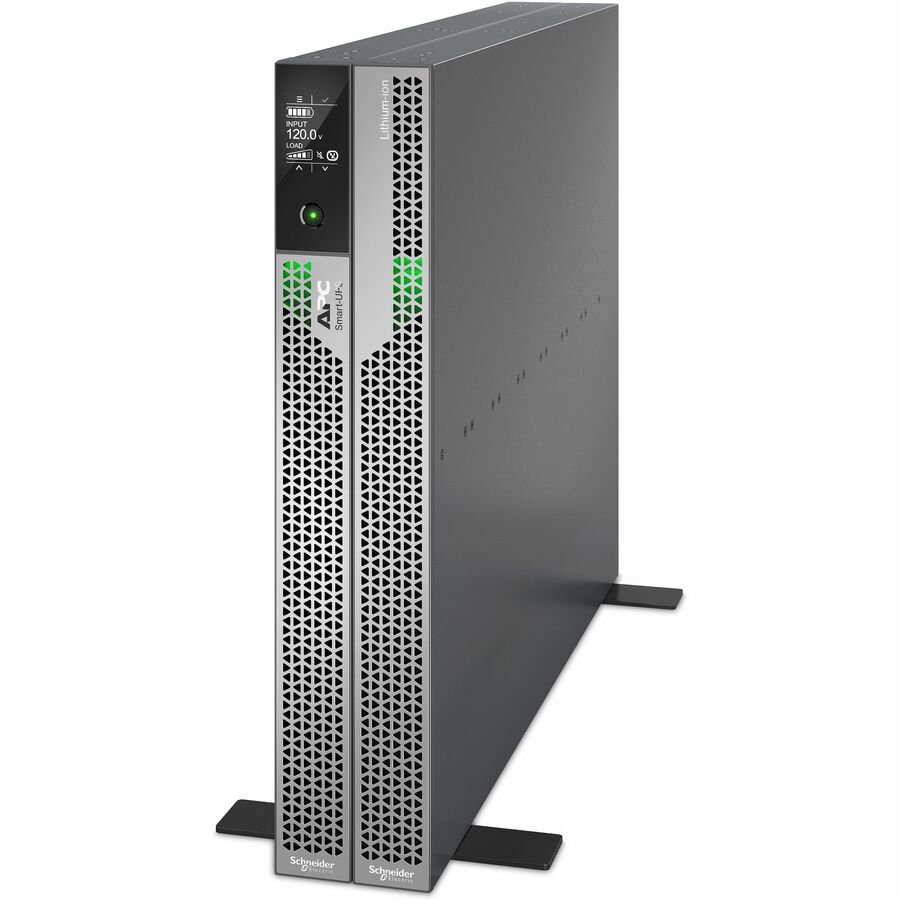

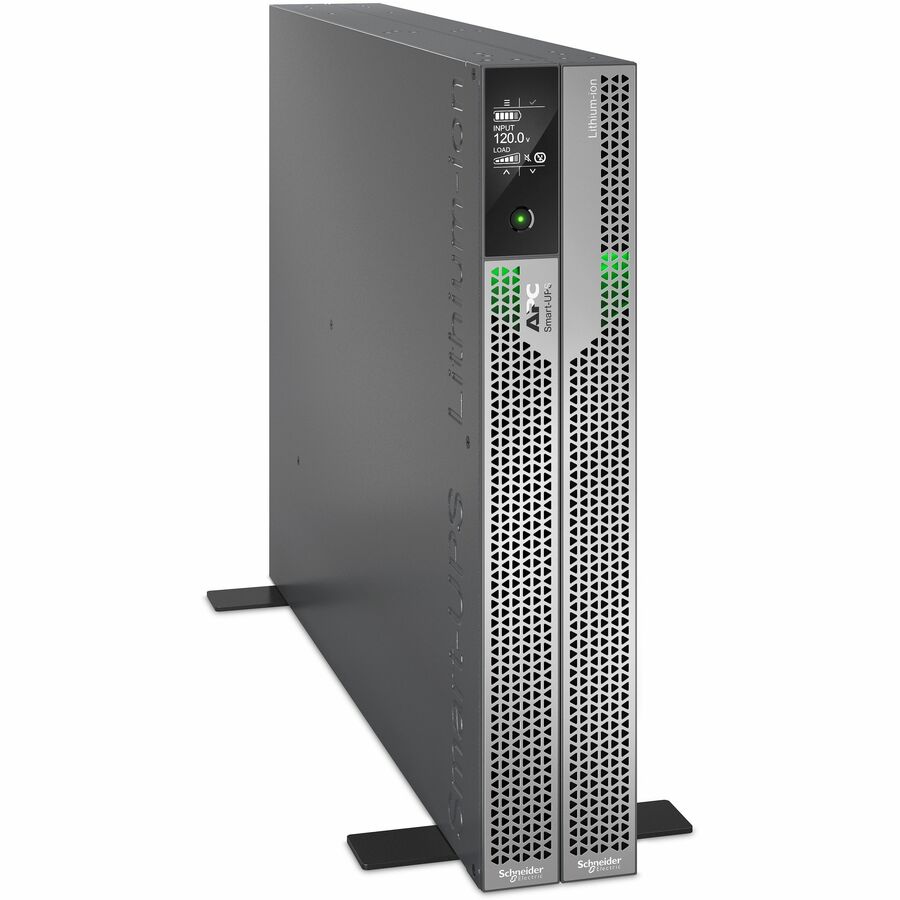

Form Factor	Rack/Tower
Mounting Preference	No Preference
Weight (Approximate)	35.05 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS Ultra 3000VA Rack/Tower UPS RJ45 Cable USB Cable Country-Specific Detachable Power Cord Rack Mounting Brackets Rack Mounting Support Rails Installation Guide Warranty Card
Certifications & Standards	UL/cUL listed FCC
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRTL3KRM1UNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRTL3KRM1UNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP2311012EN&p_File_name=ENVPEP2311012_V1.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI2311011_V1&p_File_name=ENVEOLI2311011_V1.pdf
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
