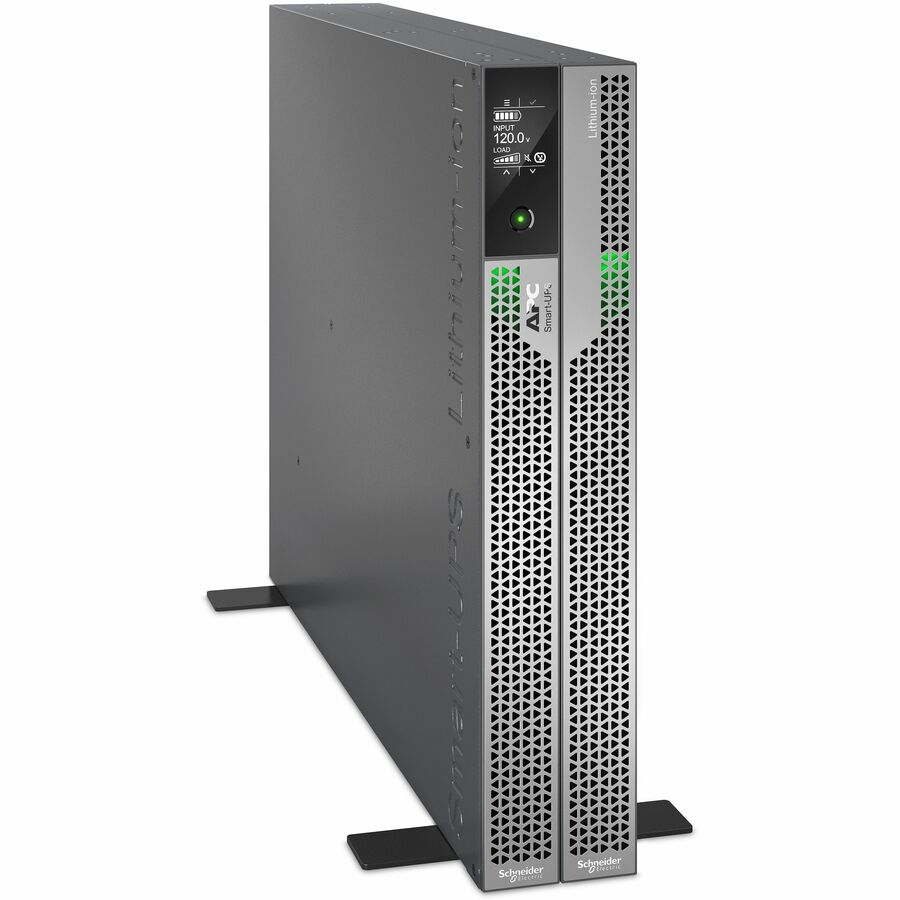

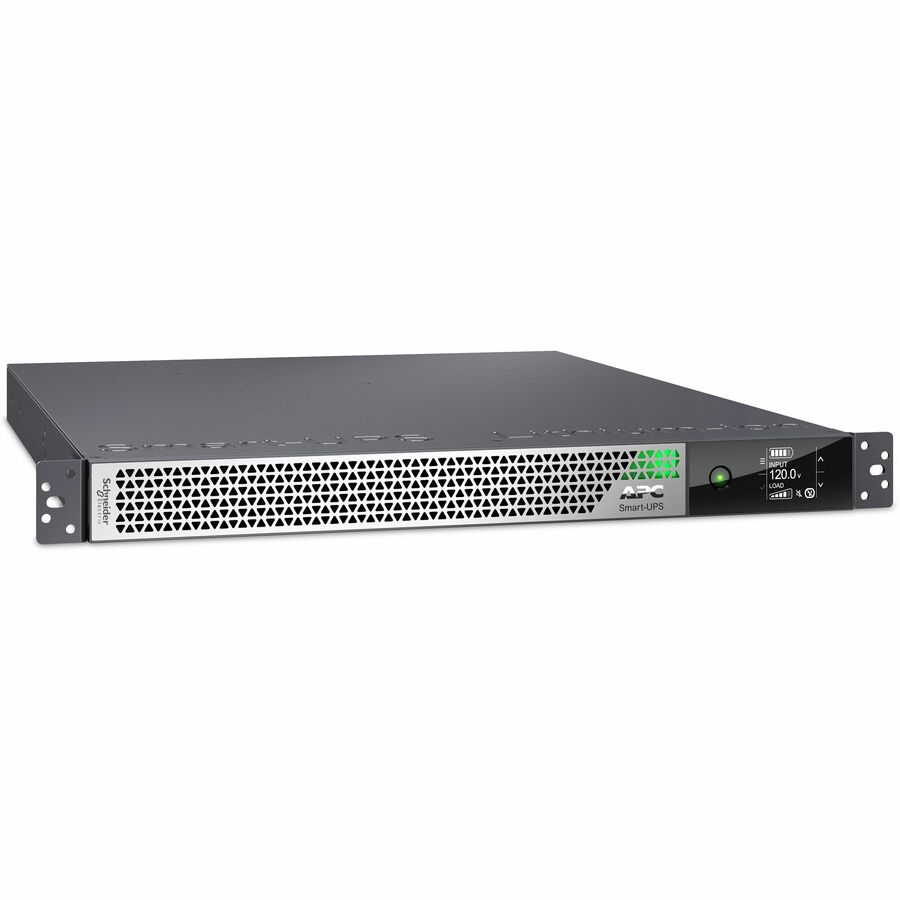

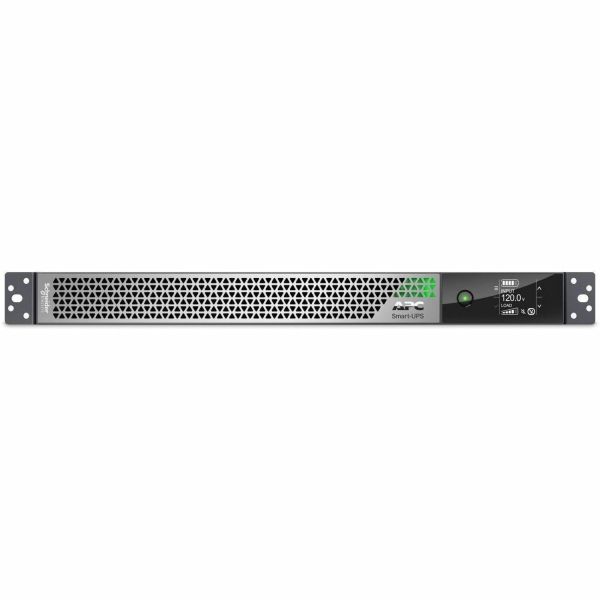

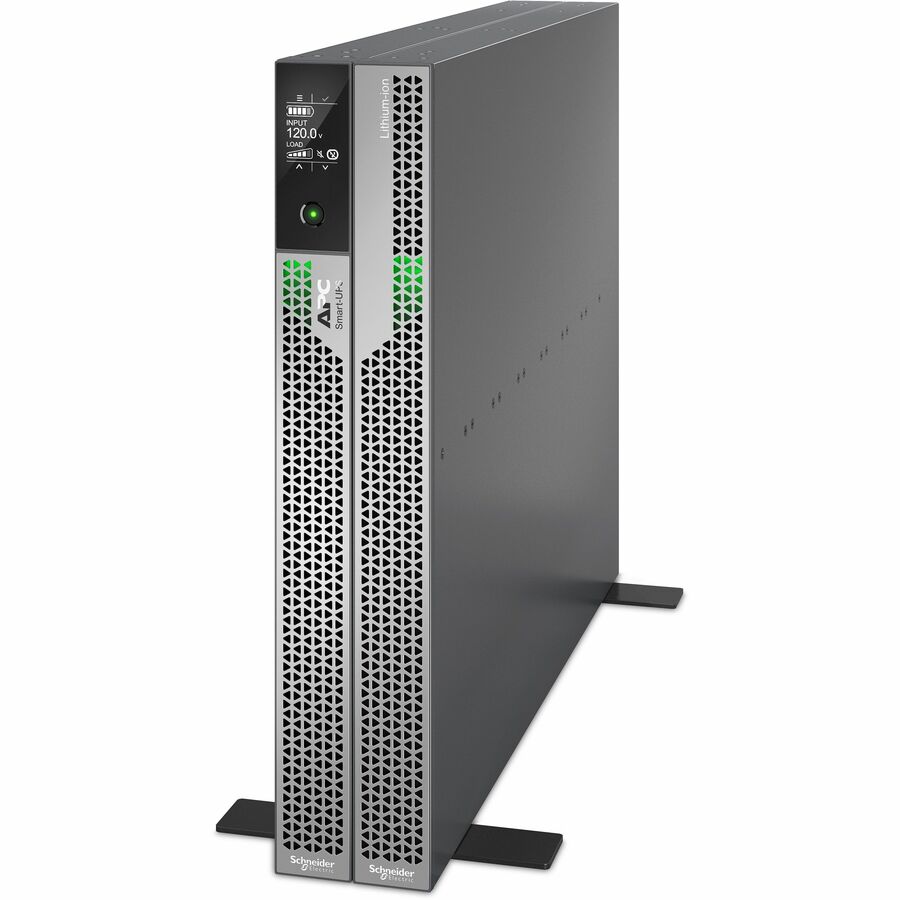

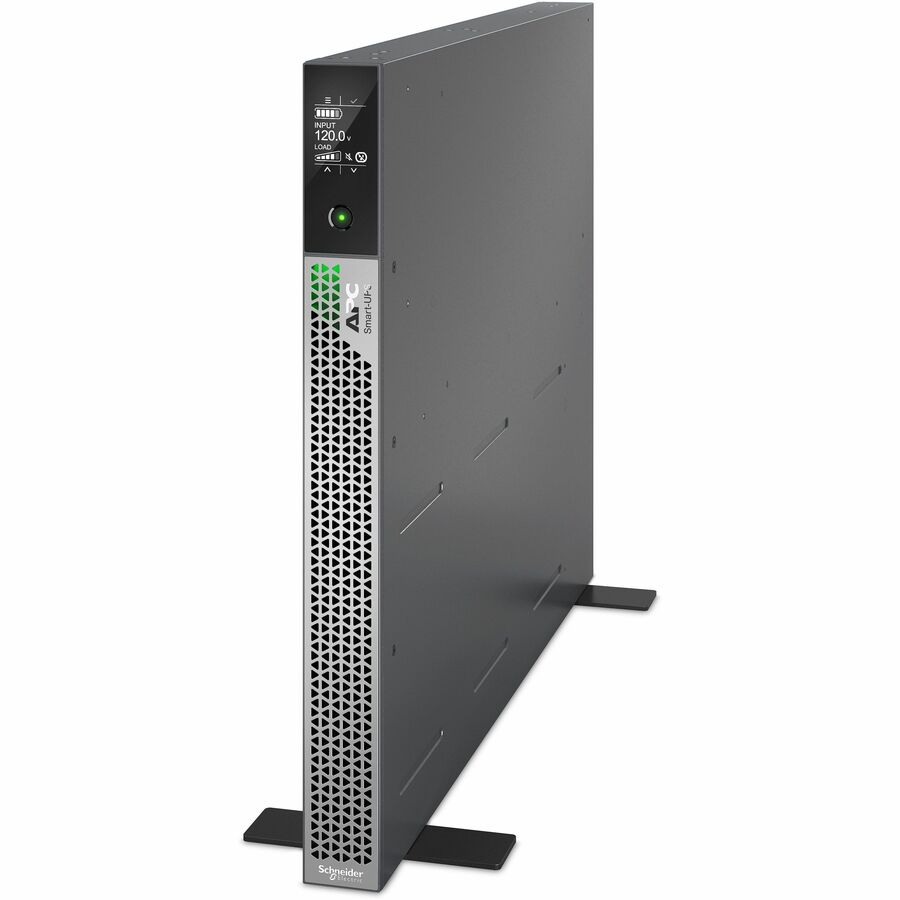

APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS

Name: APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
Brand: APC
SKU: 06VH26
Price: 5249.08 USD
Availability: InStock

APC

PCN#

06VH26

MFG#

SRTL2K2RM1UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$5,249.08

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Estimated Shipment:

Product Highlights:

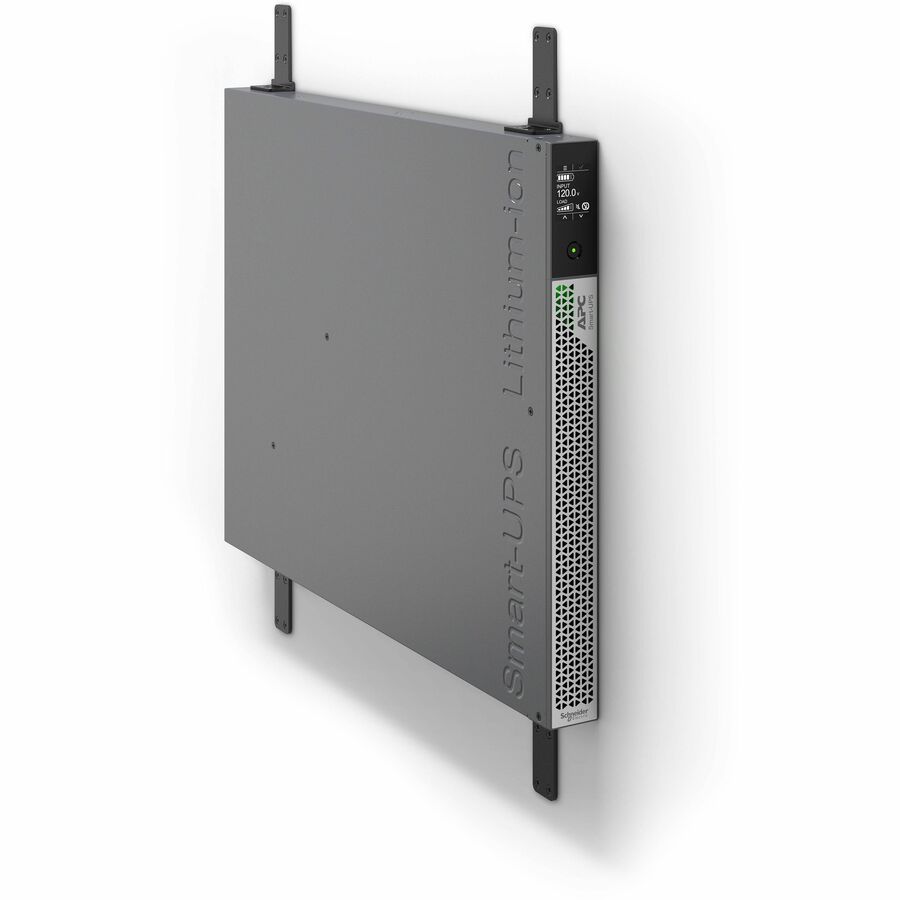

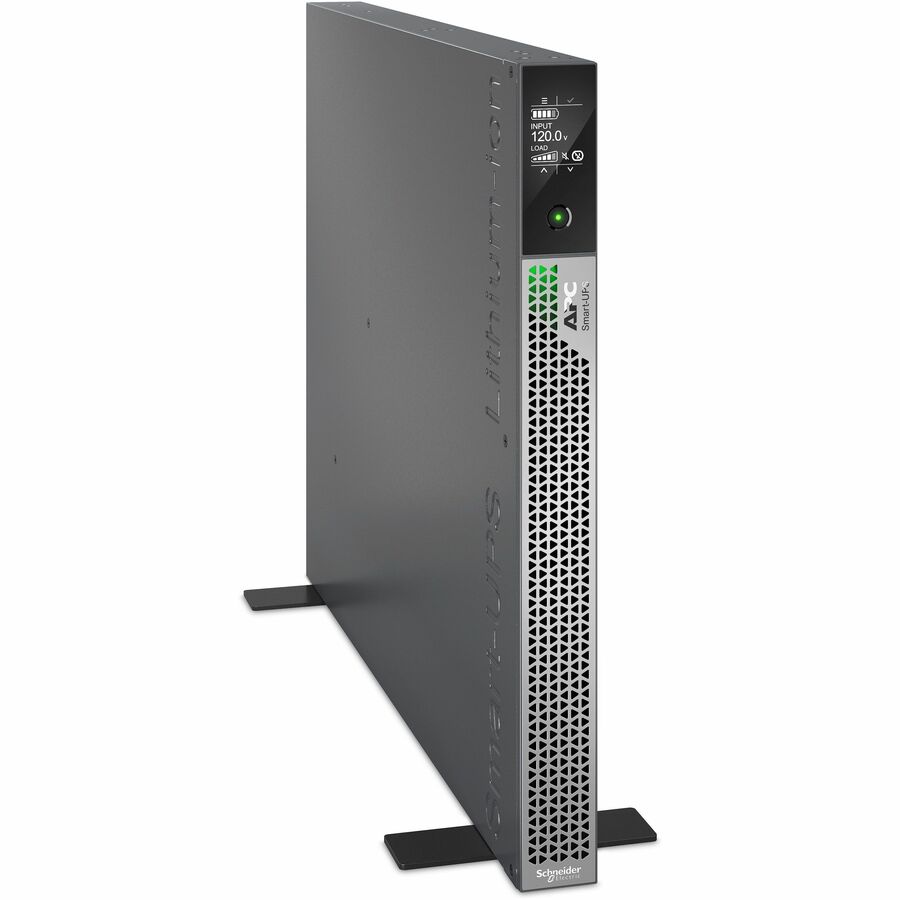

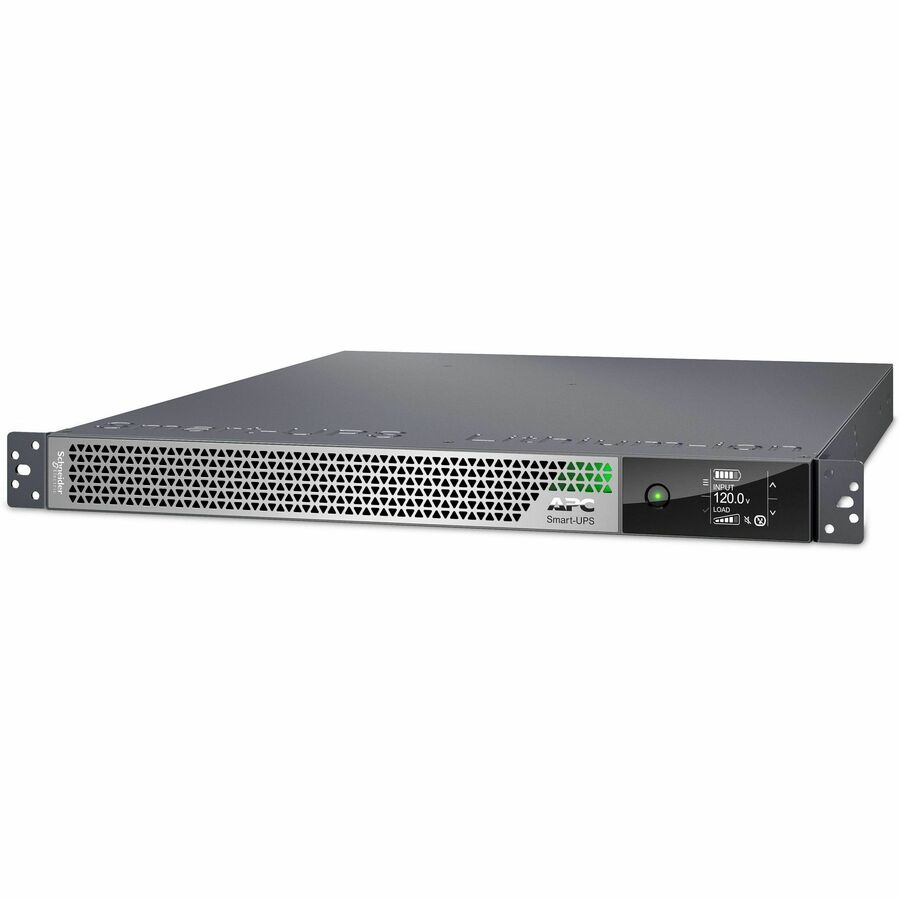

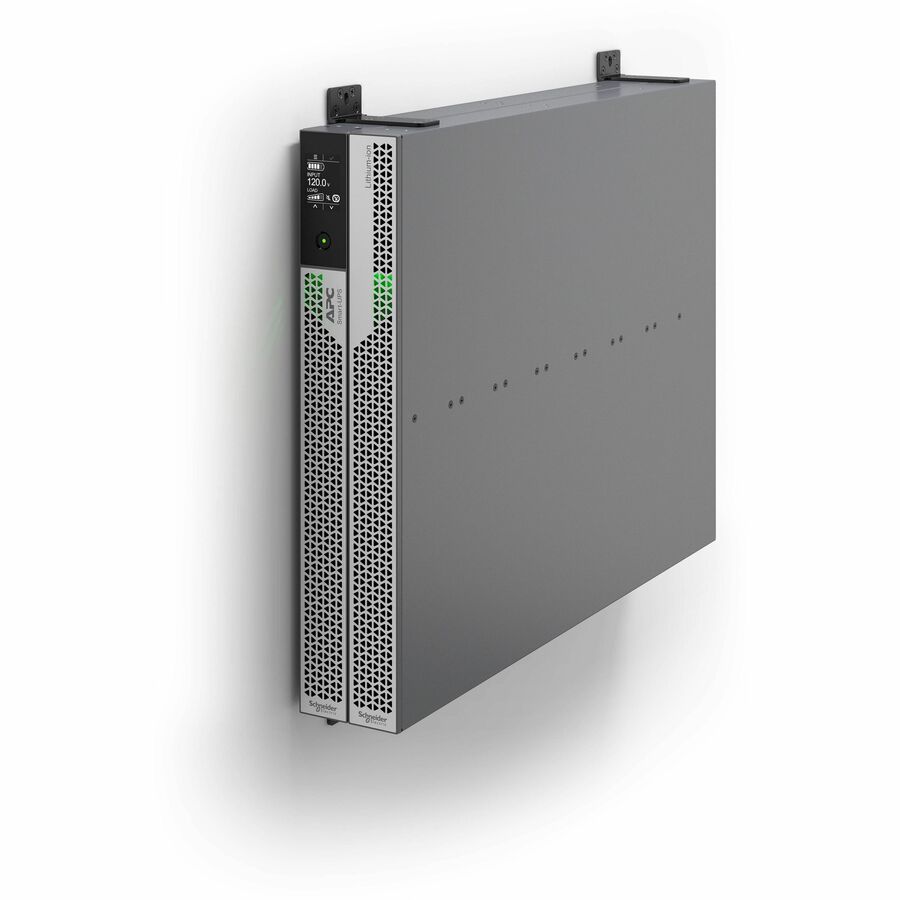

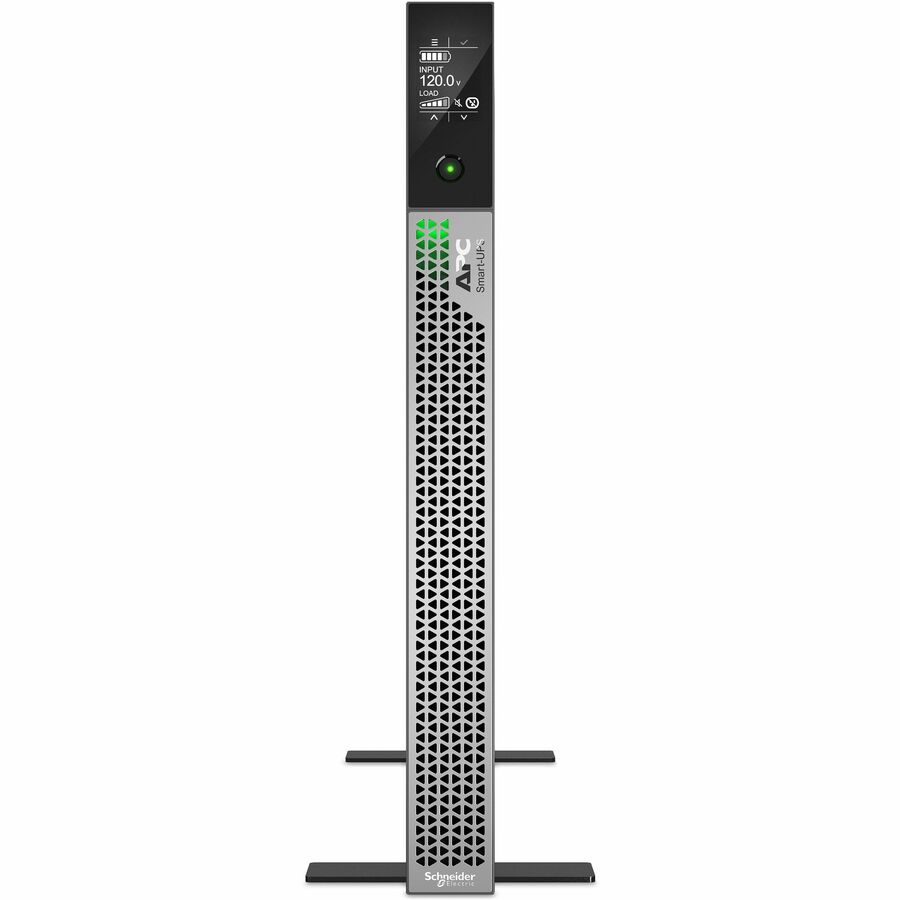

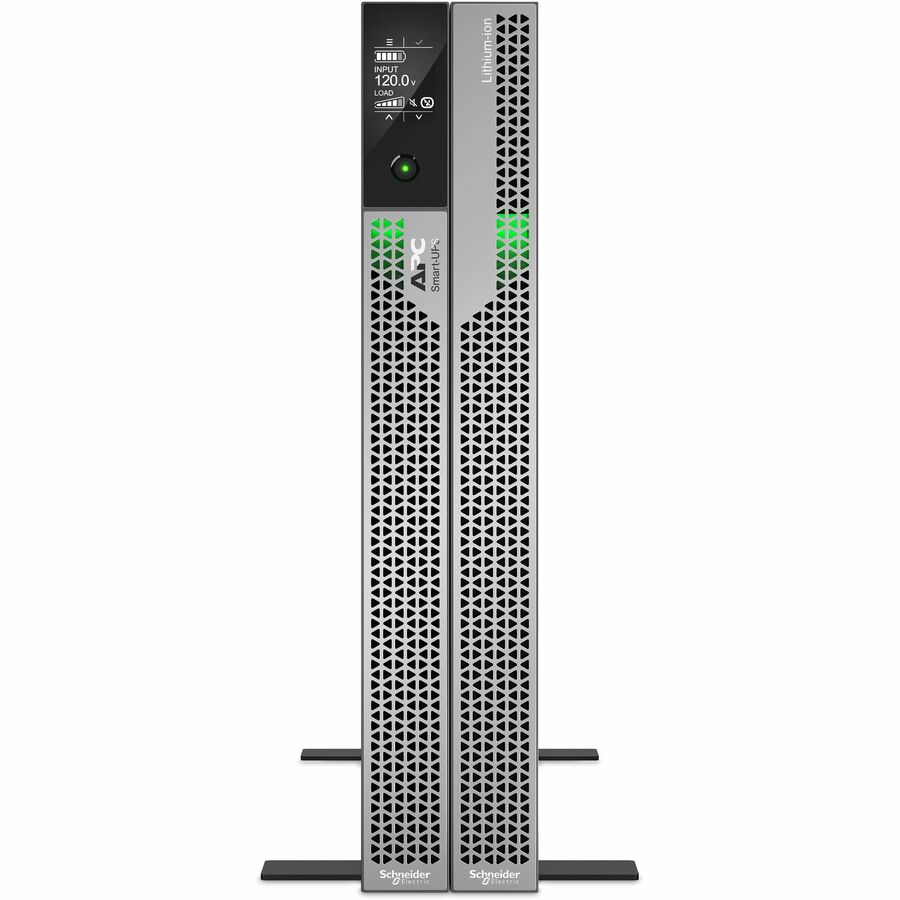

1U Rack/Tower/Wall/Ceiling/Desktop Mountable
1.50 Hour Recharge
6.05 Minute Stand
by
120 V AC, 125 V AC Input
120 V AC, 125 V AC Output
Single Phase
Sine Wave
USB
LCD Display
1 x NEMA L5
20R, 5 x NEMA 5
20R Receptacle(s)

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 54 lbs.

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, Network Card, Extended runtime, W/rail kit

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL2K2RM1UNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS Ultra
Product Name	Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
Marketing Information	APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity	1
Product Type	Dual Conversion Online UPS

Technical Information

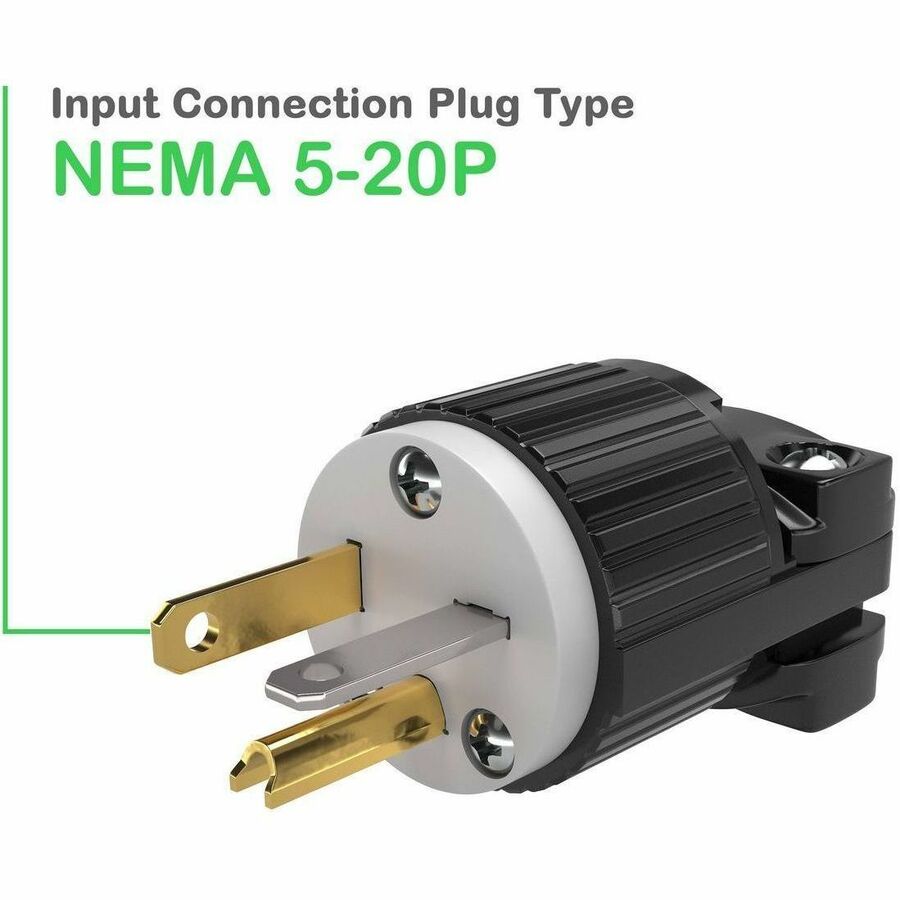

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P

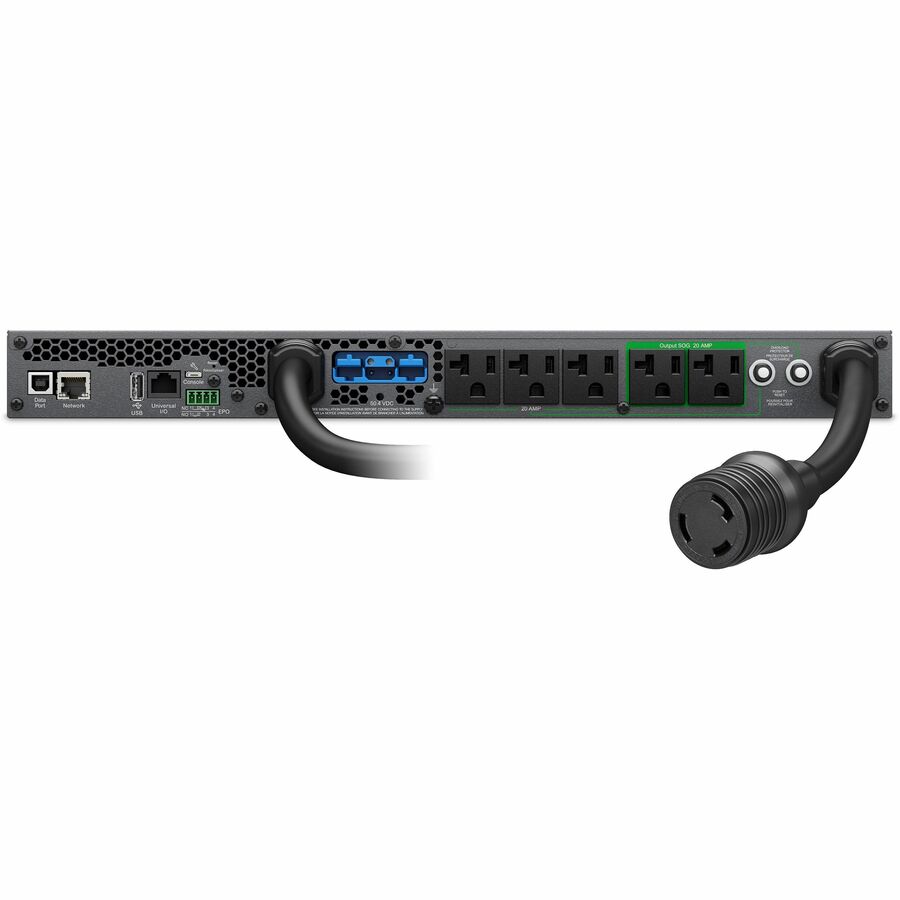

Receptacle Detail	1 x NEMA L5-20R 5 x NEMA 5-20R
Cord Length	7.87 ft
Phase	Single Phase
Application/Usage	Voice/Data Network Medical Laboratory Light Industrial Application Retail Server

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	2200 W
Input Voltage	120 V AC 125 V AC
Output Voltage	120 V AC 125 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave

Display & Graphics

Display

LCD

Management

Network Management	Network Card
Alarm	Yes

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Size	50V
Battery Energy	1123.2 kJ
Backup/Run Time (Full Load)	6.05 Minute
Backup/Run Time (Half Load)	12.65 Minute
Typical Battery Recharge Time	1.50 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission	55 dB

Physical Characteristics

Color Family	Silver
Product Color	Silver Gray

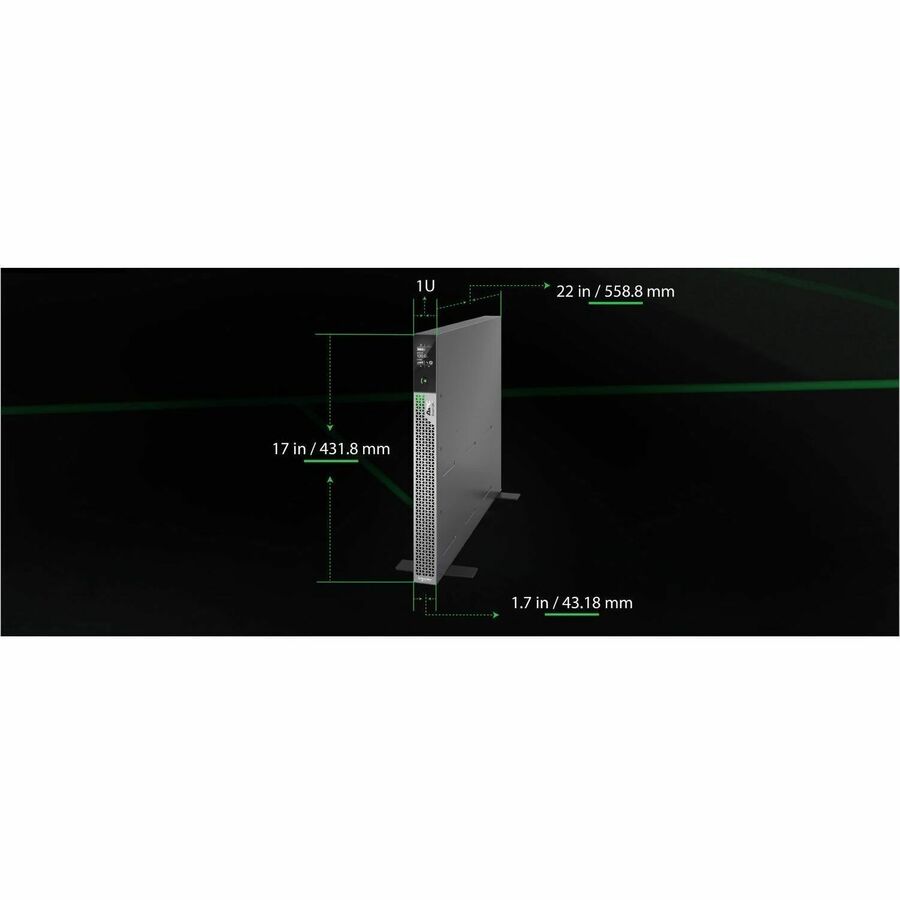

Height	1.69"
Width	17.01"
Depth	22.05"
Rack Height	1U
Form Factor	Rack/Tower/Wall/Ceiling/Desktop Mountable
Mounting Preference	No Preference
Weight (Approximate)	35.05 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS RJ45 Cable USB Cable Country-Specific Detachable Power Cord Rack Mounting Brackets Rack Mounting Support Rails Installation Guide Warranty Card
Certifications & Standards	UL/cUL listed\|FCC
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRTL2K2RM1UNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP2311012EN&p_File_name=ENVPEP2311012_V1.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI2311011_V1&p_File_name=ENVEOLI2311011_V1.pdf
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
