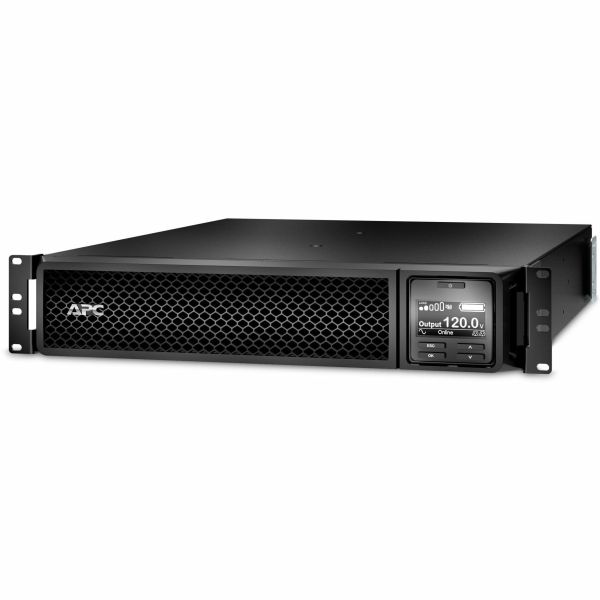

APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V

Name: APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V
Brand: APC
SKU: 6C9247
Price: 1648.18 USD
Availability: InStock

APC

PCN#

6C9247

MFG#

SRT2200RMXLA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,648.18

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
120 V Input
120 V AC Output
Sine Wave
1 x NEMA L5
20R, 6 x NEMA 5
20R
7 x Battery/Surge Outlet
SmartSlot

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery

Shipping Weight: 60 lbs.

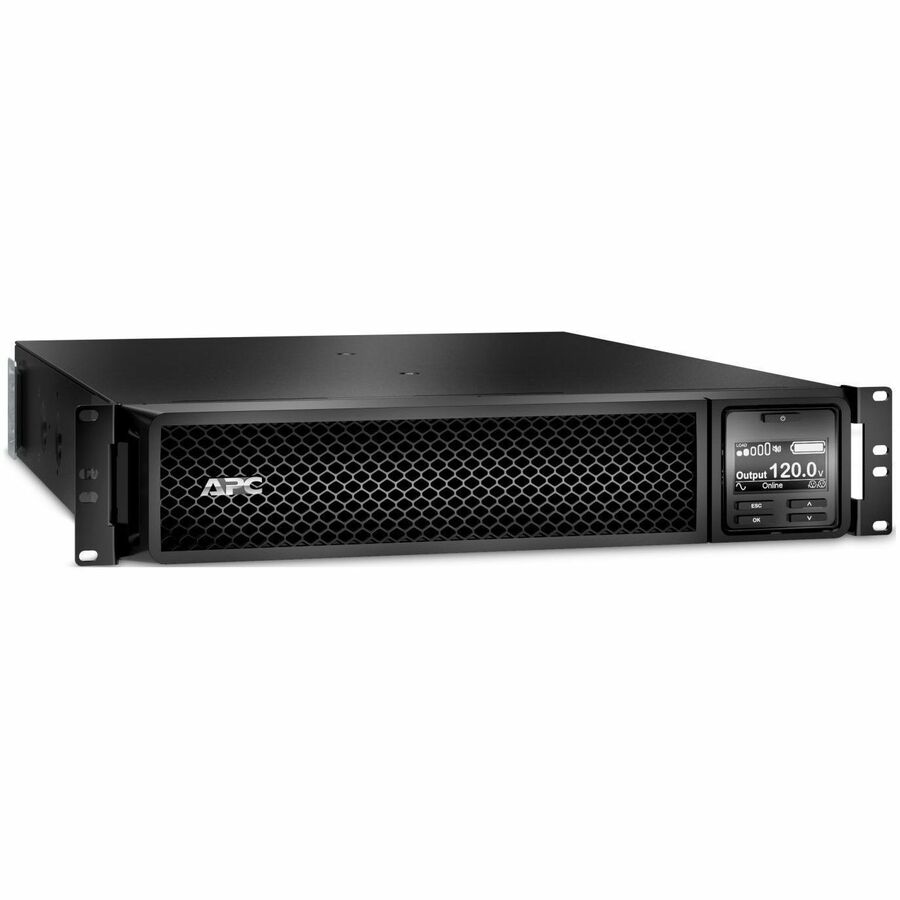

APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRT2200RMXLA
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS SRT 2200VA RM 120V
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P

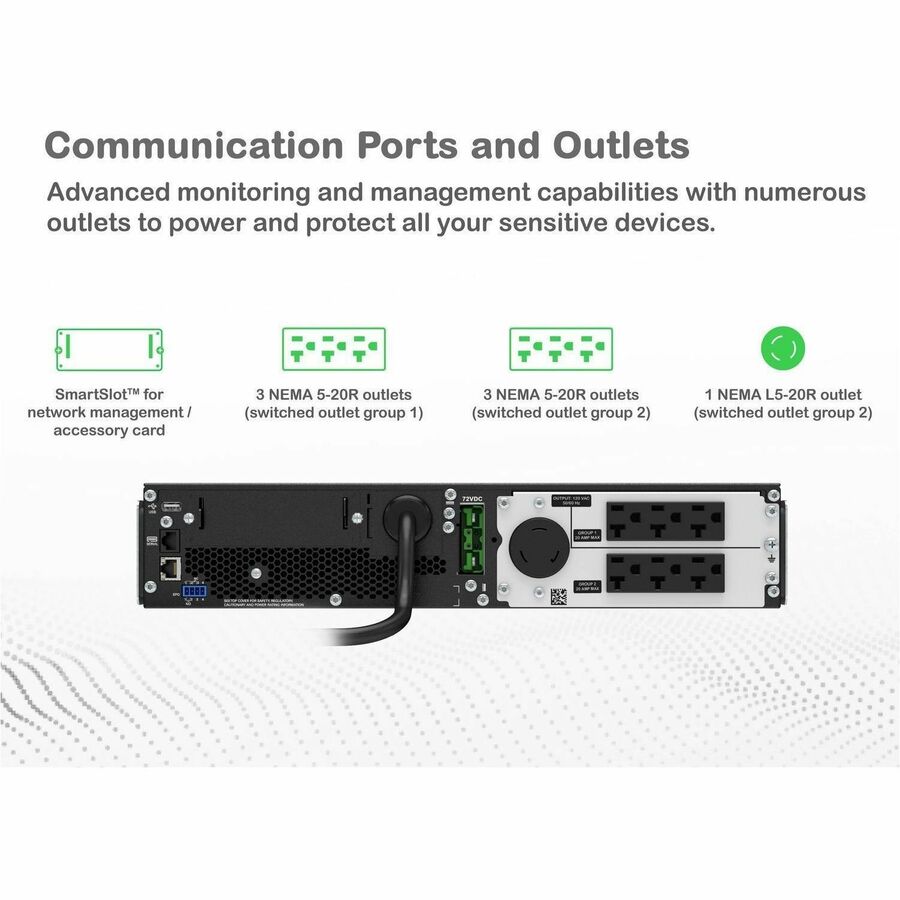

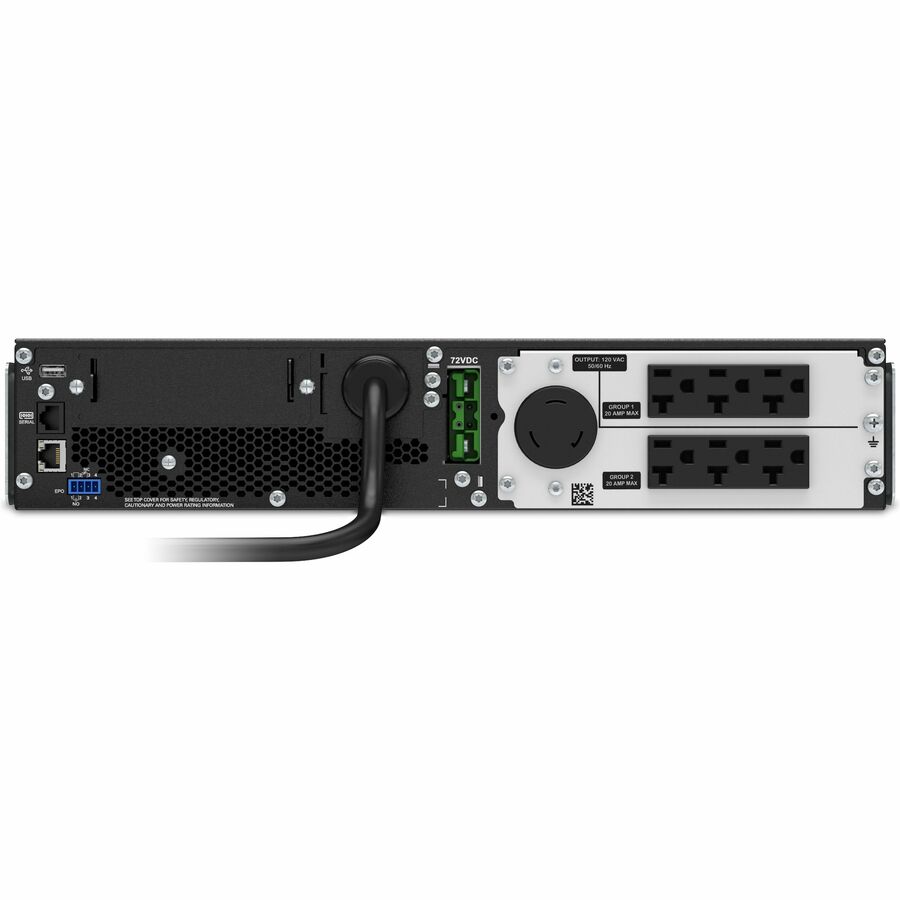

Receptacle Detail	1 x NEMA L5-20R 6 x NEMA 5-20R
Number of Battery & Surge Outlets	7
Cord Length	6 ft
Application/Usage	Server Network Workstation

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V
Output Voltage	120 V AC
Input Frequency	70 Hz
Waveform Type	Sine Wave
Surge Energy Rating	340 J

Management

Network Management

SmartSlot

Controls/Indicators

Status Indicators

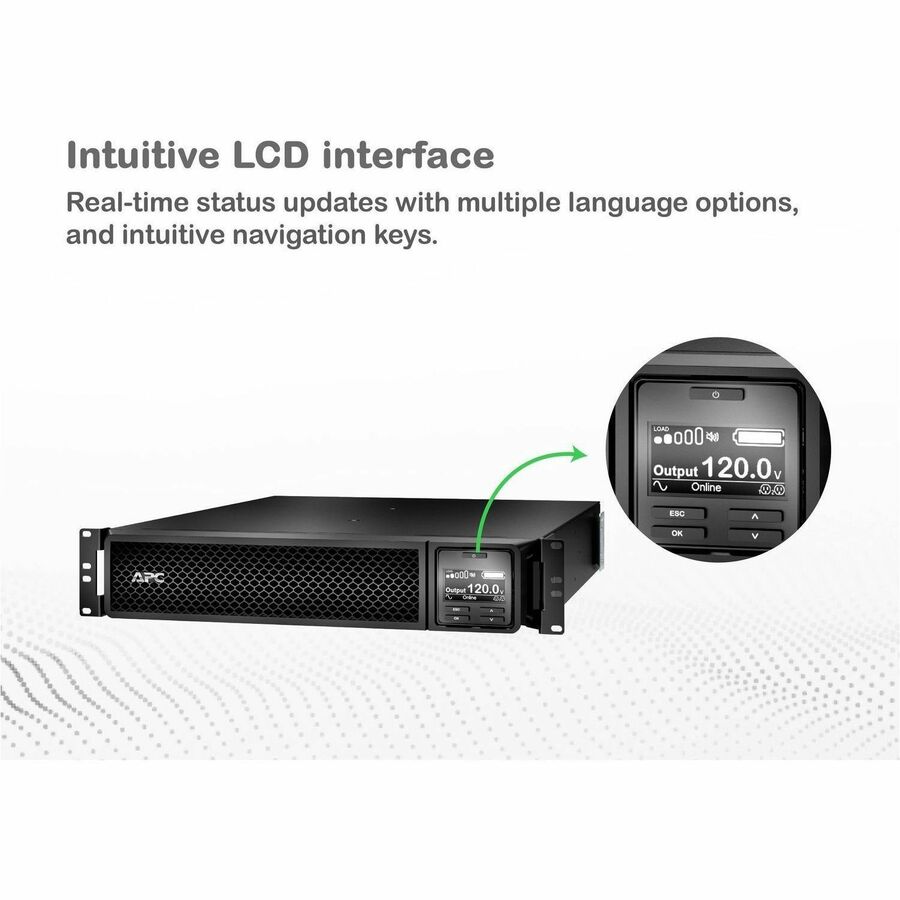

LCD Display

Interfaces/Ports

EPO Port

Yes

Battery Information

DC System Voltage	72 V DC
Number of Batteries	1
Battery Chemistry	Lead Acid
Battery Energy	1101.6 kJ
Battery Life	5 Year
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 122°F (50°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	156.79 W

Physical Characteristics

Color Family	Black
Product Color	Black

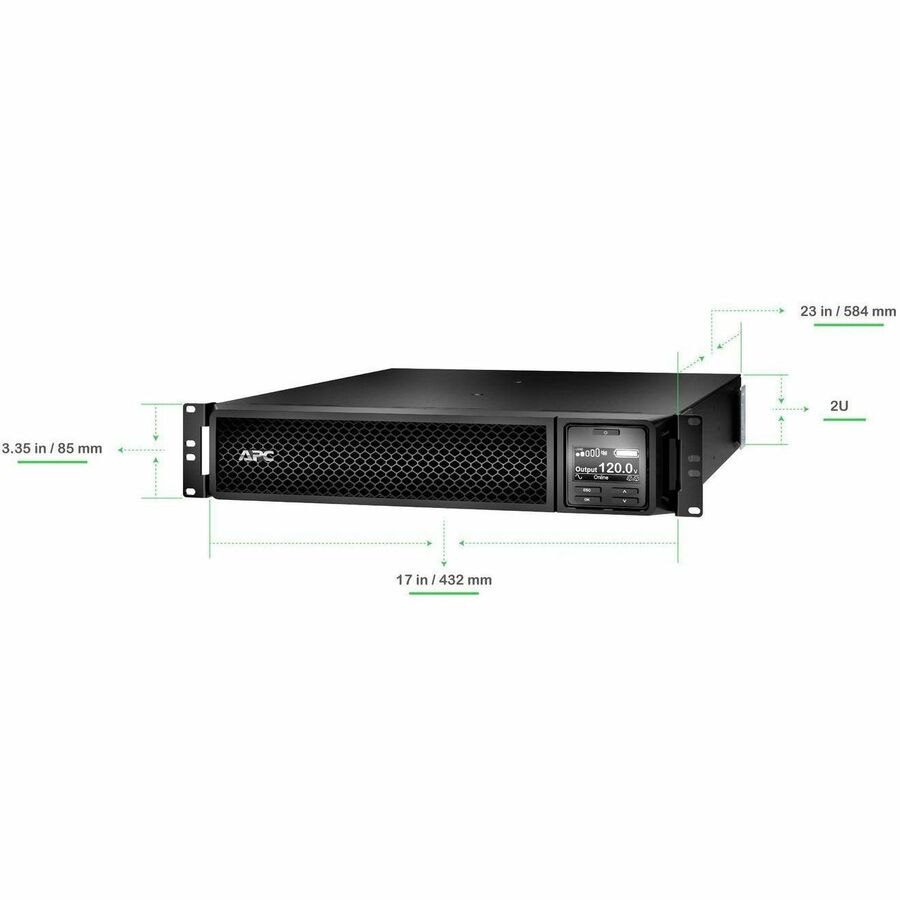

Height	3.3"
Width	17"
Depth	23"
Rack Height	2U

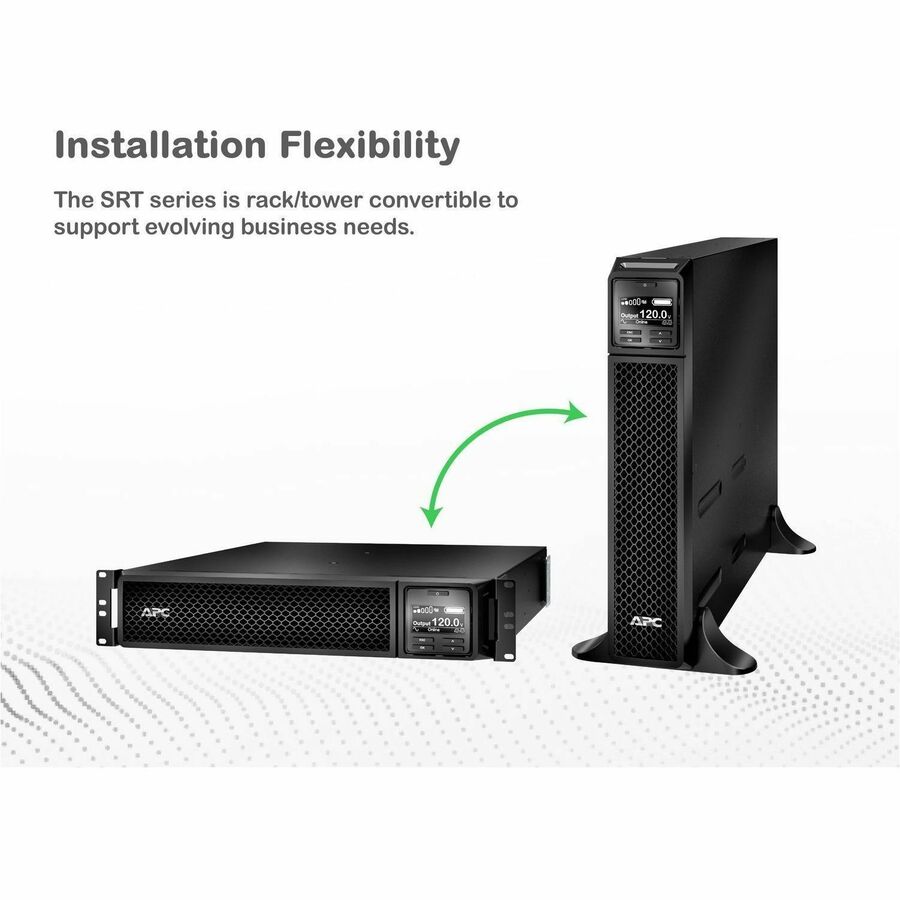

Form Factor	Rack-mountable
Mounting Preference	Lower
Weight (Approximate)	55.01 lb

Miscellaneous

Package Contents	Smart-UPS SRT 2200VA RM 120V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card
Certifications & Standards	ENERGY STAR V2.0 (USA)
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
