APC by Schneider Electric Smart-UPS SRT 10000VA RM 208V L630

Name: APC by Schneider Electric Smart-UPS SRT 10000VA RM 208V L630
Brand: APC
SKU: 3A2908
Price: 11411.97 USD
Availability: InStock

APC

PCN#

3A2908

MFG#

SRT10KRMXLT30

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$11,411.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $892.99

3-Year $1,226.99

Estimated Shipment:

Product Highlights:

6U Rack
mountable
1.50 Hour Recharge
208 V AC, 240 V AC Input
208 V AC, 240 V AC Output
1 x Hard Wire 3
wire (2PH + G), 6 x NEMA L6
30R
Sine Wave

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)

Shipping Weight: 284 lbs.

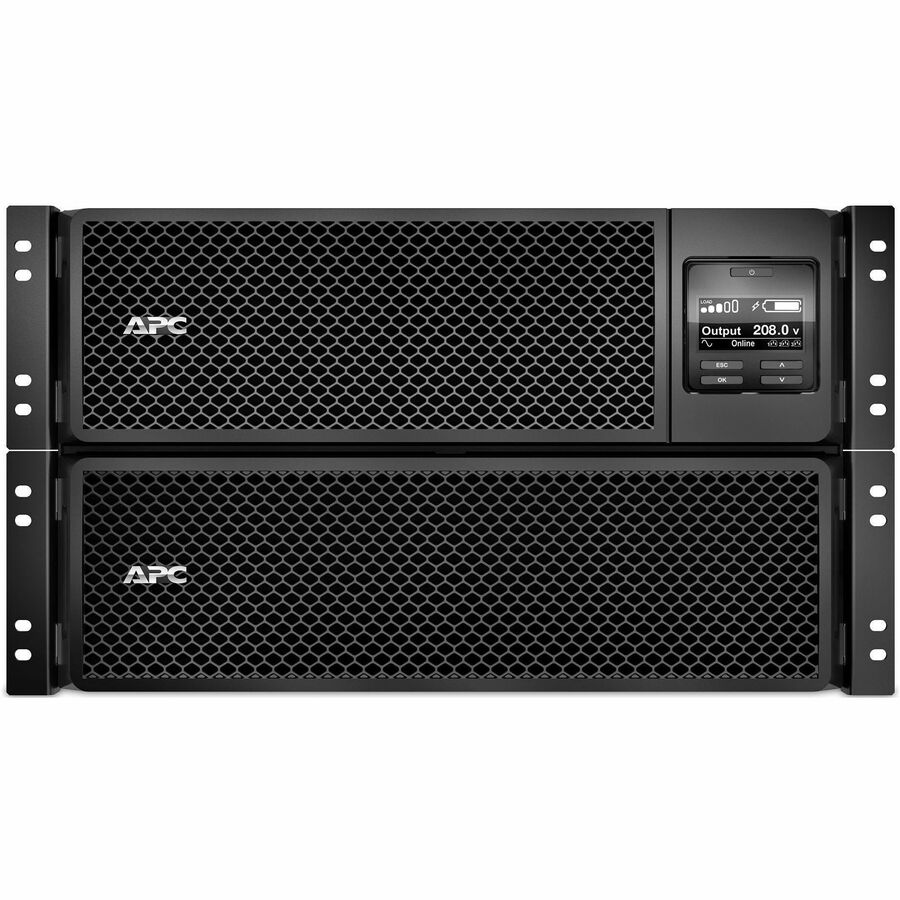

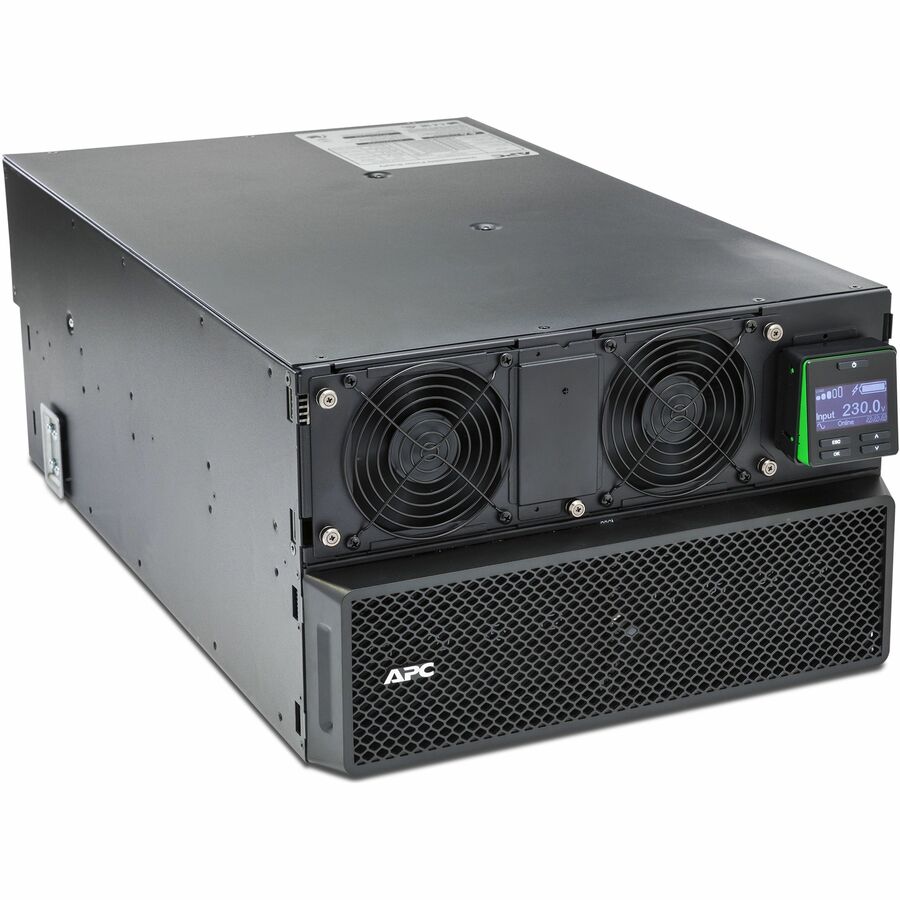

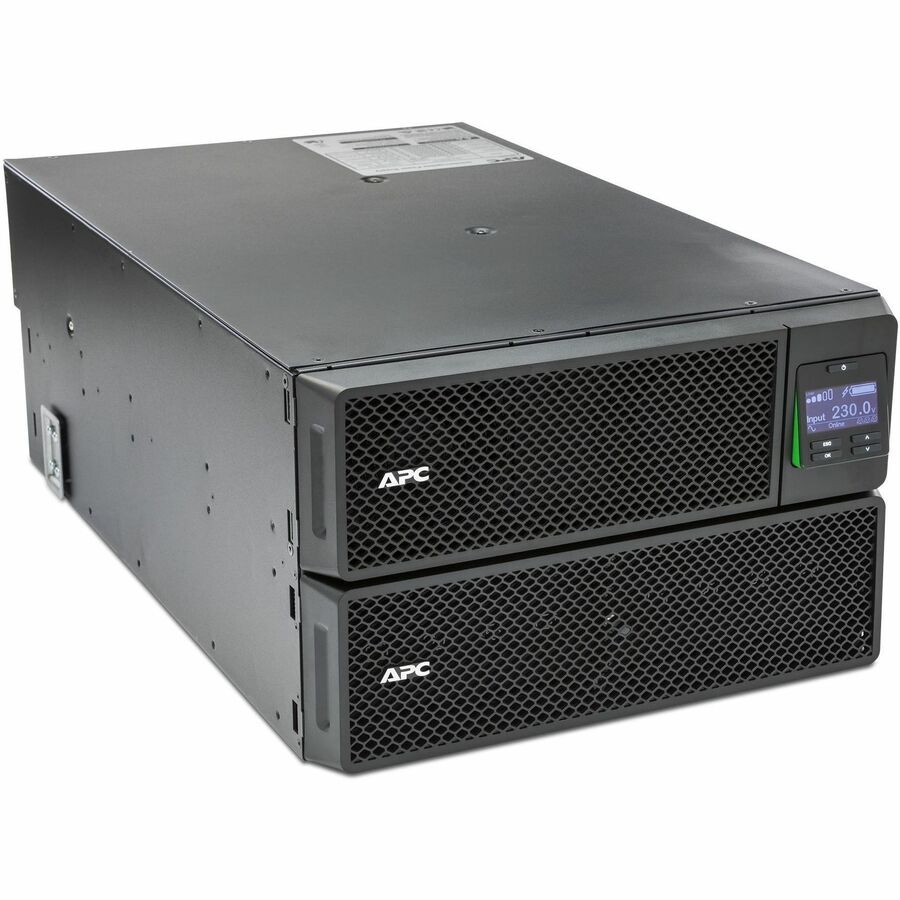

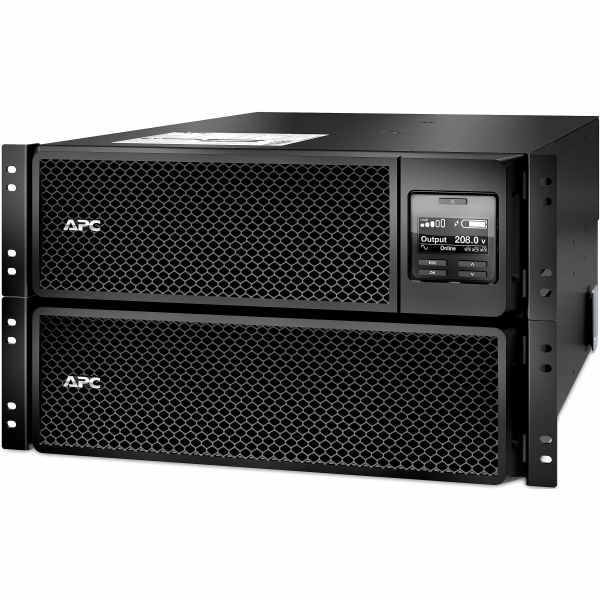

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 208V, 6x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRT10KRMXLT30
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Model	SRT10KRMXLT30
Product Name	Smart-UPS SRT 10000VA RM 208V L630

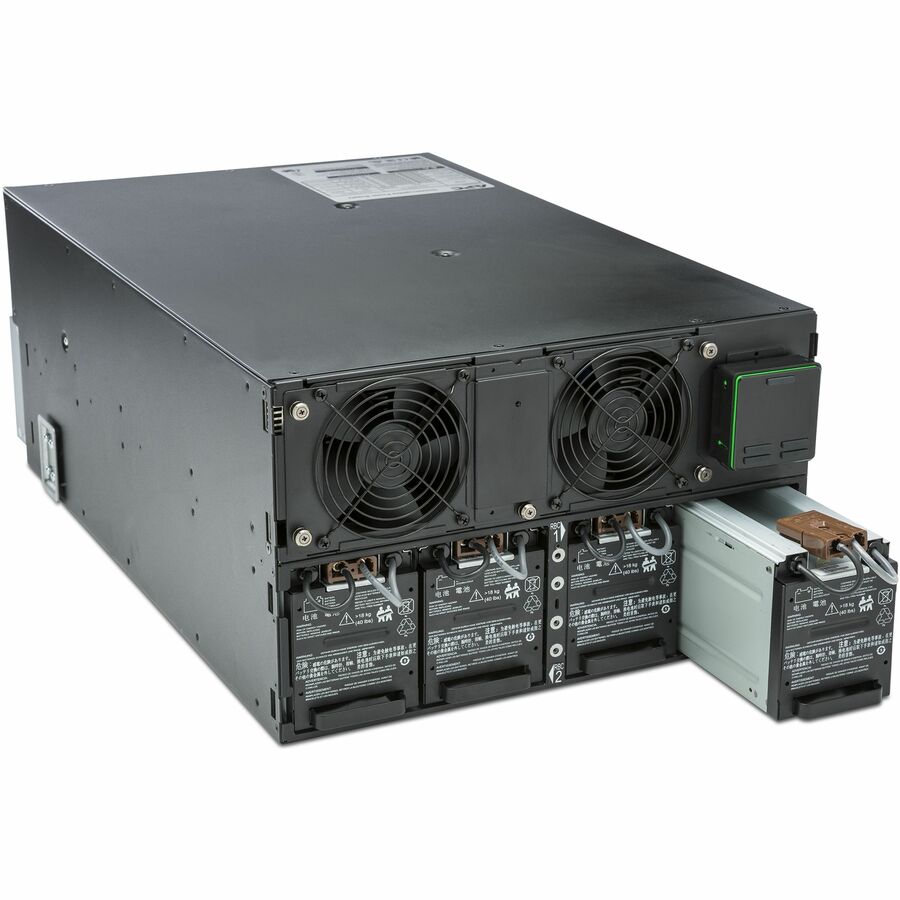

Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, and 6x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Packaged Quantity	1 / Pallet
Product Type	Online UPS

Technical Information

Receptacle Type	Hard Wire 3-wire (2PH + G) NEMA L6-30R
Receptacle Detail	1 x Hard Wire 3-wire (2PH + G) 6 x NEMA L6-30R
Number of Battery & Surge Outlets	6
Phase	Single Phase

Power Description

Load Capacity (VA)	10000 VA
Input Voltage	208 V AC 240 V AC
Output Voltage	208 V AC 240 V AC
Waveform Type	Sine Wave
Surge Energy Rating	480 J

Battery Information

Battery Chemistry	Lead Acid
Typical Battery Recharge Time	1.50 Hour

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	6U
Mounting Location	Front
Mounting Preference	No Preference

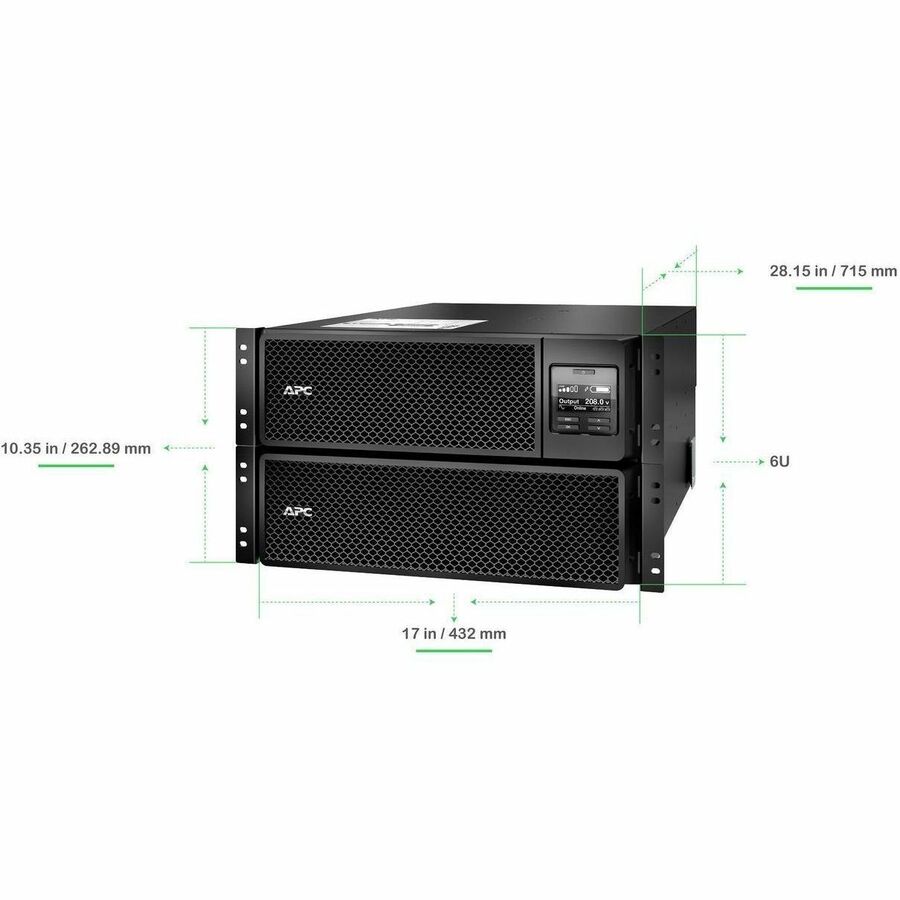

Height	10.4"
Width	17"
Depth	28.1"
Weight (Approximate)	245.99 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS SRT 10000VA RM 208V L630 CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe USB cable Warranty card Web/SNMP management card
Certifications & Standards	ENERGY STAR V2.0 (USA)\|FCC part 15 class A\|NOM\|UL 1778
Energy Star	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KRMXLT30_ROHS_DECLARATION&p_FileName=SRT10KRMXLT30KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRT10KRMXLT30_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SRT10KRMXLT30_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
