APC by Schneider Electric Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect

Name: APC by Schneider Electric Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
Brand: APC
SKU: 8RP486
Price: 1331.94 USD
Availability: InStock

APC

PCN#

8RP486

MFG#

SMX750CNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,331.94

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
12 Minute Stand
by
120 V AC Input
120 V AC Output
Single Phase
Sine Wave
Serial Port
8 x NEMA 5
15R Receptacle(s)
8 x Battery/Surge Outlet
SmartConnect

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)Directly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 59 lbs.

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port+NMC, Extended runtime

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX750CNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Series	X
Product Name	Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect

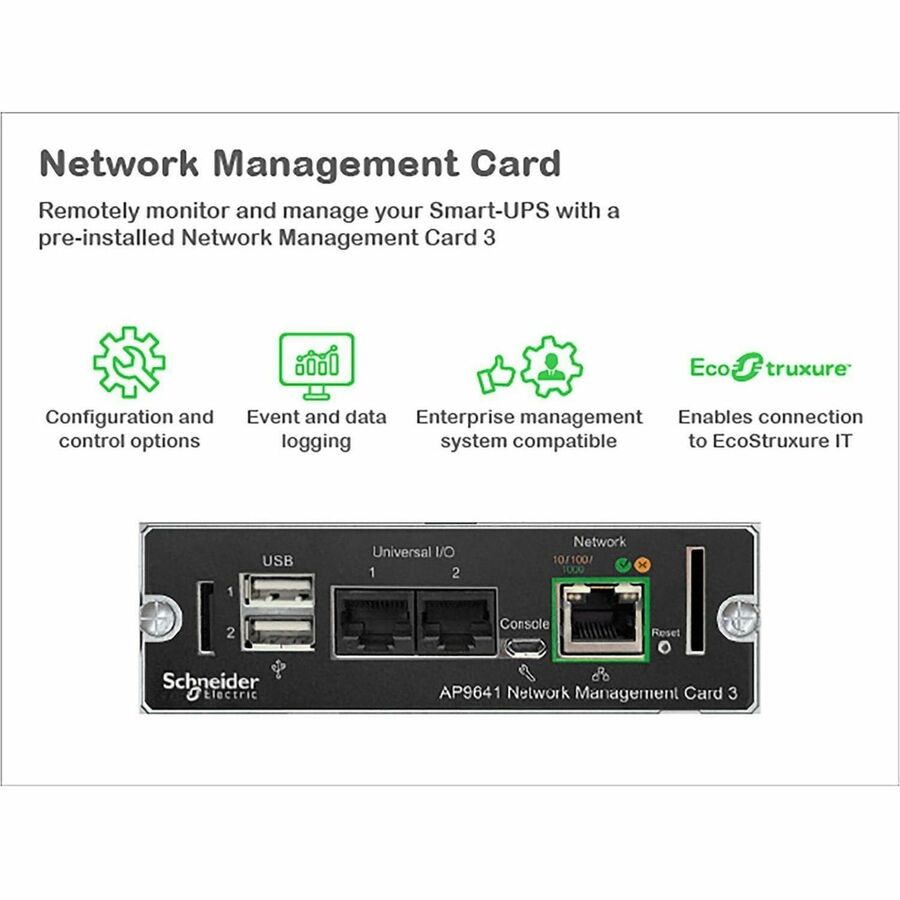

Marketing Information	This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Packaged Quantity	1 Each
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P
Receptacle Detail	8 x NEMA 5-15R
Number of Battery & Surge Outlets	8
Overload Protection	Yes
Cord Length	8 ft
Phase	Single Phase
Application/Usage	Server POS Terminal Router Switch Network Hub Network Device IT Equipment Electronic Equipment Communication System Security System Business IT Infrastructure

Power Description

Load Capacity (VA)	750 VA
Load Capacity (Watt)	675 W
Input Voltage	120 V AC
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Waveform Type	Sine Wave
Surge Energy Rating	645 J

Management

Network Management	SmartConnect
Alarm	On Battery Low Battery Overload Error (Continuous Tone)

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	12 Minute
Backup/Run Time (Half Load)	25.60 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Physical Characteristics

Color Family	Black
Product Color	Black

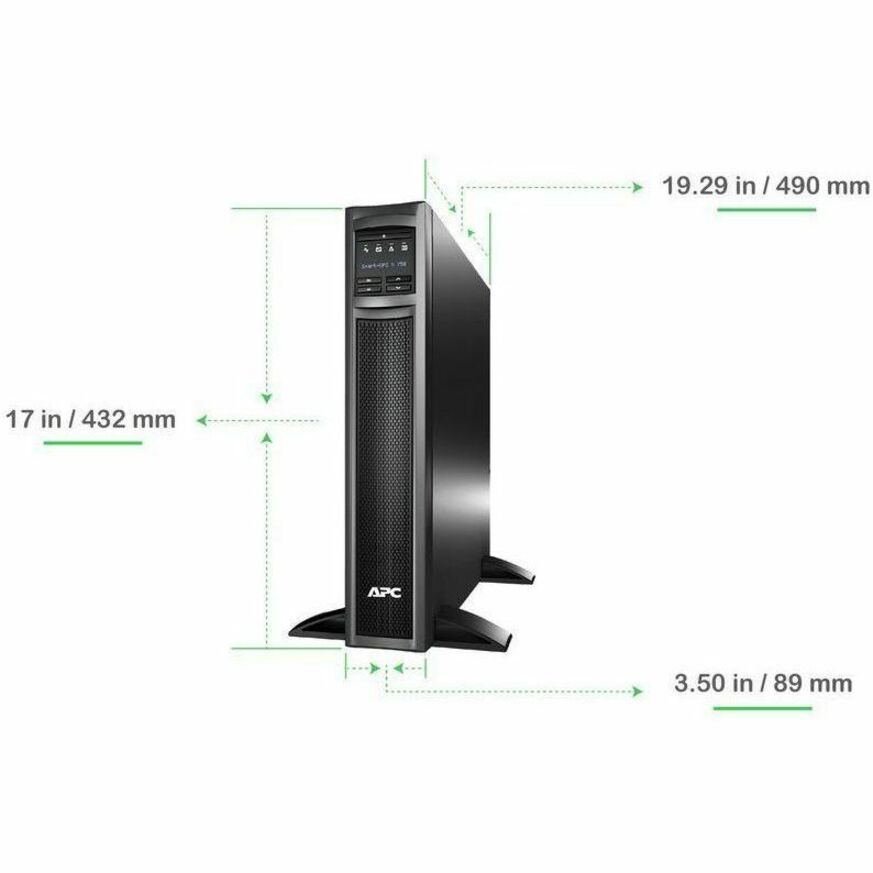

Height	17.01"
Width	3.50"
Depth	19.29"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Weight (Approximate)	48.61 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect Cat 5 Ethernet cable Installation guide Rack mounting brackets Removable mobile power pack Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	cUL Listed\|ENERGY STAR V2.0 (USA)
Software Included	Powerchute Business Edition
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX750CNC_ROHS_DECLARATION&p_FileName=SMX750CNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SMX750CNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SMX750CNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612028EN&p_File_name=ENVPEP1612028_V2_1.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612028_EN&p_File_name=ENVEOLI1612028_EN.pdf
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
Reach Compliance Date	12/10/2025
Sustainable Packaging	No
Packaging Contains Recycled Cardboard	Yes

Warranty

Limited Warranty	3 Year
Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
Directly Connected Equipment Guarantee	150000 Lifetime
