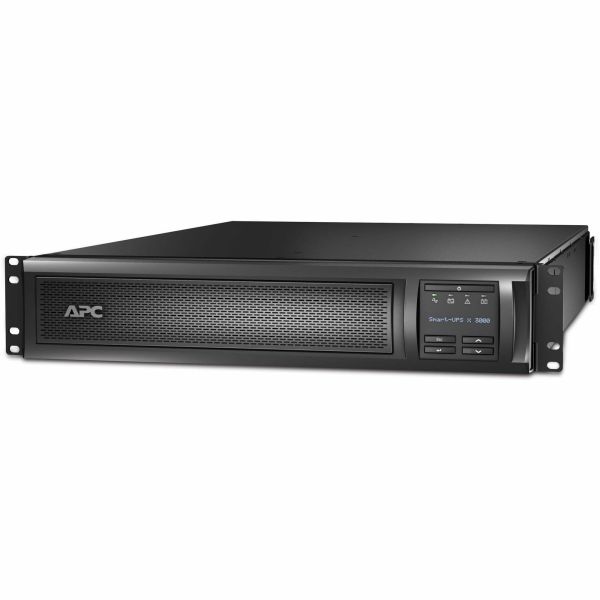

APC by Schneider Electric Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

Name: APC by Schneider Electric Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
Brand: APC
SKU: 06TW30
Price: 2718.32 USD
Availability: InStock

APC

PCN#

06TW30

MFG#

SMX3000RMLV2UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,718.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
6 Minute Stand
by
120 V Input
120 V AC Output
Sine Wave
Serial Port
USB
1 x NEMA L5
30R, 3 x NEMA 5
15R, 3 x NEMA 5
20R
7 x Battery/Surge Outlet
SNMP Manageable

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties availableDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 100 lbs.

APC by Schneider Electric Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX3000RMLV2UNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	X
Product Model	SMX3000RMLV2UNC
Product Name	Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA L5-30P
Receptacle Detail	1 x NEMA L5-30R 3 x NEMA 5-15R 3 x NEMA 5-20R
Number of Battery & Surge Outlets	7
Emergency Power OFF	Yes
Cord Length	8 ft
Transfer Time	4 ms

Power Description

Load Capacity (VA)	2880 VA
Load Capacity (Watt)	2700 W
Input Voltage	120 V
Input Current	15 A
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	540 J

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6 Minute
Backup/Run Time (Half Load)	18 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.3"
Width	17"
Depth	26.3"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	84.77 lb

Miscellaneous

Package Contents	Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable Web/SNMP management card
Certifications & Standards	BSMI\|CSA\|NOM\|TÜV\|VCCI Class A
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMLV2UNC_ROHS_DECLARATION&p_FileName=SMX3000RMLV2UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035432&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035432&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available
Directly Connected Equipment Guarantee	150000 Lifetime
