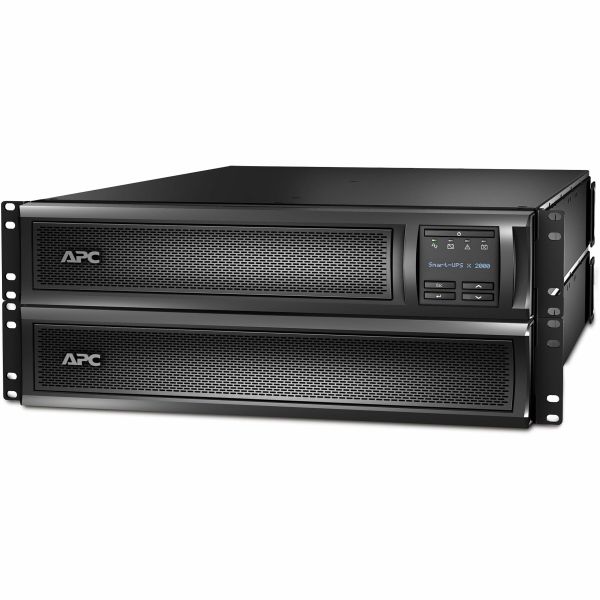

APC by Schneider Electric Smart-UPS X 1920 VA Tower/Rack Mountable

Name: APC by Schneider Electric Smart-UPS X 1920 VA Tower/Rack Mountable
Brand: APC
SKU: KD3286
Price: 2699.27 USD
Availability: InStock

APC

PCN#

KD3286

MFG#

SMX2000RMLV2UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,699.27

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
11 Minute Stand
by
120 V AC Input
120 V AC Output
Single Phase
Sine Wave
Serial Port
USB
1 x NEMA L5
20R, 3 x NEMA 5
15R, 3 x NEMA 5
20R Receptacle(s)
7 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)Directly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 100 lbs.

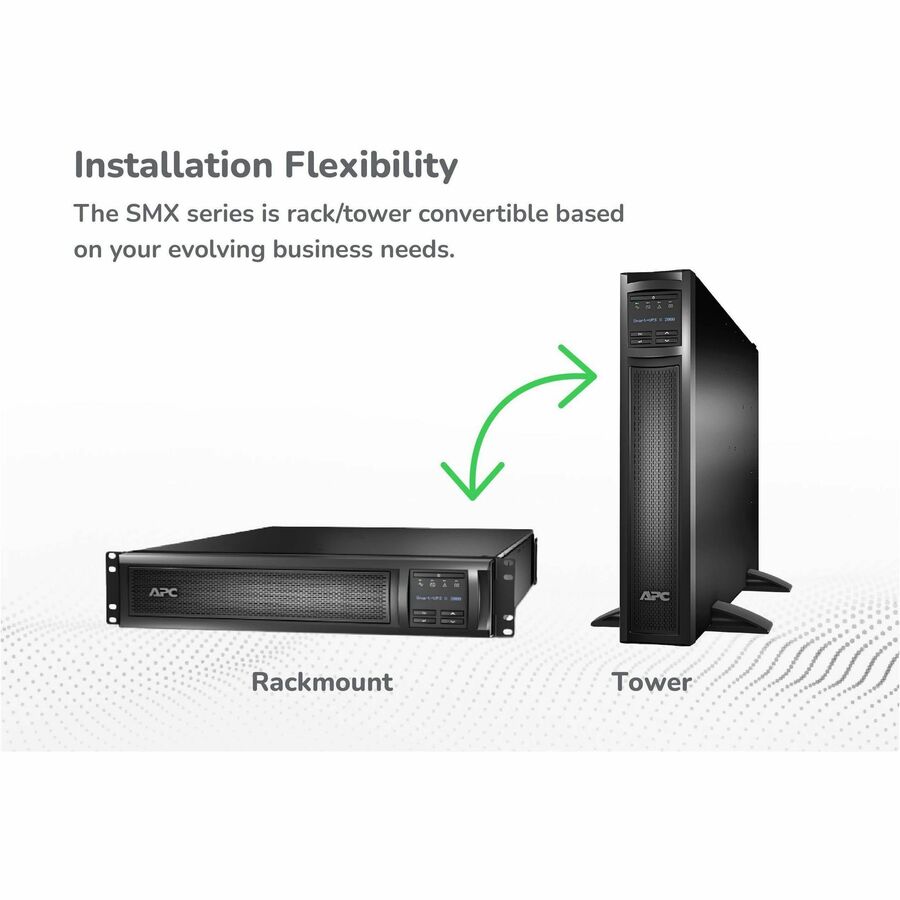

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, NMC, Extended runtime

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX2000RMLV2UNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Series	X
Product Model	SMX2000RMLV2UNC
Product Name	Smart-UPS X 1920 VA Tower/Rack Mountable

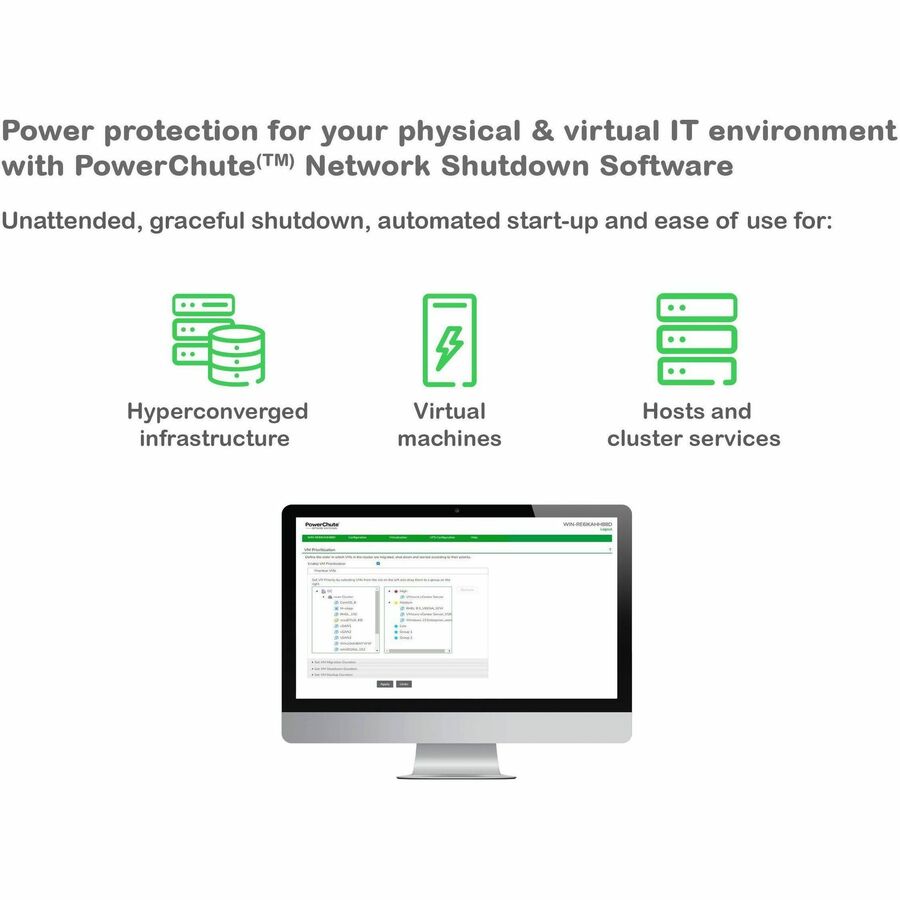

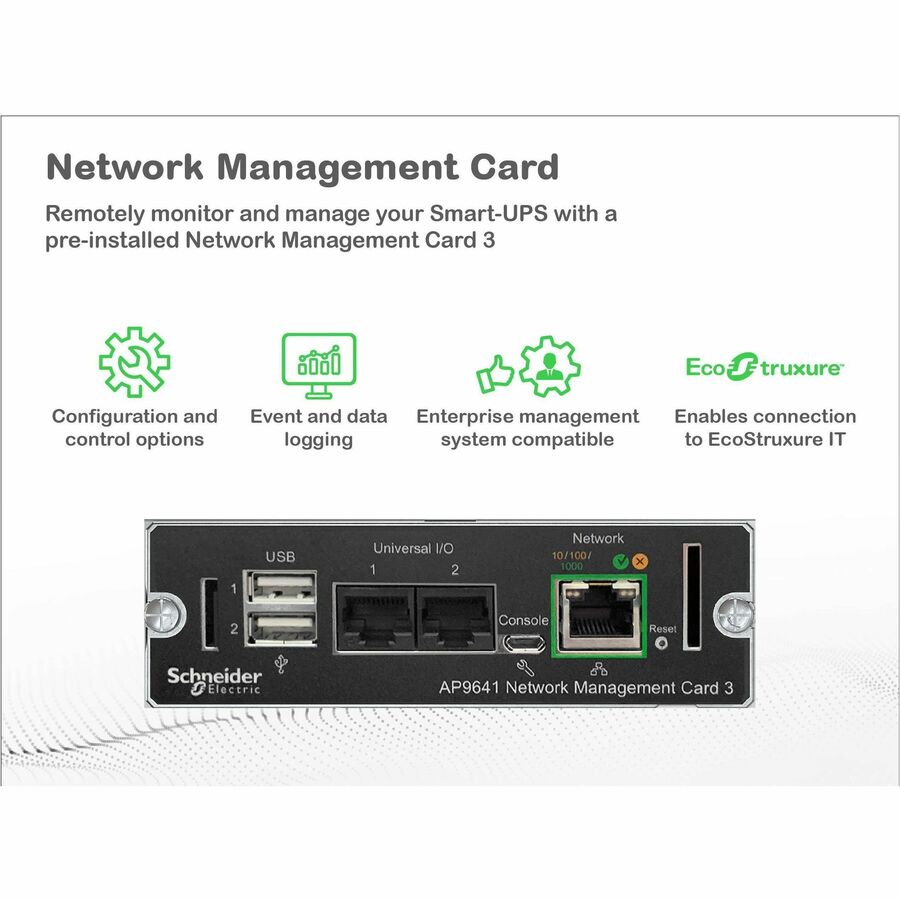

Marketing Information	This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature in a data center or network closet. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P

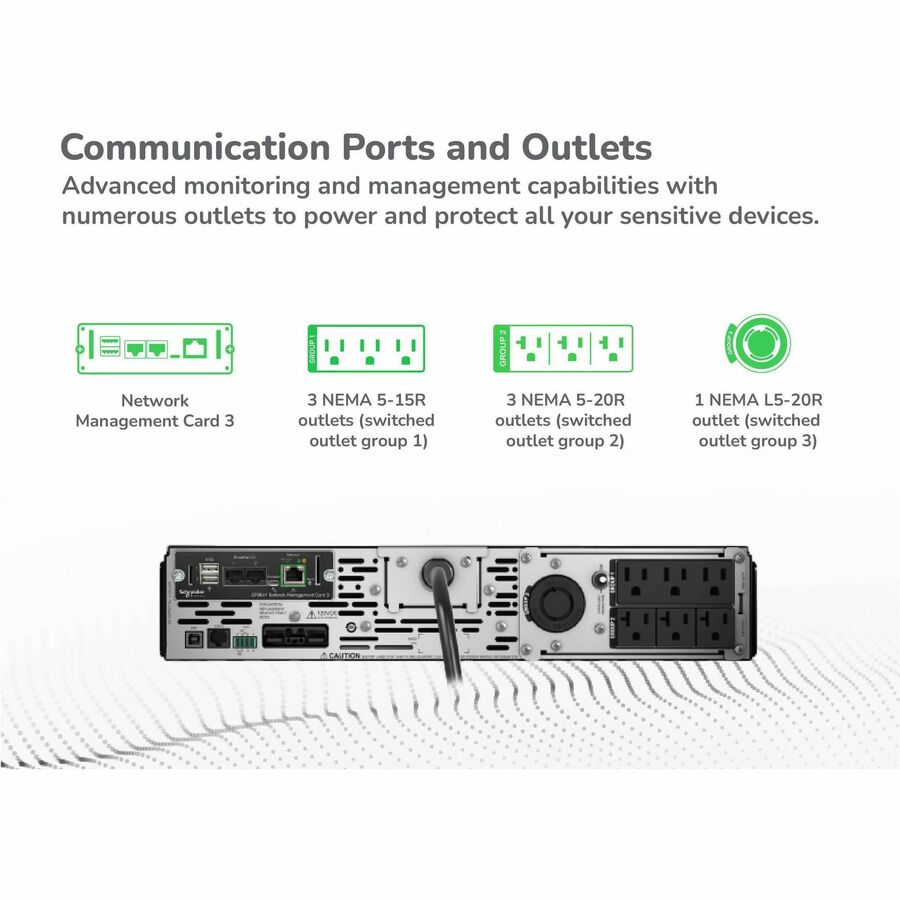

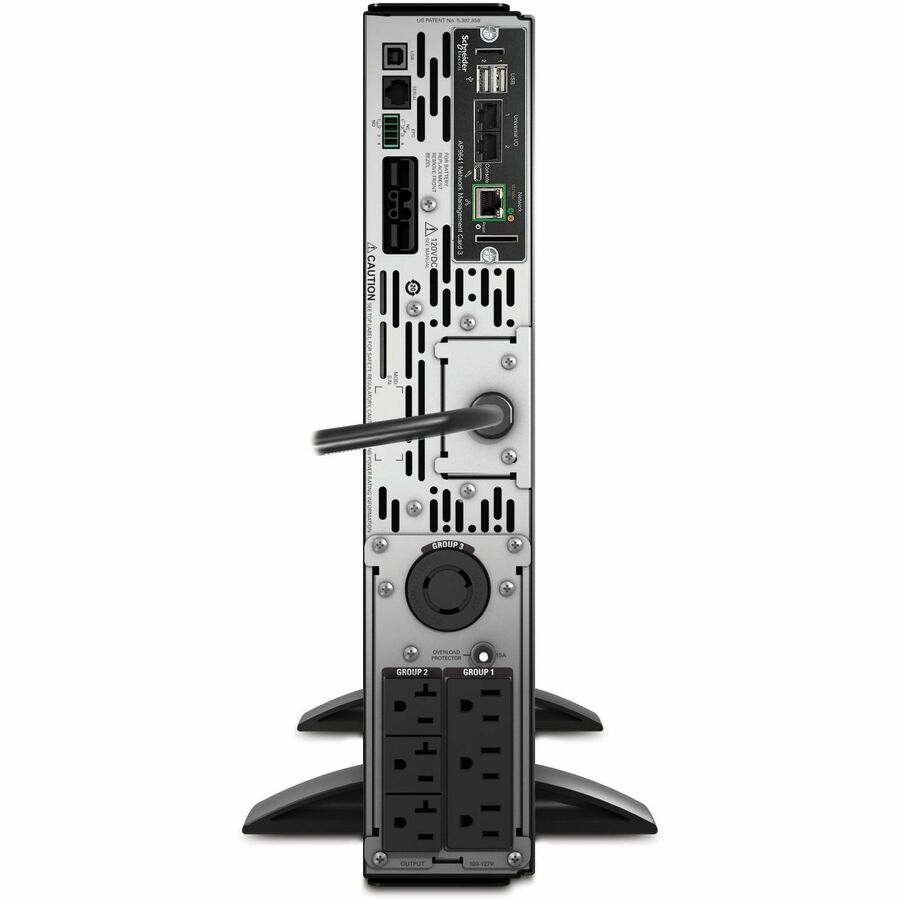

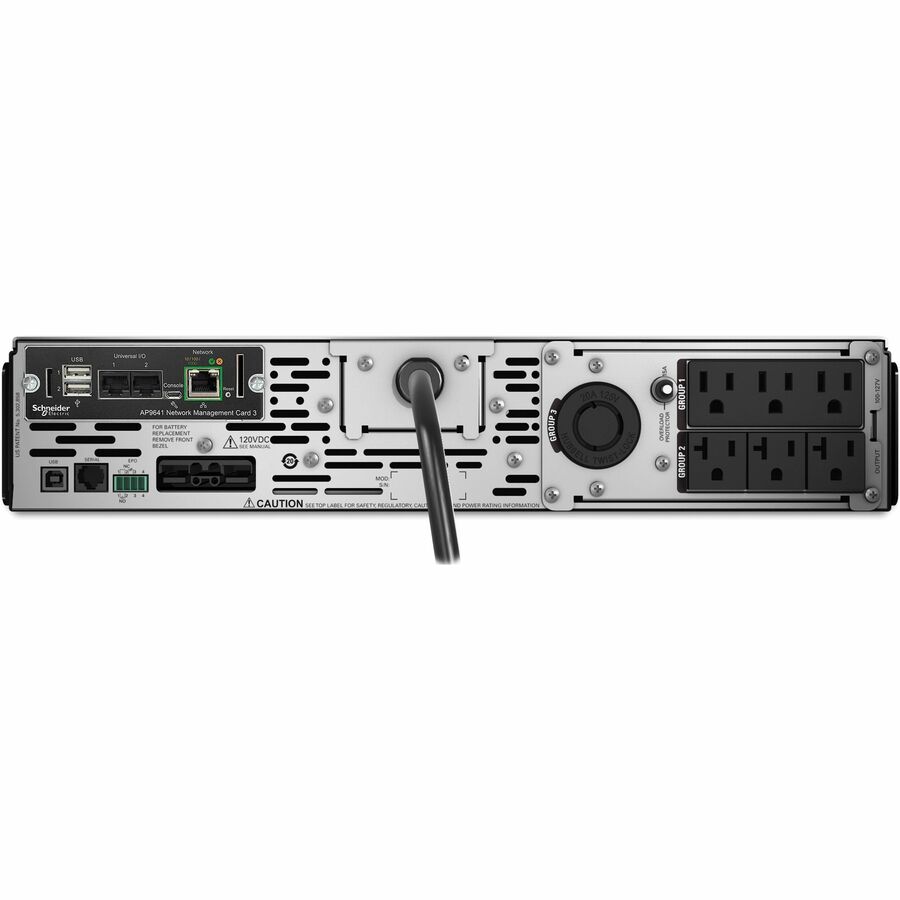

Receptacle Detail	1 x NEMA L5-20R 3 x NEMA 5-15R 3 x NEMA 5-20R
Number of Battery & Surge Outlets	7
Cord Length	8 ft
Phase	Single Phase

Power Description

Load Capacity (VA)	1920 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	540 J

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes

Battery Information

Battery Characteristics	Maintenance-free, Sealed, Spill-proof
Battery Chemistry	Lead Acid

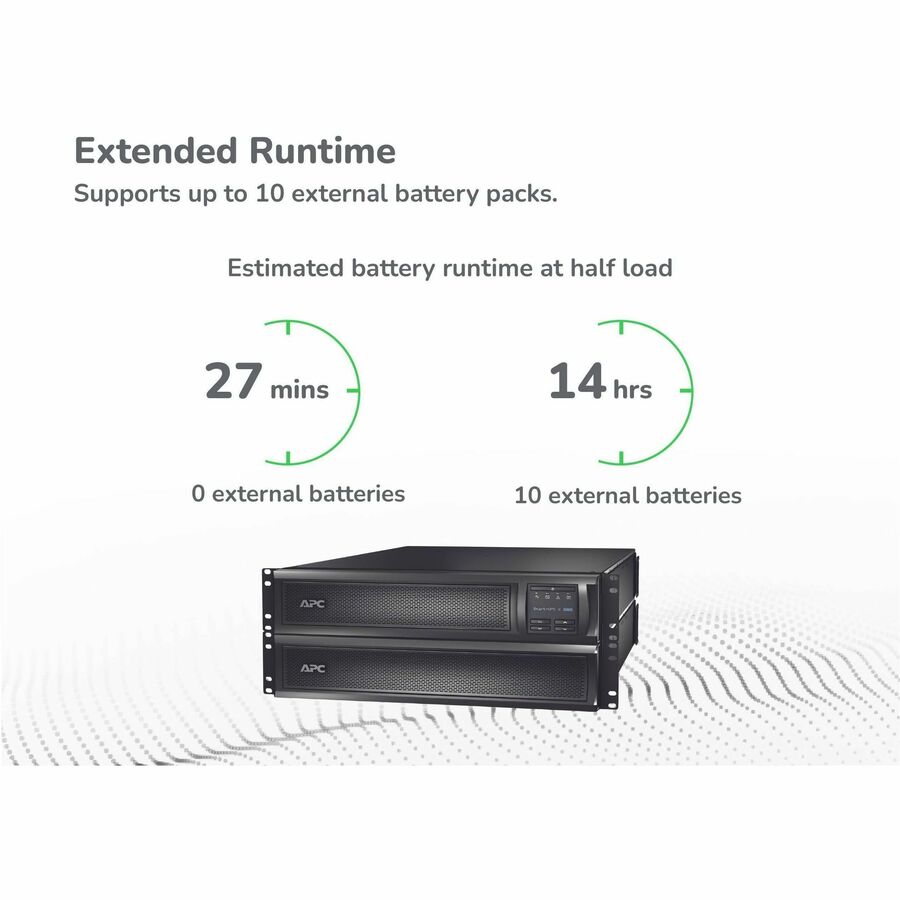

Backup/Run Time (Full Load)	11 Minute
Backup/Run Time (Half Load)	28 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.35"
Width	17.01"
Depth	26.26"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	84.77 lb

Miscellaneous

For Country/Region	United States
Package Contents	Smart-UPS X 1920 VA Tower/Rack Mountable CD with software Documentation CD Installation guide Network management card Rack mounting brackets Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	BSMI\|CSA\|NOM\|TÜV\|VCCI Class A
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2000RMLV2UNC_ROHS_DECLARATION&p_FileName=SMX2000RMLV2UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SMX2000RMLV2UNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SMX2000RMLV2UNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1612029EN&p_File_name=ENVPEP1612028_V2_1.pdf.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1612029_EN&p_File_name=ENVEOLI1612029_EN.pdf
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
Directly Connected Equipment Guarantee	150000 Lifetime
