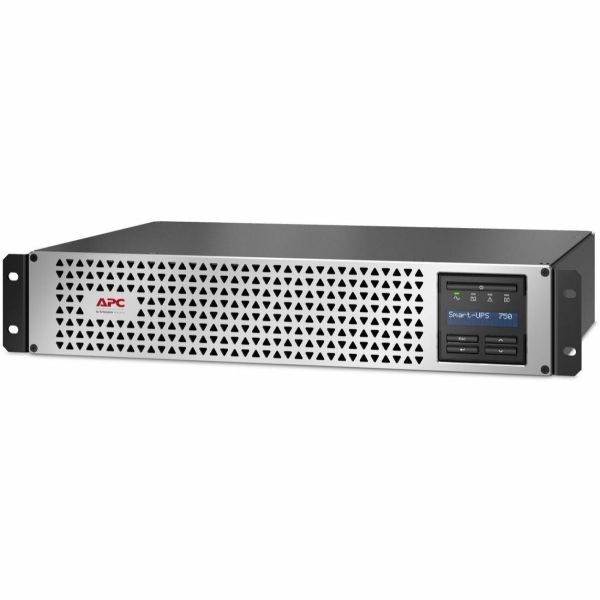

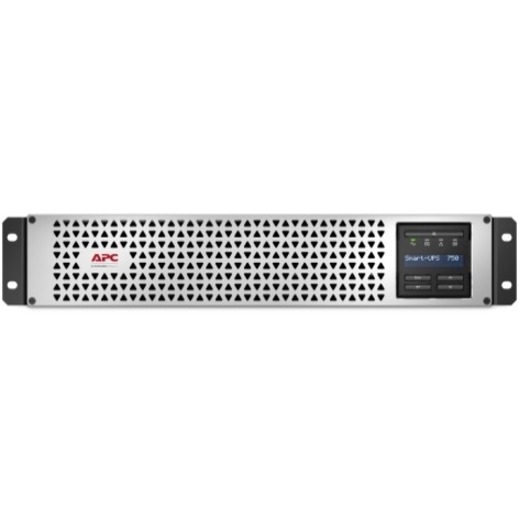

APC by Schneider Electric Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS (Not for sale in Vermont)

Name: APC by Schneider Electric Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS (Not for sale in Vermont)
Brand: APC
SKU: 6HY054
Price: 1018.32 USD
Availability: InStock

APC

PCN#

6HY054

MFG#

SMTL750RM2UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,018.32

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U Rack
mountable
AVR
3 Hour Recharge
5.70 Minute Stand
by
120 V AC Input
120 V AC Output
6 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 39 lbs.

APC by Schneider Electric Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS (Not for sale in Vermont)

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMTL750RM2UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Model	SMTL750RM2UC

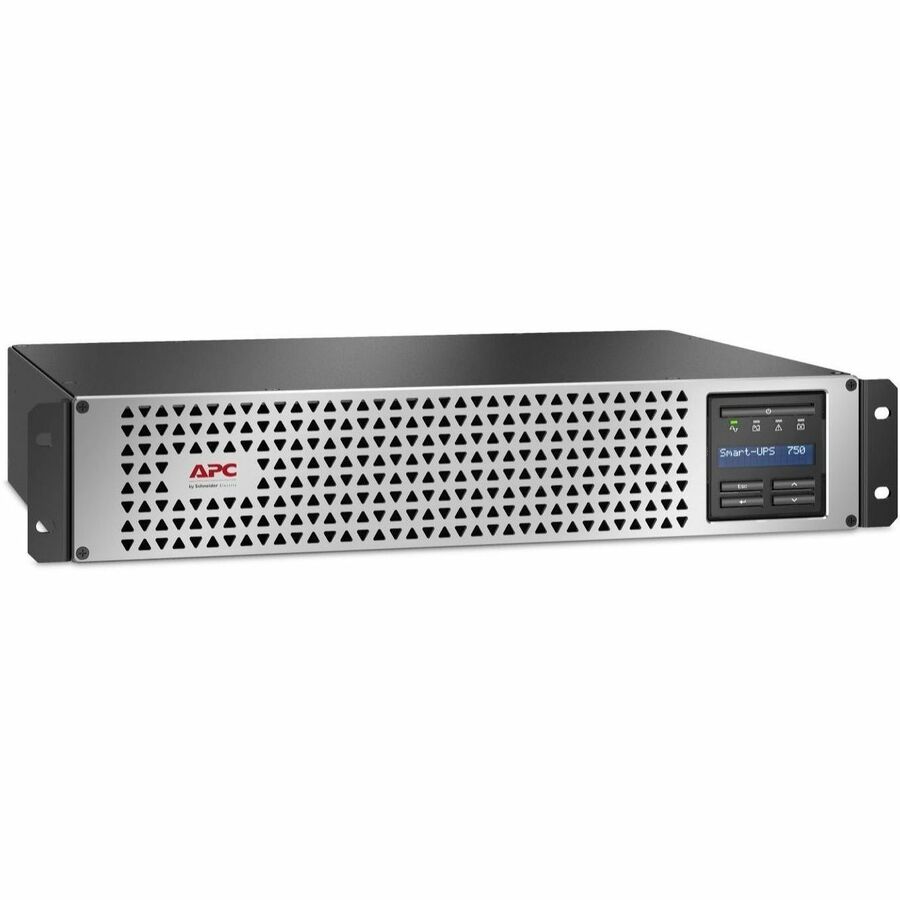

Product Name	Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P

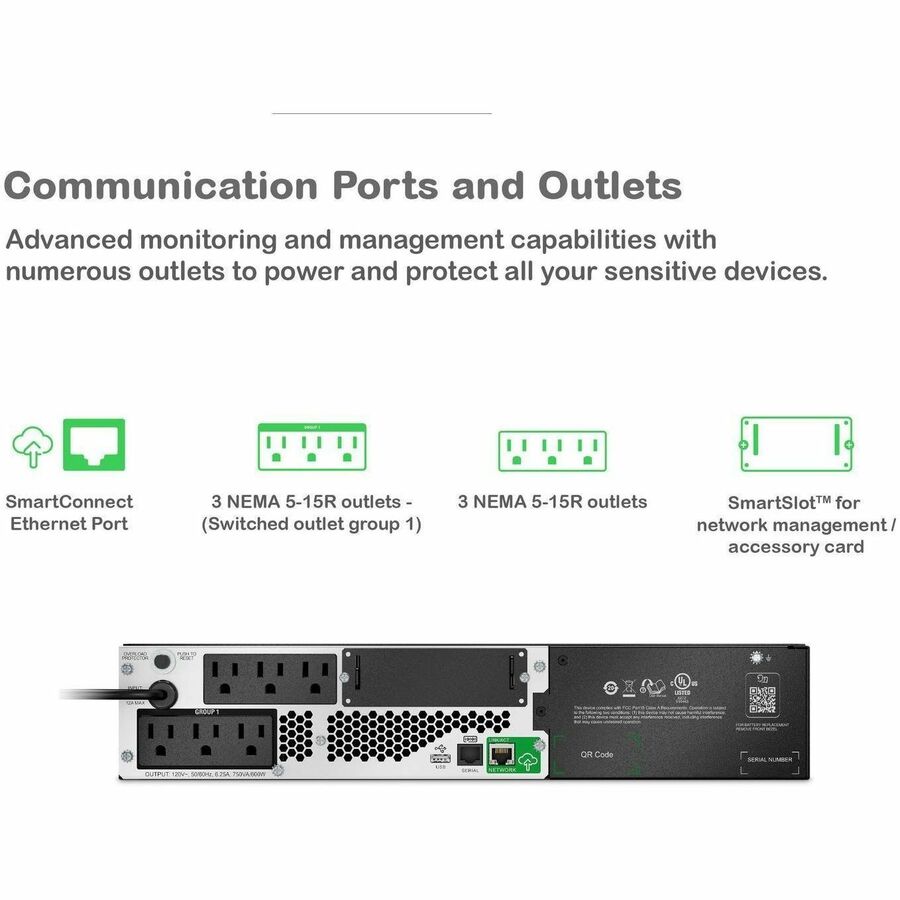

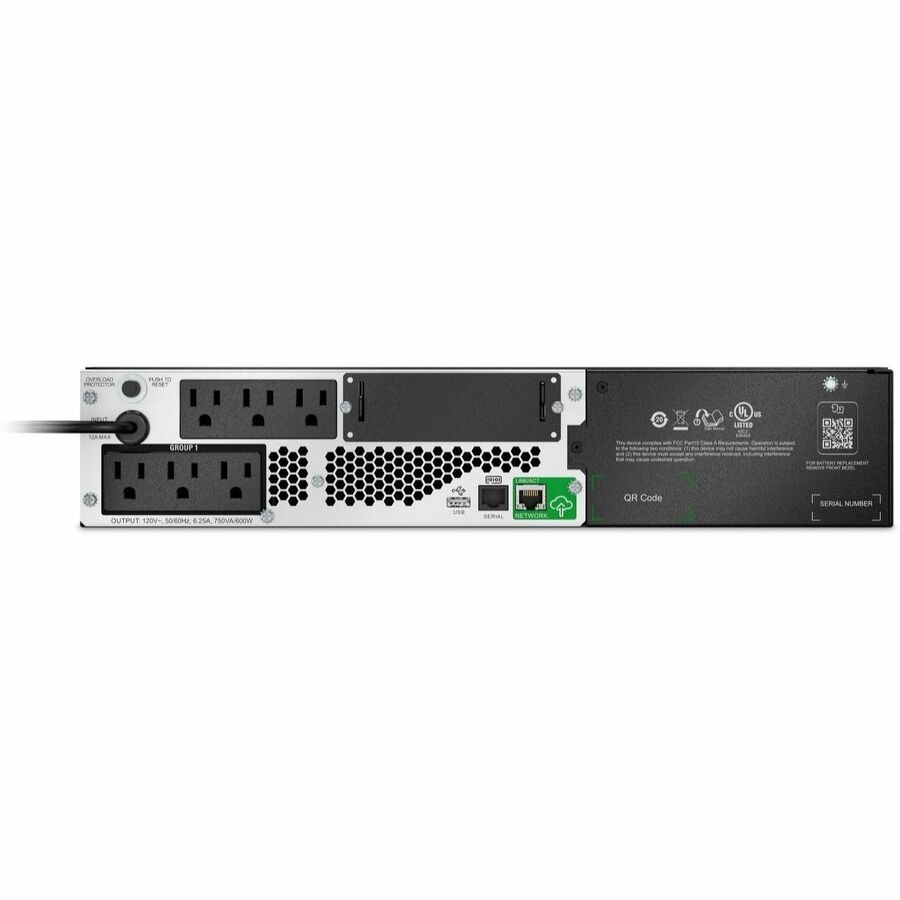

Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Overload Protection	Yes
Cord Length	8 ft
Transfer Time	10 ms
Application/Usage	Server POS Terminal Network Device Switch Router Network Hub Security System Communication System

Power Description

Load Capacity (VA)	750 VA
Load Capacity (Watt)	600 W
Input Voltage	120 V
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Management

Network Management	SmartConnect
Alarm	On Battery Low Battery Configurable Delay

Controls/Indicators

Status Indicators

LED status indicators: Quickly understand unit and power status with visual indicators.

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)

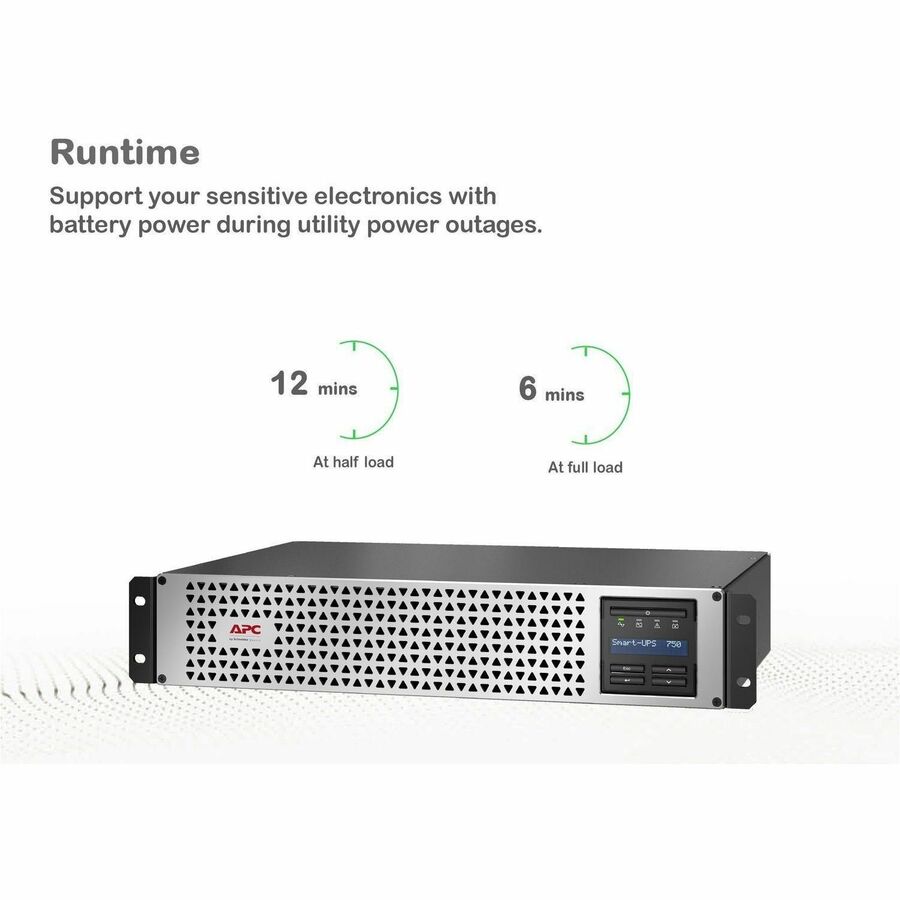

Backup/Run Time (Full Load)	5.70 Minute
Backup/Run Time (Half Load)	13.80 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	25000 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	41 dB(A)
Thermal Dissipation	20.51 W

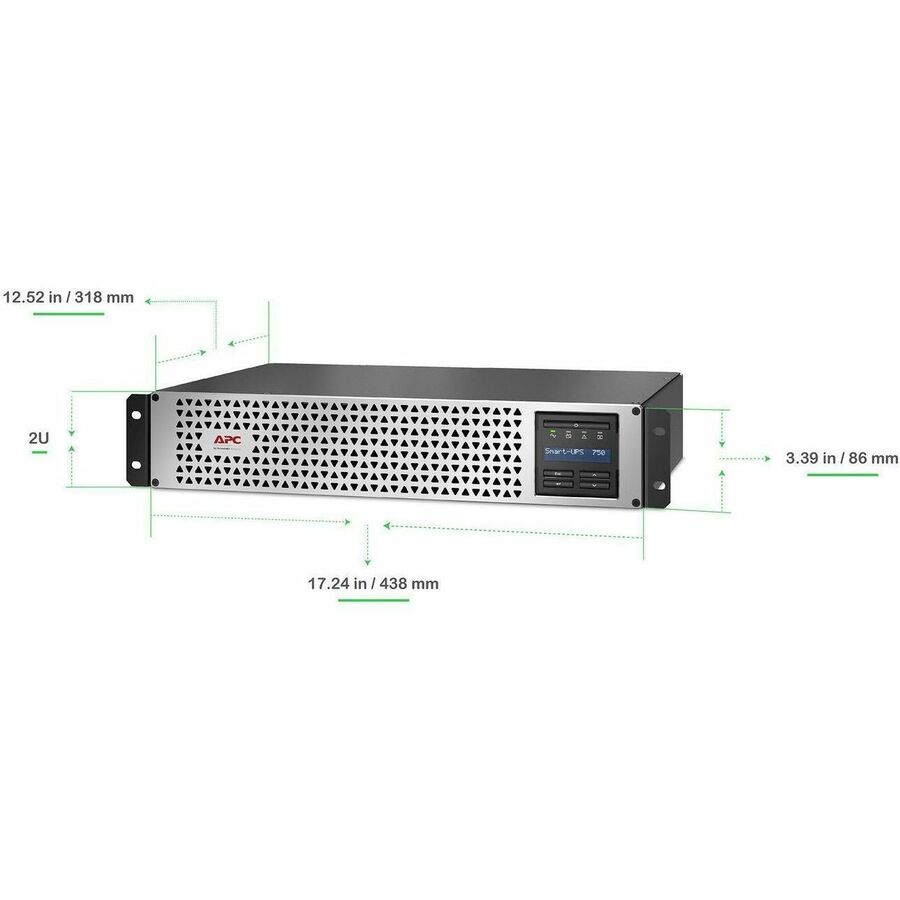

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	3.4"
Width	17.2"
Depth	12.5"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Weight (Approximate)	34 lb

Miscellaneous

Package Contents	Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS CD with software Documentation CD Installation guide Rack mounting support rails Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	NOM

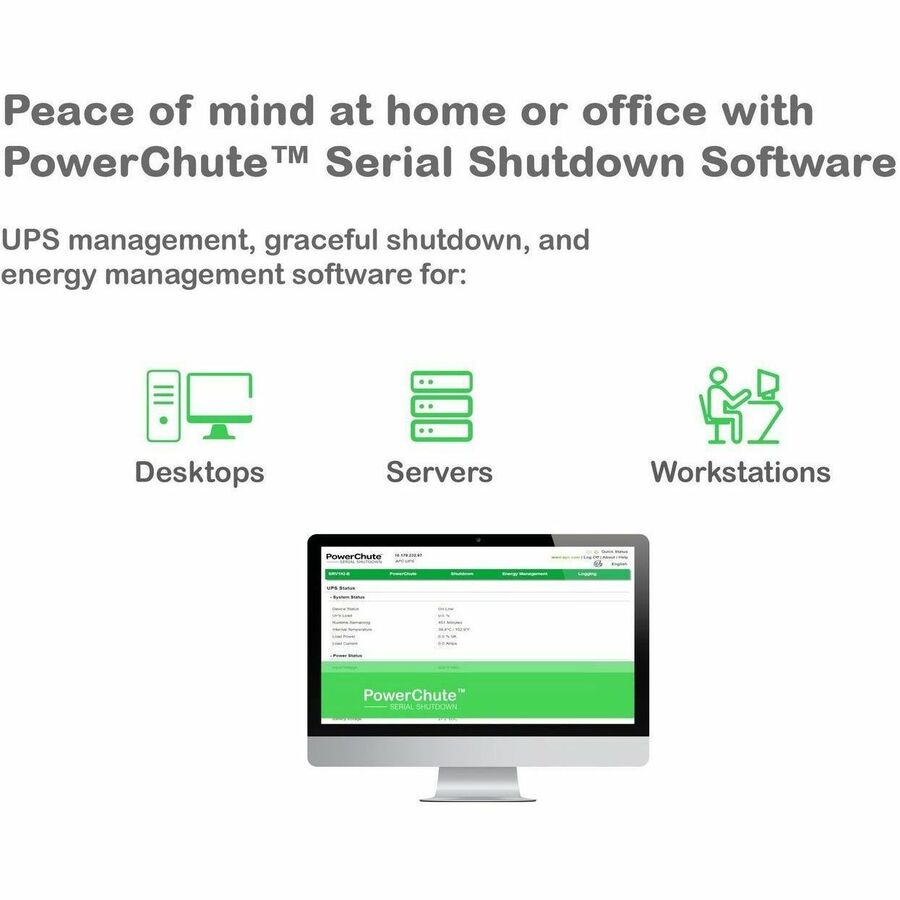

Software Included	Powerchute Serial Edition
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL750RM2UC_ROHS_DECLARATION&p_FileName=SMTL750RM2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500682&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500682&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC	No
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
