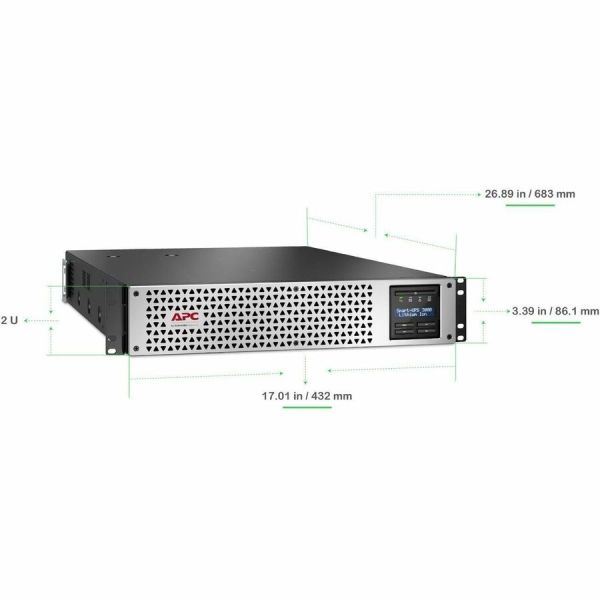

APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD

Name: APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD
Brand: APC
SKU: 12CH57
Price: 3370.16 USD
Availability: InStock

APC

PCN#

12CH57

MFG#

SMTL3KRM2UCL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,370.16

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
AVR
2 Hour Recharge
5.30 Minute Stand
by
120 V Input
120 V AC Output
Sine Wave
Serial Port
USB
LCD/LED Display
1 x NEMA L5
30R, 6 x NEMA 5
20R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 95 lbs.

APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMTL3KRM2UCL
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 3kVA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity	1
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA L5-30P
Receptacle Detail	1 x NEMA L5-30R 6 x NEMA 5-20R
Cord Length	8 ft
Transfer Time	10 ms
Application/Usage	IT Network Business Critical System Server Virtual Machine Hyperconverged Infrastructure (HCI) POS Router Switch Hub

Power Description

Load Capacity (VA)	2880 VA
Load Capacity (Watt)	2700 W
Input Voltage	120 V
Input Voltage Range	75 V AC - 154 V AC 82 V AC - 143 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	459 J
Input Power Factor	0.9

Display & Graphics

Display

LCD/LED

Management

Network Management	SmartConnect
Alarm	On Battery Low Battery Overload

Controls/Indicators

Status Indicators

LED Indicators:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes

Battery Information

Number of Batteries	1
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	1209.6 kJ
Backup/Run Time (Full Load)	5.30 Minute
Backup/Run Time (Half Load)	11.40 Minute
Battery Life	10 Year
Typical Battery Recharge Time	2 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	95%
Sound Emission	55 dB
Thermal Dissipation	101.99 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	3.4"
Width	17"
Depth	26.9"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Weight (Approximate)	75.44 lb

Miscellaneous

Package Contents	Smart-UPS 3kVA Rack-mountable UPS Rack Mounting brackets Rack Mounting support rails Washer Ethernet patch cable Screw
Certifications & Standards	ENERGY STAR V2.0 (USA)\|cULus
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL3KRM2UCL_ROHS_DECLARATION&p_FileName=SMTL3KRM2UCLKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168925&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168925&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
