APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS

Name: APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS
Brand: APC
SKU: 9HR470
Price: 2383.84 USD
Availability: InStock

APC

PCN#

9HR470

MFG#

SMTL1500RM3UCNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,383.84

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

3U Rack
mountable
3 Hour Recharge
3.03 Minute Stand
by
120 V Input
120 V AC Output
Sine Wave
Serial Port
6 x NEMA 5
15R
6 x Battery/Surge Outlet
SmartConnect

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 23 lbs.

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMTL1500RM3UCNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 1500VA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P
Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Dataline Protection	RJ-45
Overload Protection	Yes
Cord Length	8 ft
Transfer Time	6 ms

Power Description

Load Capacity (VA)	1440 VA
Load Capacity (Watt)	1350 W
Input Voltage	120 V
Input Voltage Range	75 V AC -154 V AC 82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Management

Network Management	SmartConnect
Alarm	Low Battery On Battery Configurable Delay

Controls/Indicators

Status Indicators

Multifunction LCD Status and Control Console

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	36 V DC
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	864 kJ
Backup/Run Time (Full Load)	3.03 Minute
Backup/Run Time (Half Load)	8.87 Minute
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	25000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	45 dB(A)
Thermal Dissipation	39.56 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver

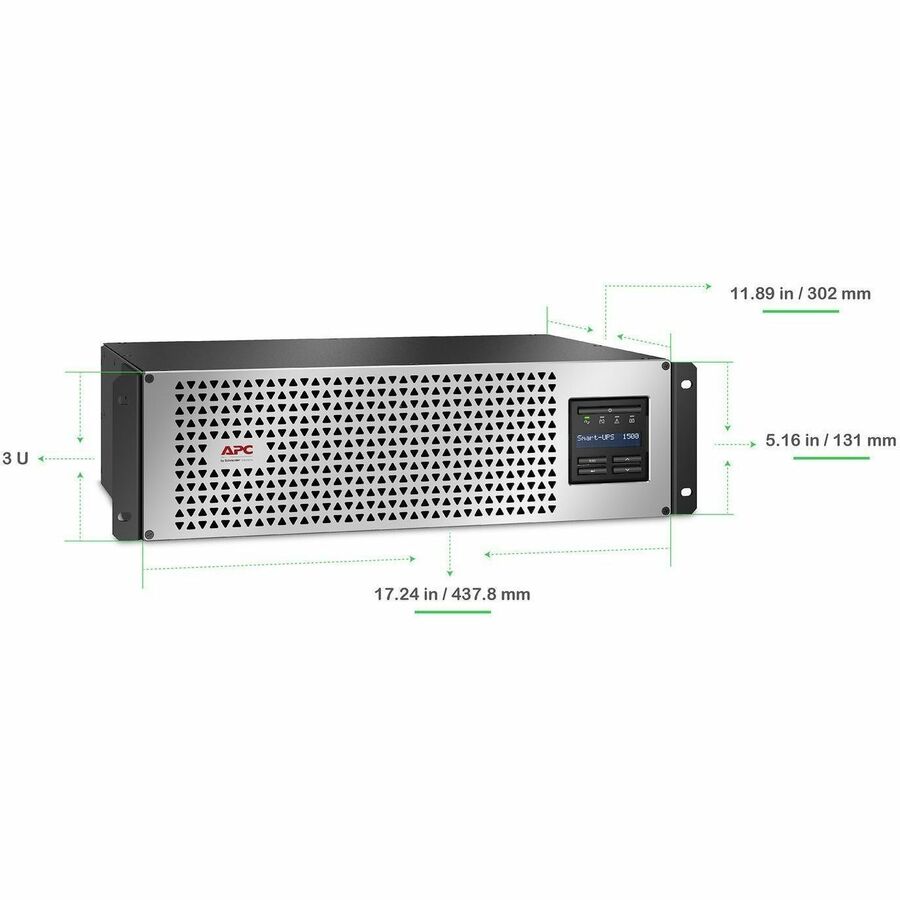

Height	5.2"
Width	17.2"
Depth	11.9"
Rack Height	3U
Form Factor	Rack-mountable
Weight (Approximate)	42.99 lb

Miscellaneous

Package Contents	Smart-UPS 1500VA Rack-mountable UPS Installation Guide Rack Mounting Support Rails USB Cable
Certifications & Standards	NOM
Green Premium	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1500RM3UCNC_ROHS_DECLARATION&p_FileName=SMTL1500RM3UCNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301538&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301538&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC	Yes
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) China Restriction of Hazardous Substances (China RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
