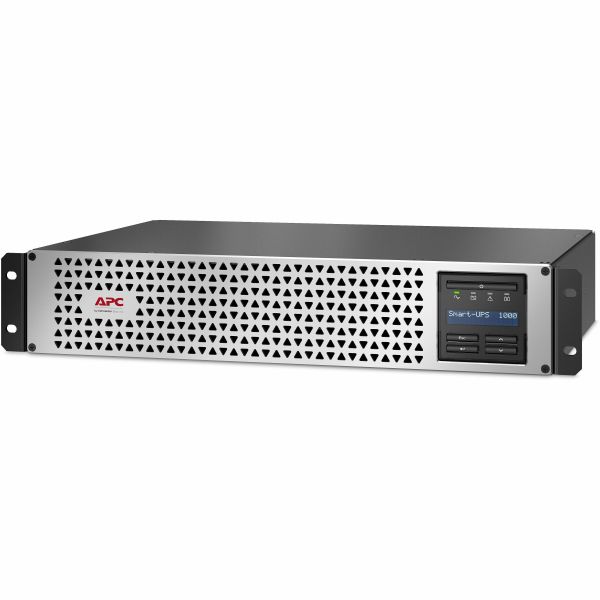

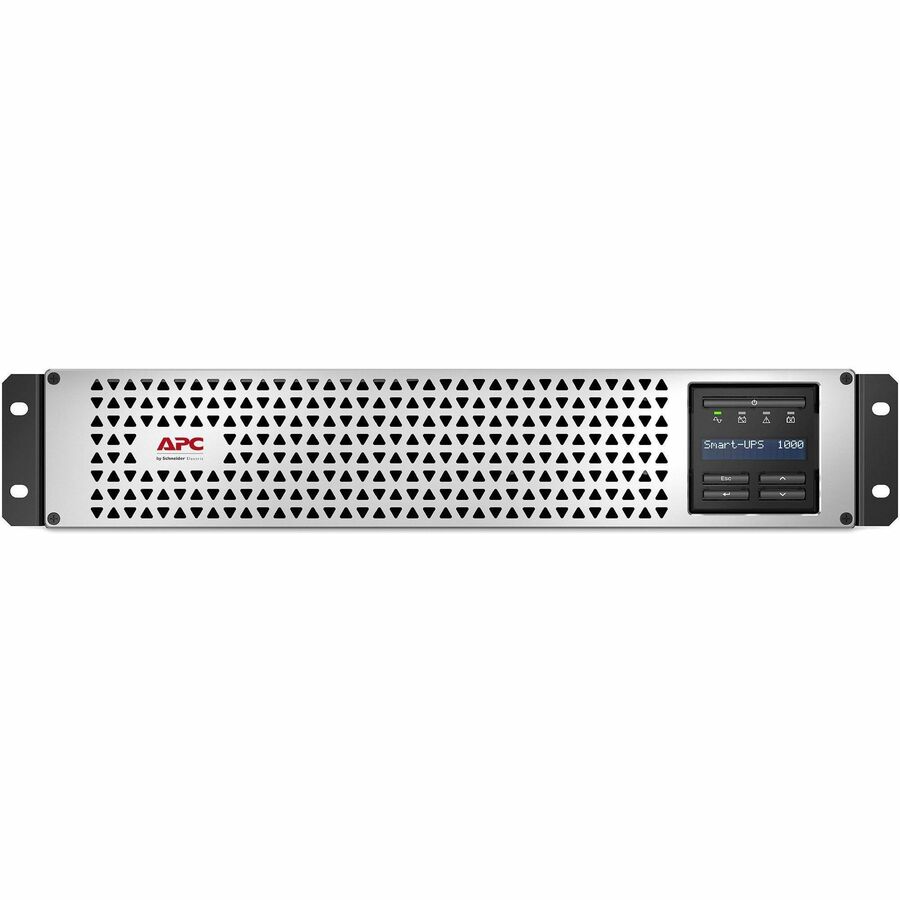

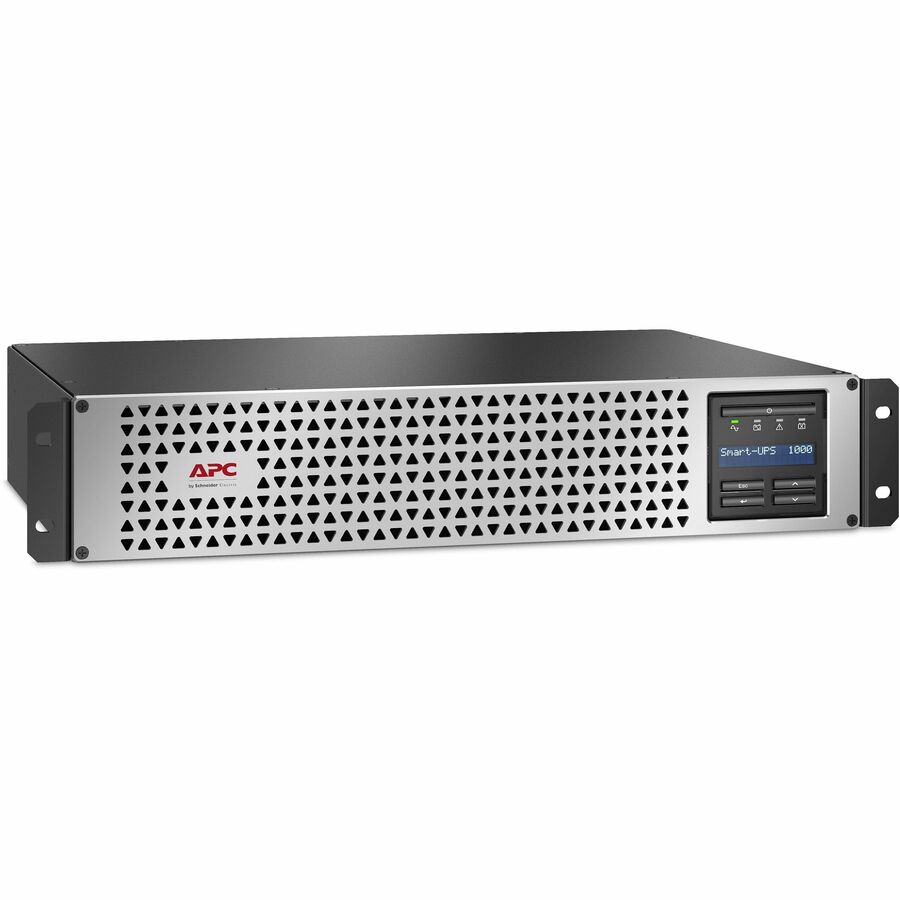

APC by Schneider Electric Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect (Not for sale in Vermont)

Name: APC by Schneider Electric Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect (Not for sale in Vermont)
Brand: APC
SKU: 6TH668
Price: 1509.62 USD
Availability: InStock

APC

PCN#

6TH668

MFG#

SMTL1000RM2UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,509.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
120 V AC Input
120 V AC Output
6 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 41 lbs.

APC by Schneider Electric Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect (Not for sale in Vermont)

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMTL1000RM2UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect

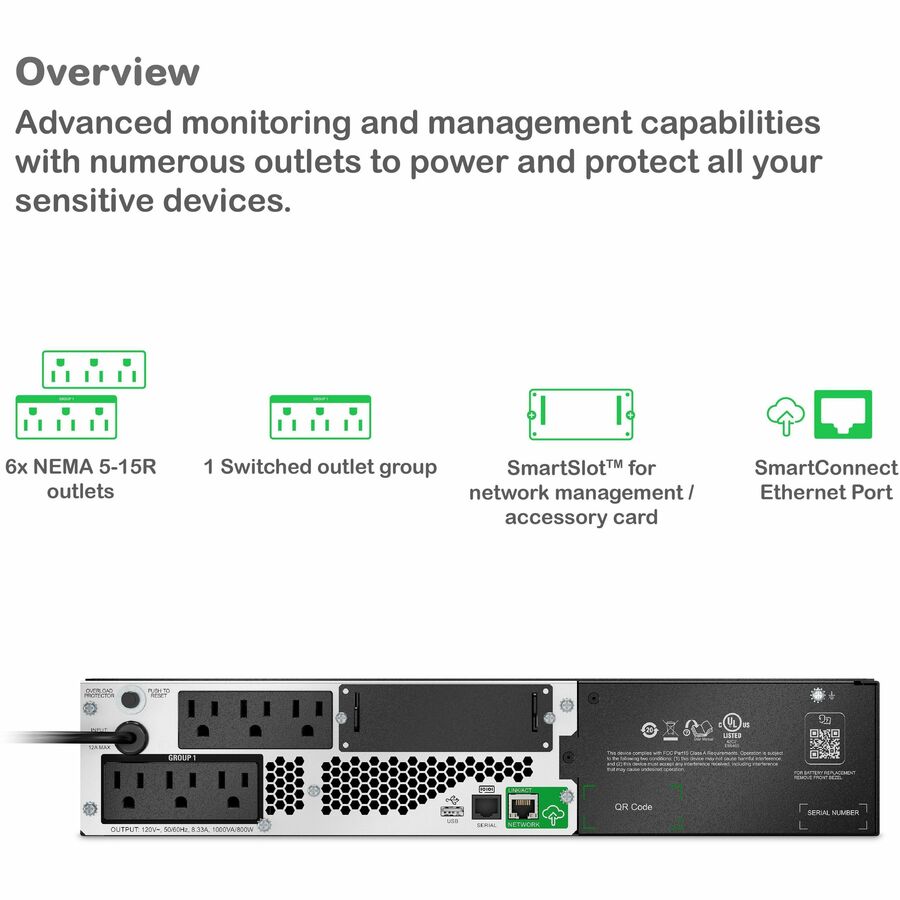

Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P

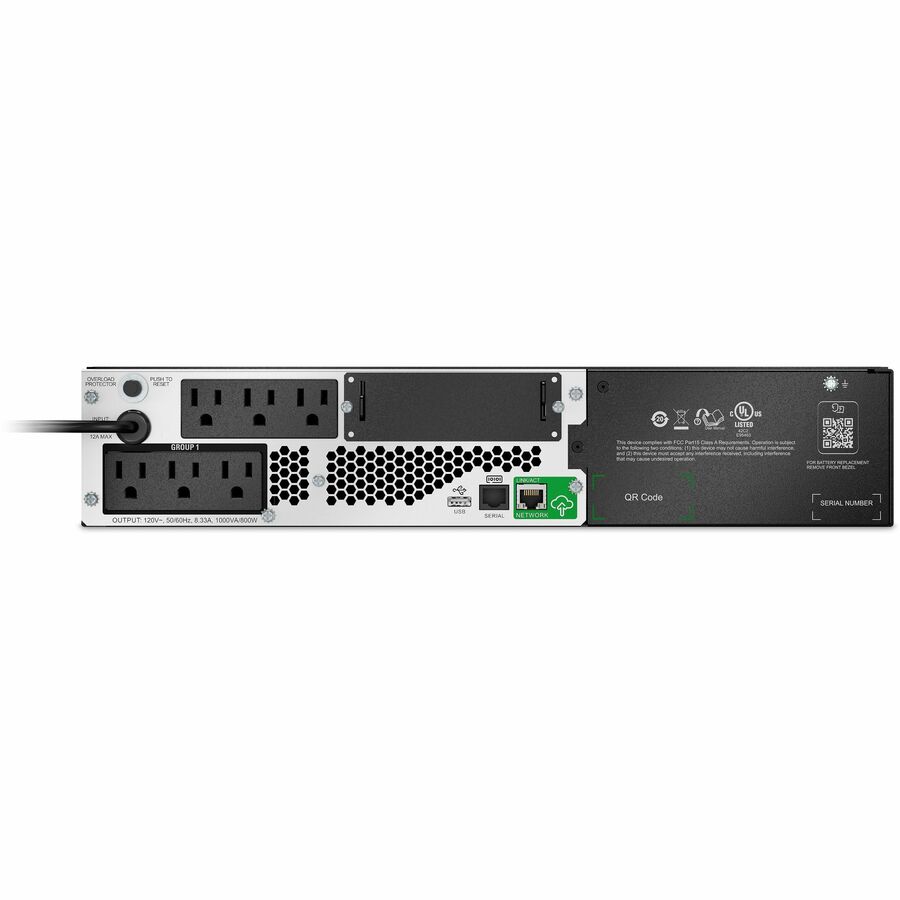

Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Cord Length	8 ft
Application/Usage	Server POS Terminal Router Switch Network Hub Network Device

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	800 W
Input Voltage	120 V
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Management

Network Management	SmartConnect
Alarm	On Battery Low Battery Configurable Delay

Interfaces/Ports

Serial Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	24606.30 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%
Sound Emission	41 dB
Thermal Dissipation	20.51 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver

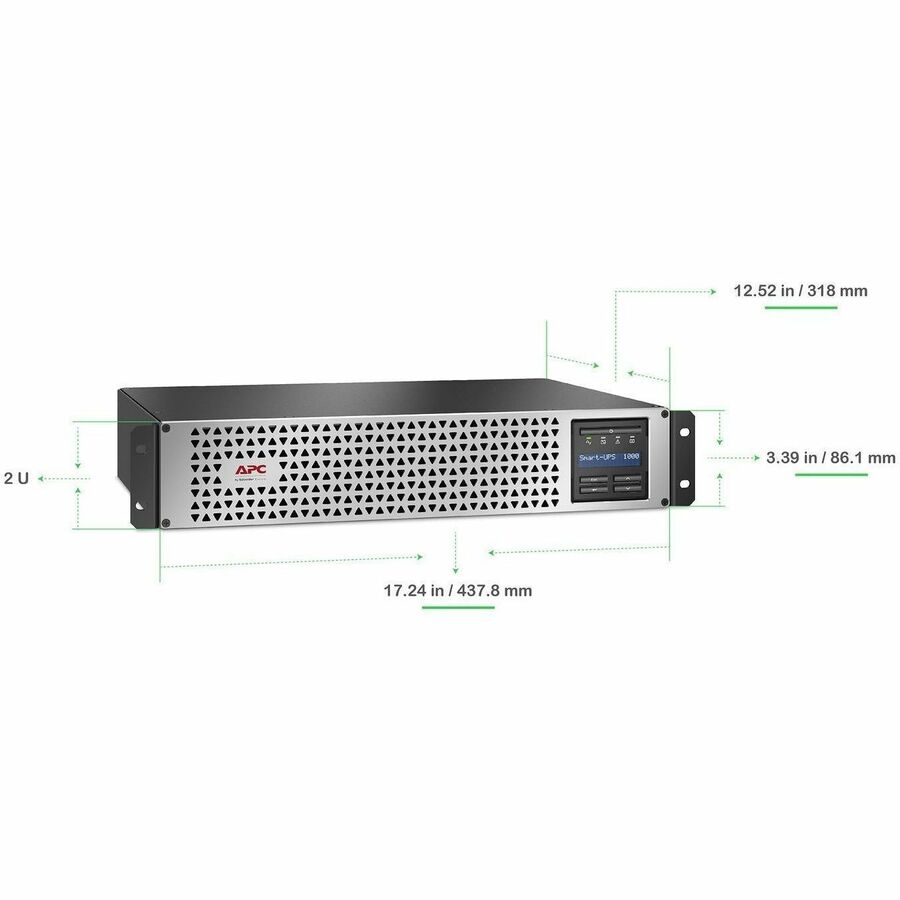

Height	3.4"
Width	17.2"
Depth	12.5"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Weight (Approximate)	36 lb

Miscellaneous

Package Contents	Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect Installation guide Rack mounting support rails USB cable
Certifications & Standards	NOM
Software Included	Powerchute Serial Edition
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1000RM2UC_ROHS_DECLARATION&p_FileName=SMTL1000RM2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500681&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500681&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Battery Directive

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
