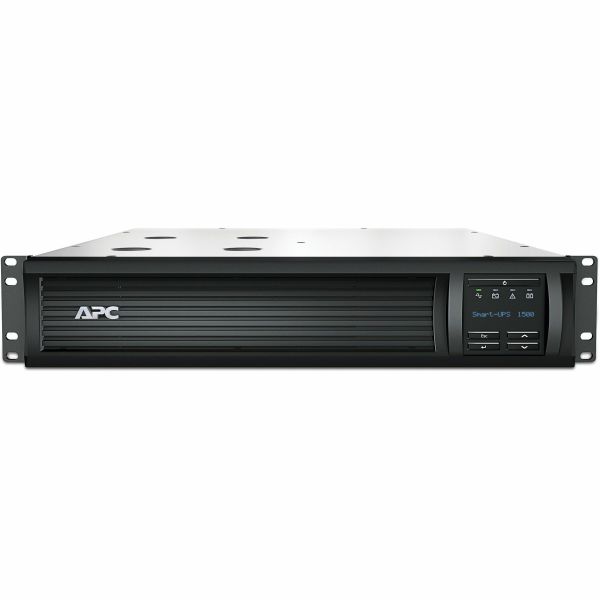

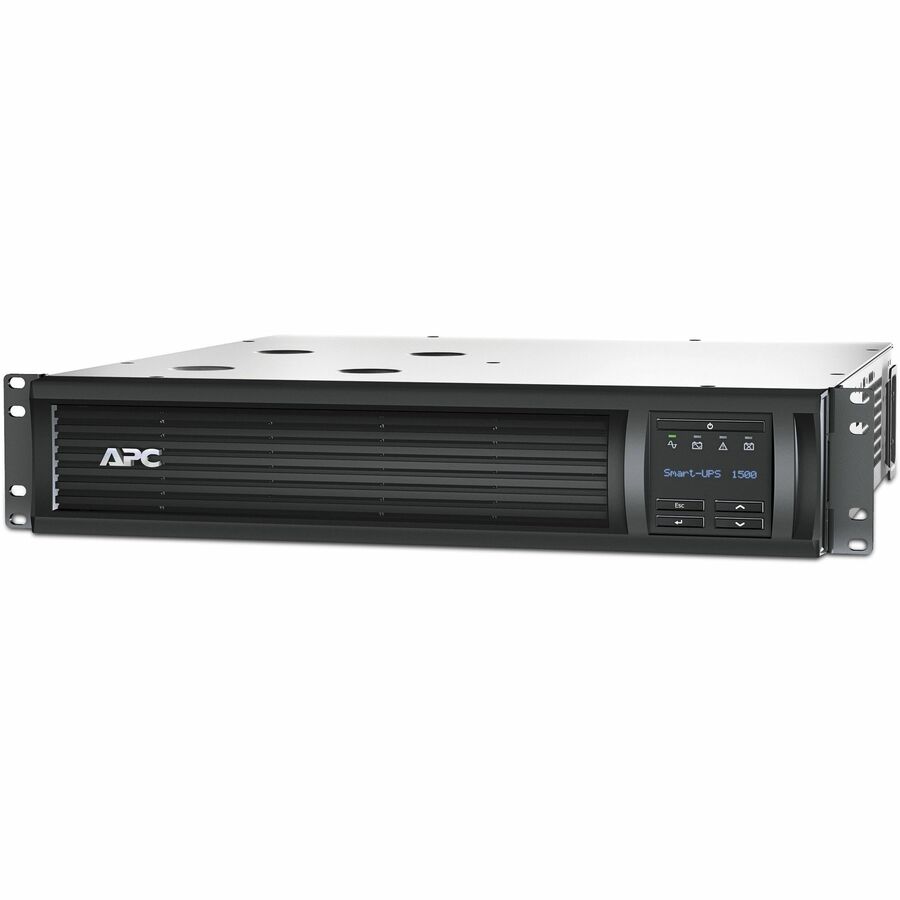

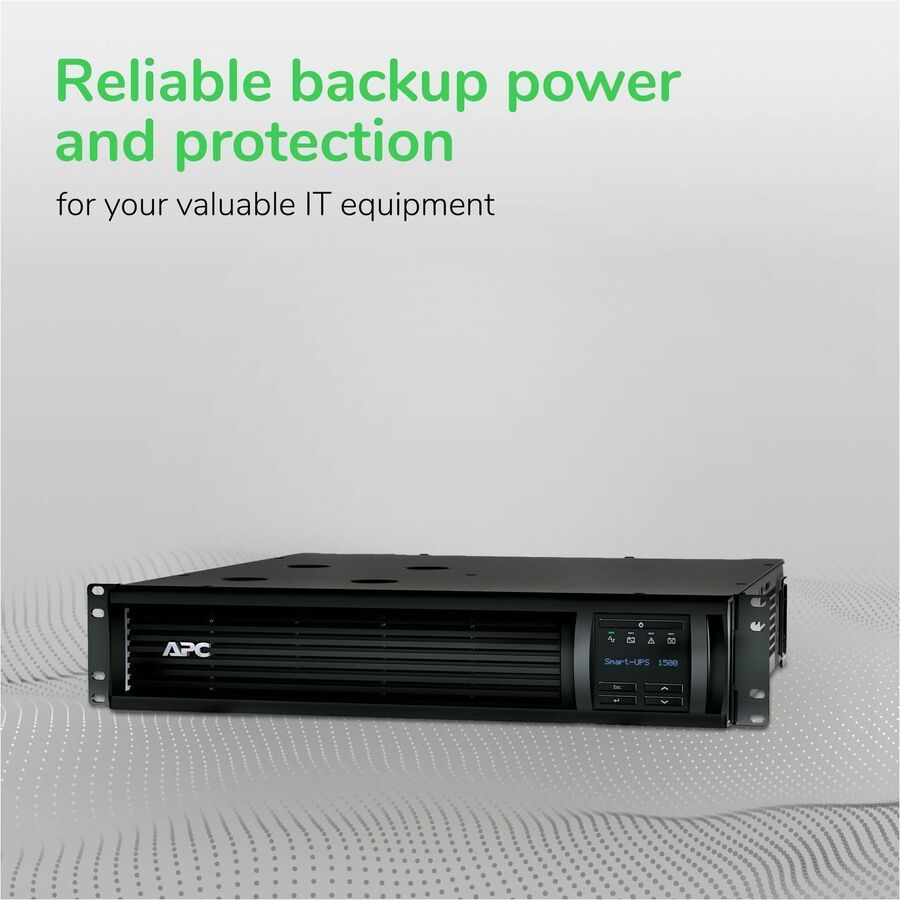

APC by Schneider Electric Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

Name: APC by Schneider Electric Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
Brand: APC
SKU: 2CL134
Price: 791.59 USD
Availability: InStock

APC

PCN#

2CL134

MFG#

SMT1500RM2UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$791.59

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Estimated Shipment:

Product Highlights:

2U Rack
mountable
3 Hour Recharge
120 V Input
120 V AC Output
Sine Wave
Serial Port
6 x NEMA 5
15R
6 x Battery/Surge Outlet
SmartConnect

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for batteryDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 71 lbs.

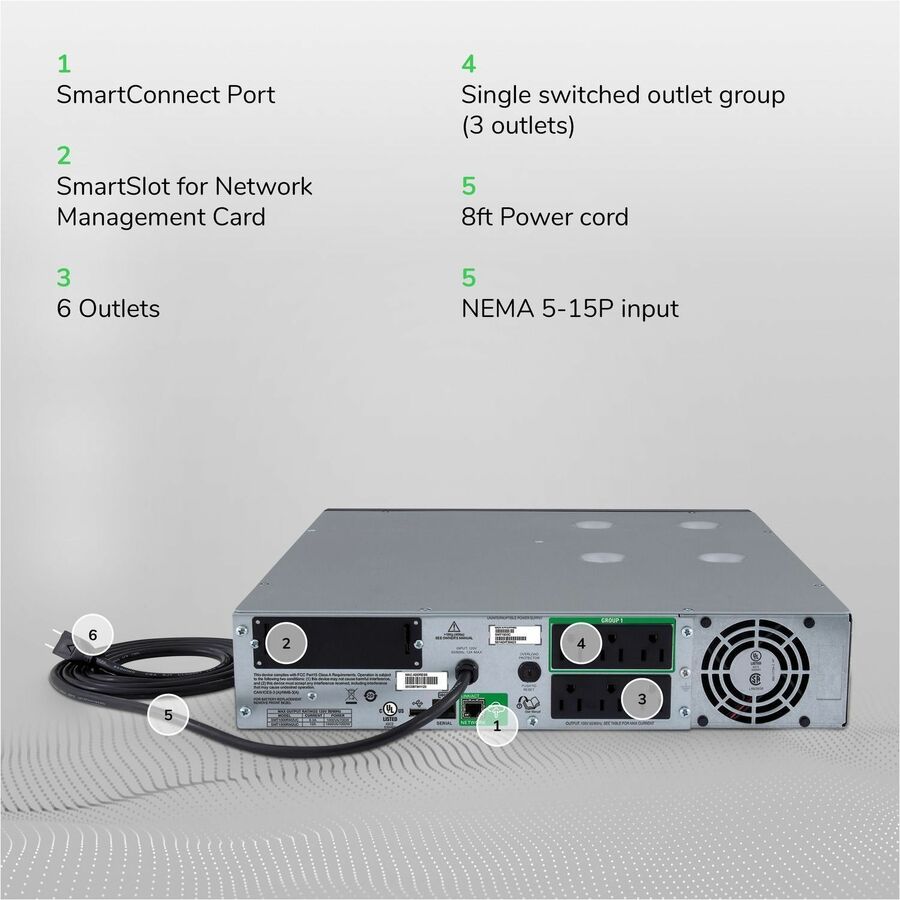

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMT1500RM2UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

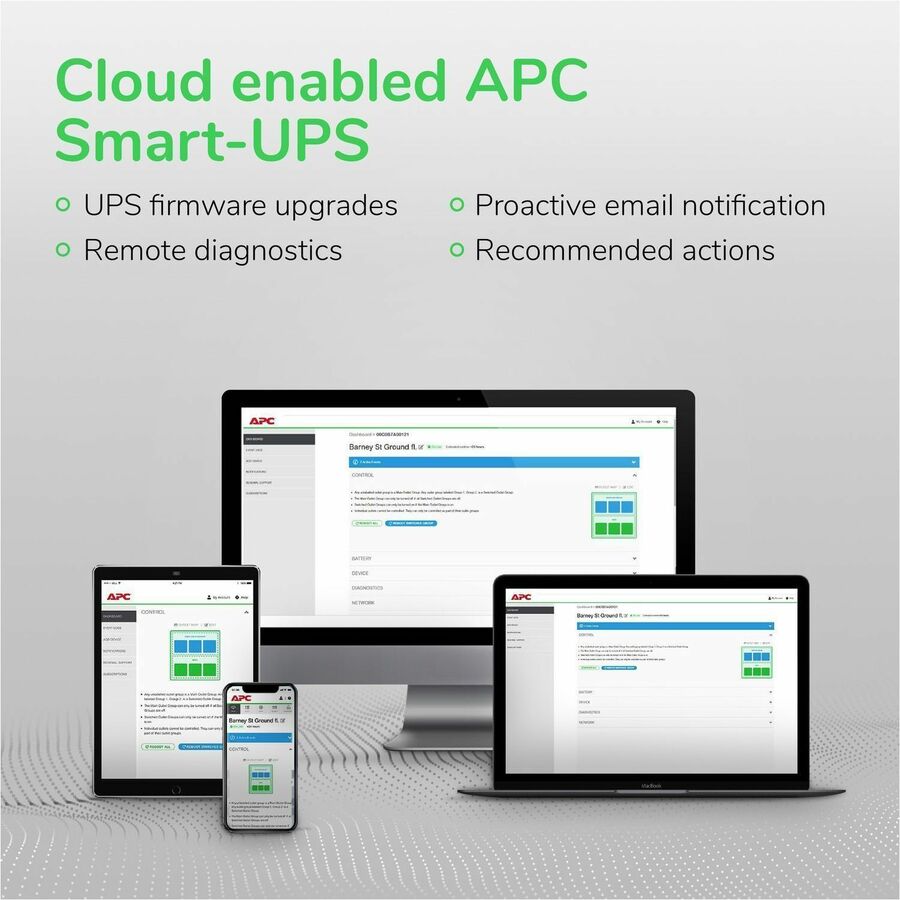

Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Packaged Quantity	1 Each
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P

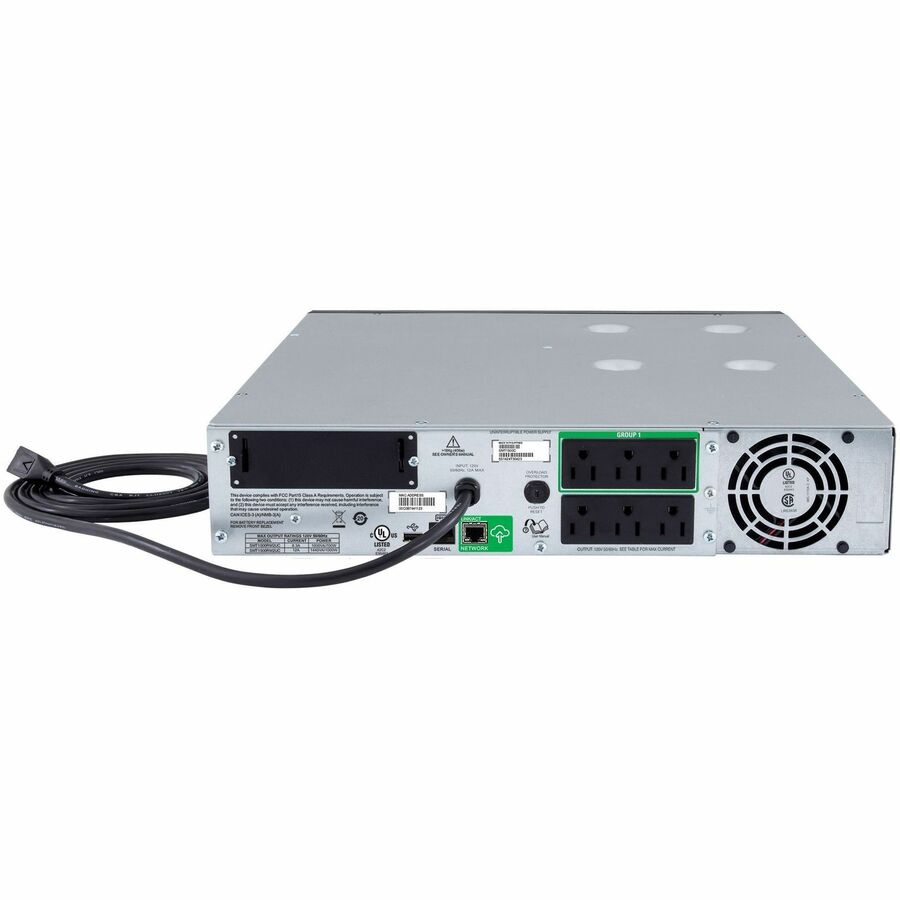

Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Cord Length	8 ft
Transfer Time	10 ms

Power Description

Load Capacity (VA)	1440 VA
Load Capacity (Watt)	1000 W
Input Voltage	120 V
Input Voltage Range	82 V AC - 144 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Management

Network Management	SmartConnect
Alarm	Low Battery Configurable Delay

Controls/Indicators

Status Indicators

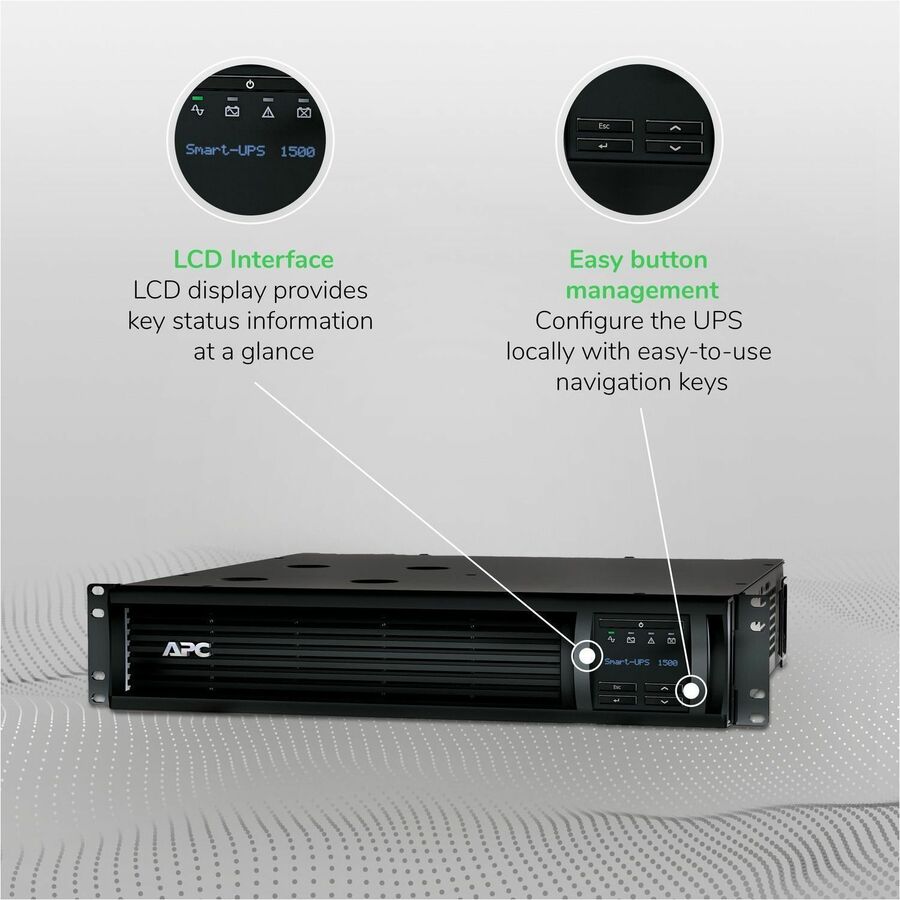

LCD Status

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	1
Battery Chemistry	Lead Acid
Battery Energy	1555.2 kJ
Battery Life	6 Year
Typical Battery Recharge Time	3 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	41°F (5°C) - 235.4°F (113°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	45 dB(A)
Thermal Dissipation	65.94 W

Physical Characteristics

Color Family	Black
Product Color	Black

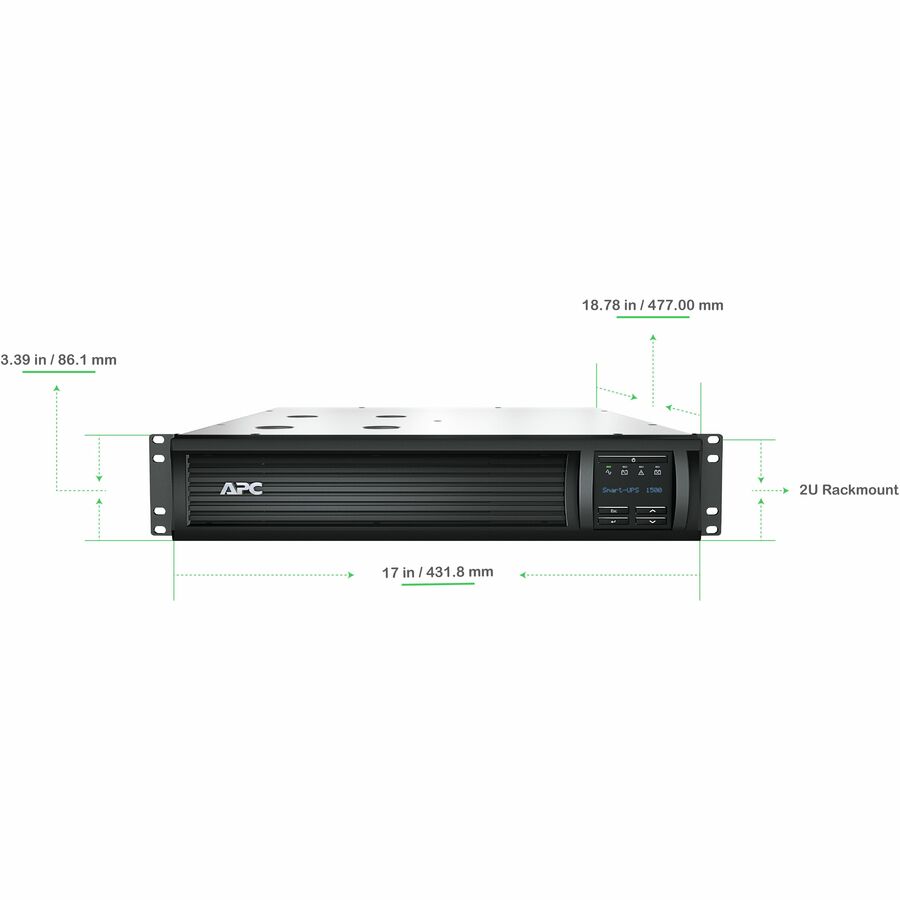

Height	3.4"
Width	17"
Depth	18.8"
Rack Height	2U

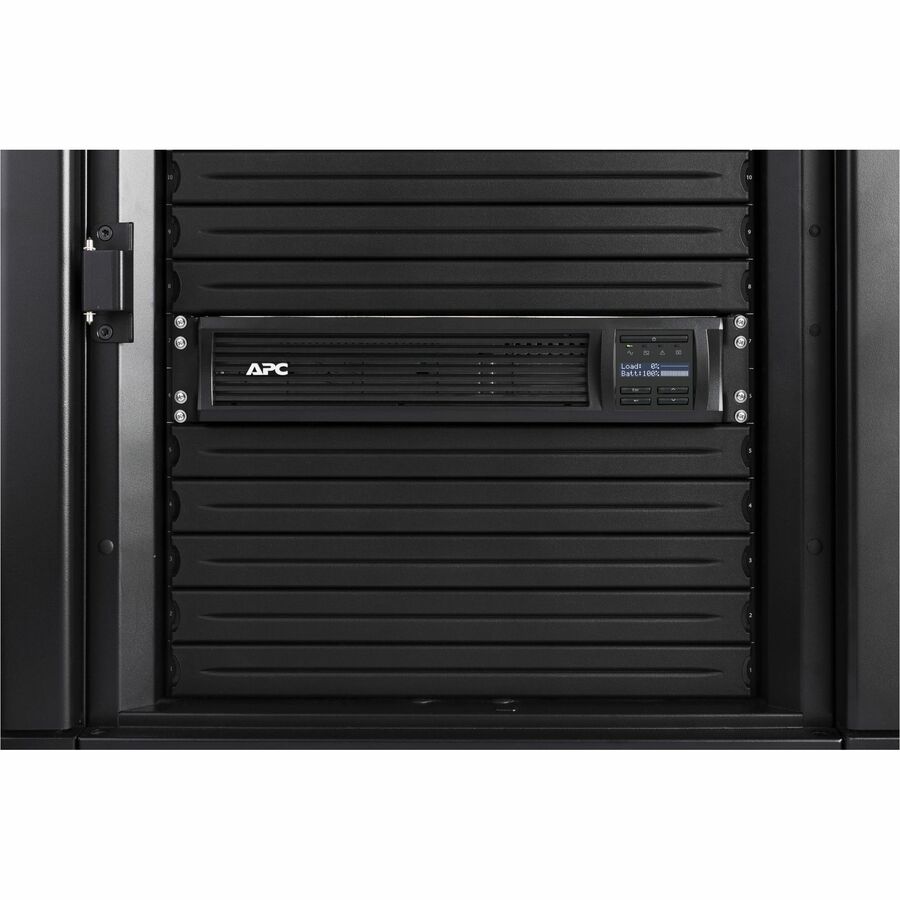

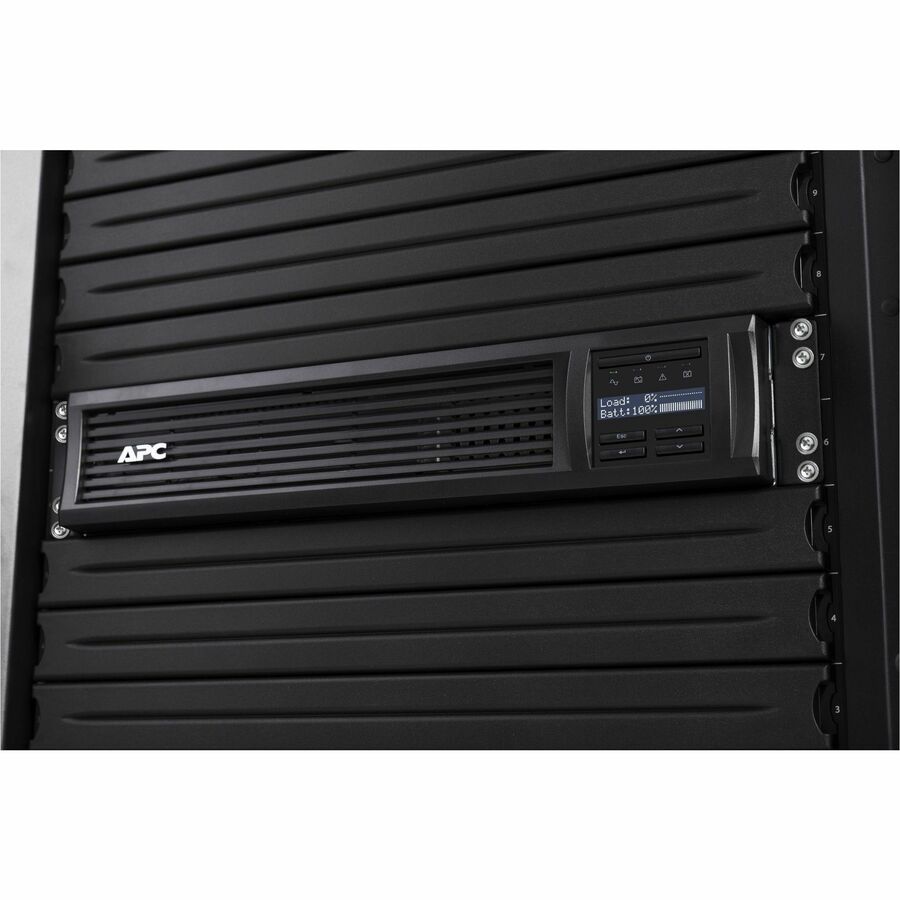

Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	58.42 lb

Miscellaneous

Package Contents	Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect Installation guide Rack mounting support rails USB cable
Certifications & Standards	cULus\|ENERGY STAR V2.0 (USA)
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM2UC_ROHS_DECLARATION&p_FileName=SMT1500RM2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940358&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940358&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	150000 Lifetime
