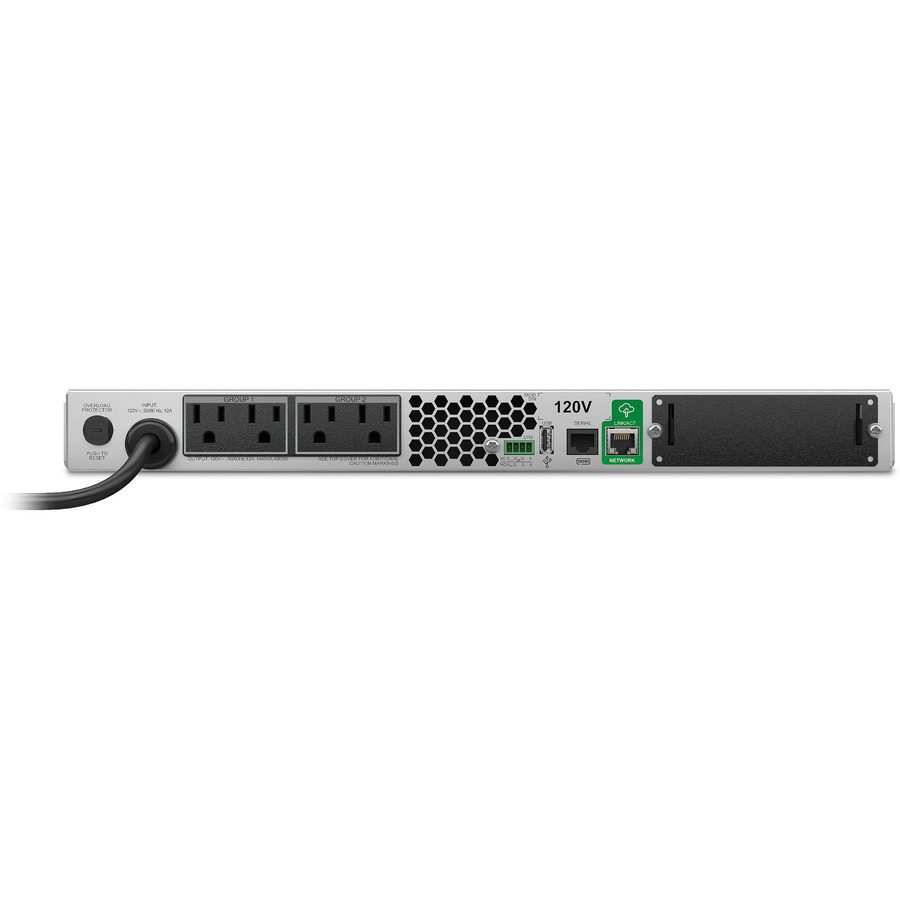

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 120V

Name: APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 120V
Brand: APC
SKU: 06TR83
Price: 1013.15 USD
Availability: InStock

APC

PCN#

06TR83

MFG#

SMT1500RM1UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,013.15

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

APC Smart
UPS, Line Interactive, 1500VA, Rackmount 1U, 120V, 4x NEMA 5
15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years repair or replace (excluding battery) and 2 years for batteryDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 64 lbs.

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 120V

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMT1500RM1UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	SMT
Product Name	Smart-UPS SMT 1500VA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Packaged Quantity	1
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P
Receptacle Detail	4 x NEMA 5-15R
Cord Length	8 ft
Transfer Time	4 ms
Application/Usage	IT Network Device Business Critical System Electronic Server POS Router Switch Hub VoIP Network Closet Storage Edge Computing Healthcare Education Retail

Power Description

Load Capacity (VA)	1440 VA
Load Capacity (Watt)	1000 W
Input Voltage	120 V
Input Voltage Range	93.5 V AC - 143 V AC 85 V AC - 155 V AC
Input Current	12 A
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	645 J
Input Power Factor	0.7

Display & Graphics

Display

LCD

Management

Network Management	SmartConnect
Alarm	On Battery Low Battery Configurable Delay

Controls/Indicators

Status Indicators

Multi-function LCD status and control console

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Chemistry	Lead Acid
Battery Size	36V
Battery Capacity	54000 mAh
Battery Energy	1054.8 kJ
Backup/Run Time (Full Load)	4.75 Minute
Backup/Run Time (Half Load)	16.57 Minute
Battery Life	5 Year
Typical Battery Recharge Time	4 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission	46 dB
Thermal Dissipation	34 W

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.7"
Width	17"
Depth	26.2"
Rack Height	1U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	54.01 lb

Miscellaneous

Package Contents	Smart-UPS SMT 1500VA Rack-mountable UPS Installation Guide Rack Mounting Support Rails Smart UPS Signalling RS-232 Cable USB Cable Safety Guide 2 x IEC Jumper Cable
Certifications & Standards	ENERGY STAR V2.0 (USA)\|CSA\|UL 1778 5th edition\|FCC part 15 class A\|cUL
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM1UC_ROHS_DECLARATION&p_FileName=SMT1500RM1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108618&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108618&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	150000 Lifetime
