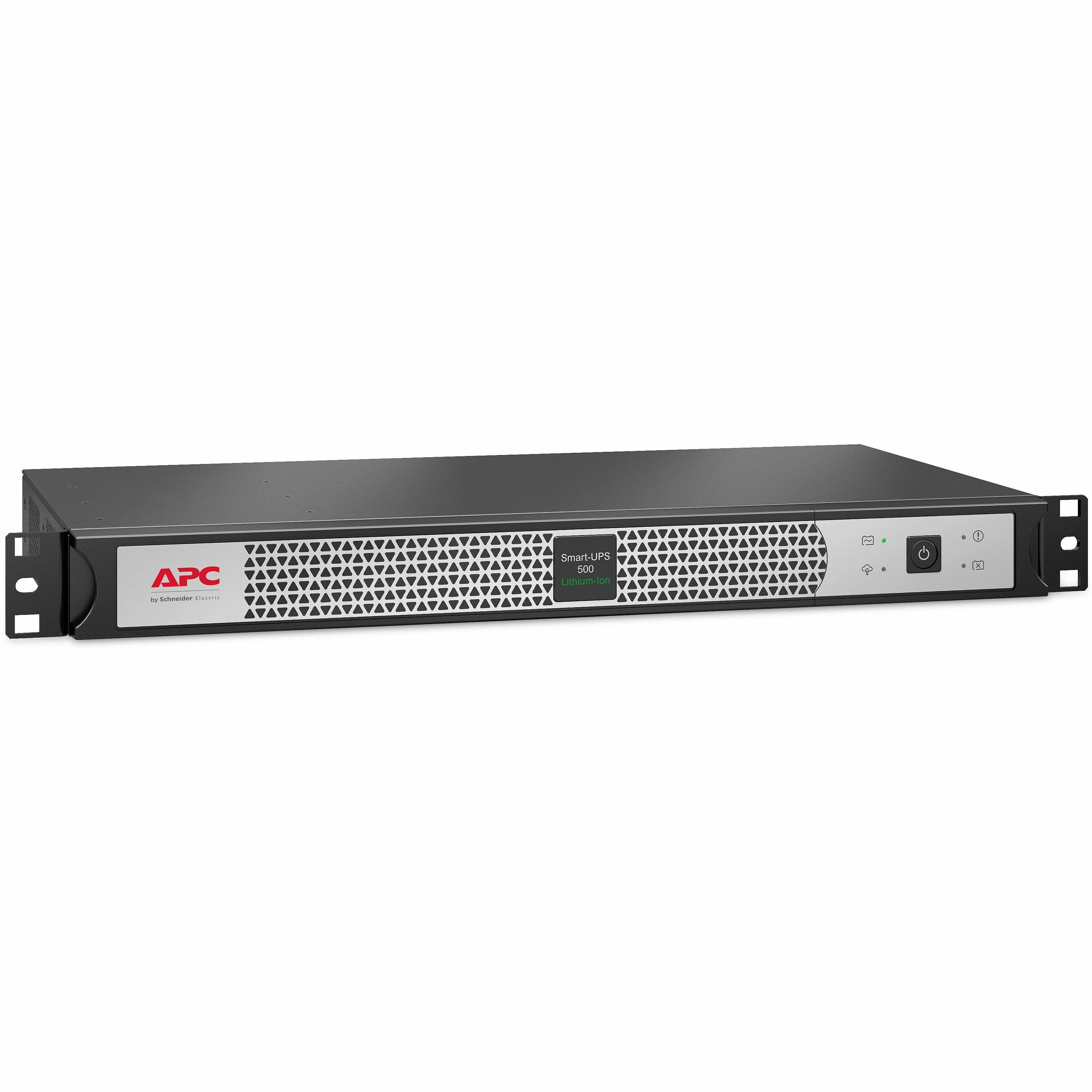

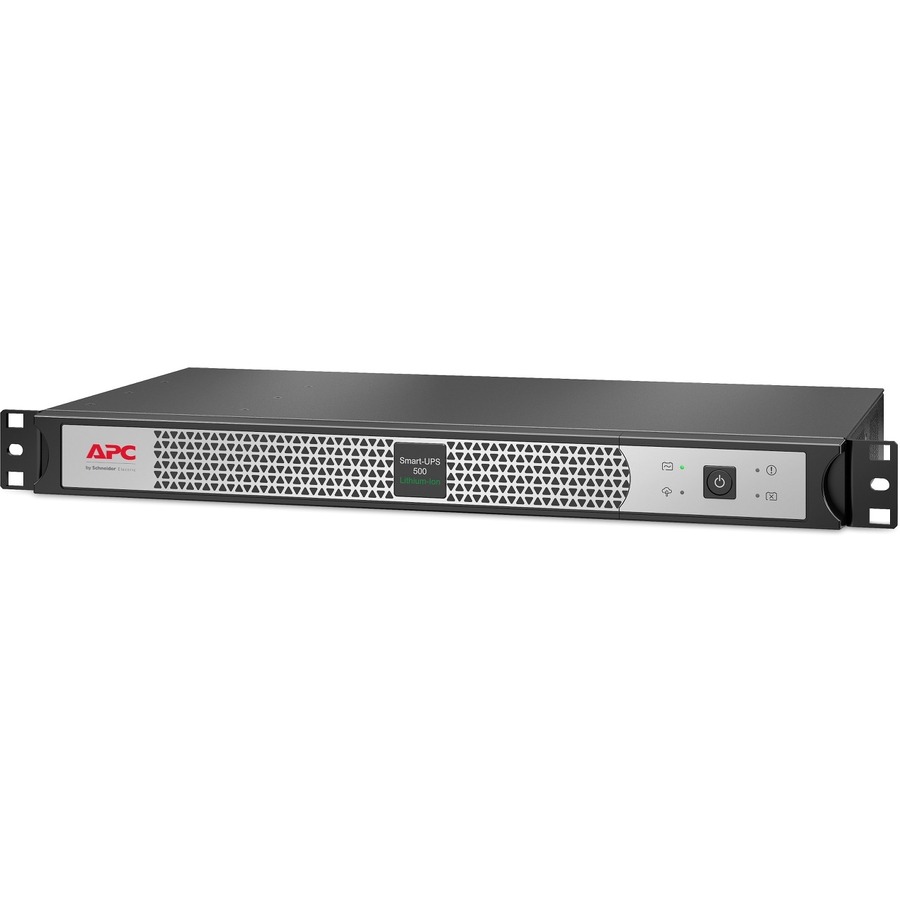

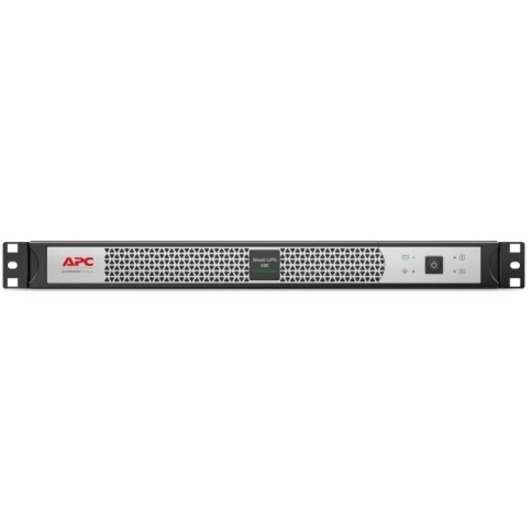

APC by Schneider Electric Smart-UPS 500VA Rack/Tower UPS

Name: APC by Schneider Electric Smart-UPS 500VA Rack/Tower UPS
Brand: APC
SKU: 8RP393
Price: 643.04 USD
Availability: InStock

APC

PCN#

8RP393

MFG#

SCL500RMI1UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$643.04

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1U Rack
mountable
AVR
3 Hour Recharge
2.70 Minute Stand
by
230 V AC Input
230 V AC Output
Single Phase
Sine Wave
Serial Port

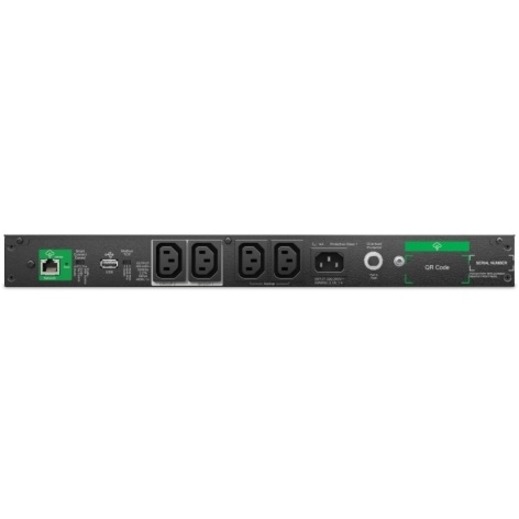

4 x IEC 60320 C13 Receptacle(s)
4 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty5 YearDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 14 lbs.

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SCL500RMI1UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	Smart-UPS
Product Series	SCL
Product Name	Smart-UPS 500VA Rack/Tower UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Packaged Quantity	1 Each
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	IEC 60320 C14
Receptacle Detail	4 x IEC 60320 C13
Number of Battery & Surge Outlets	4
Transfer Time	10 ms
EMI/RFI Noise Filter	Yes
Phase	Single Phase
Application/Usage	Router Network Hub Switch POS Terminal Server Network Device Mission Critical Equipment

Power Description

Load Capacity (VA)	500 VA
Load Capacity (Watt)	400 W
Input Voltage	230 V AC
Input Voltage Range	208 V AC - 253 V AC
Output Voltage	230 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	510 J

Management

Alarm

On Battery
Low Battery
Overload

Controls/Indicators

Status Indicators

Status Indicators:

Disconnected battery notification
Battery failure notification

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	108 kJ
Backup/Run Time (Full Load)	2.70 Minute
Backup/Run Time (Half Load)	6.30 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	14°F (-10°C) - 104°F (40°C)
Maximum Operating Elevation	6561 ft
Maximum Storage Elevation	49212 ft
Storage Relative Humidity	10% - 90%
Sound Emission (A-Weighted)	45 dB(A)

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	1.73"
Width	17.01"
Depth	9.13"
Rack Height	1U
Form Factor	Rack-mountable
Mounting Preference	No Preference
Weight (Approximate)	8.95 lb

Miscellaneous

For Country/Region	United States
Package Contents	Installation guide Rack Mounting support rails USB cable
Certifications & Standards	C-tick\|CE\|EAC\|RCM\|UK PSTI
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RMI1UC_ROHS_DECLARATION&p_FileName=SCL500RMI1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SCL500RMI1UC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SCL500RMI1UC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1812001EN&p_File_name=ENVPEP1812001_EN.pdf
End of Life Manual Availability	https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1812001_EN&p_File_name=ENVEOLI1812001_EN.pdf
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Directly Connected Equipment Guarantee	150000 Lifetime
