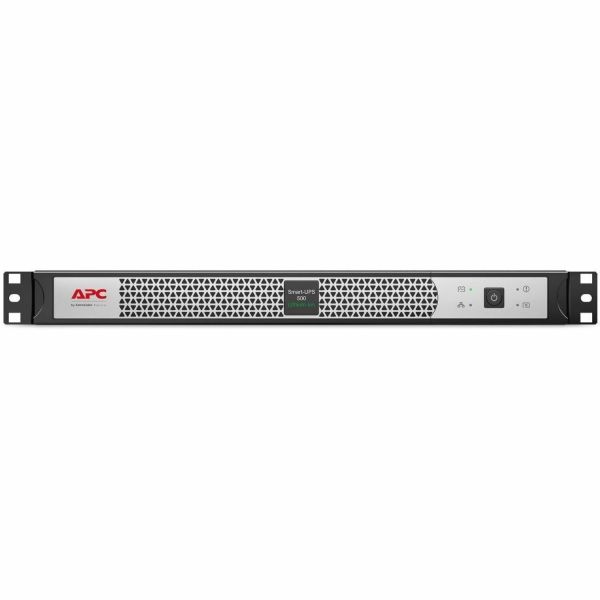

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS

Name: APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS
Brand: APC
SKU: 6HX470
Price: 880.67 USD
Availability: InStock

APC

PCN#

6HX470

MFG#

SCL500RM1UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$880.67

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1U Rack
mountable
AVR
3 Hour Recharge
2.70 Minute Stand
by
120 V Input
120 V AC Output
Sine Wave
Serial Port
4 x NEMA 5
15R
4 x Battery/Surge Outlet

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5 year repair or replaceDirectly Connected Equipment Guarantee150000 Lifetime

Shipping Weight: 15 lbs.

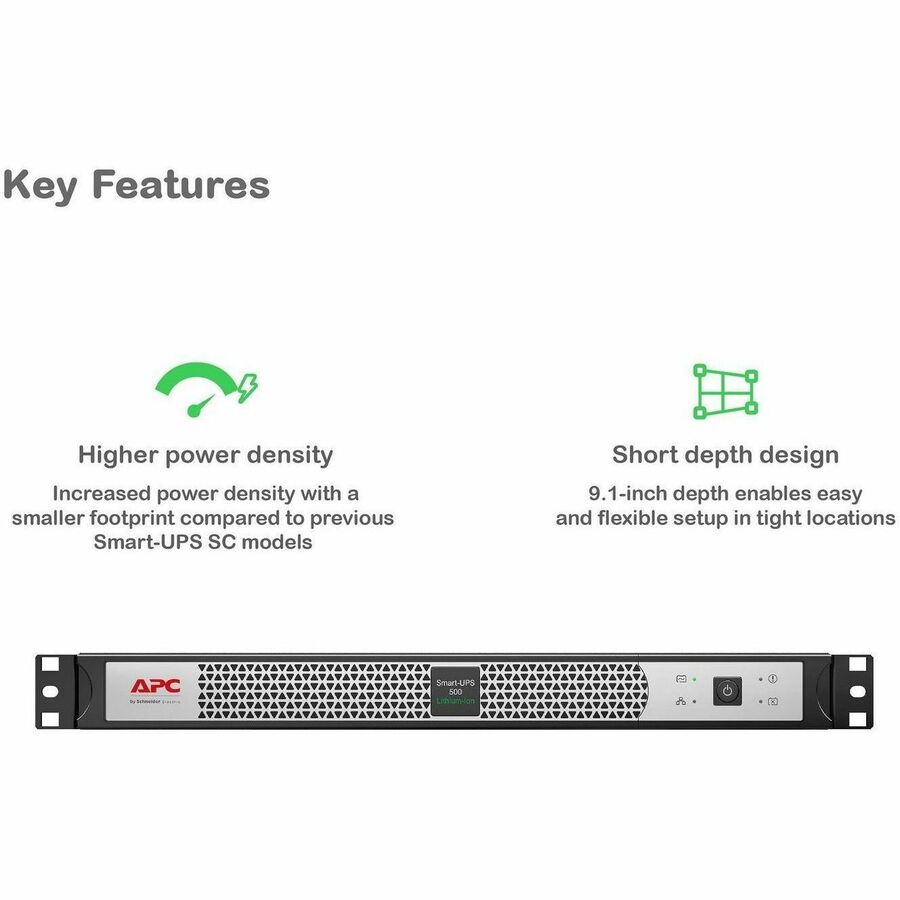

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS

Overview

Tech Specs

Specifications

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SCL500RM1UNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 500VA Rack-mountable UPS
Marketing Information	This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P

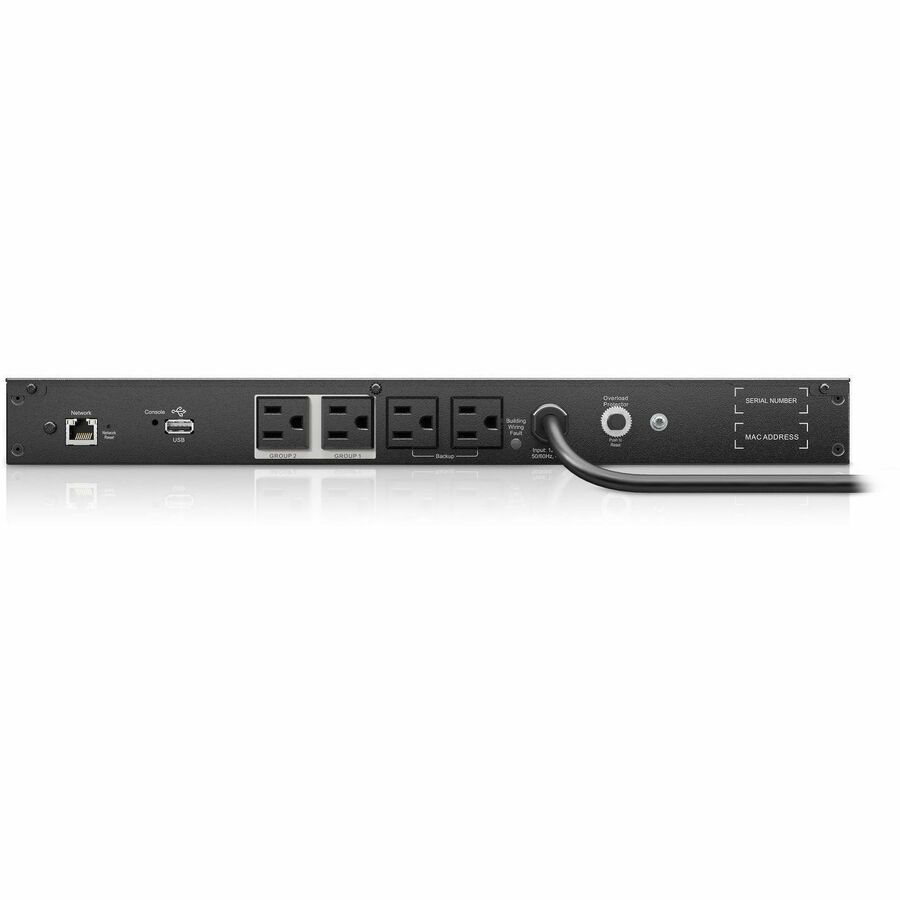

Receptacle Detail	4 x NEMA 5-15R
Number of Battery & Surge Outlets	4
Overload Protection	Yes
Cord Length	6 ft
Transfer Time	6 ms
Application/Usage	Server POS Terminal Router Switch Network Hub IT Equipment Network Device Business Storage System Critical System Security System Communication System

Power Description

Load Capacity (VA)	500 VA
Load Capacity (Watt)	400 W
Input Voltage	120 V
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	680 J

Management

Alarm

On Battery
Low Battery
Configurable Delay

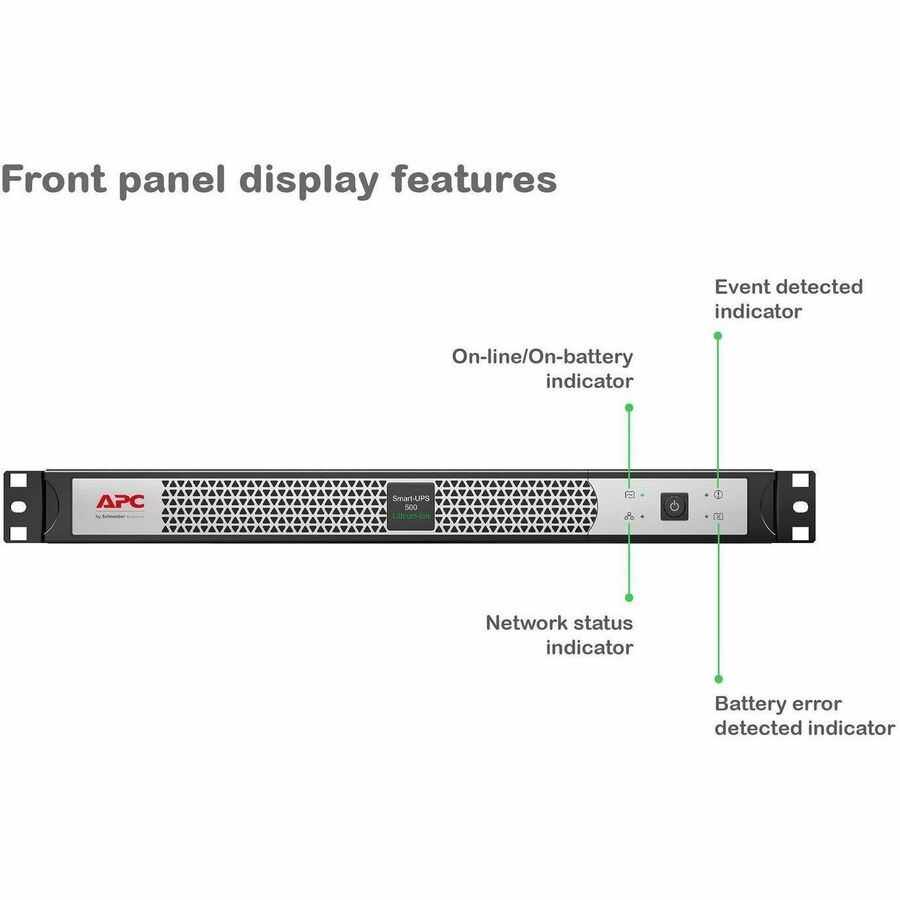

Controls/Indicators

Status Indicators

LED Status Display:

On Battery
On Line

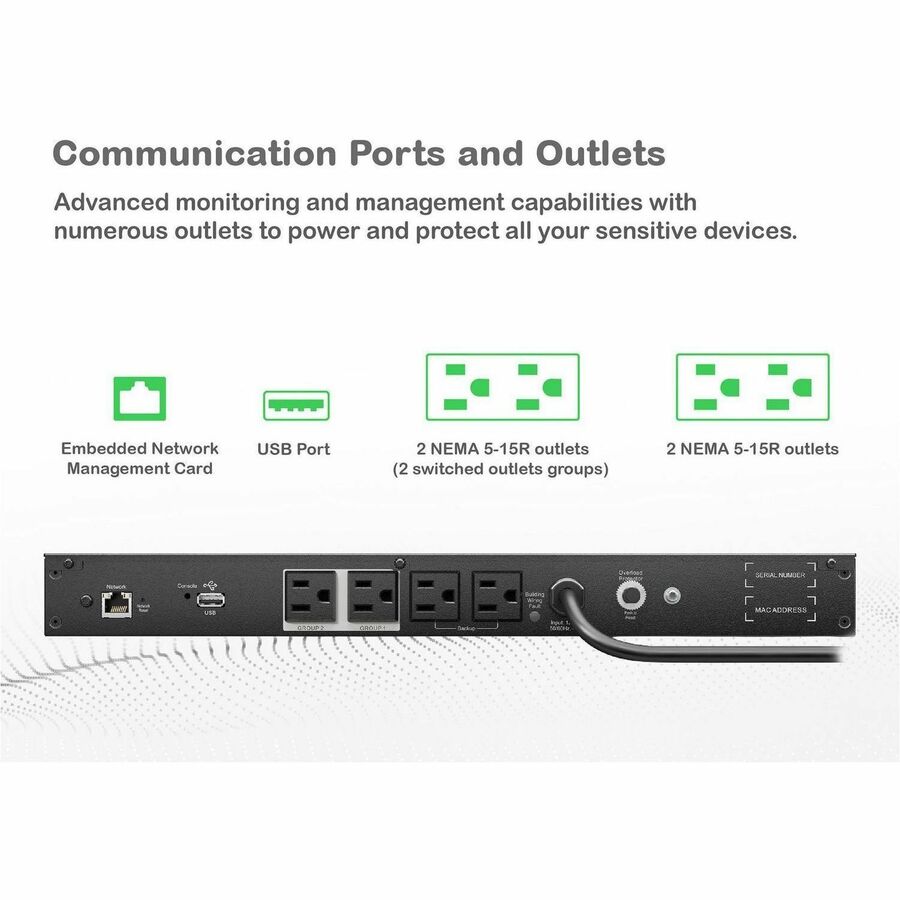

Interfaces/Ports

Serial Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	108 kJ

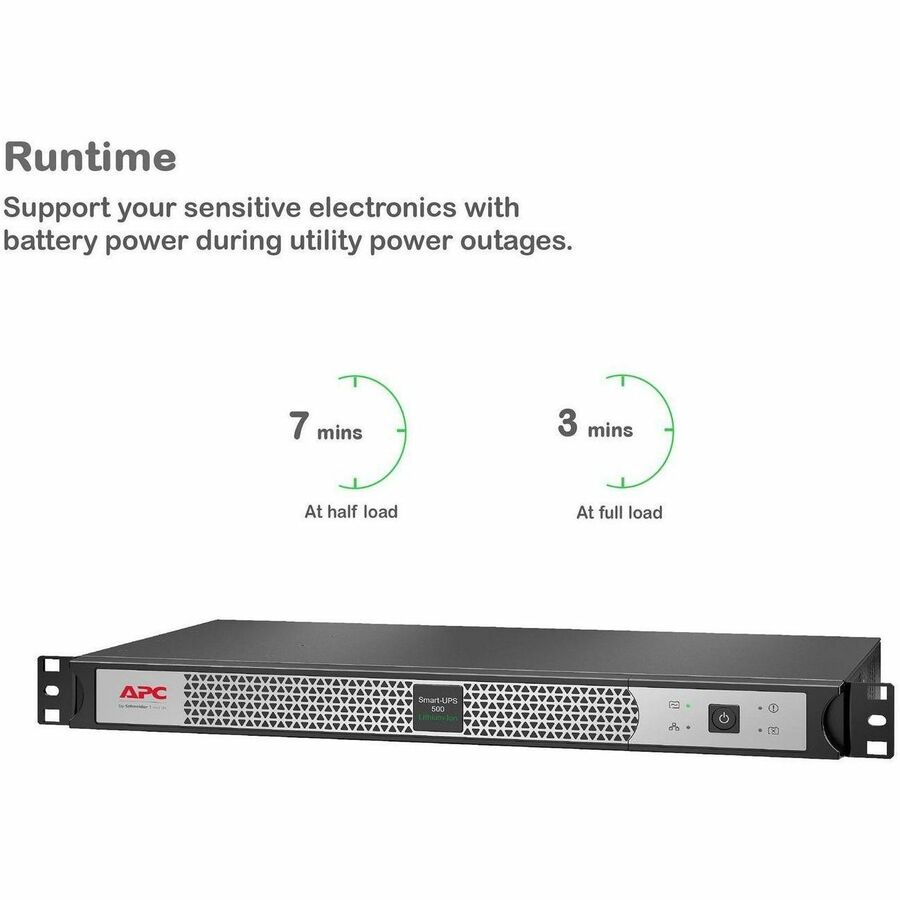

Backup/Run Time (Full Load)	2.70 Minute
Backup/Run Time (Half Load)	6.30 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	6561 ft
Maximum Storage Elevation	49212 ft
Sound Emission (A-Weighted)	45 dB(A)

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	1.7"
Width	17"
Depth	9.1"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	9.30 lb

Miscellaneous

Package Contents	Smart-UPS 500VA Rack-mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails USB cable
Certifications & Standards	cULus\|NOM
Software Included	Powerchute Serial Edition
Energy Star	Yes
Green Premium	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UNC_ROHS_DECLARATION&p_FileName=SCL500RM1UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500678&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500678&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace
Directly Connected Equipment Guarantee	150000 Lifetime
